5315-00-086-3393 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 8289282, 5315-00-086-3393, 00-086-3393, 5315000863393, 000863393
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 DEC 1967 | 00-086-3393 | 02378 ( KEY, MACHINE ) |

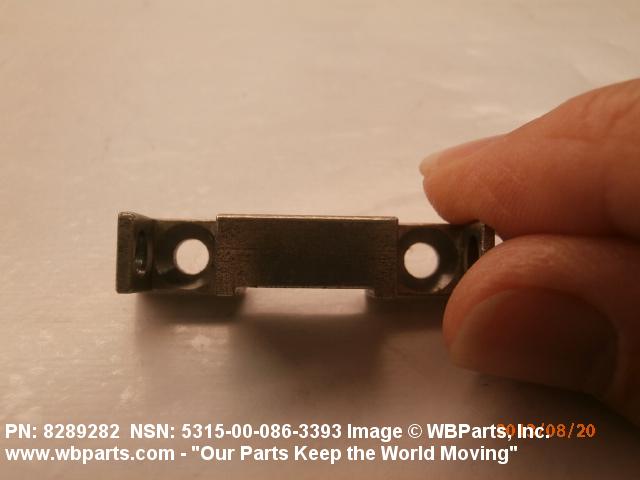

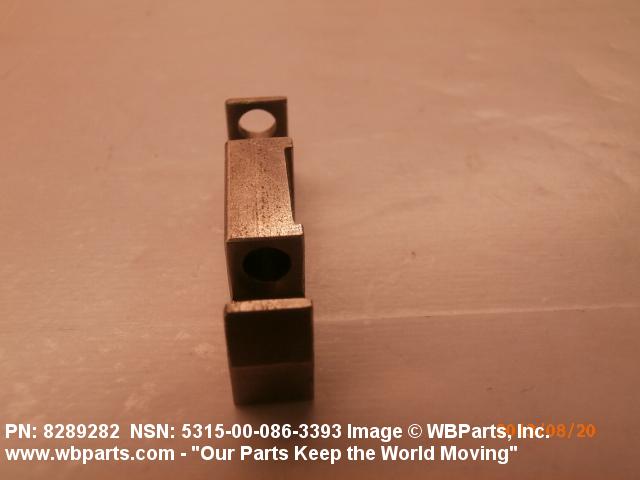

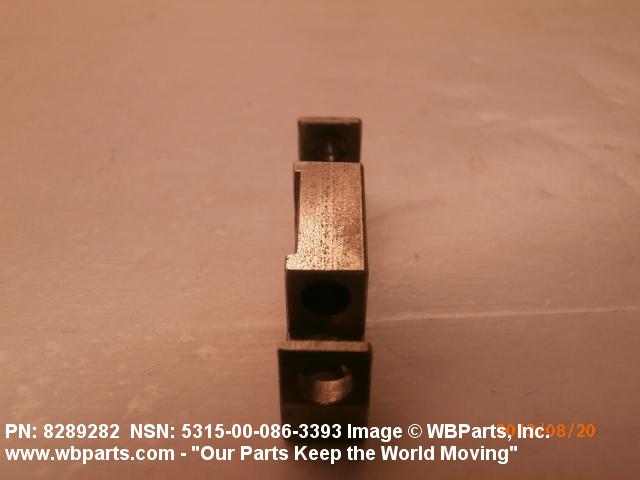

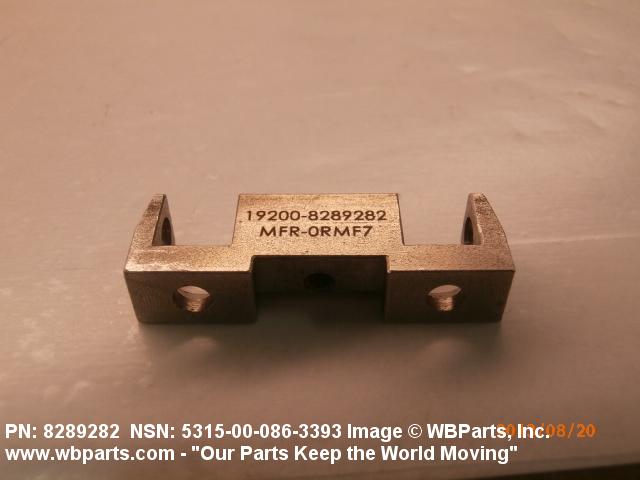

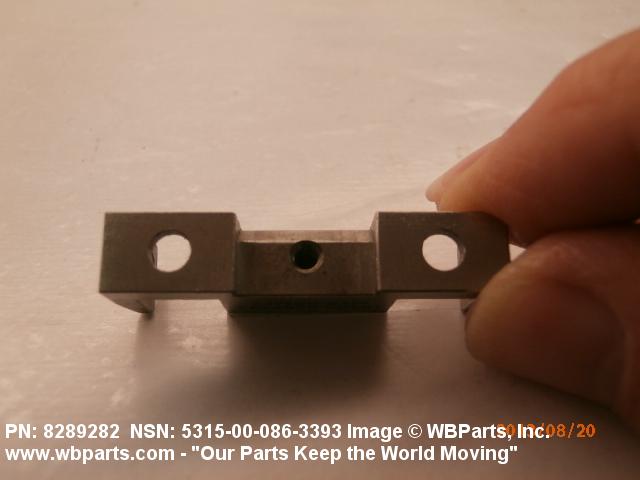

Drawings & Photos | NSN 5315-00-086-3393
Demand History | NSN 5315-00-086-3393
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-086-3393 | 2017-07-199 | 50 | US |
| 5315-00-086-3393 | 2014-06-164 | 5 | United States |
| 5315-00-086-3393 | 2013-11-326 | 53 | us |
| 5315-00-086-3393 | 2013-07-212 | 5 | United States |
| 5315-00-086-3393 | 2013-02-45 | 32 | DIBBS |
| 8289282 | 2013-02-39 | 100 | us |
| 5315-00-086-3393 | 2012-11-328 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-086-3393
Related Products | NSN 5315-00-086-3393
Technical Data | NSN 5315-00-086-3393
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| STYLE DESIGNATOR | B15 PLAIN |

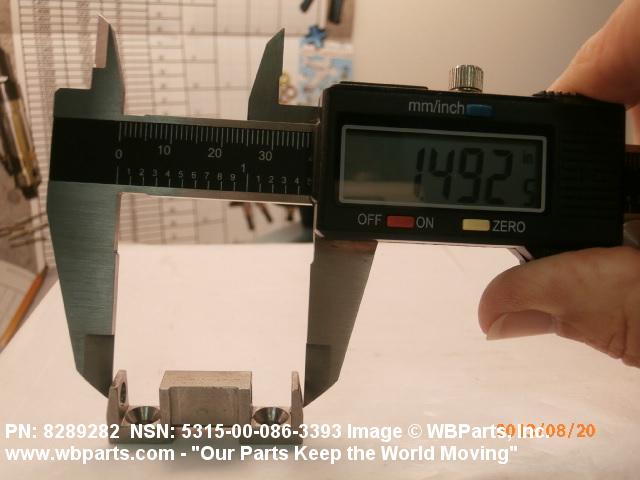

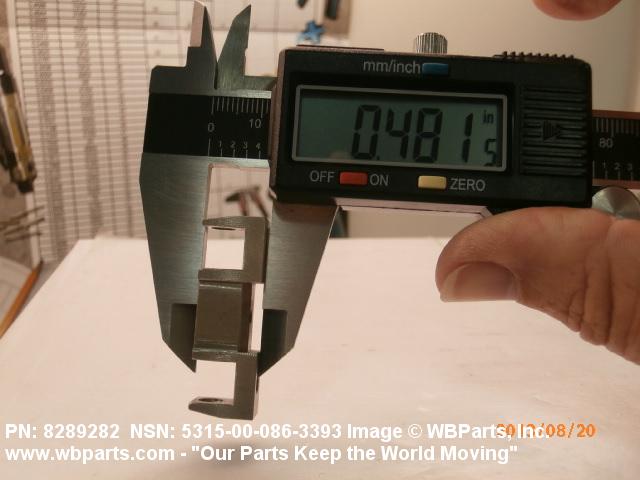

| OVERALL LENGTH | 1.4990 INCHES MINIMUM AND 1.4995 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.475 INCHES MINIMUM AND 0.485 INCHES MAXIMUM |

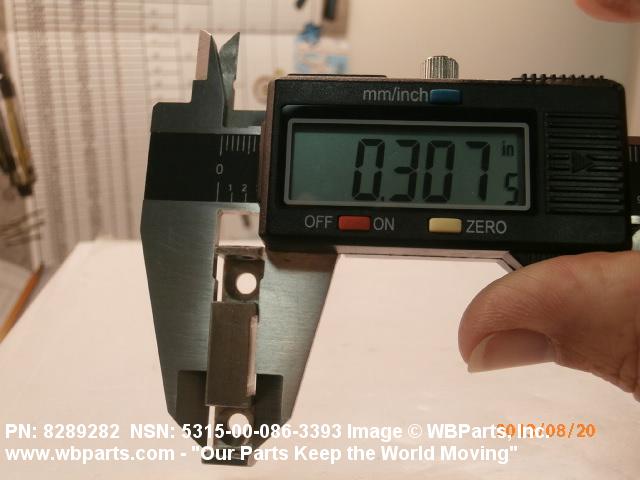

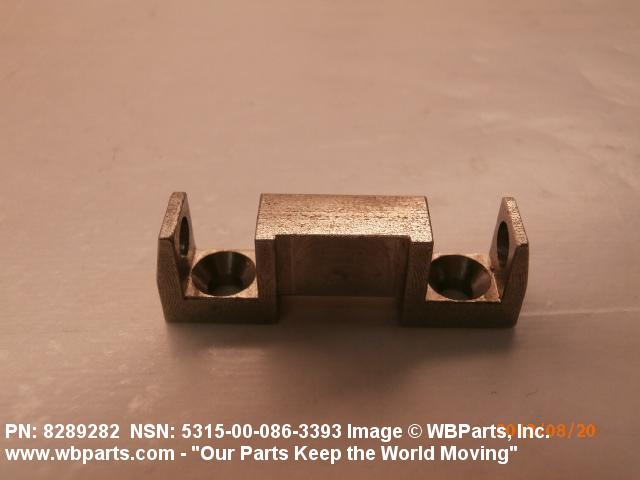

| OVERALL WIDTH | 0.302 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| MOUNTING HOLE TYPE AND QUANTITY | 2 UNTHREADED-COUNTERSUNK |
| MOUNTING HOLE DIAMETER | 0.284 INCHES MINIMUM AND 0.274 INCHES MAXIMUM |

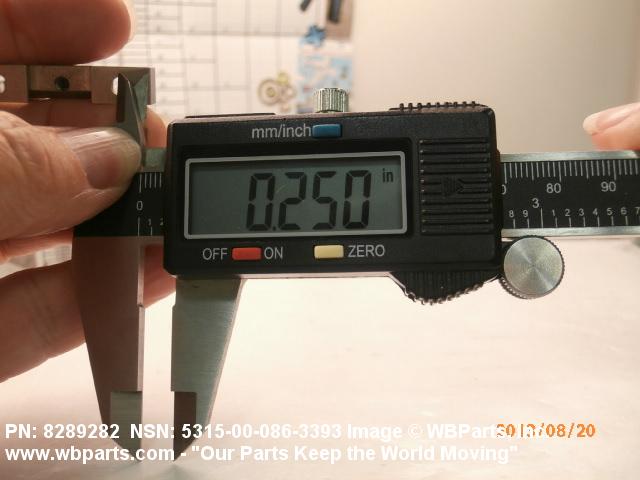

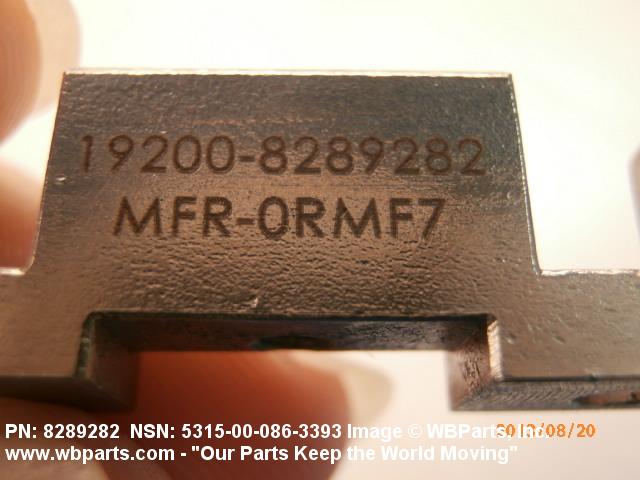

| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.250 INCHES NOMINAL AND 0.250 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.475 INCHES MINIMUM AND 0.485 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |
| COUNTERBORE DIAMETER | 0.306 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.305 INCHES MINIMUM AND 0.325 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| CRITICALITY CODE JUSTIFICATION | ABHP |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 8289282 |
