NSN 5315-00-067-9763 MS1655518, MS16555-18, 00-067-9763
Product Details | HEADLESS STRAIGHT PIN

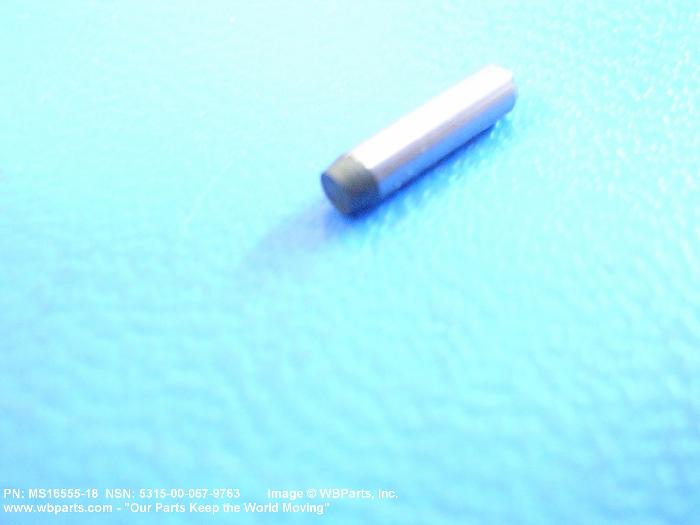

5315-00-067-9763 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS1655518, MS16555-18, 5315-00-067-9763, 00-067-9763, 5315000679763, 000679763
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-067-9763 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-00-067-9763
Demand History | NSN 5315-00-067-9763
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1655518 | 2023-04-96 | 10 | US |
| 5315-00-067-9763 | 2017-10-295 | 463 | DIBBS |
| MS16555-18 | 2017-01-11 | 64 | United Arab Emirates |
| 5315-00-067-9763 | 2012-06-181 | 23 | DIBBS |
| MS1655518 | 2012-01-05 | 1 | US |
| 5315-00-067-9763 | 2011-04-104 | 19 | DIBBS |
| 5315-00-067-9763 | 2011-03-80 | 8 | DIBBS |
| MS1655518 | 2010-05-144 | 75 | us |
| MS1655518 | 2008-10-275 | 4 | United States |
| 5315-00-067-9763 | 2008-06-171 | 2500 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-067-9763
Related Products | NSN 5315-00-067-9763
Technical Data | NSN 5315-00-067-9763
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A29 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 47.0 ROCKWELL C MINIMUM AND 58.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 1800 DOUBLE POUND |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.063 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.375 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.0930 INCHES MINIMUM AND 0.0940 INCHES MAXIMUM |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16555-18 |
