NSN 5315-00-067-7768 5134331, 513433-1, 00-067-7768
Product Details | THREADED STRAIGHT PIN
5315-00-067-7768 A headless, cylindrically-shaped item, having external threads at one end only. The threaded and plain portions are of one nominal diameter. Includes items having cotter pin hole(s) on either one or both ends. Its length must not exceed 12 inches (304 MM). It may have a recess drive feature. See also PIN, STRAIGHT, HEADLESS. Excludes STUD, WELDING; and SETSCREW.
Part Alternates: 5134331, 513433-1, 5315-00-067-7768, 00-067-7768, 5315000677768, 000677768
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-067-7768 | 16494 ( PIN, STRAIGHT, THREADED ) |
Drawings & Photos | NSN 5315-00-067-7768
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-067-7768
Technical Data | NSN 5315-00-067-7768
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |

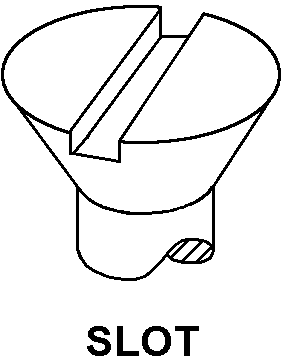

| INTERNAL DRIVE STYLE | 14 SLOT |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.180 INCHES NOMINAL |
| PIN OVERALL LENGTH | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.1060 INCHES MINIMUM AND 0.1120 INCHES MAXIMUM |
| PIN GRIP LENGTH | 0.190 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| MANUFACTURERS CODE | 64547 |
| DESIGN CONTROL REFERENCE | 513433-1 |
Restrictions/Controls & Freight Information | NSN 5315-00-067-7768
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-00-067-7768
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
