NSN 5315-00-066-9389 3940191, 394019-1, 00-066-9389
Product Details | MACHINE KEY
5315-00-066-9389 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 3940191, 394019-1, 5315-00-066-9389, 00-066-9389, 5315000669389, 000669389
Hardware and Abrasives | Nails, Machine Keys, and Pins
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 05 JUL 1967 | 00-066-9389 | 02378 ( KEY, MACHINE ) |
Demand History | NSN 5315-00-066-9389
Part Number | Request Date | QTY | Origin |
---|---|---|---|
394019-1 | 2019-06-174 | 115 | DIBBS |
5315-00-066-9389 | 2015-09-263 | 64 | DIBBS |
5315-00-066-9389 | 2015-06-167 | 57 | DIBBS |
5315-00-066-9389 | 2015-05-138 | 53 | DIBBS |
5315-00-066-9389 | 2014-12-337 | 15 | DIBBS |
5315-00-066-9389 | 2012-06-181 | 24 | DIBBS |
5315-00-066-9389 | 2012-05-131 | 25 | DIBBS |
5315-00-066-9389 | 2012-02-53 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-066-9389
Related Products | NSN 5315-00-066-9389
Technical Data | NSN 5315-00-066-9389
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 4130 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 COND F4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

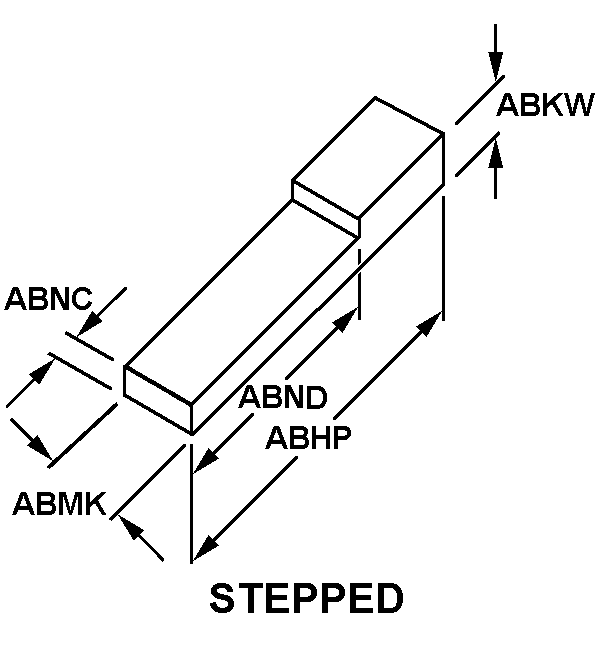

STYLE DESIGNATOR | B22 STEPPED |
OVERALL LENGTH | 0.920 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
OVERALL HEIGHT | 0.350 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
OVERALL WIDTH | 0.290 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
FIRST FLAT LENGTH | 0.860 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
FLAT HEIGHT | 0.090 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
MOUNTING HOLE TYPE AND QUANTITY | 1 PLAIN |
MOUNTING HOLE DIAMETER | 0.069 INCHES MINIMUM AND 0.074 INCHES MAXIMUM |
DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.090 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |
MOUNTING HOLE DEPTH | 0.090 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
STARTING EDGE SHAPE | STRAIGHT |
MANUFACTURERS CODE | 98897 |
DESIGN CONTROL REFERENCE | 394019-1 |
Restrictions/Controls & Freight Information | NSN 5315-00-066-9389
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 095190 | HARDWARE, NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-066-9389
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
