NSN 5315-00-058-9727 MS1652209, MS1652-209, MS16562209
Product Details | SPRING PIN
5315-00-058-9727 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS1652209, MS1652-209, MS16562209, MS16562-209, MS171492, MC2850, NAS561C34, NAS561C3-4, S-203, 790220940250, 79-022-094-0250, 79022094250, 79-022-094-250, S203, 1263C34, 1263C3-4, 2126316, 21263-16, 293MS007P013, 31816, 31838, 3301220033, 330-122-0033, 42P116995040, 42P11699-5040, 4913003-00, 4917326-00, 5315-00-058-9727, 50-094-0250, 00-058-9727, 5315000589727, 500940250, 000589727, 491732600, 491300300
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-058-9727 | 02389 ( PIN, SPRING ) |

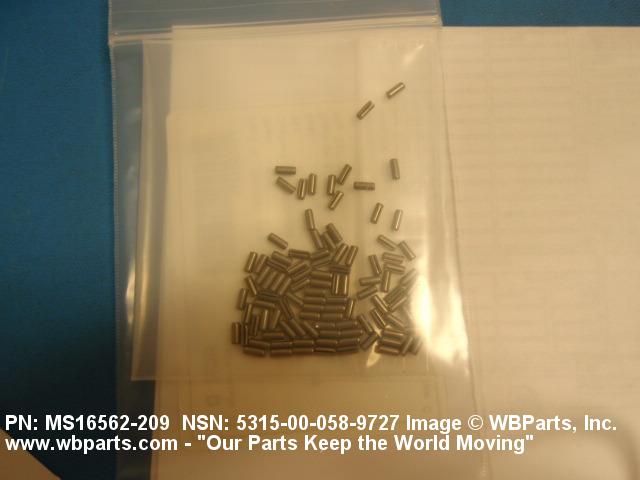

Drawings & Photos | NSN 5315-00-058-9727
Demand History | NSN 5315-00-058-9727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS171492 | 2023-03-66 | 110 | United States |
| MS16562209 | 2018-09-262 | 3000 | US |
| MS16562209 | 2018-09-262 | 5000 | US |
| 5315-00-058-9727 | 2018-05-150 | 2053 | DIBBS |
| 5315-00-058-9727 | 2018-01-30 | 25 | United States |
| 5315-00-058-9727 | 2018-01-17 | 259 | DIBBS |
| 5315-00-058-9727 | 2018-01-09 | 259 | DIBBS |
| NAS561C34 | 2017-04-109 | 240 | United States |
| NAS561C34 | 2017-04-109 | 360 | United States |
| NAS561C34 | 2017-04-109 | 480 | United States |
| NAS561C34 | 2016-06-158 | 100 | United States |
| 31816 | 2016-05-130 | 33 | US |
| 5315-00-058-9727 | 2015-07-208 | 2126 | DIBBS |
| 5315-00-058-9727 | 2015-07-196 | 2126 | DIBBS |
| 5315-00-058-9727 | 2015-02-43 | 256 | United States |
| MS171492 | 2014-07-189 | 150 | US |
| MS171492 | 2014-07-183 | 250 | United States |
| MS171492 | 2013-07-207 | 350 | US |
| MS171492 | 2013-01-29 | 300 | Pakistan |
| MS16562209 | 2012-10-284 | 20 | US |
| MS171492 | 2011-09-245 | 52 | United States |
| MS16562209 | 2011-06-154 | 5 | US |
| MS171492 | 2011-04-96 | 1000 | US |
| MS171492 | 2011-04-95 | 84 | US |
| MS16562209 | 2011-03-69 | 3 | United States |
| 5315-00-058-9727 | 2011-02-47 | 50 | TW |
| MS16562209 | 2011-01-19 | 500 | United States |
| MS16562209 | 2010-10-281 | 100 | Canada |
| MS171492 | 2010-06-159 | 2 | Canada |
| MS16562209 | 2010-05-146 | 10 | Taiwan |
| MS171492 | 2010-03-74 | 160 | Spain |
| MS16562209 | 2009-12-344 | 500 | United States |
| MS16562209 | 2009-12-341 | 500 | United States |
| 5315-00-058-9727 | 2009-10-278 | 50 | Singapore |
| MS16562209 | 2009-09-261 | 100 | United States |
| MS171492 | 2009-08-240 | 500 | US |
| MS171492 | 2009-08-226 | 400 | US |
| MS16562209 | 2009-08-223 | 500 | United States |
| MS16562209 | 2009-06-176 | 100 | us |
| MS171492 | 2009-06-153 | 500 | US |
| MS171492 | 2008-09-266 | 20 | Czech Republic |
| MS16562209 | 2008-09-263 | 50 | US |
| MS171492 | 2008-07-191 | 30 | Czech Republic |
| 5315-00-058-9727 | 2006-10-290 | 1500 | India |
Cross Reference | NSN 5315-00-058-9727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1263C3-4 | 72699 | GENERAL INSTRUMENT CORP CORPORATE HEADQUARTERS |
| 21263-16 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 293MS007P013 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 31816 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 31838 | 7U055 | CANYON ENGINEERING PRODUCTS, INC. |
| 330-122-0033 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 42P11699-5040 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 4913003-00 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 4913003-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 4917326-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 50-094-0250 | 73957 | GROOV-PIN CORPORATION |
| 79-022-094-0250 | 22599 | AMERACE CORP ESNA DIV |
| 79-022-094-0250 | 72962 | HARVARD INDUSTRIES INC |
| 79-022-094-250 | 72962 | HARVARD INDUSTRIES INC |
| MC2850 | 76050 | EATON AEROSPACE LLC M C AEROSPACE DIV |
| MS1652-209 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS16562-209 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-209 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS171492 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NAS561C3-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| S-203 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-058-9727
Related Products | NSN 5315-00-058-9727
Technical Data | NSN 5315-00-058-9727
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 1000 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |

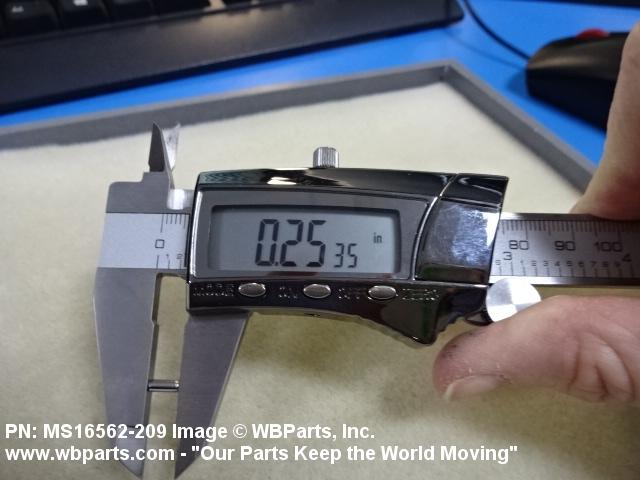

| OVERALL LENGTH | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |

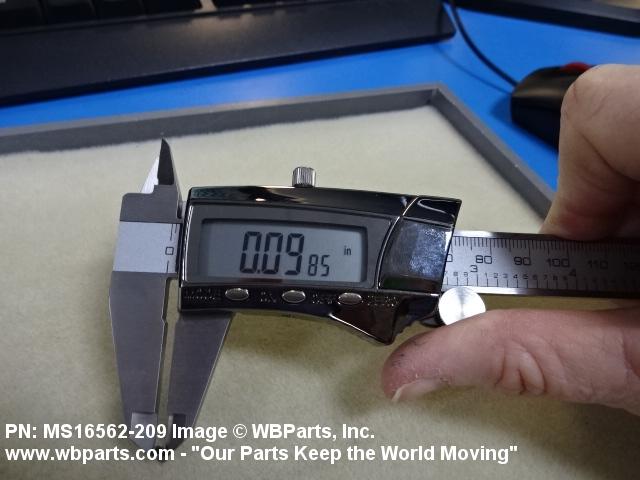

| DIAMETER | 0.099 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.022 INCHES NOMINAL |
| SURFACE FINISH | 80.0 MICROINCHES OUTSIDE DIAMETER |
Restrictions/Controls & Freight Information | NSN 5315-00-058-9727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-058-9727
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
