NSN 5315-00-020-5593 8173889, 00-020-5593, 000205593
Product Details | HEADED TOGGLE PIN
5315-00-020-5593 A headed cylindrically shaped item, having a solid unthreaded shank with a toggle action retainer, which holds the item in position when perpendicular to the shank. It is used for fastening and/or aligning purposes. The head may include gripping features such as a pull ring, integral hand grip or the like. See also PIN, TOGGLE, EYE COLLAR.
Part Alternates: 8173889, 5315-00-020-5593, 00-020-5593, 5315000205593, 000205593
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-020-5593 | 22810 ( PIN, TOGGLE, HEADED ) |

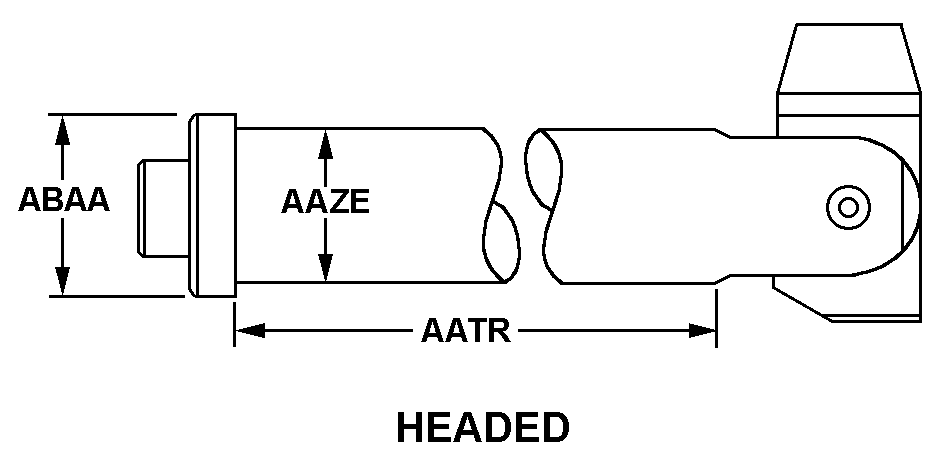

Drawings & Photos | NSN 5315-00-020-5593
Cross Reference | NSN 5315-00-020-5593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8173889 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-020-5593
Technical Data | NSN 5315-00-020-5593
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | N215 HEADED |
| SHANK LENGTH | 4.000 INCHES NOMINAL |
| SPECIAL FEATURES | HEXAGON HEAD AND TOGGLE HELD SECURE BY INTERNAL SPRING AND PIN |
Restrictions/Controls & Freight Information | NSN 5315-00-020-5593
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
