NSN 5315-00-014-9518 MS9164147, MS9164-147, S152G830625
Product Details | HEADLESS STRAIGHT PIN

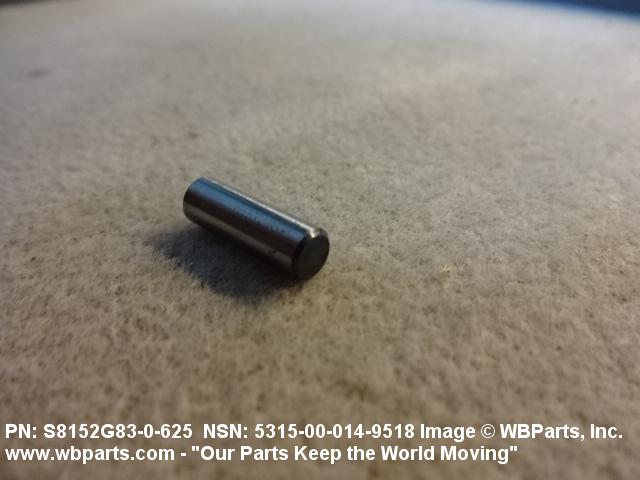

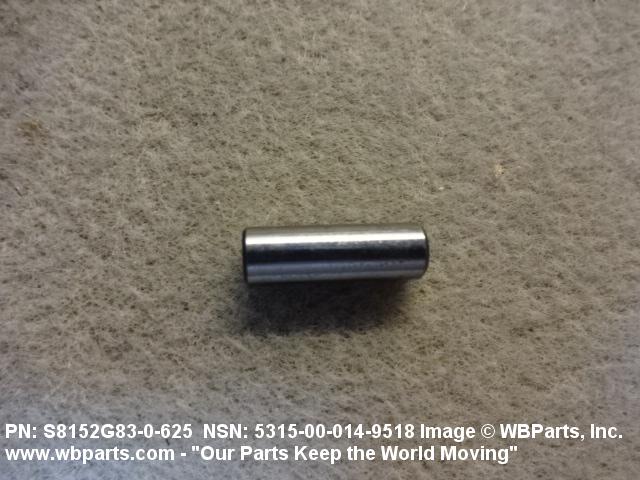

5315-00-014-9518 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS9164147, MS9164-147, S152G830625, S152G83-0-625, S8152G830625, S8152G83-0625, S8152G83-0-625, 5315-00-014-9518, 00-014-9518, 5315000149518, 000149518
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-014-9518 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

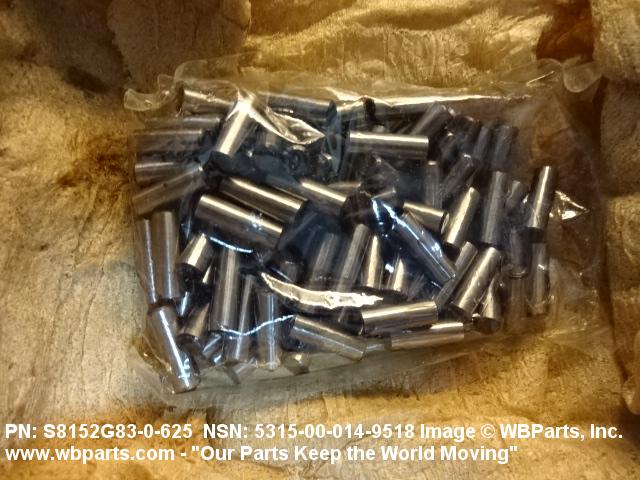

Drawings & Photos | NSN 5315-00-014-9518
Demand History | NSN 5315-00-014-9518
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-014-9518 | 2019-04-115 | 261 | United States |
| 5315-00-014-9518 | 2019-02-50 | 261 | DIBBS |
| 5315-00-014-9518 | 2019-02-38 | 261 | DIBBS |
| 5315-00-014-9518 | 2018-08-215 | 261 | DIBBS |
| 5315-00-014-9518 | 2018-07-207 | 261 | DIBBS |
| 5315-00-014-9518 | 2018-05-122 | 261 | DIBBS |
| 5315-00-014-9518 | 2018-04-114 | 261 | DIBBS |
| 5315-00-014-9518 | 2018-02-53 | 286 | DIBBS |
| 5315-00-014-9518 | 2018-02-45 | 286 | DIBBS |
| 5315-00-014-9518 | 2017-02-55 | 286 | DIBBS |
| 5315-00-014-9518 | 2017-02-48 | 286 | US |
| 5315-00-014-9518 | 2017-02-47 | 286 | DIBBS |
| 5315-00-014-9518 | 2016-04-92 | 332 | DIBBS |
| 5315-00-014-9518 | 2016-03-84 | 332 | DIBBS |
Cross Reference | NSN 5315-00-014-9518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9164-147 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S152G83-0-625 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8152G83-0-625 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8152G83-0-625 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| S8152G83-0-625 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| S8152G83-0625 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
