NSN 5315-00-013-7238 MS24665425, MS24665-425, MS24665428
Product Details | COTTER PIN
5315-00-013-7238 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: MS24665425, MS24665-425, MS24665428, MS24665-428, AN38057, AN380-5-7, H1004805, FFP386BANDTYPEB, 5730845, 8916K789, 91100581N, 119210, 137238, 5315-00-013-7238, 00-013-7238, 5315000137238, 000137238
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-013-7238 | 02381 ( PIN, COTTER ) |

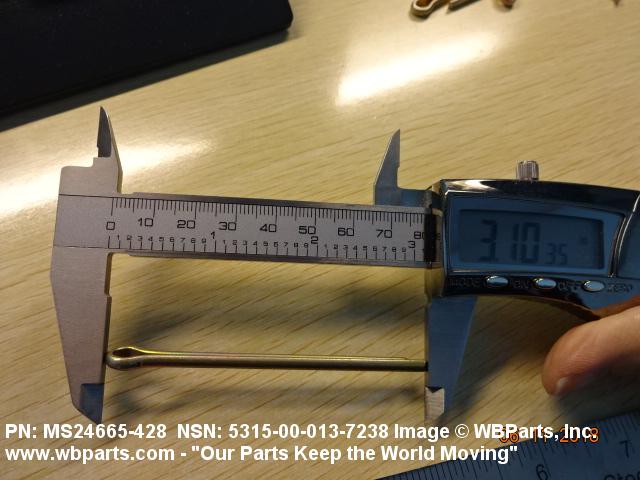

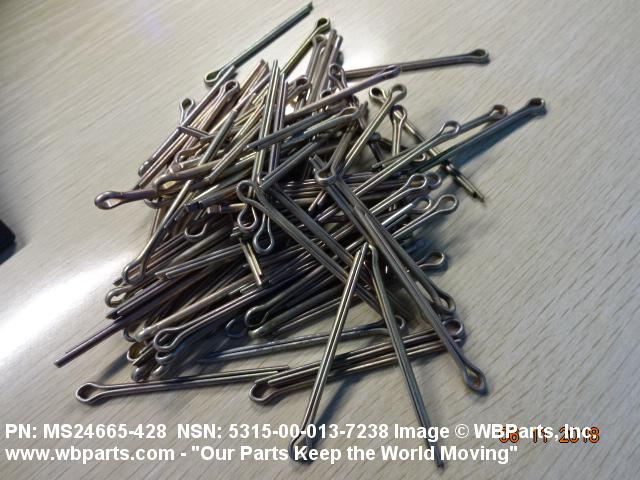

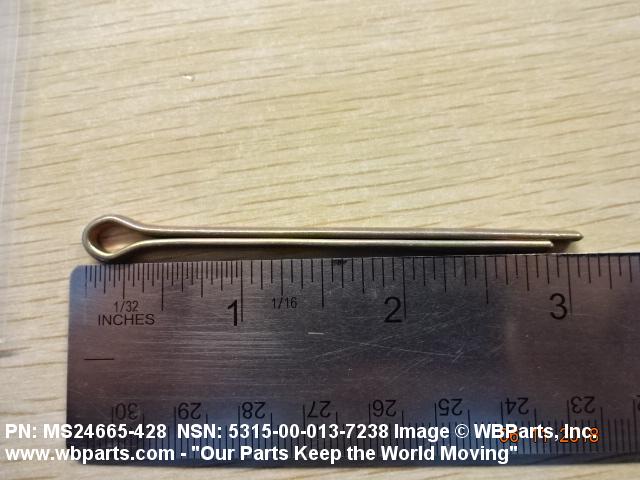

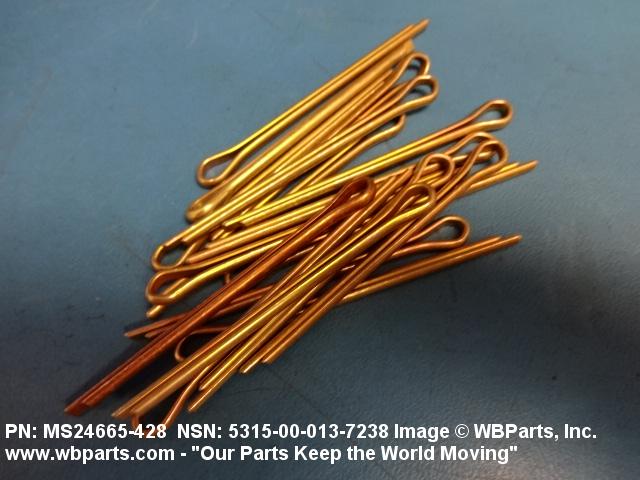

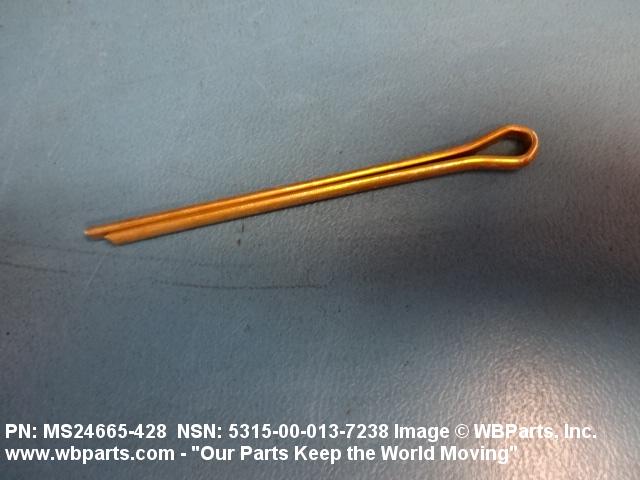

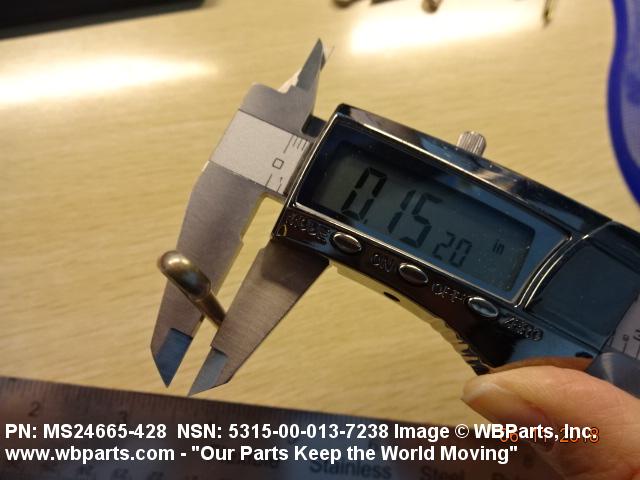

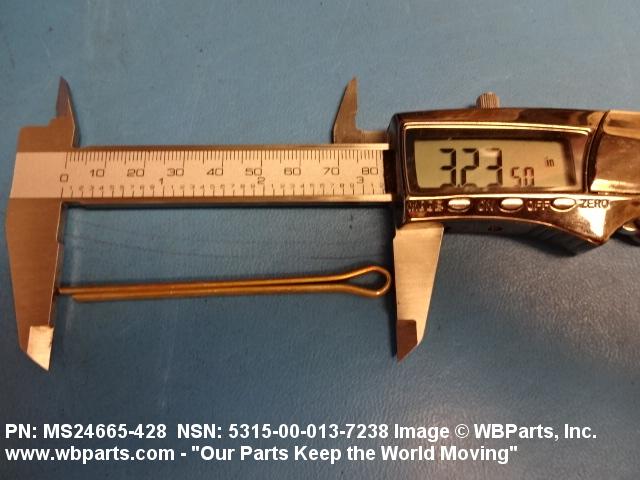

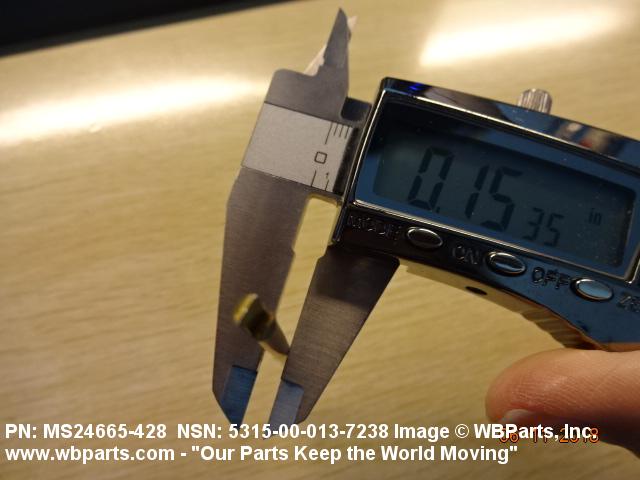

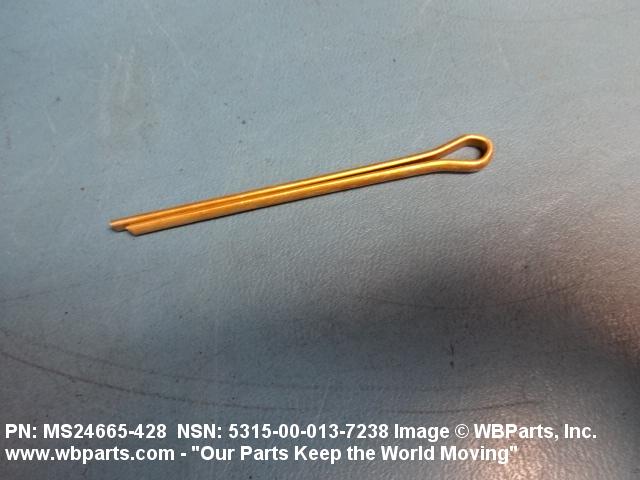

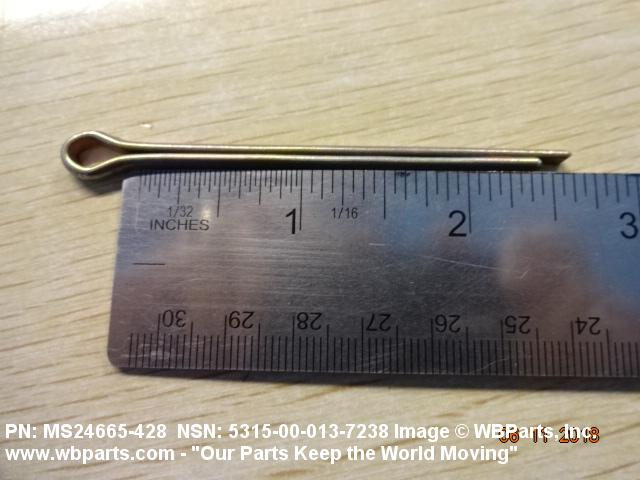

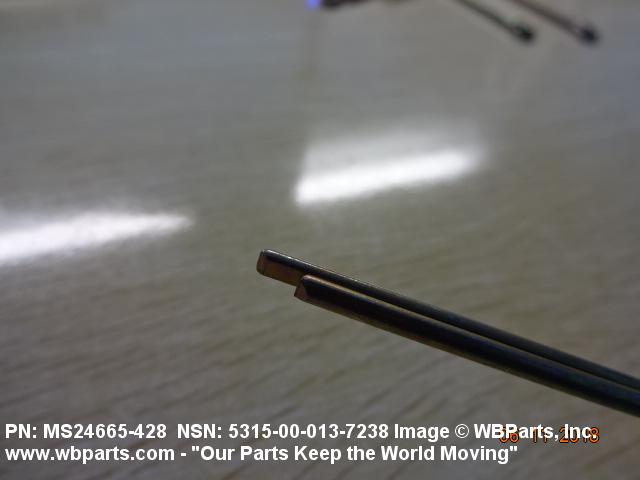

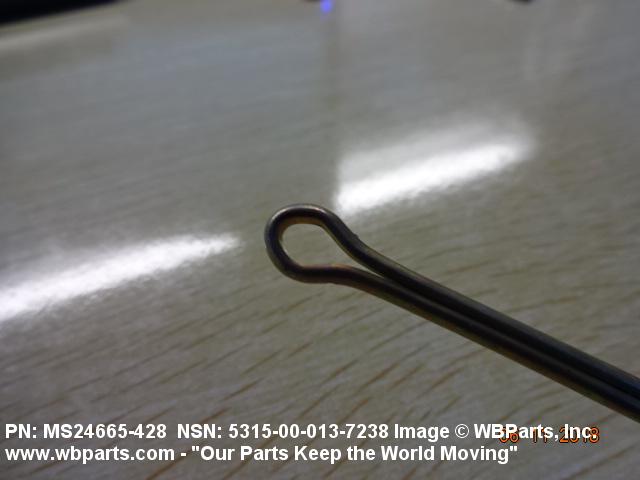

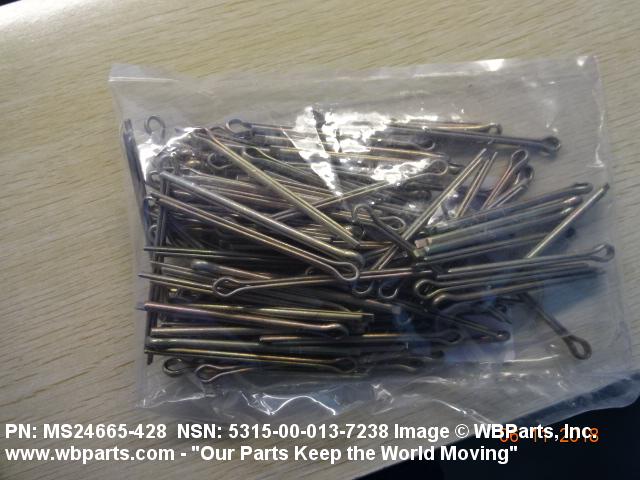

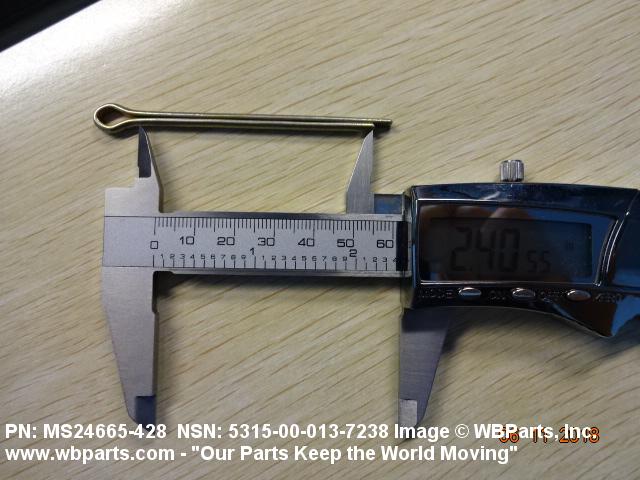

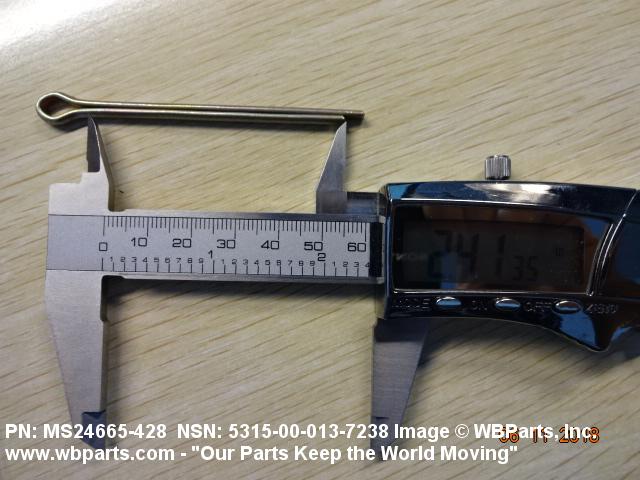

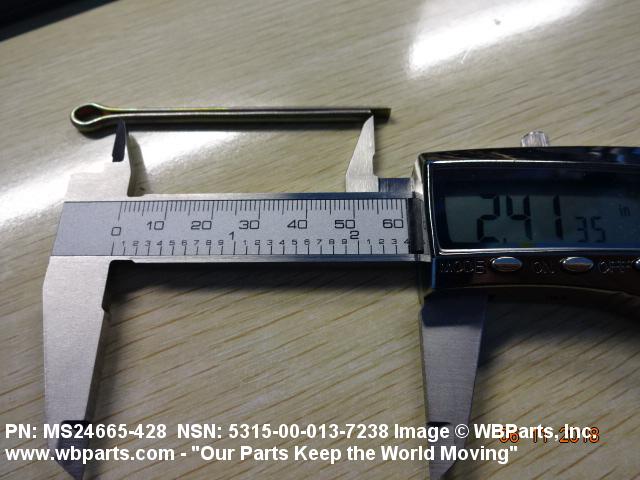

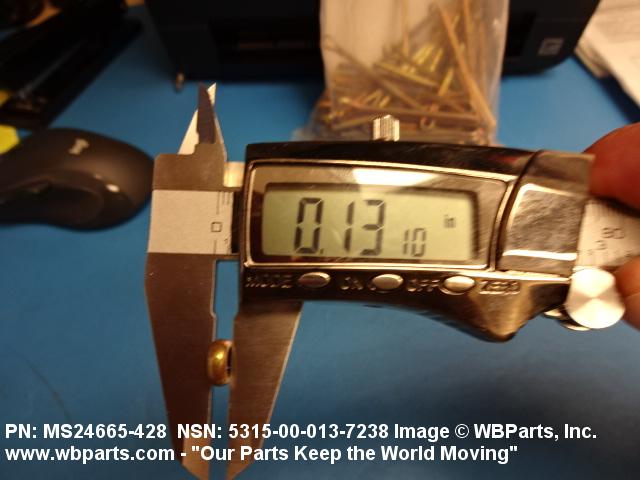

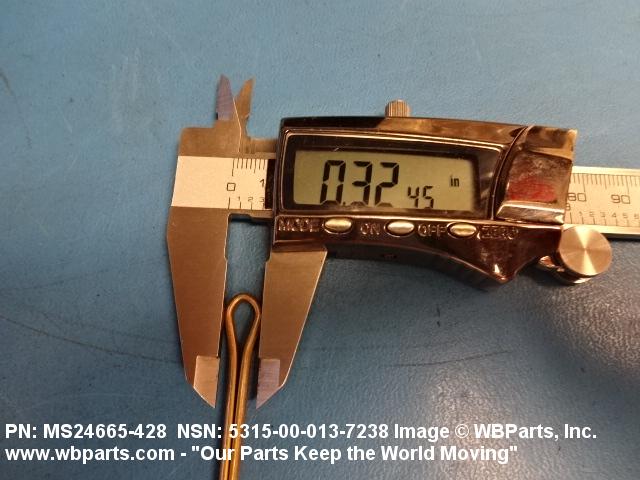

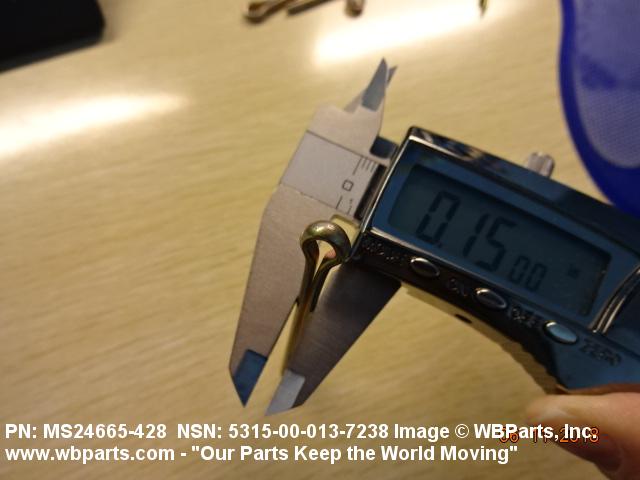

Drawings & Photos | NSN 5315-00-013-7238
Demand History | NSN 5315-00-013-7238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24665-428 | 2020-05-147 | 1000 | US |
| MS24665-428 | 2020-05-147 | 1000 | US |
| MS24665428 | 2020-02-35 | 50 | SG |
| 5315-00-013-7238 | 2018-11-334 | 5604 | DIBBS |
| 5315-00-013-7238 | 2018-11-326 | 5604 | DIBBS |
| MS24665428 | 2018-05-124 | 100 | AF |
| 5315-00-013-7238 | 2018-02-43 | 5604 | DIBBS |
| 5315-00-013-7238 | 2018-02-35 | 5604 | DIBBS |
| 5315-00-013-7238 | 2018-01-29 | 2 | DIBBS-KIT |
| MS24665-425 | 2018-01-29 | 2 | |
| MS24665428 | 2015-04-120 | 50 | Ecuador |
| MS24665-428 | 2012-07-187 | 200 | KR |
| MS24665425 | 2011-11-308 | 50 | United States |
| MS24665428 | 2011-01-14 | 200 | Indonesia |
| 5315-00-013-7238 | 2009-06-173 | 8 | US |
| 5315-00-013-7238 | 2009-01-16 | 265 | DIBBS |
| 5315-00-013-7238 | 2008-09-253 | 105 | us |
| MS24665425 | 2008-08-238 | 900 | US |
Cross Reference | NSN 5315-00-013-7238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 119210 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 137238 | 24617 | GENERAL MOTORS CORP |
| 137238 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 5315000137238 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5730845 | 34623 | AM GENERAL, LLC |
| 91100581N | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN380-5-7 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FFP386BANDTYPEB | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| H1004805 | 52304 | DANA COMMERCIAL VEHICLE PRODUCTS, LLC |
| MS24665-425 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-425 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24665-428 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-013-7238
Related Products | NSN 5315-00-013-7238
Technical Data | NSN 5315-00-013-7238
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM E30 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 STANDARD |
| DIAMETER | 0.146 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| UNDERLOOP LENGTH | 1.625 INCHES MINIMUM AND 1.875 INCHES MAXIMUM |
| POINT TYPE | EXTENDED PRONG SQUARE CUT |
| NONDEFINITIVE SPEC/STD DATA | B TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFP386BANDTYPEB |
Restrictions/Controls & Freight Information | NSN 5315-00-013-7238
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-013-7238
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
