NSN 5310-01-593-6694 BACN11N6CS, 01-593-6694, 015936694
Product Details | HEX CASTELLATED SELF-LOCKING NUT
5310-01-593-6694 A nut having 6 flat sides, flat on the bottom and having a slotted cylindrical or dome shaped upper portion. An integral feature is incorporated for locking on the threads of a mating member. The slots when used in conjunction with a solid or split (cotter) pin, act as an extra "fail safe" feature in critical applications. Excludes NUT (1), SELF-LOCKING, SLOTTED, HEXAGON.
Part Alternates: BACN11N6CS, 5310-01-593-6694, 01-593-6694, 5310015936694, 015936694
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 2011 | 01-593-6694 | 29725 ( NUT, SELF-LOCKING, CASTELLATED, HEXAGON ) |

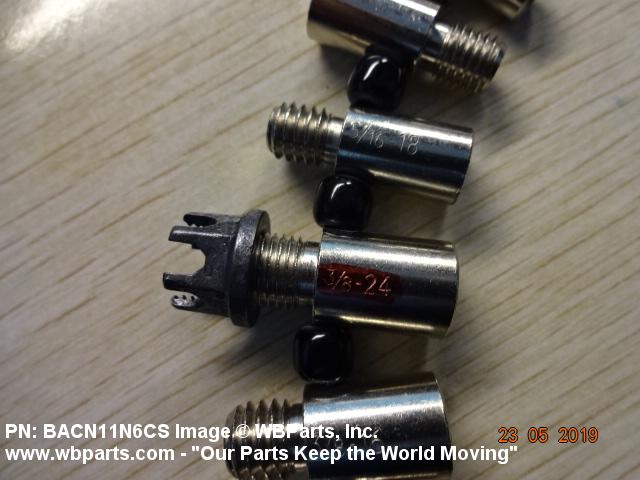

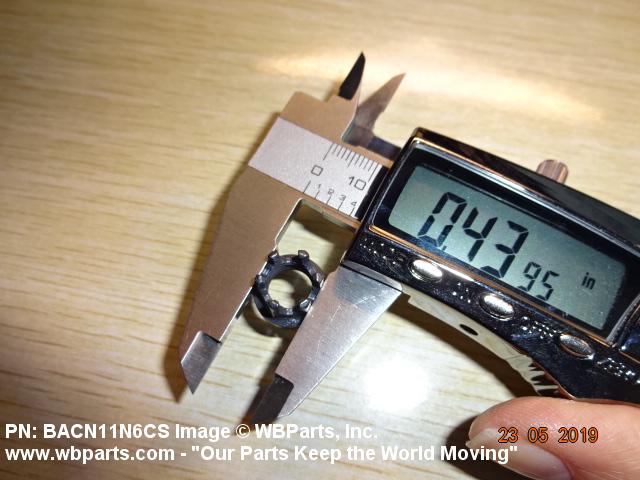

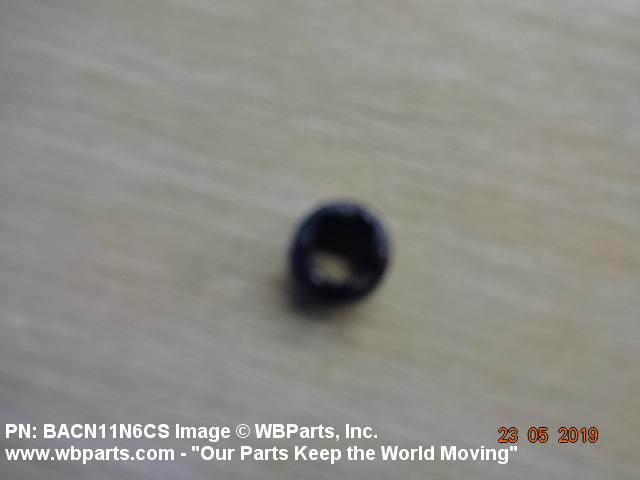

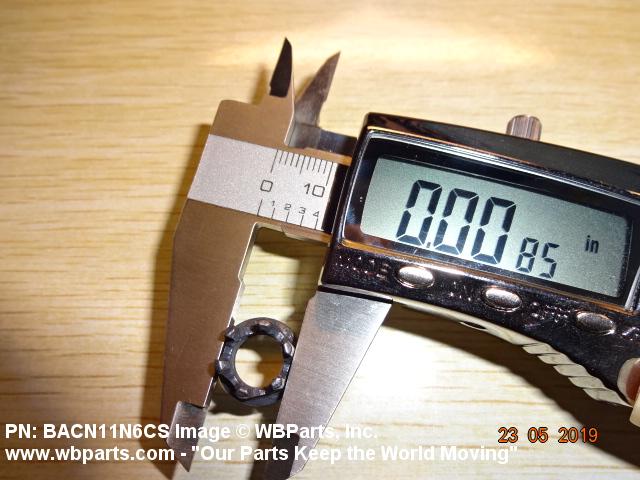

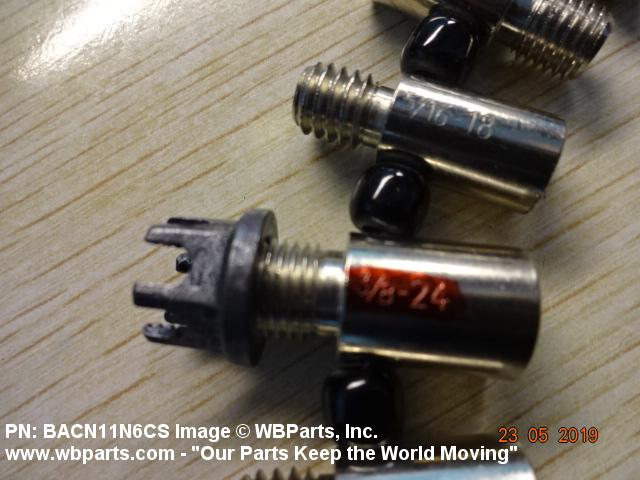

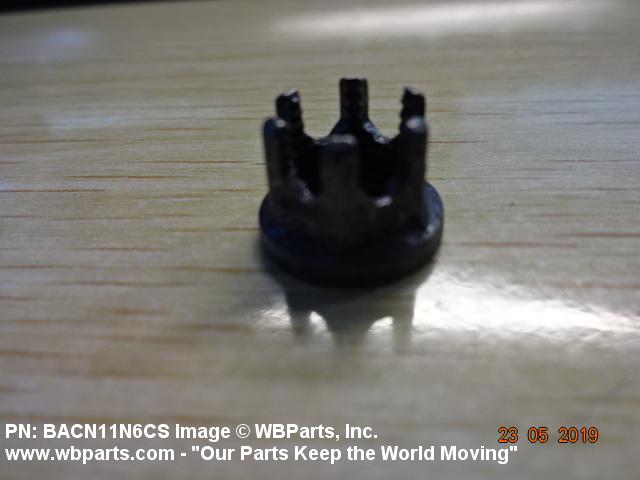

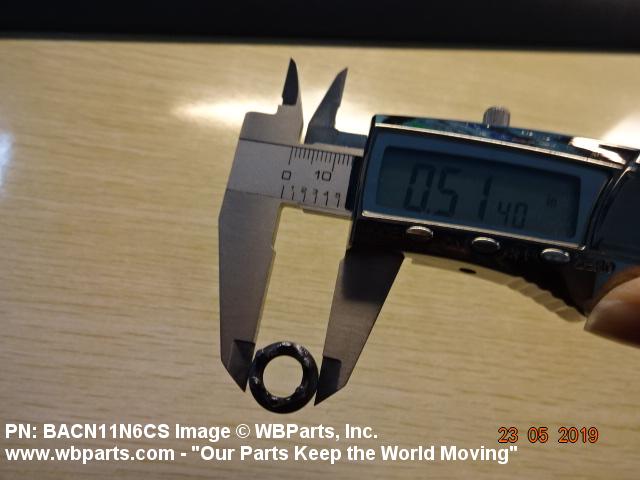

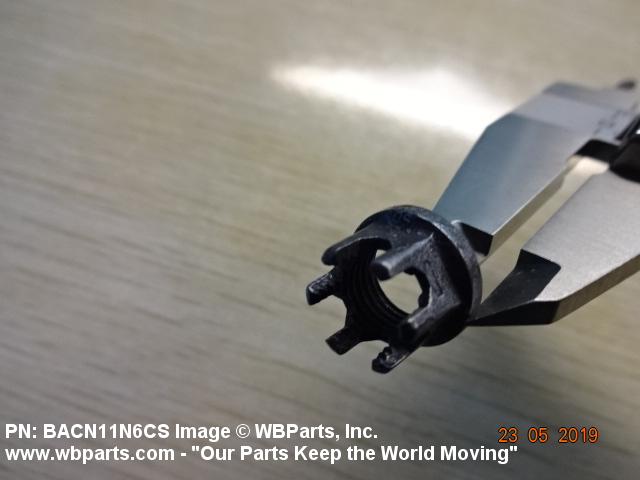

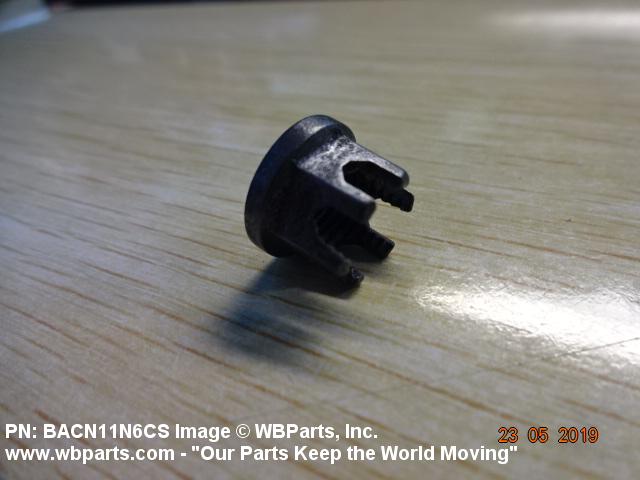

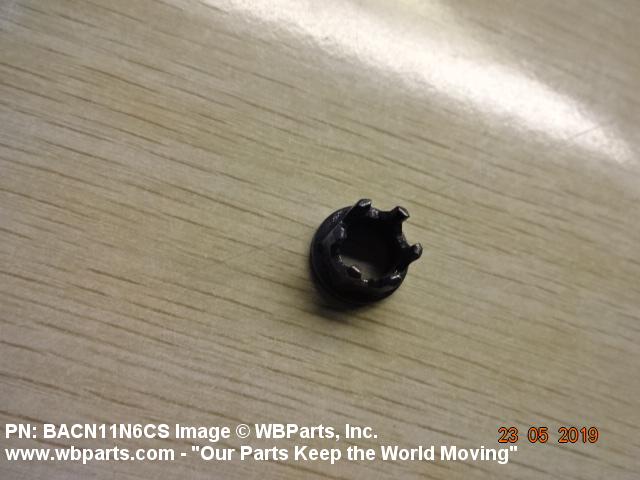

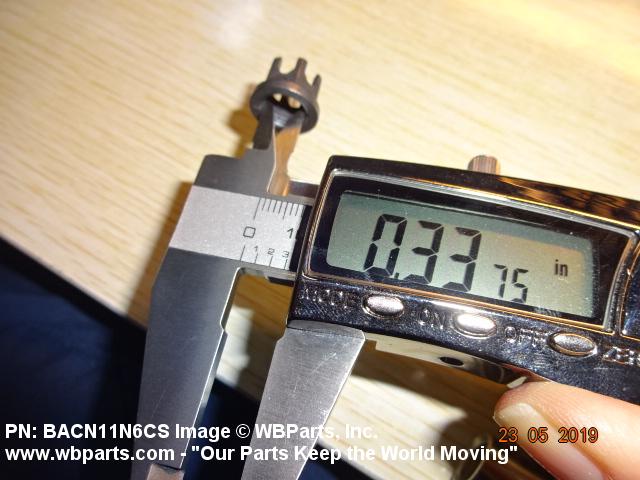

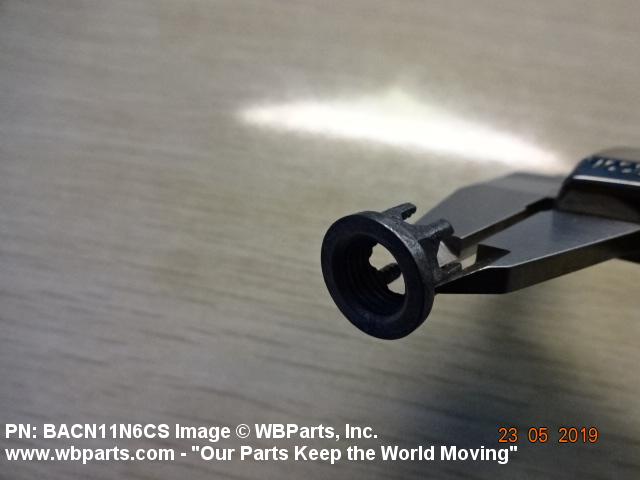

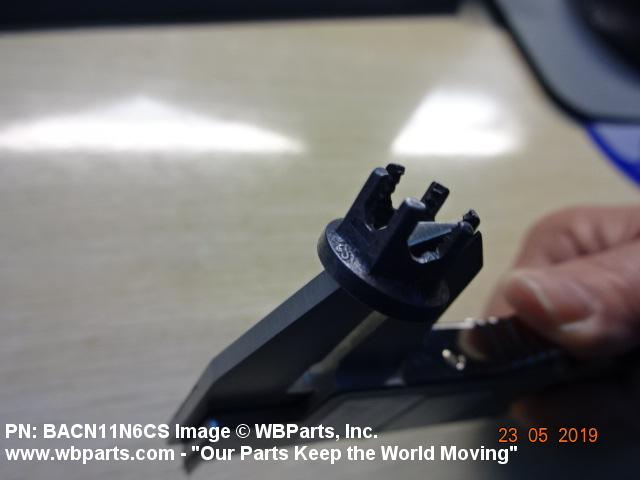

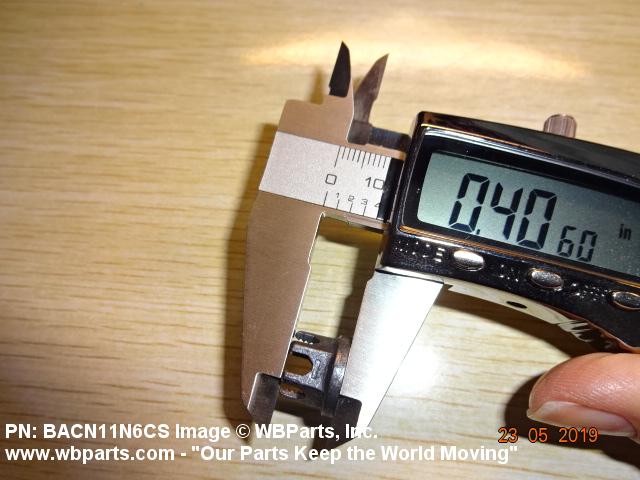

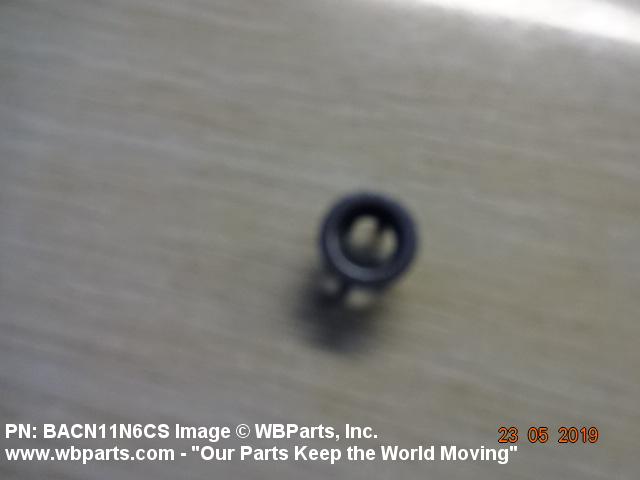

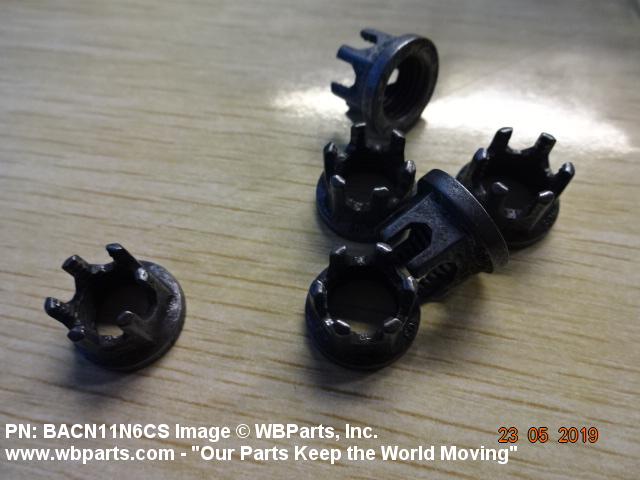

Drawings & Photos | NSN 5310-01-593-6694
Demand History | NSN 5310-01-593-6694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN11N6CS | 2019-10-301 | 140 | United States |
| BACN11N6CS | 2019-08-224 | 100 | United States |
| BACN11N6CS | 2019-05-135 | 350 | United States |
| 5310-01-593-6694 | 2016-11-325 | 52 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-593-6694
Technical Data | NSN 5310-01-593-6694
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| NUT STYLE | CASTELLATED, HEXAGON |
| NUT HEIGHT | 0.391 INCHES MINIMUM AND |
| WIDTH ACROSS FLATS | 0.429 INCHES MINIMUM AND |
| BEARING SURFACE TYPE | FLAT |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
Restrictions/Controls & Freight Information | NSN 5310-01-593-6694
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
