Product Details | RETAINER PLATE NUT ASSEMBLY

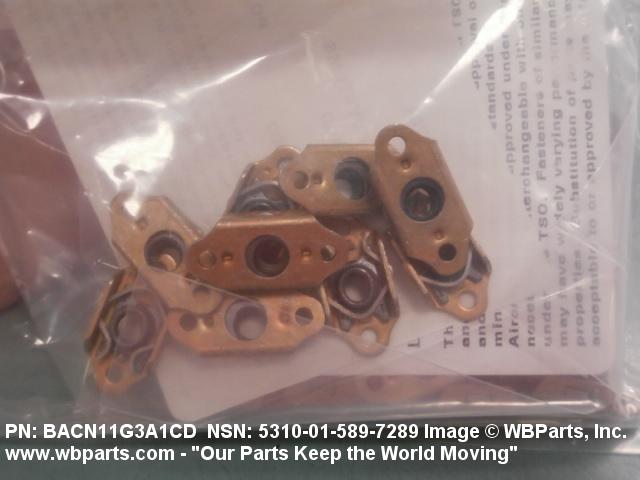

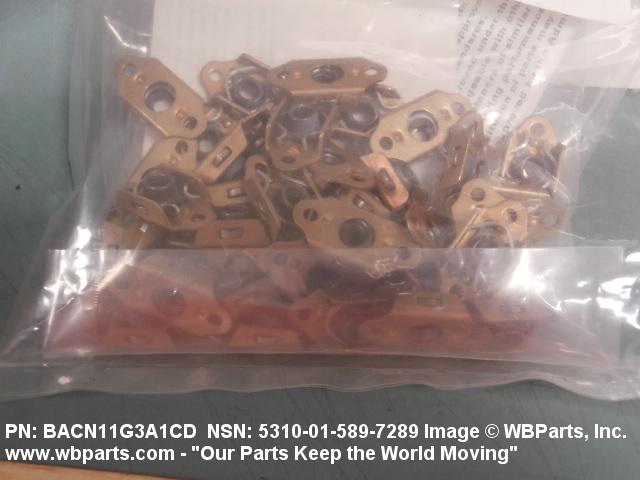

5310-01-589-7289 A square or rectangular flat metal plate upon which replaceable nuts are assembled in predetermined spacing. The plate has a centrally located hole.
Part Alternates: BACN11G3A1CD, 5310-01-589-7289, 01-589-7289, 5310015897289, 015897289
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 2010 | 01-589-7289 | 16006 ( NUT ASSEMBLY, RETAINER PLATE ) |
Drawings & Photos | NSN 5310-01-589-7289
Demand History | NSN 5310-01-589-7289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN11G3A1CD | 2023-12-339 | 12 | US |
| BACN11G3A1CD | 2023-05-144 | 50 | United States |
| BACN11G3A1CD | 2021-07-187 | 60 | South Korea |
| BACN11G3A1CD | 2020-11-317 | 40 | United States |
| 5310-01-589-7289 | 2020-07-203 | 100 | United States |
| BACN11G3A1CD | 2020-06-161 | 325 | United States |
| BACN11G3A1CD | 2019-12-354 | 200 | United States |
| BACN11G3A1CD | 2019-08-242 | 200 | United States |
| BACN11G3A1CD | 2018-04-115 | 115 | United States |
| 5310-01-589-7289 | 2018-04-107 | 115 | United States |
| BACN11G3A1CD | 2017-09-263 | 322 | US |
| 5310-01-589-7289 | 2017-04-110 | 104 | DIBBS |
| BACN11G3A1CD | 2017-01-26 | 100 | United States |
| BACN11G3A1CD | 2017-01-26 | 100 | United States |
| 5310-01-589-7289 | 2017-01-11 | 200 | United States |
| BACN11G3A1CD | 2016-12-351 | 25 | United States |
| BACN11G3A1CD | 2016-12-351 | 50 | United States |
| BACN11G3A1CD | 2016-12-351 | 100 | United States |
| BACN11G3A1CD | 2016-12-351 | 500 | United States |
| 5310-01-589-7289 | 2016-06-180 | 115 | DIBBS |
| BACN11G3A1CD | 2015-11-306 | 104 | United States |
| 5310-01-589-7289 | 2015-09-267 | 84 | DIBBS |
| 5310-01-589-7289 | 2015-05-148 | 84 | DIBBS |
| 5310-01-589-7289 | 2014-12-344 | 84 | DIBBS |
| BACN11G3A1CD | 2014-04-101 | 50 | United States |
| BACN11G3A1CD | 2013-10-294 | 18 | US |
| BACN11G3A1CD | 2013-10-294 | 18 | US |
| BACN11G3A1CD | 2013-10-283 | 1632 | US |
| BACN11G3A1CD | 2012-11-318 | 10 | US |
| BACN11G3A1CD | 2009-12-335 | 5040 | US |
| BACN11G3A1CD | 2008-05-141 | 45 | US |
| BACN11G3A1CD | 2008-04-100 | 100 | United States |
| BACN11G3A1CD | 2007-10-285 | 100 | US |
| BACN11G3A1CD | 2007-07-198 | 200 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-589-7289
Related Products | NSN 5310-01-589-7289
Technical Data | NSN 5310-01-589-7289
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 NUT |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE NUT OR AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE NUT OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | NAS 1795 ASSN STD SINGLE MATERIAL RESPONSE CLIP |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| SURFACE TREATMENT | CADMIUM NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| THREAD QUANTITY PER INCH | 32 |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE SHELL |
| THREAD SERIES | UNJF |

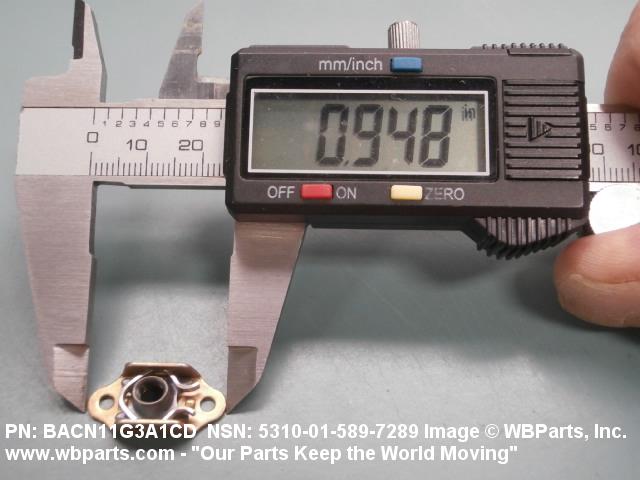

| NUT LENGTH | 0.948 INCHES MAXIMUM |
| SURFACE TREATMENT | PASSIVATE CLIP |
| MATERIAL | IRON ALLOY 660 SHELL |

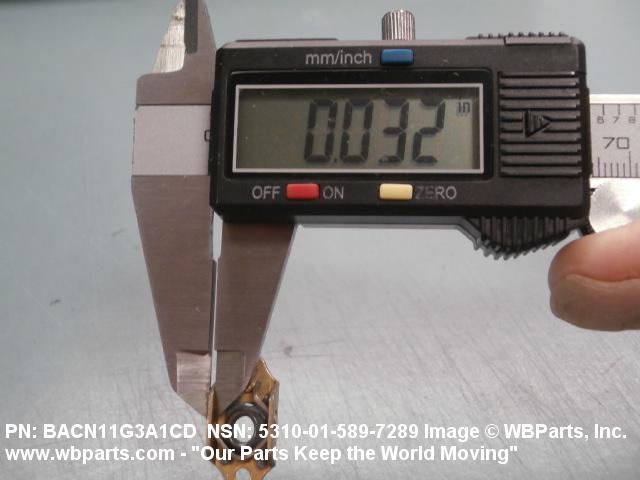

| PLATE THICKNESS | 0.032 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 CLIP |

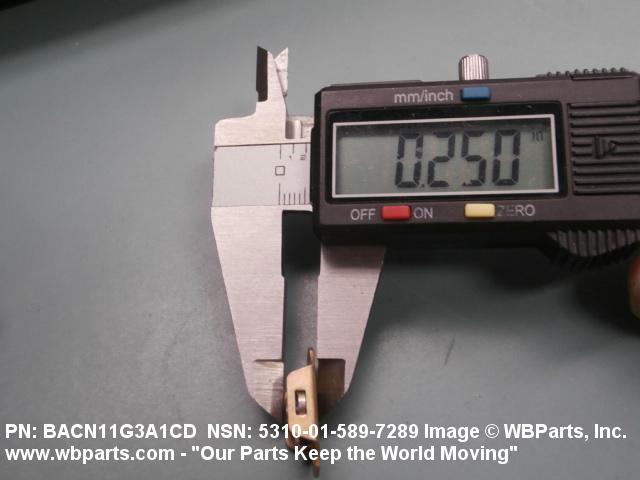

| NUT HEIGHT | 0.250 INCHES NOMINAL |
| SURFACE TREATMENT | CADMIUM SHELL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS 1795 ASSN STD SINGLE TREATMENT RESPONSE CLIP OR AMS 2700 ASSN STD SINGLE TREATMENT RESPONSE CLIP |

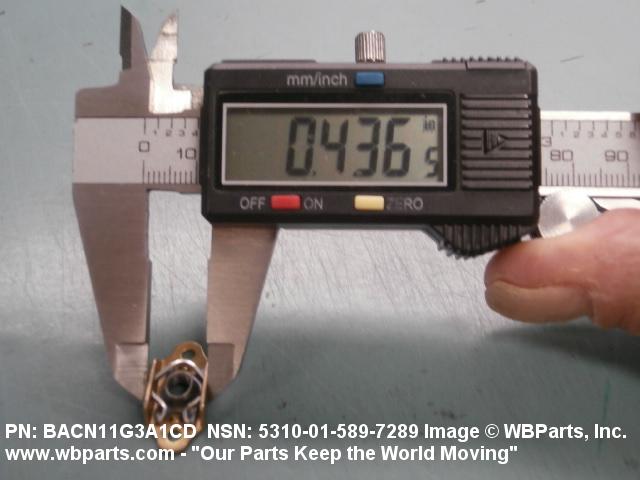

| PLATE WIDTH | 0.445 INCHES MAXIMUM |
