NSN 5310-01-589-0686 MS17829Z18C, 180706912322, 180-7069123-22
Product Details | HEXAGON SELF-LOCKING NUT
5310-01-589-0686 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Part Alternates: MS17829Z18C, 180706912322, 180-7069123-22, 5310-01-589-0686, 01-589-0686, 5310015890686, 015890686
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 OCT 2010 | 01-589-0686 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |

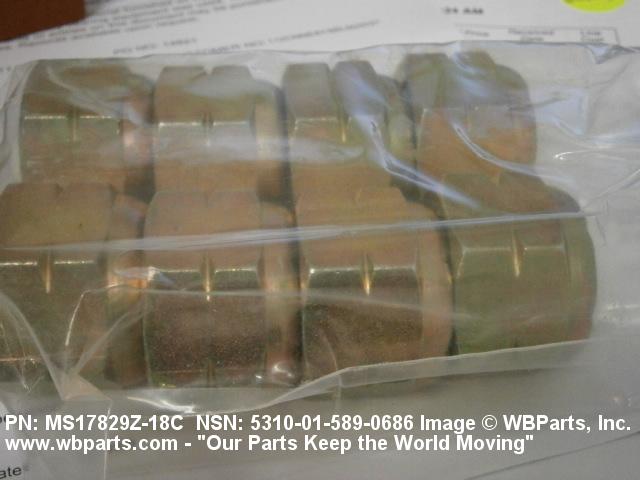

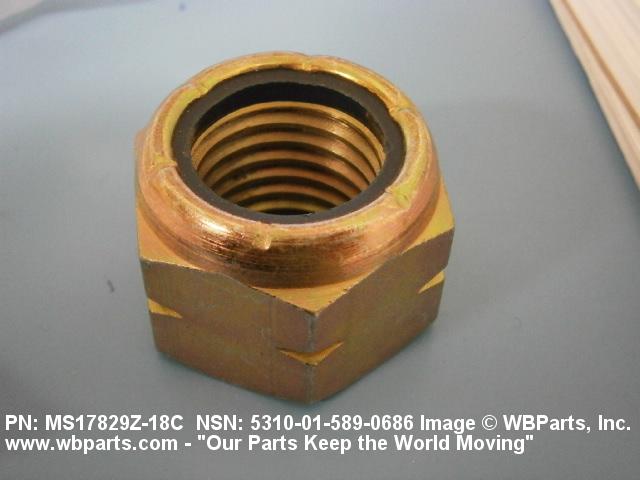

Drawings & Photos | NSN 5310-01-589-0686
Demand History | NSN 5310-01-589-0686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-589-0686 | 2016-03-76 | 8 | US |
| 5310-01-589-0686 | 2015-03-71 | 8 | US |
| MS17829Z18C | 2014-04-119 | 120 | US |
| MS17829Z18C | 2011-11-332 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-589-0686
Related Products | NSN 5310-01-589-0686
Technical Data | NSN 5310-01-589-0686
| Characteristic | Specifications |
|---|---|
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
Restrictions/Controls & Freight Information | NSN 5310-01-589-0686
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-589-0686
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
