NSN 5310-01-586-8806 MS21075L06, 01-586-8806, 015868806
Product Details | PLATE SELF-LOCKING NUT
5310-01-586-8806 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21075L06, 5310-01-586-8806, 01-586-8806, 5310015868806, 015868806
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JUL 2010 | 01-586-8806 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

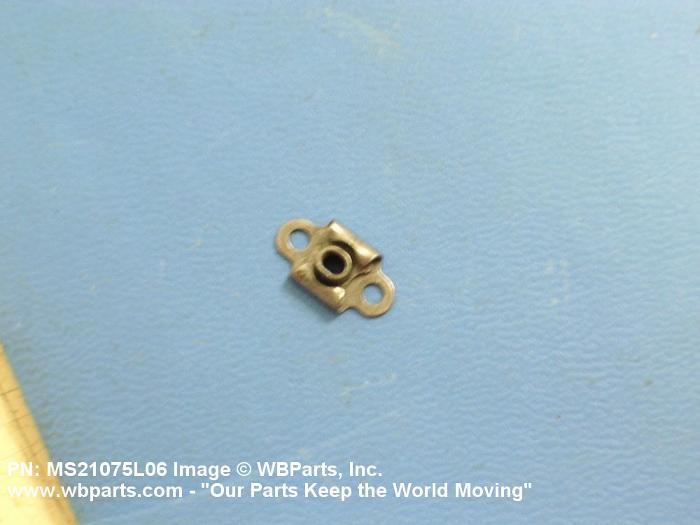

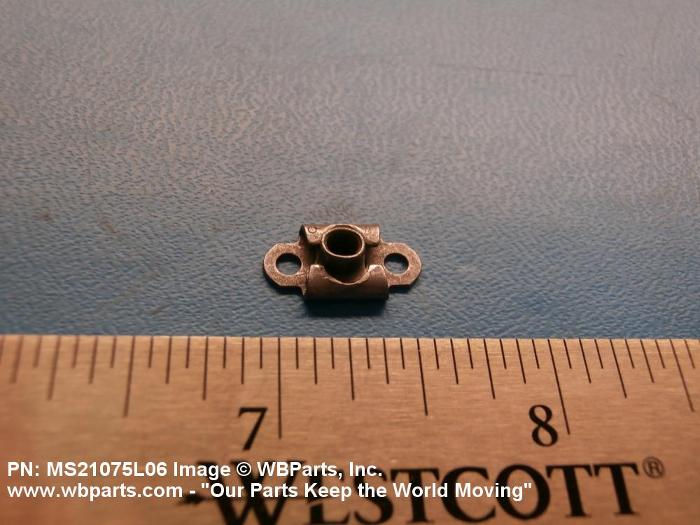

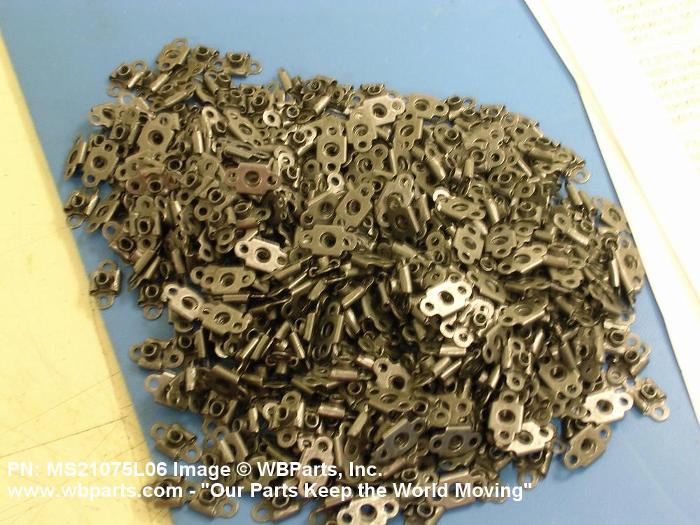

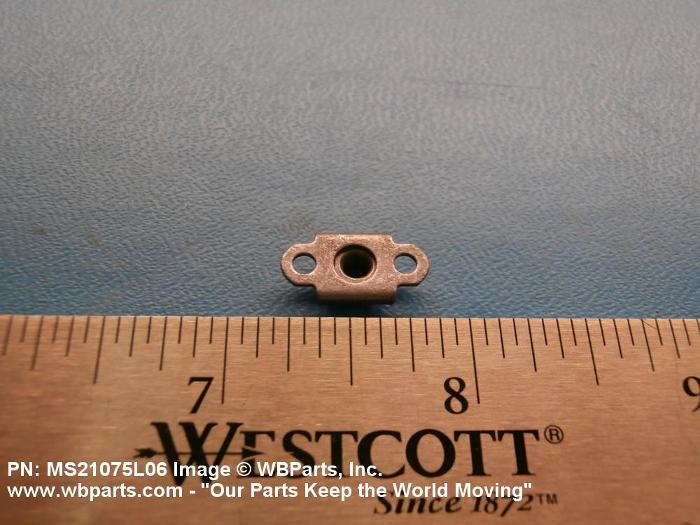

Drawings & Photos | NSN 5310-01-586-8806
Demand History | NSN 5310-01-586-8806
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-586-8806 | 2024-03-85 | 1217 | DIBBS |
| MS21075L06 | 2022-02-48 | 150 | United States |
| MS21075L06 | 2021-03-60 | 10 | Canada |
| 5310-01-586-8806 | 2016-07-213 | 686 | DIBBS |
| MS21075L06 | 2015-08-226 | 121 | United States |
| MS21075L06 | 2015-05-142 | 125 | United States |
| 5310-01-586-8806 | 2015-01-29 | 667 | DIBBS |
| 5310-01-586-8806 | 2014-12-343 | 100 | DIBBS |
| 5310-01-586-8806 | 2014-11-313 | 24 | DIBBS |
| 5310-01-586-8806 | 2014-09-272 | 10 | DIBBS |
| MS21075L06 | 2012-11-311 | 16 | Taiwan |
| MS21075L06 | 2012-09-258 | 50 | Taiwan |
| MS21075L06 | 2012-09-257 | 10 | Taiwan |
| MS21075L06 | 2012-03-73 | 20 | Taiwan |
| MS21075L06 | 2011-07-182 | 1000 | US |
| MS21075L06 | 2011-03-76 | 20 | ES |
| MS21075L06 | 2010-10-277 | 100 | US |
| MS21075L06 | 2010-06-167 | 300 | US |
| MS21075L06 | 2010-06-167 | 1000 | US |
| MS21075L06 | 2009-06-160 | 4000 | IL |
| MS21075L06 | 2009-04-107 | 500 | US |
| MS21075L06 | 2008-04-99 | 100 | US |
| MS21075L06 | 2008-01-24 | 1100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-586-8806
Related Products | NSN 5310-01-586-8806
Technical Data | NSN 5310-01-586-8806
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | DRY FILM LUBRICANT |
| MATERIAL | STEEL COMP 1035 OVERALL OR STEEL COMP 1050 OVERALL OR STEEL COMP 4130 OVERALL OR STEEL COMP 1040 OVERALL OR STEEL COMP 1042 OVERALL OR STEEL COMP 4340 OVERALL OR STEEL COMP 8740 OVERALL |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD SERIES | UNC |
| NUT LENGTH | 0.682 INCHES MAXIMUM |
| THREAD QUANTITY PER INCH | 32 |
| SURFACE TREATMENT | CADMIUM OVERALL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT STYLE | PLATE (FLOATING) |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| PLATE THICKNESS | 0.020 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | 2 HOLES |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5080 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS5085 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS6350 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR ASTMA682 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR ASTMA576 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS6359 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS8322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.437 INCHES NOMINAL |
| NUT HEIGHT | 0.171 INCHES MAXIMUM |
| THREAD CLASS | 3B |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.218 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-586-8806
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BM | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-586-8806
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
