NSN 5310-01-559-0277 CV136861, 86050277, 01-559-0277
Product Details | NUT BLANK
5310-01-559-0277 An item which resembles any of various nuts in shape and is intended for a subsequent threading operation.
Part Alternates: CV136861, 86050277, 5310-01-559-0277, 01-559-0277, 5310015590277, 015590277
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 DEC 2007 | 01-559-0277 | 01874 ( NUT BLANK ) |
Drawings & Photos | NSN 5310-01-559-0277
Demand History | NSN 5310-01-559-0277
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 86050277 | 2024-05-144 | 104 | DIBBS |
| 86050277 | 2021-02-46 | 14 | DIBBS |
| 86050277 | 2020-01-21 | 76 | DIBBS |
| 86050277 | 2019-08-232 | 68 | DIBBS |
| 86050277 | 2019-05-132 | 26 | DIBBS |
| 5310-01-559-0277 | 2018-09-256 | 36 | DIBBS |
| 5310-01-559-0277 | 2018-05-150 | 27 | DIBBS |
| 5310-01-559-0277 | 2018-03-63 | 9 | DIBBS |
| 5310-01-559-0277 | 2018-01-09 | 1 | DIBBS |
| 5310-01-559-0277 | 2017-12-356 | 8 | DIBBS |
| 5310-01-559-0277 | 2017-12-355 | 8 | DIBBS |
| 5310-01-559-0277 | 2017-11-327 | 6 | DIBBS |
| 5310-01-559-0277 | 2017-09-255 | 1 | DIBBS |
| 5310-01-559-0277 | 2016-11-321 | 2 | DIBBS |
| 5310-01-559-0277 | 2016-08-222 | 1 | DIBBS |
| 5310-01-559-0277 | 2016-07-209 | 4 | DIBBS |
| 5310-01-559-0277 | 2015-09-259 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-559-0277
Related Products | NSN 5310-01-559-0277
Technical Data | NSN 5310-01-559-0277
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |

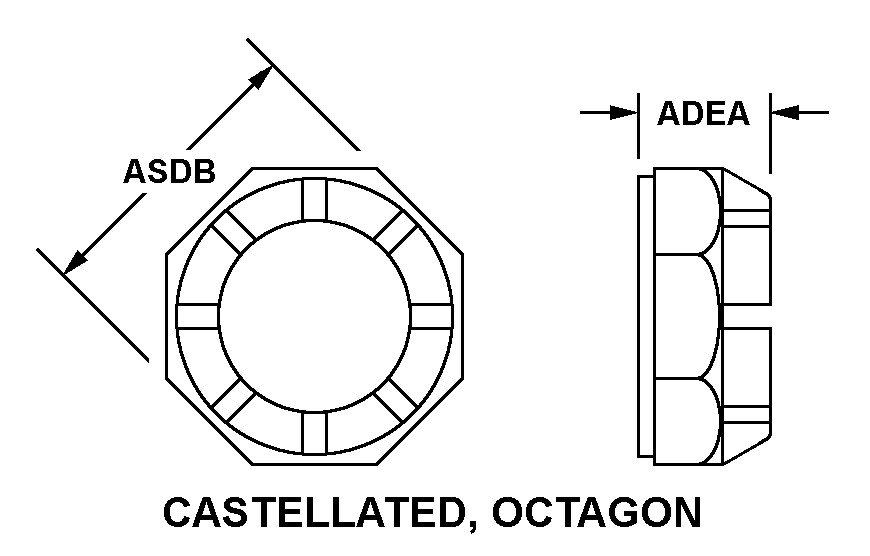

| NUT STYLE | A2 CASTELLATED, OCTAGON |
| NUT HEIGHT | 0.329 INCHES MINIMUM AND 0.359 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.490 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| SPECIAL FEATURES | LOCKING, 5/16-18 THREAD |
| III END ITEM IDENTIFICATION | TRACTOR |
Restrictions/Controls & Freight Information | NSN 5310-01-559-0277
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | X4 | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-559-0277
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
