Product Details | BLIND RIVET PLAIN NUT
5310-01-545-9684 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: 95105A147, 5310-01-545-9684, 01-545-9684, 5310015459684, 015459684
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 2006 | 01-545-9684 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
Drawings & Photos | NSN 5310-01-545-9684
Demand History | NSN 5310-01-545-9684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 95105A147 | 2020-12-350 | 624 | DIBBS |
| 95105A147 | 2019-06-170 | 595 | DIBBS |
| 5310-01-545-9684 | 2018-04-109 | 272 | DIBBS |
| 5310-01-545-9684 | 2016-08-228 | 361 | DIBBS |
| 5310-01-545-9684 | 2014-11-317 | 296 | DIBBS |
| 5310-01-545-9684 | 2014-11-306 | 296 | DIBBS |
| 5310-01-545-9684 | 2011-07-194 | 122 | DIBBS |
| 5310-01-545-9684 | 2011-01-28 | 91 | DIBBS |
| 5310-01-545-9684 | 2010-09-272 | 13 | DIBBS |
| 5310-01-545-9684 | 2010-06-181 | 18 | DIBBS |
| 5310-01-545-9684 | 2009-03-83 | 13 | DIBBS |
| 95105A147 | 2008-09-259 | 4140 | us |
| 5310-01-545-9684 | 2008-04-100 | 13 | DIBBS |
Cross Reference | NSN 5310-01-545-9684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 95105A147 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-545-9684
Related Products | NSN 5310-01-545-9684
Technical Data | NSN 5310-01-545-9684
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1010 OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.390 INCHES NOMINAL |
| NUT LENGTH | 0.680 INCHES NOMINAL |

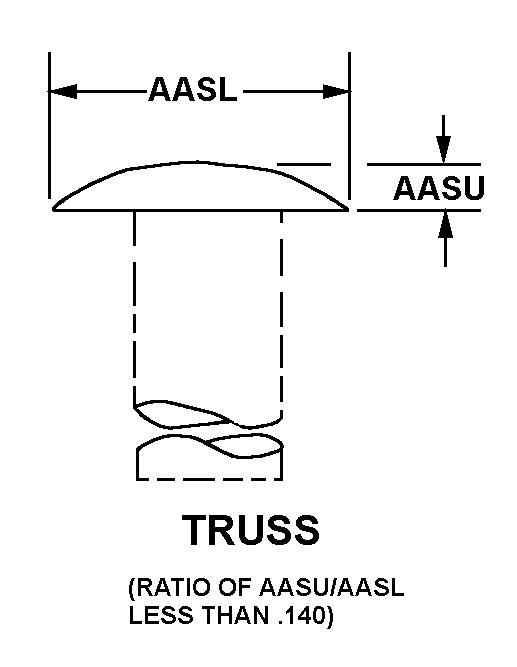

| HEAD STYLE | D3 TRUSS |
