NSN 5310-01-531-1782 7847762, 784776-2, 01-531-1782
Product Details | DOUBLE HEXAGON CASTELLATED PLAIN NUT
5310-01-531-1782 A nut having 12 drive points and 24 sides, flat on the bottom, and having a slotted cylindrical or dome shaped upper portion. It is designed to provide positive locking when used with a solid or split (cotter) pin.
Part Alternates: 7847762, 784776-2, 5310-01-531-1782, 01-531-1782, 5310015311782, 015311782
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUN 2005 | 01-531-1782 | 38228 ( NUT, PLAIN, CASTELLATED, DOUBLE HEXAGON ) |

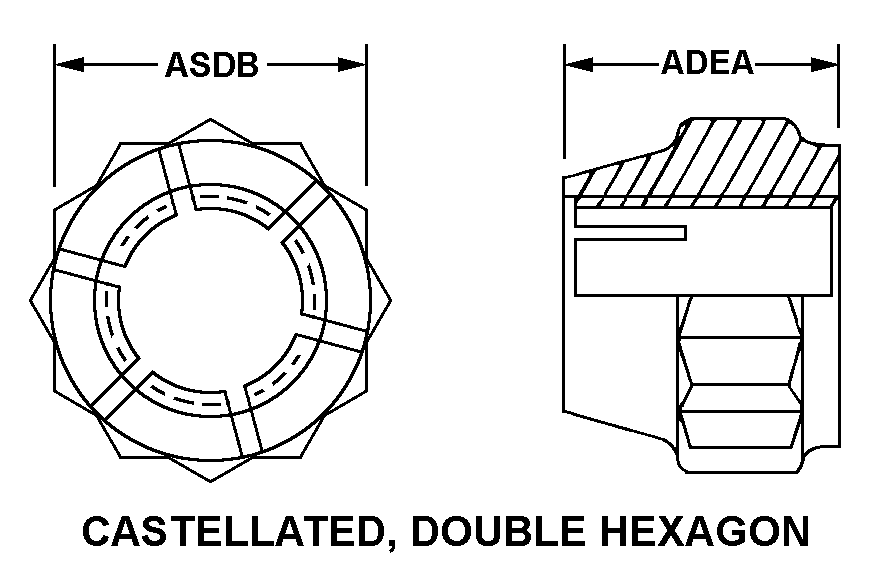

Drawings & Photos | NSN 5310-01-531-1782
Demand History | NSN 5310-01-531-1782
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-531-1782 | 2023-03-86 | 60 | Taiwan |
| 5310-01-531-1782 | 2023-03-81 | 60 | Taiwan |
| 5310-01-531-1782 | 2011-10-290 | 676 | DIBBS |
| 5310-01-531-1782 | 2011-05-143 | 381 | DIBBS |
| 5310-01-531-1782 | 2010-12-337 | 676 | DIBBS |
| 7847762 | 2010-12-335 | 1000 | US |
| 5310-01-531-1782 | 2010-10-300 | 388 | DIBBS |
| 5310-01-531-1782 | 2010-09-272 | 578 | DIBBS |
| 5310-01-531-1782 | 2010-05-139 | 514 | DIBBS |
| 5310-01-531-1782 | 2010-03-69 | 167 | DIBBS |
| 5310-01-531-1782 | 2009-09-245 | 1172 | DIBBS |
| 5310-01-531-1782 | 2009-06-166 | 1166 | DIBBS |
| 5310-01-531-1782 | 2009-03-85 | 1259 | DIBBS |
| 5310-01-531-1782 | 2008-09-247 | 478 | DIBBS |
| 5310-01-531-1782 | 2008-08-218 | 478 | DIBBS |
| 5310-01-531-1782 | 2008-07-189 | 812 | DIBBS |
Cross Reference | NSN 5310-01-531-1782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 784776-2 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-531-1782
Related Products | NSN 5310-01-531-1782
Technical Data | NSN 5310-01-531-1782
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.563 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A1A CASTELLATED, DOUBLE HEXAGON |
| NUT HEIGHT | 0.786 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-531-1782
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-531-1782
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
