5310-01-530-5394 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.

Part Alternates: MS958213, MS9582-13, 5310-01-530-5394, 01-530-5394, 5310015305394, 015305394

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 02 JUN 2005 01-530-5394

Drawings & Photos | NSN 5310-01-530-5394


Demand History | NSN 5310-01-530-5394

Part Number Request Date QTY Origin
MS9582-13 2017-03-68 4
5310-01-530-5394 2017-03-66 4 NECO
MS9582-13 2016-12-343 4
5310-01-530-5394 2016-12-342 4 NECO
MS958213 2016-05-138 2 Netherlands
MS958213 2016-05-138 7 Netherlands
MS958213 2016-05-134 2 Netherlands
MS958213 2012-09-254 2 FR
MS958213 2012-09-254 7 FR
MS958213 2008-09-257 100 US

Cross Reference | NSN 5310-01-530-5394

Part Number Cage Code Manufacturer
MS9582-13 1E0F1 ROLLS ROYCE CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-530-5394

Technical Data | NSN 5310-01-530-5394

Characteristic Specifications
MATERIAL STEEL COMP 321 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS5510 ASSN STD SINGLE MATERIAL RESPONSE OVERALL

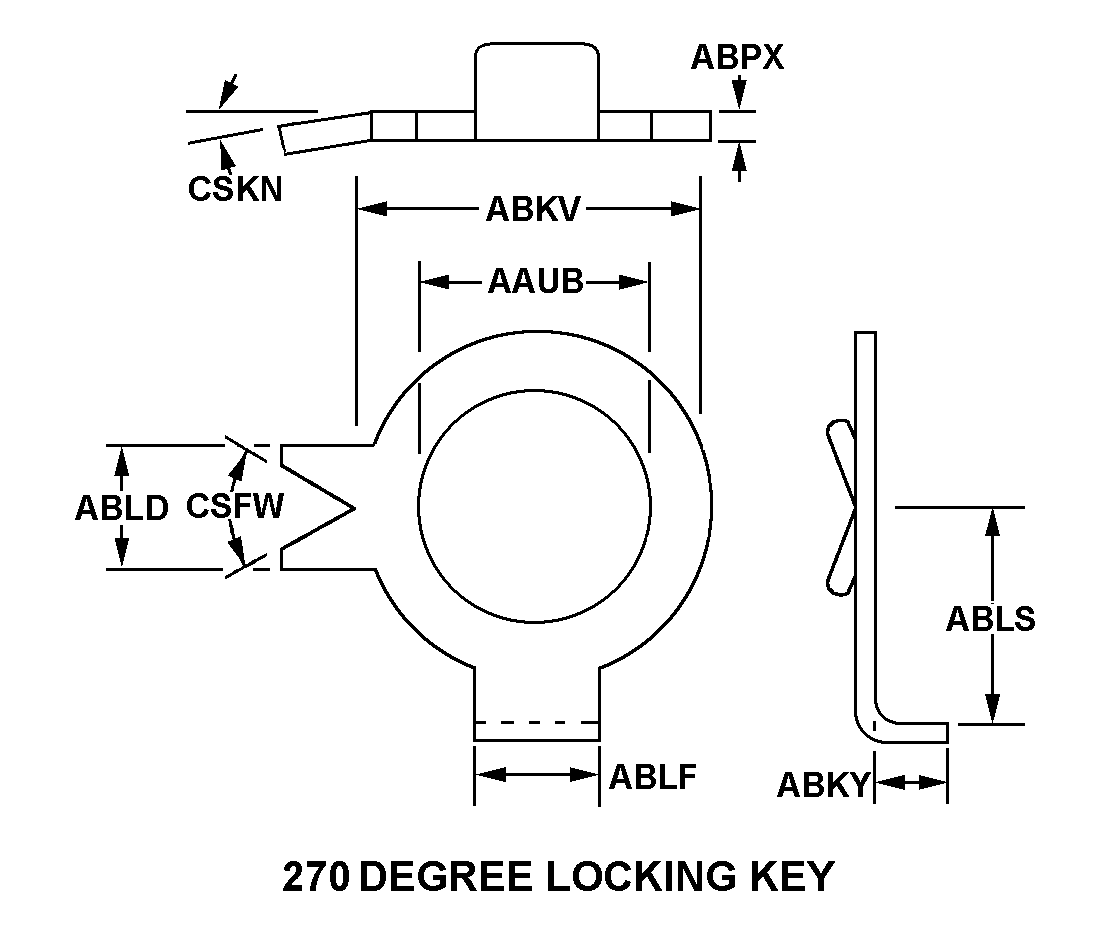

STYLE DESIGNATOR 176 270 DEGREE LOCKING KEY
HOLE DIAMETER 0.438 INCHES NOMINAL
OUTSIDE DIAMETER 0.685 INCHES MINIMUM AND 0.695 INCHES MAXIMUM
EXTERNAL PREBENT KEY LENGTH 0.180 INCHES MINIMUM AND 0.190 INCHES MAXIMUM
EXTERNAL TAPERED KEY WIDTH 0.390 INCHES MINIMUM AND 0.400 INCHES MAXIMUM
EXTERNAL PREBENT KEY WIDTH 0.170 INCHES MINIMUM AND 0.175 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY 0.345 INCHES MINIMUM AND 0.350 INCHES MAXIMUM
MATERIAL THICKNESS 0.032 INCHES MINIMUM AND 0.040 INCHES MAXIMUM
ANGLE BETWEEN EXTERNAL KEYS 58.0 DEGREES MINIMUM AND 62.0 DEGREES MAXIMUM
EXTERNAL PREBENT KEY ANGLE ASSEM TURBI 15.0 DEGREES NOMINAL BLY,COMPRESSOR,AIRCRAFT GAS NE ENGINE
