NSN 5310-01-530-3276 2060, 01-530-3276, 015303276
Product Details | WING PLAIN NUT
5310-01-530-3276 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: 2060, 5310-01-530-3276, 01-530-3276, 5310015303276, 015303276
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAY 2005 | 01-530-3276 | 01862 ( NUT, PLAIN, WING ) |

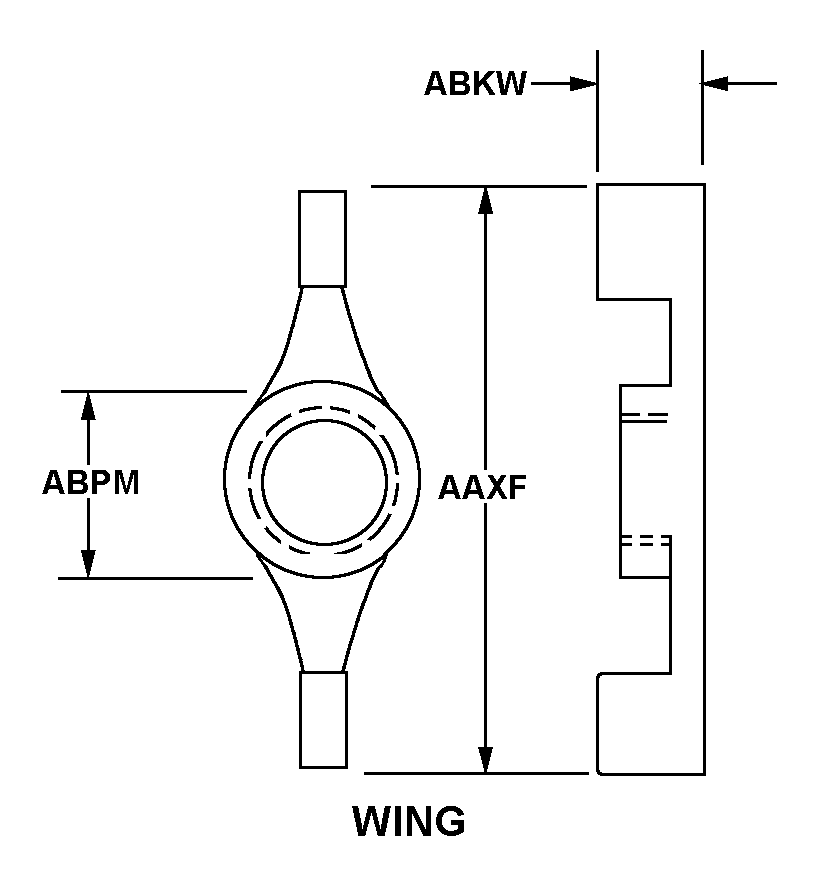

Drawings & Photos | NSN 5310-01-530-3276
Demand History | NSN 5310-01-530-3276
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2060 | 2020-02-40 | 253 | DIBBS |
| 2060 | 2019-01-30 | 134 | DIBBS |
| 5310-01-530-3276 | 2012-09-245 | 33 | DIBBS |
| 5310-01-530-3276 | 2008-11-315 | 3 | DIBBS |
Cross Reference | NSN 5310-01-530-3276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2060 | 91833 | KEYSTONE ELECTRONICS CORP. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-530-3276
Related Products | NSN 5310-01-530-3276
Technical Data | NSN 5310-01-530-3276
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A273 WING |
| WING SPREAD WIDTH | 0.550 INCHES NOMINAL |
| OVERALL HEIGHT | 0.200 INCHES NOMINAL |
| BODY DIAMETER | 0.187 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NAVIGATION SYSTEM, JDV MK8 MOD 1 (NEW BUILD) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOW TIE RETAINING CLIP |
Restrictions/Controls & Freight Information | NSN 5310-01-530-3276
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-530-3276
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
