NSN 5310-01-529-6740 MS21060L7, 01-529-6740, 015296740

Product Details | PLATE SELF-LOCKING NUT

5310-01-529-6740 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21060L7, 5310-01-529-6740, 01-529-6740, 5310015296740, 015296740

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 APR 2005	01-529-6740	05280 ( NUT, SELF-LOCKING, PLATE )

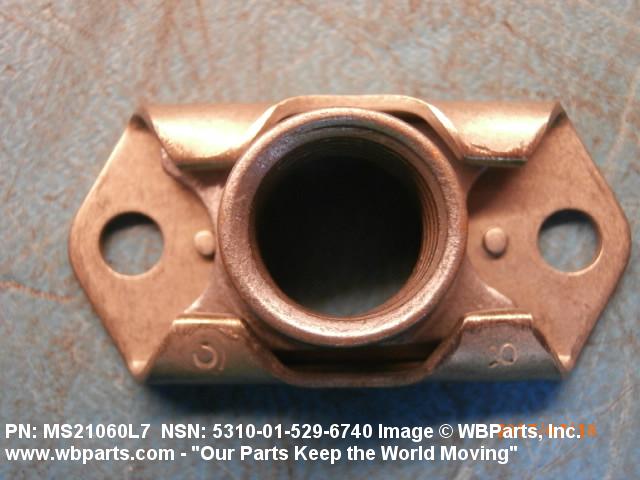

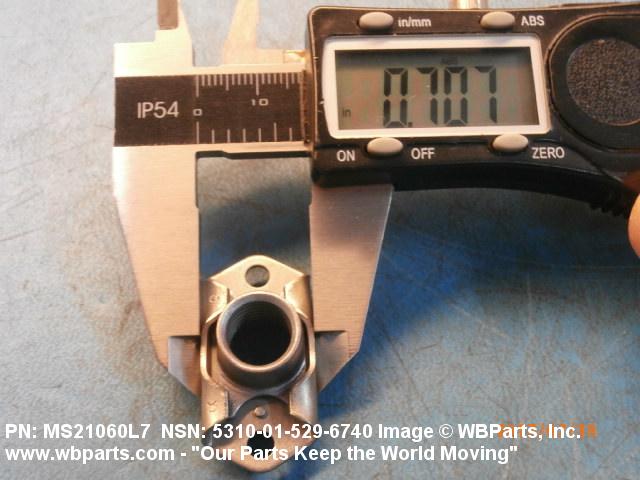

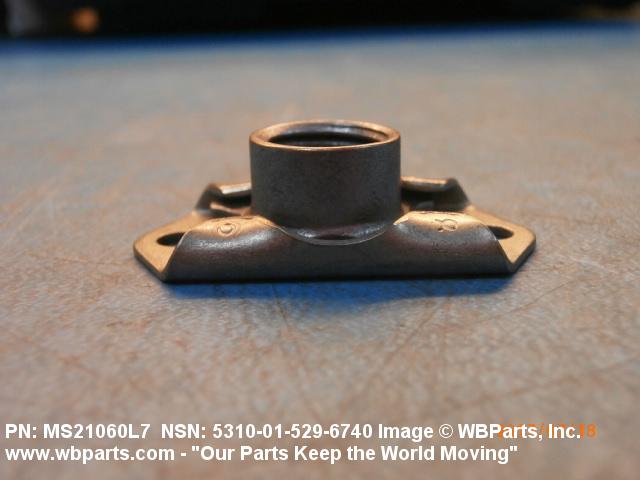

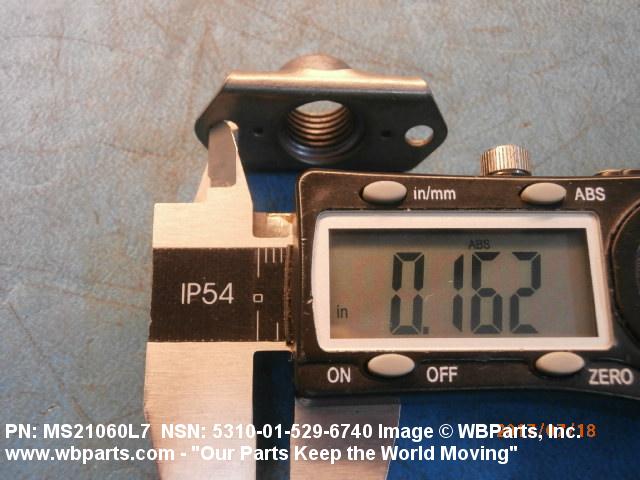

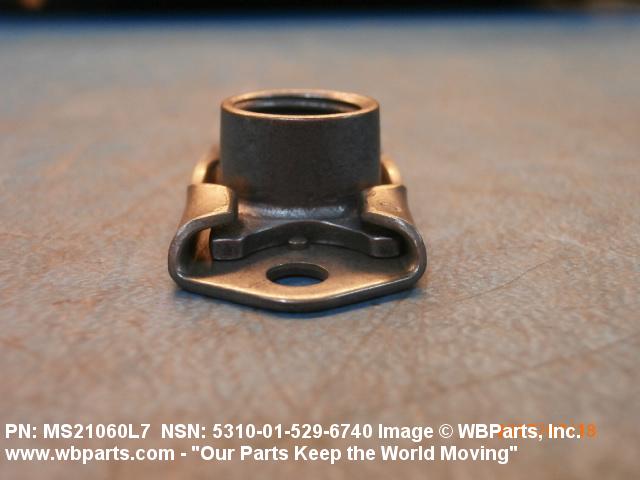

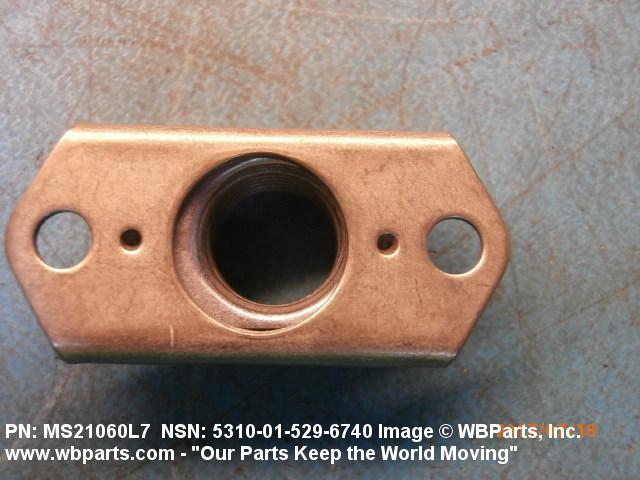

Drawings & Photos | NSN 5310-01-529-6740

Part Number	Request Date	QTY	Origin
MS21060L7	2023-05-135	28	SG
MS21060L7	2022-03-88	100	UK
MS21060L7	2022-01-18	100	United Kingdom
MS21060L7	2022-01-18	100	United Kingdom
5310-01-529-6740	2021-10-291	250	US
MS21060L7	2021-10-277	28	Singapore
MS21060L7	2021-07-209	19	United States
MS21060L7	2021-04-97	14	US
MS21060L7	2021-04-97	28	US
MS21060L7	2018-01-18	120	Hungary
MS21060L7	2018-01-11	120	Hungary
MS21060L7	2017-05-121	120	Hungary
5310-01-529-6740	2012-05-129	250	United States
MS21060L7	2011-10-292	128	US
MS21060L7	2011-01-14	12	United States
MS21060L7	2010-08-242	16	US
MS21060L7	2010-07-208	50	United Kingdom
MS21060L7	2010-07-208	100	United Kingdom
MS21060L7	2008-08-232	18	US
MS21060L7	2008-01-14	64	US
MS21060L7	2007-10-298	3	United States
MS21060L7	2007-10-291	64	US
MS21060L7	2007-10-288	64	US

Cross Reference | NSN 5310-01-529-6740

Part Number	Cage Code	Manufacturer
MS21060L7	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21060L7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-529-6740

Compare

Related Products | NSN 5310-01-529-6740

5310-01-529-6784, 5310-01-529-6787, 5310-01-529-6900, 5310-01-529-7011, 5310-01-529-7197

Technical Data | NSN 5310-01-529-6740

Characteristic	Specifications

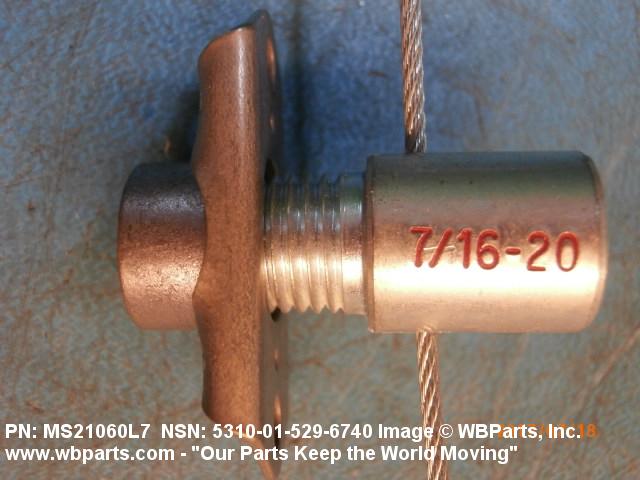

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.437 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

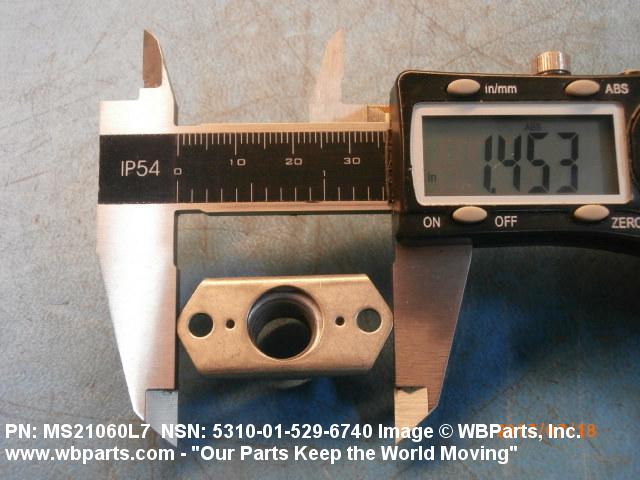

NUT LENGTH	1.477 INCHES MAXIMUM

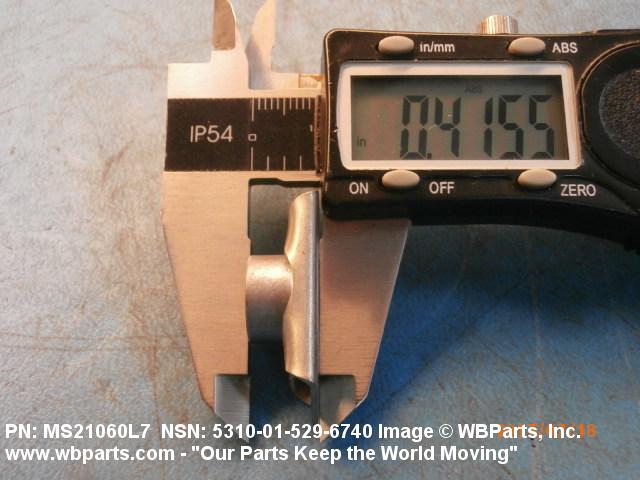

NUT HEIGHT	0.504 INCHES MAXIMUM

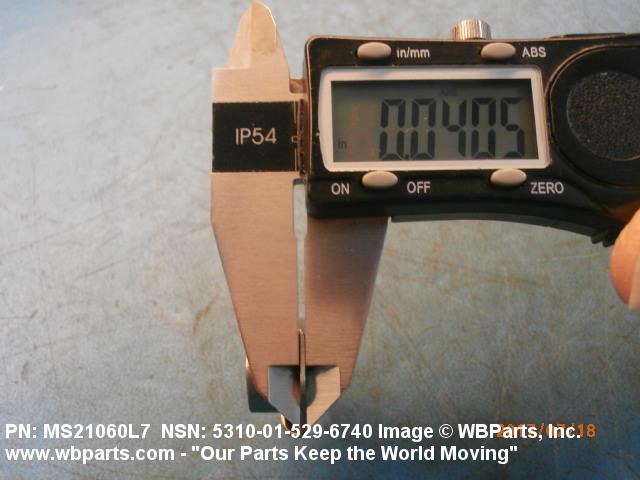

PLATE THICKNESS	0.115 INCHES MAXIMUM
PLATE WIDTH	0.672 INCHES MINIMUM AND 0.719 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN

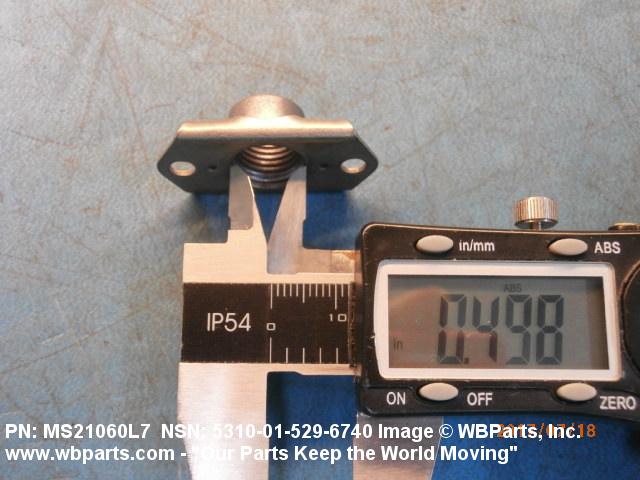

COUNTERBORE DIAMETER	0.497 INCHES MINIMUM AND 0.517 INCHES MAXIMUM FIRST END
LUBRICATION	DRY FILM LUBRICANT
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.161 INCHES MINIMUM AND 0.166 INCHES MAXIMUM

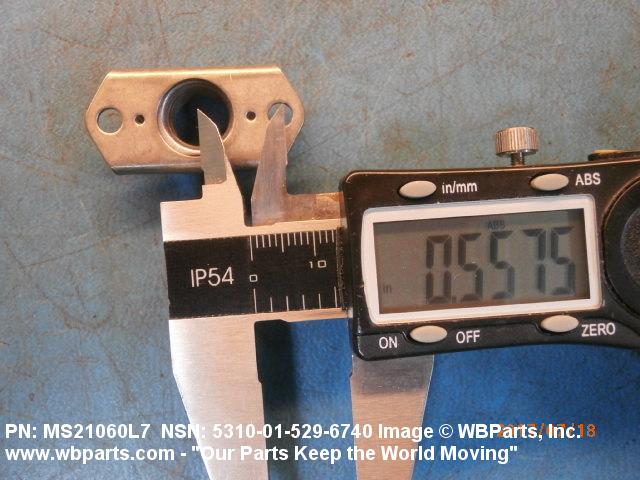

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM

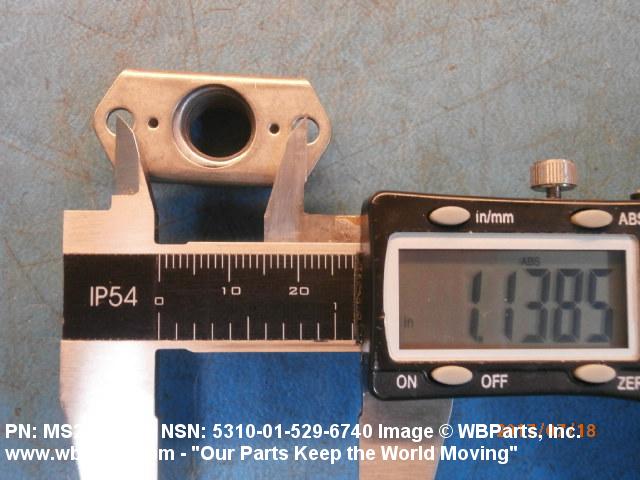

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	1.123 INCHES MINIMUM AND 1.127 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
III END ITEM IDENTIFICATION	F-22 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 5310-01-529-6740

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Management | NSN 5310-01-529-6740

Air Force

Category	Code	Description
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	FR	TL:F-22 AIRCRAFT
Budget Code	S	1557X3010:Aircraft Replenishment Spares
Source of Supply	F01	Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
