NSN 5310-01-529-3362 91475A031, 01-529-3362, 015293362
Product Details | LOCK WASHER
5310-01-529-3362 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: 91475A031, 5310-01-529-3362, 01-529-3362, 5310015293362, 015293362
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13-APR-05 | 01-529-3362 | 14218 ( WASHER, LOCK ) |

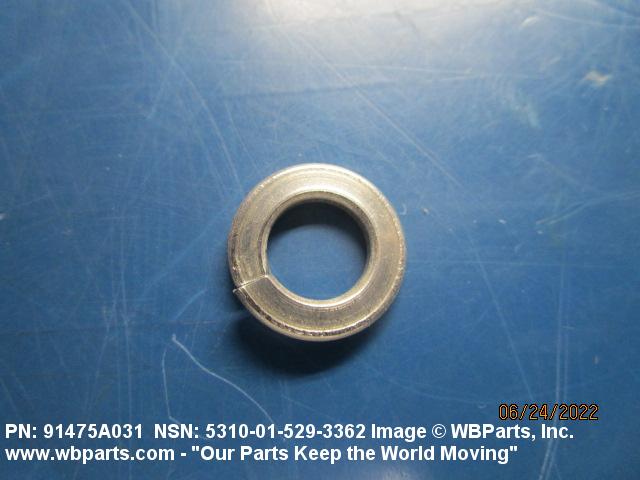

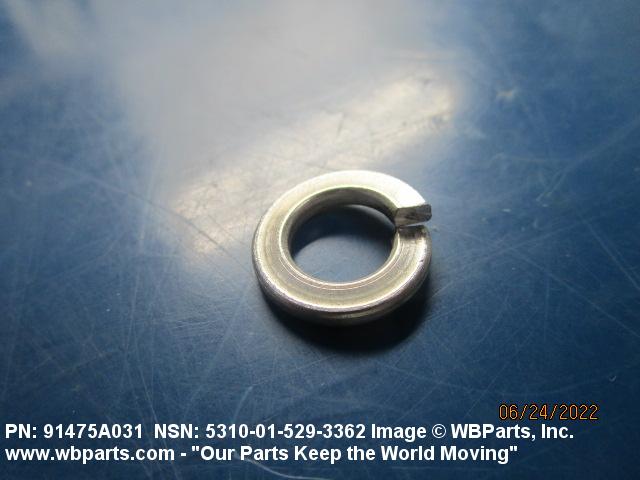

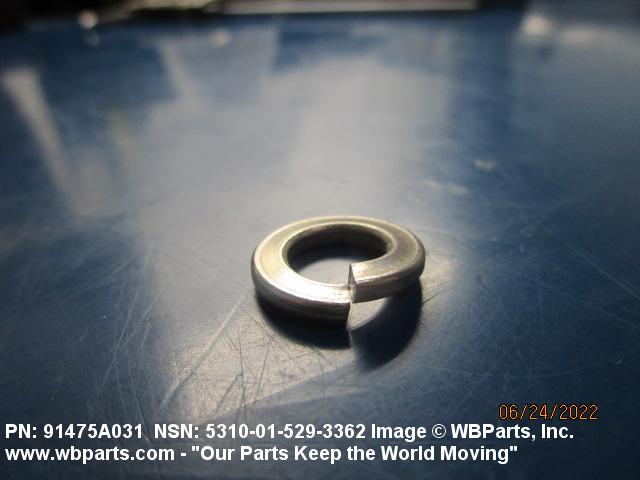

Drawings & Photos | NSN 5310-01-529-3362
Demand History | NSN 5310-01-529-3362
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-529-3362 | 2022-06-167 | 2 | United States |
| 5310-01-529-3362 | 2015-01-28 | 6771 | DIBBS |
| 5310-01-529-3362 | 2013-11-326 | 1040 | DIBBS |
| 5310-01-529-3362 | 2013-11-311 | 1040 | DIBBS |
| 5310-01-529-3362 | 2009-02-36 | 2244 | DIBBS |
| 5310-01-529-3362 | 2008-11-316 | 1184 | DIBBS |
Cross Reference | NSN 5310-01-529-3362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 91475A031 | 2V507 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-529-3362
Technical Data | NSN 5310-01-529-3362
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| STYLE DESIGNATOR | 108 SPLIT HELICAL-RIGHT HAND |

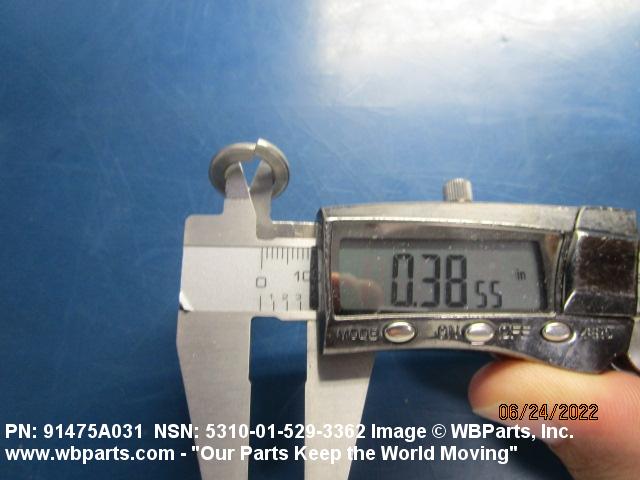

| HOLE DIAMETER | 0.385 INCHES NOMINAL |

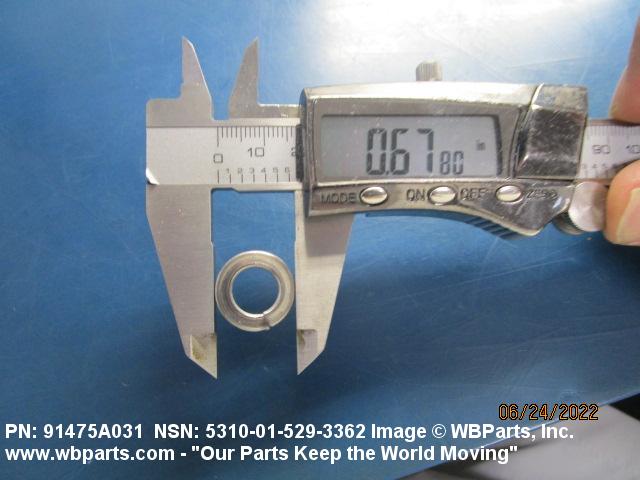

| OUTSIDE DIAMETER | 0.680 INCHES NOMINAL |

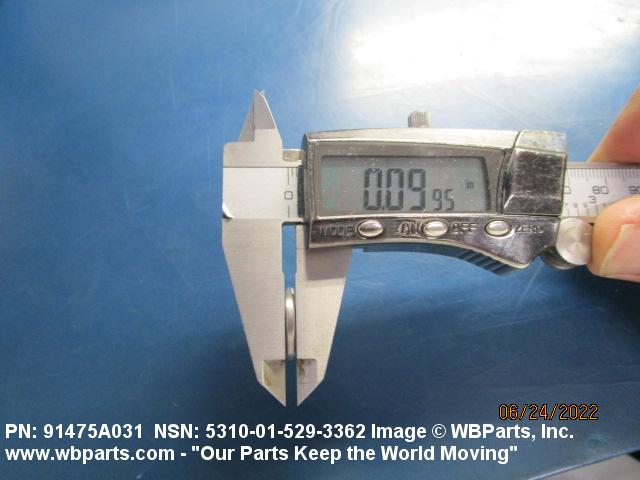

| MATERIAL THICKNESS | 0.094 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AN/AQS-20 PECULIAR SUPPORT EQUIPMENT KIT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | WASHER,FLAT |
Restrictions/Controls & Freight Information | NSN 5310-01-529-3362
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
