NSN 5310-01-523-6527 17P3A28201, 17P3A2820-1, 01-523-6527
Product Details | RETAINER RING NUT ASSEMBLY
5310-01-523-6527 An item consisting of a flat metal ring designed to be fastened in place, upon which replaceable nuts are assembled in predetermined spacing.
Part Alternates: 17P3A28201, 17P3A2820-1, 5310-01-523-6527, 01-523-6527, 5310015236527, 015236527
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 SEP 2004 | 01-523-6527 | 16007 ( NUT ASSEMBLY, RETAINER RING ) |

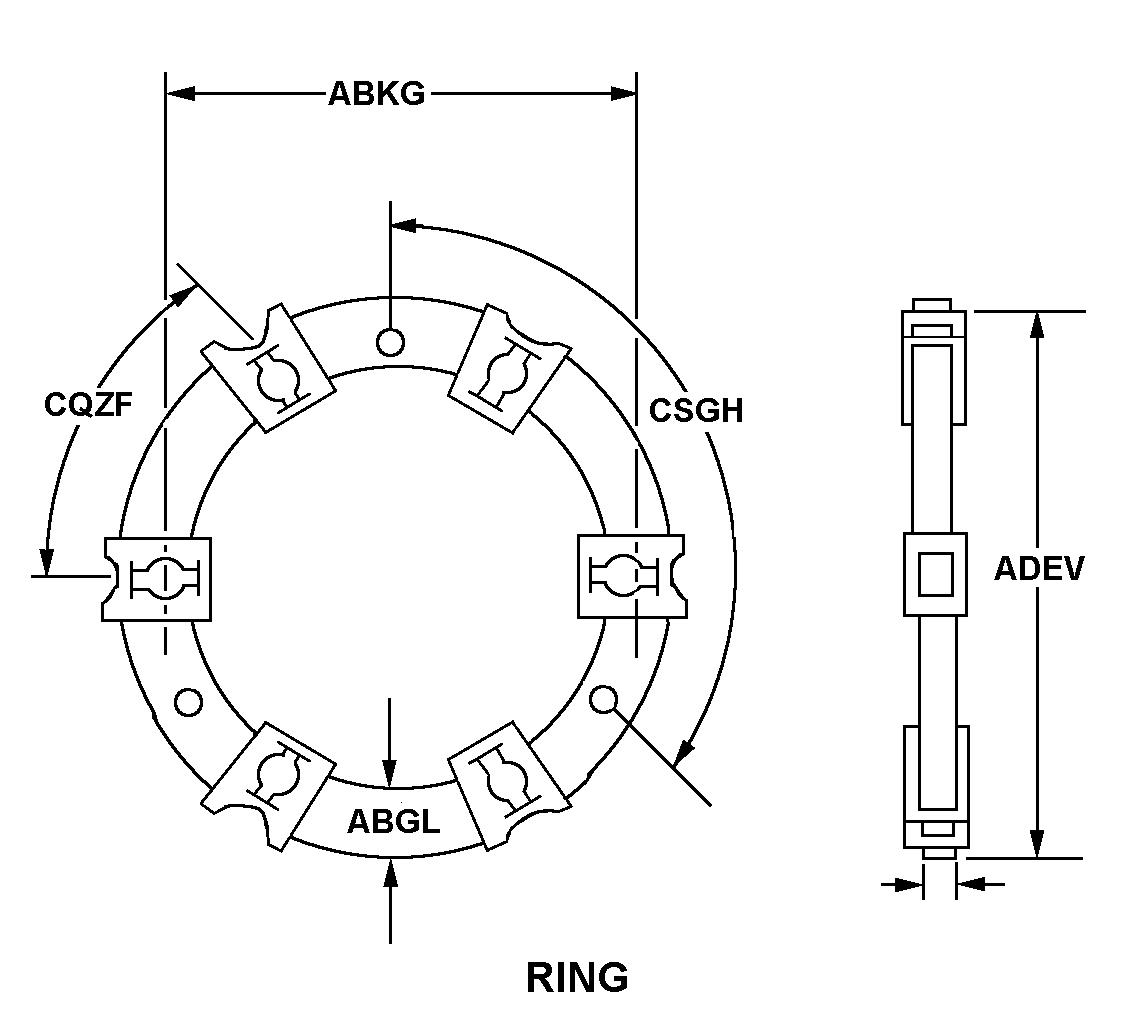

Drawings & Photos | NSN 5310-01-523-6527
Cross Reference | NSN 5310-01-523-6527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P3A2820-1 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-523-6527
Related Products | NSN 5310-01-523-6527
Technical Data | NSN 5310-01-523-6527
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BASE IRON ALLOY 660 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | DMS 2233 TEMPER 7050-T7451 MFR REF SINGLE MATERIAL RESPONSE BASE AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ANODIZE BASE PASSIVATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE BASE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| MOUNTING STYLE | B3 RING |
| RING OUTSIDE DIAMETER | 20.560 INCHES NOMINAL |
| NUT QUANTITY | 23 |
| SPECIAL FEATURES | USE NUT, SELF-LOCKING, PLATE P/N NAS1791C3 FOR REPLACEMENT, NUT ASSY HAS FIVE SLOTTED HOLES AND SIX DRILLED THRU HOLES |
| III END ITEM IDENTIFICATION | C-17A AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CLOSEOUT ASSEMBLY, T |
Restrictions/Controls & Freight Information | NSN 5310-01-523-6527
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-523-6527
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
