NSN 5310-01-520-3822 MS21051L08K, NASM21051L08K, 01-520-3822
Product Details | PLATE SELF-LOCKING NUT
5310-01-520-3822 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21051L08K, NASM21051L08K, 5310-01-520-3822, 01-520-3822, 5310015203822, 015203822
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 2004 | 01-520-3822 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

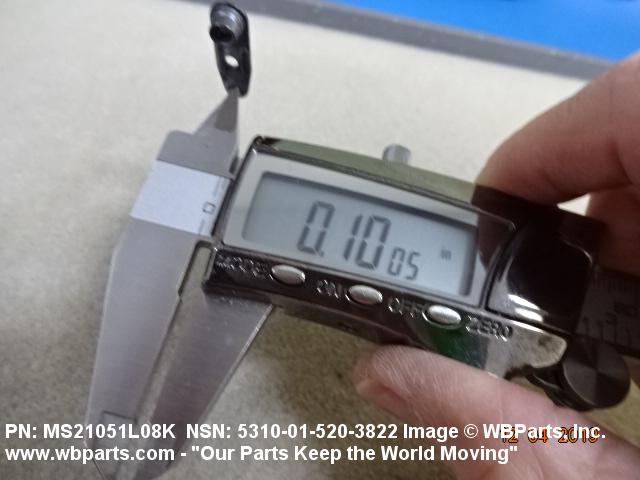

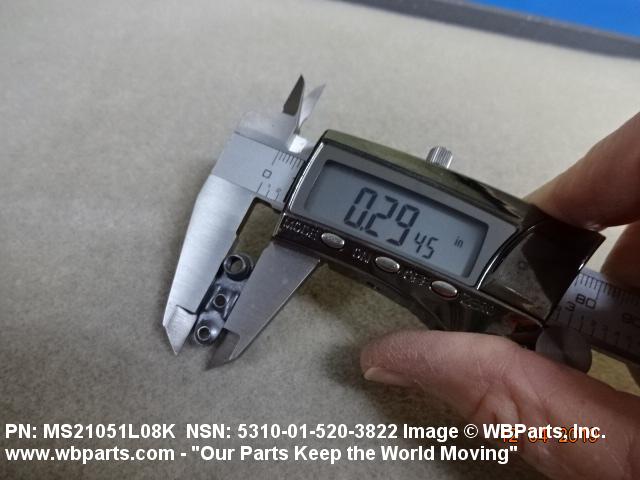

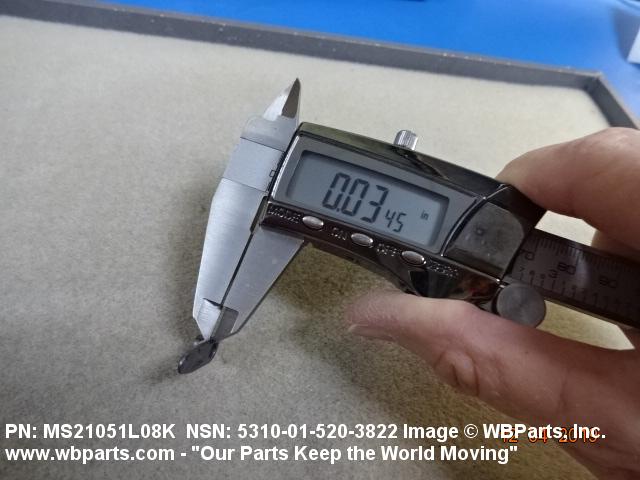

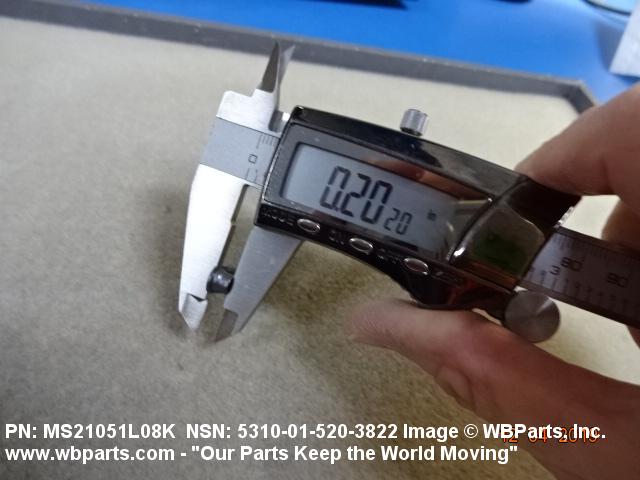

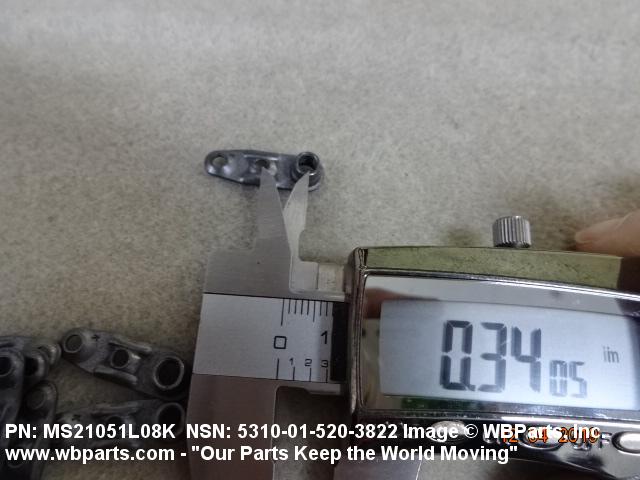

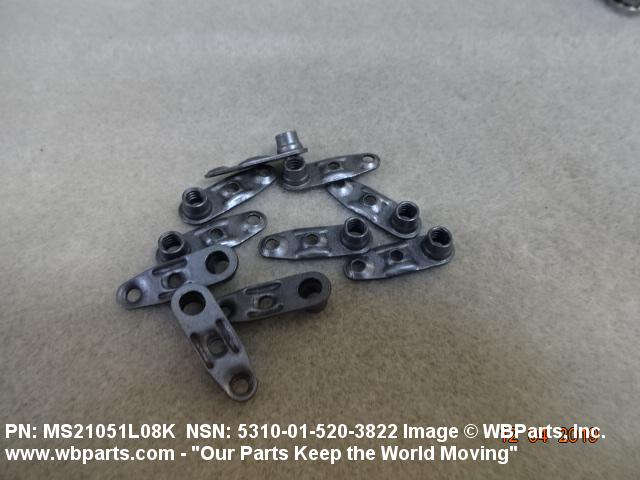

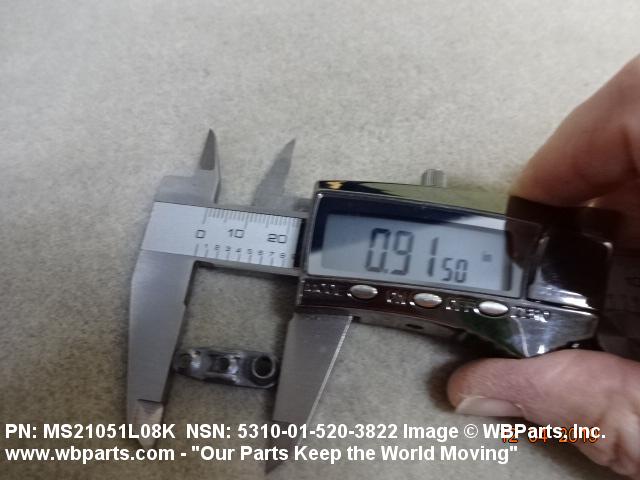

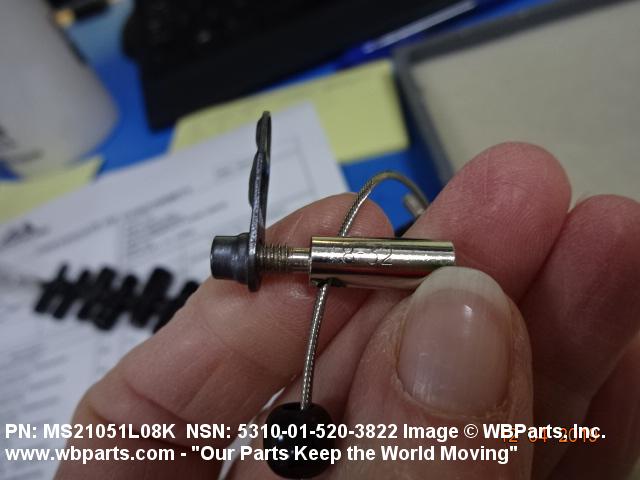

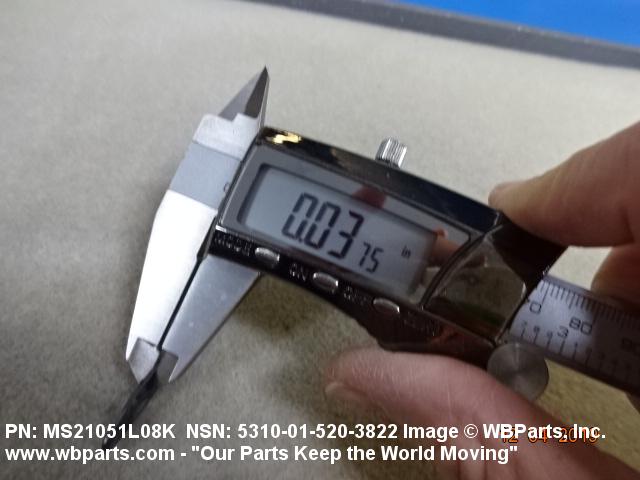

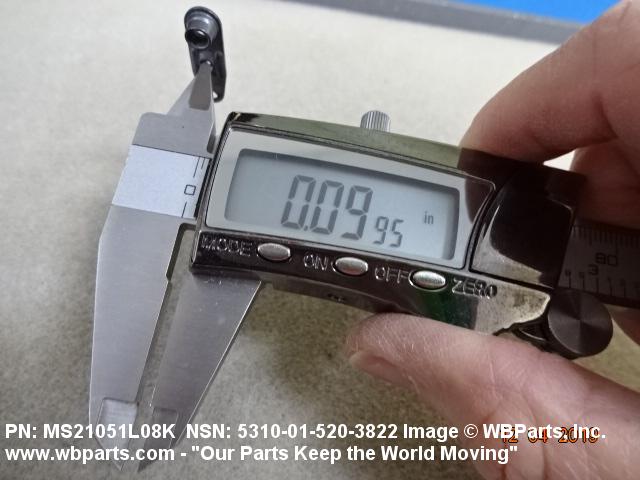

Drawings & Photos | NSN 5310-01-520-3822
Demand History | NSN 5310-01-520-3822
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21051L08K | 2014-06-06 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-520-3822
Technical Data | NSN 5310-01-520-3822
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A124 PLATE |
| NUT LENGTH | 0.935 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |
| PLATE WIDTH | 0.277 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.168 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-520-3822
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
