NSN 5310-01-520-3149 NAS180516, NAS1805-16, 01-520-3149
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

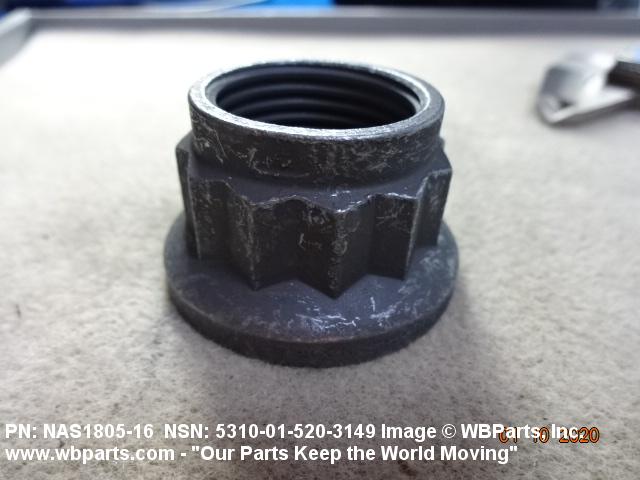

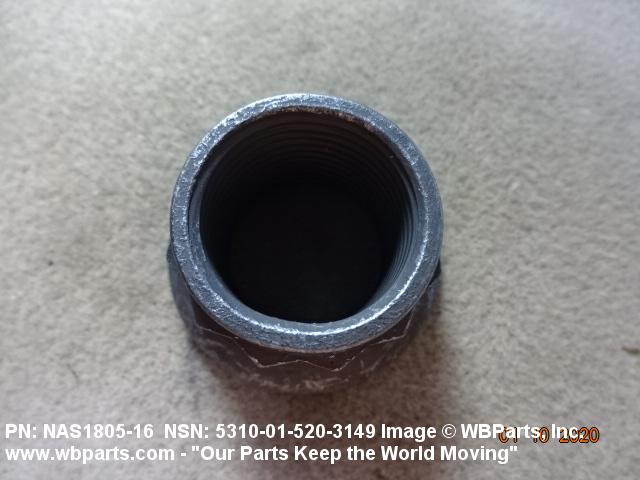

5310-01-520-3149 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS180516, NAS1805-16, 5310-01-520-3149, 01-520-3149, 5310015203149, 015203149
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 MAY 2004 | 01-520-3149 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |

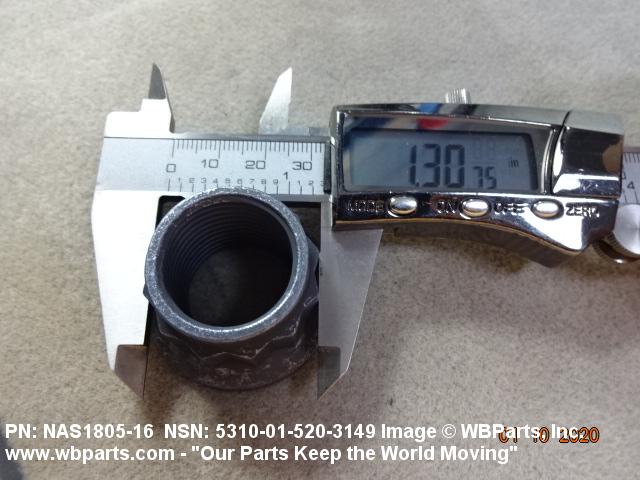

Drawings & Photos | NSN 5310-01-520-3149
Demand History | NSN 5310-01-520-3149
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-520-3149 | 2022-05-06 | 100 | RO |
| 5310-01-520-3149 | 2020-12-01 | 180 | United States |
| NAS180516 | 2020-01-08 | 5 | United States |
| NAS180516 | 2019-12-04 | 5 | ES |
| NAS180516 | 2016-12-05 | 22 | United States |
| 5310-01-520-3149 | 2015-09-13 | 9 | DIBBS |
| 5310-01-520-3149 | 2015-08-23 | 6 | DIBBS |
| NAS180516 | 2015-07-31 | 26 | United States |
| NAS180516 | 2008-03-10 | 16 | United States |
| NAS180516 | 2008-02-27 | 18 | US |
| NAS180516 | 2008-01-03 | 4 | US |
Cross Reference | NSN 5310-01-520-3149
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1805-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-520-3149
Related Products | NSN 5310-01-520-3149
Technical Data | NSN 5310-01-520-3149
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OR NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35, A286 TYPE II, VI, OR VIII, 718 TYPE OPTIONAL FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A293 DOUBLE HEXAGON |

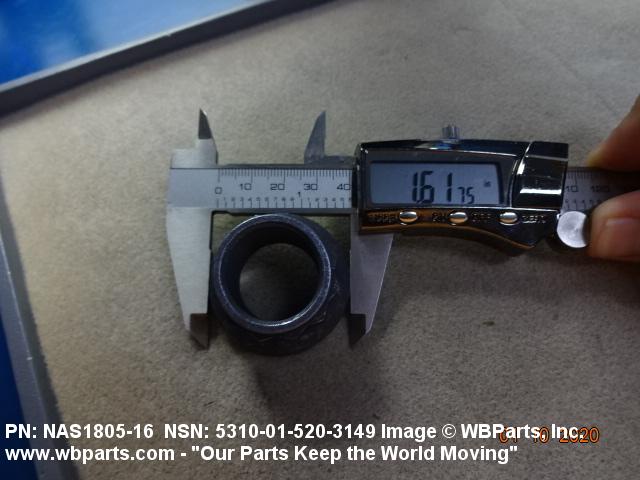

| WASHER OUTSIDE DIAMETER | 1.625 INCHES MAXIMUM |

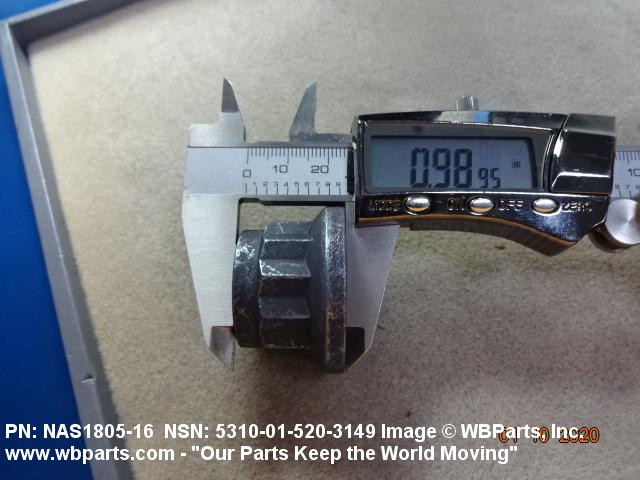

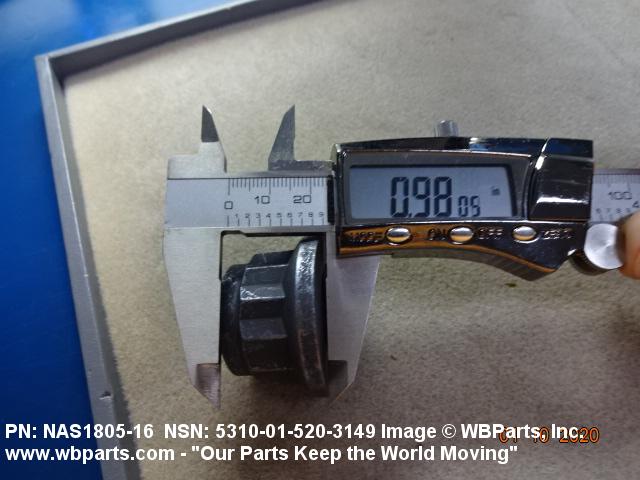

| OVERALL HEIGHT | 1.000 INCHES MAXIMUM |

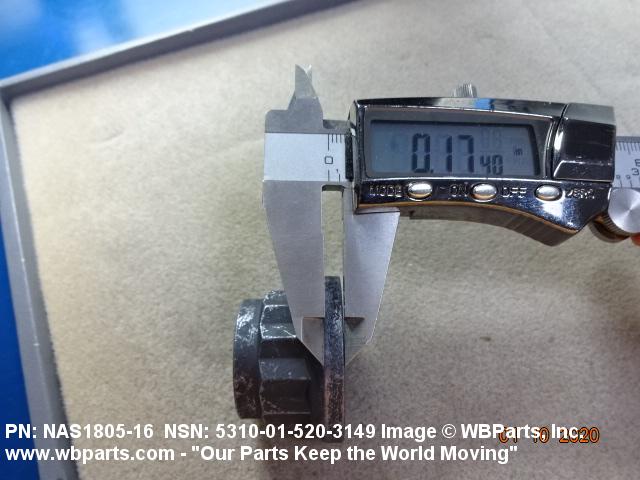

| WASHER THICKNESS | 0.122 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.177 INCHES MINIMUM AND 1.190 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| III END ITEM IDENTIFICATION | F-22 AIRCRAFT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT, SELF-LOCKING, PLATE |
Restrictions/Controls & Freight Information | NSN 5310-01-520-3149
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
