NSN 5310-01-514-0270 12M7056, 01-514-0270, 015140270
Product Details | LOCK WASHER
5310-01-514-0270 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: 12M7056, 5310-01-514-0270, 01-514-0270, 5310015140270, 015140270
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 OCT 2003 | 01-514-0270 | 14218 ( WASHER, LOCK ) |

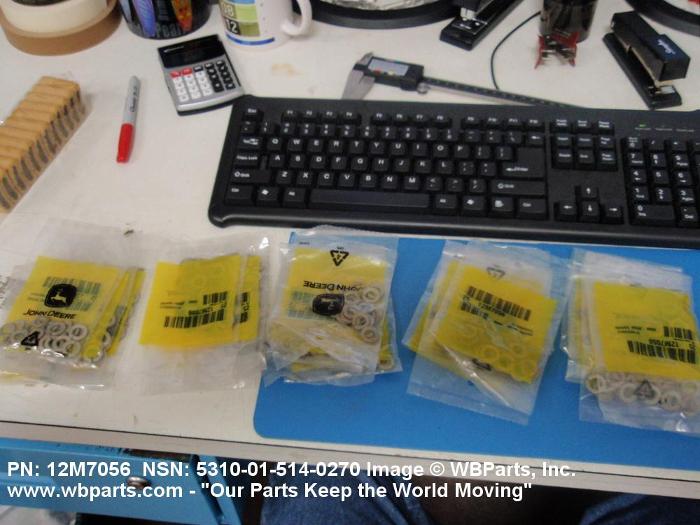

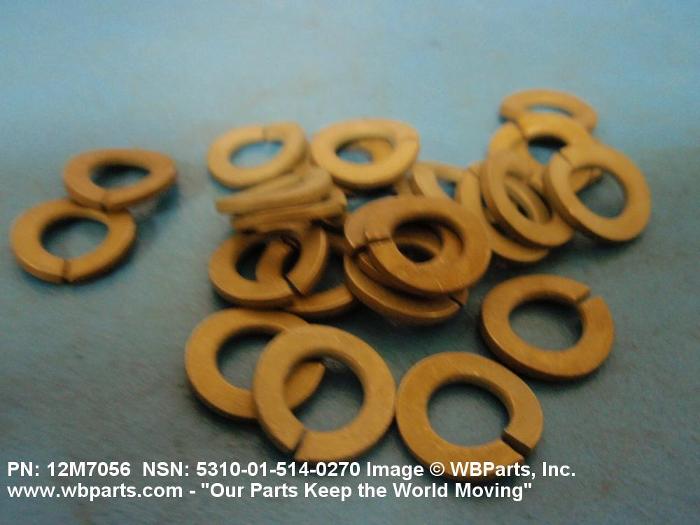

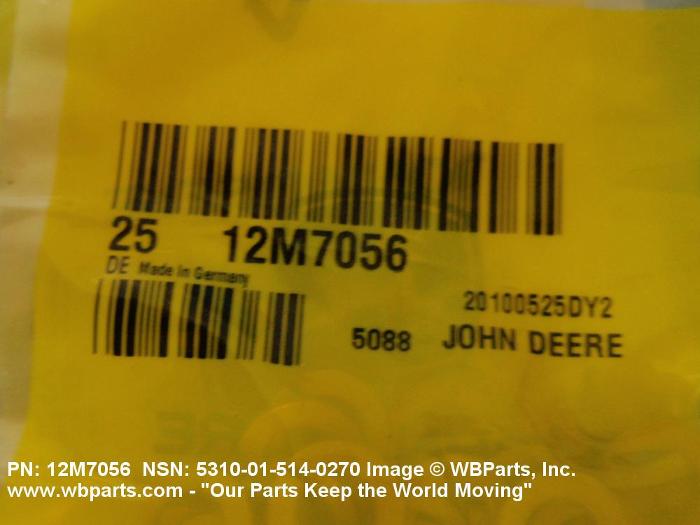

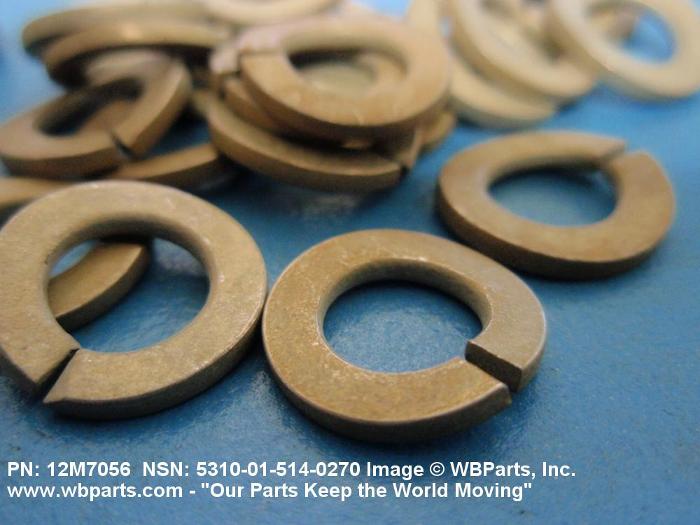

Drawings & Photos | NSN 5310-01-514-0270
Demand History | NSN 5310-01-514-0270
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12M7056 | 2019-02-51 | 159 | DIBBS |
| 5310-01-514-0270 | 2018-02-32 | 130 | DIBBS |
| 5310-01-514-0270 | 2017-06-166 | 19 | DIBBS |
| 5310-01-514-0270 | 2017-05-121 | 15 | DIBBS |
| 5310-01-514-0270 | 2015-12-362 | 1 | DIBBS |
| 5310-01-514-0270 | 2015-12-348 | 1 | DIBBS |
| 5310-01-514-0270 | 2015-09-267 | 4 | DIBBS |
| 5310-01-514-0270 | 2015-02-35 | 4 | DIBBS |
| 5310-01-514-0270 | 2015-02-34 | 4 | DIBBS |
| 5310-01-514-0270 | 2015-01-11 | 4 | DIBBS |
| 5310-01-514-0270 | 2013-12-346 | 2 | DIBBS |
| 5310-01-514-0270 | 2013-12-346 | 5 | DIBBS |
| 5310-01-514-0270 | 2013-05-142 | 2 | DIBBS |
| 5310-01-514-0270 | 2011-12-358 | 1 | DIBBS |
| 5310-01-514-0270 | 2011-02-40 | 500 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-514-0270
Related Products | NSN 5310-01-514-0270
Technical Data | NSN 5310-01-514-0270
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 111 SPLIT HELICAL-LEFT HAND |
| HOLE DIAMETER | 0.315 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.583 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-514-0270
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZW | Turkey ZX ZZ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-514-0270
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
