NSN 5310-01-497-4173 MS21060L3, 01-497-4173, 014974173
Product Details | PLATE SELF-LOCKING NUT
5310-01-497-4173 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21060L3, 5310-01-497-4173, 01-497-4173, 5310014974173, 014974173
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAY 2002 | 01-497-4173 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

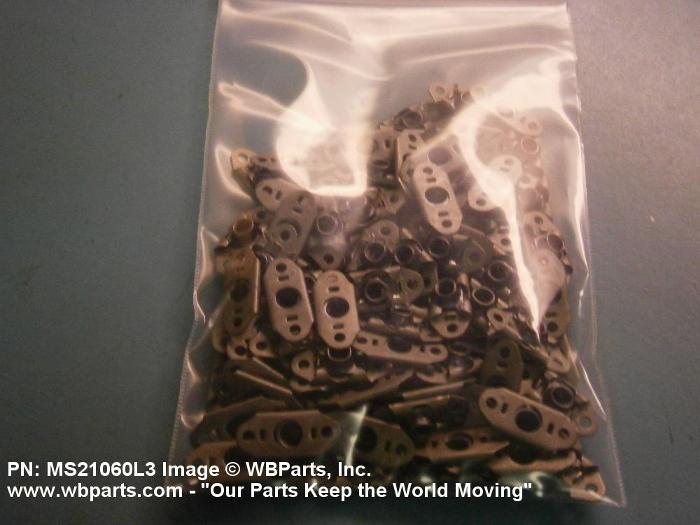

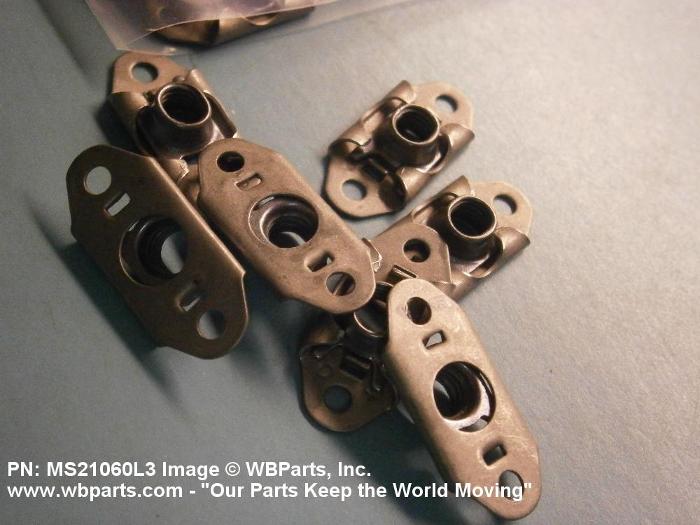

Drawings & Photos | NSN 5310-01-497-4173
Demand History | NSN 5310-01-497-4173
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21060L3 | 2024-10-298 | 10 | United States |
| MS21060L3 | 2024-10-298 | 20 | United States |
| MS21060L3 | 2024-10-298 | 30 | United States |
| MS21060L3 | 2024-10-298 | 10 | United States |
| MS21060L3 | 2024-10-298 | 20 | United States |
| MS21060L3 | 2024-10-298 | 30 | United States |
| MS21060L3 | 2024-06-175 | 400 | AE |
| MS21060L3 | 2023-12-339 | 12725 | TW |
| MS21060L3 | 2023-12-339 | 12725 | TW |
| MS21060L3 | 2023-10-276 | 10 | US |
| MS21060L3 | 2023-08-237 | 50 | South Africa |
| MS21060L3 | 2023-08-214 | 60 | US |
| MS21060L3 | 2023-01-18 | 200 | United States |
| MS21060L3 | 2022-10-276 | 159324 | TR |
| 5310-01-497-4173 | 2022-07-192 | 820 | Taiwan |
| MS21060L3 | 2022-04-106 | 85 | Taiwan |
| MS21060L3 | 2022-01-28 | 20000 | United States |
| MS21060L3 | 2021-11-320 | 43 | Canada |
| 5310-01-497-4173 | 2021-08-220 | 10 | MY |
| 5310-01-497-4173 | 2021-07-206 | 250 | TW |
| MS21060L3 | 2021-03-88 | 120 | United States |
| MS21060L3 | 2021-02-43 | 9600 | US |
| MS21060L3 | 2020-01-06 | 50 | United States |
| MS21060L3 | 2019-06-162 | 100 | US |
| MS21060L3 | 2018-01-12 | 12000 | Turkey |
| MS21060L3 | 2017-07-187 | 180 | United States |
| MS21060L3 | 2017-04-114 | 7600 | US |
| MS21060L3 | 2017-04-94 | 1 | United States |
| MS21060L3 | 2016-12-348 | 30 | US |
| MS21060L3 | 2016-05-126 | 110 | India |
| MS21060L3 | 2016-04-98 | 500 | ES |
| MS21060L3 | 2016-04-95 | 250 | United States |
| MS21060L3 | 2015-12-341 | 90 | Spain |
| MS21060L3 | 2015-08-223 | 12000 | us |
| MS21060L3 | 2015-05-146 | 2750 | Turkey |
| MS21060L3 | 2015-05-126 | 120 | Spain |
| MS21060L3 | 2015-03-63 | 1 | us |
| MS21060L3 | 2015-02-54 | 100 | US |
| MS21060L3 | 2015-02-43 | 2750 | Turkey |
| MS21060L3 | 2014-11-321 | 1 | us |
| MS21060L3 | 2014-10-289 | 12 | United States |
| MS21060L3 | 2014-08-218 | 22 | United States |
| MS21060L3 | 2014-04-97 | 100 | UK |
| MS21060L3 | 2013-12-345 | 250 | US |
| MS21060L3 | 2013-11-323 | 148 | Israel |
| MS21060L3 | 2013-11-315 | 9864 | Israel |
| MS21060L3 | 2013-10-304 | 96 | United States |
| MS21060L3 | 2013-10-302 | 18 | United States |
| MS21060L3 | 2013-10-302 | 200 | Spain |
| MS21060L3 | 2013-10-276 | 20 | US |
| MS21060L3 | 2013-09-259 | 250 | US |
| MS21060L3 | 2013-08-239 | 100 | TR |
| MS21060L3 | 2013-05-134 | 50 | CZ |
| MS21060L3 | 2012-08-235 | 1000 | United States |
| MS21060L3 | 2012-04-101 | 300 | United States |
| MS21060L3 | 2012-04-96 | 10 | us |
| MS21060L3 | 2012-02-52 | 254 | SG |
| MS21060L3 | 2012-02-46 | 100 | United States |
| MS21060L3 | 2012-02-40 | 10 | TR |
| 5310-01-497-4173 | 2011-10-301 | 120 | US |
| 5310-01-497-4173 | 2011-10-301 | 300 | US |
| 5310-01-497-4173 | 2011-10-301 | 600 | US |
| 5310-01-497-4173 | 2011-10-278 | 4 | United States |
| MS21060L3 | 2011-10-278 | 4 | US |
| MS21060L3 | 2011-08-220 | 100 | Malaysia |
| MS21060L3 | 2011-07-188 | 288 | United States |
| MS21060L3 | 2011-06-180 | 25 | United States |
| 5310-01-497-4173 | 2011-04-115 | 30 | US |
| MS21060L3 | 2011-03-87 | 40 | US |
| MS21060L3 | 2010-11-319 | 52 | United States |
| MS21060L3 | 2009-07-197 | 400 | United States |
| MS21060L3 | 2009-05-146 | 300 | US |
| MS21060L3 | 2009-01-05 | 500 | China |
| MS21060L3 | 2008-04-115 | 5000 | Taiwan |
| MS21060L3 | 2008-03-74 | 500 | United States |
| MS21060L3 | 2008-02-60 | 1000 | us |
| MS21060L3 | 2008-02-52 | 30 | United States |
| MS21060L3 | 2008-02-42 | 150 | US |
| MS21060L3 | 2007-11-318 | 6000 | RO |
| MS21060L3 | 2007-10-302 | 4 | Canada |
Cross Reference | NSN 5310-01-497-4173
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21060L3 | 1E0F1 | ROLLS ROYCE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-497-4173
Related Products | NSN 5310-01-497-4173
Technical Data | NSN 5310-01-497-4173
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.948 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | E-NSN ISIL; KC-130J AE2100D3 ENGINE-CONTRACTOR SUPPT.; ENGINE MODEL CODE AE2100D3 FOR KC-13J |
Restrictions/Controls & Freight Information | NSN 5310-01-497-4173
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-497-4173
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 0Q | Contractor supported items for NAVICP PHIL Consumables (1R) Naval Inventory Control Point, Philadelphia |
| Special Material ID | CL | ALLISONENGINE(AE1107C) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Y EA : Each |
