NSN 5310-01-487-0861 ASNA20363, ASNA2036-3 , HST13876
Product Details | HEXAGON PLAIN NUT
5310-01-487-0861 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: ASNA20363, ASNA2036-3 , HST13876, HST1387-6 , 5310-01-487-0861, 01-487-0861, 5310014870861, 014870861
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUL 2001 | 01-487-0861 | 01857 ( NUT, PLAIN, HEXAGON ) |

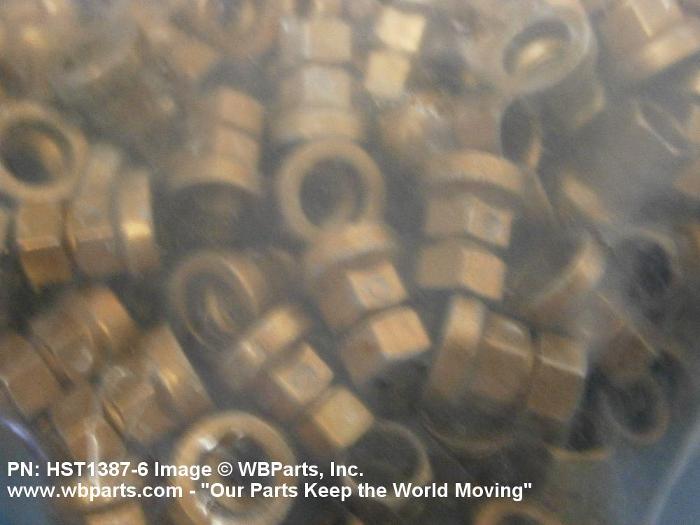

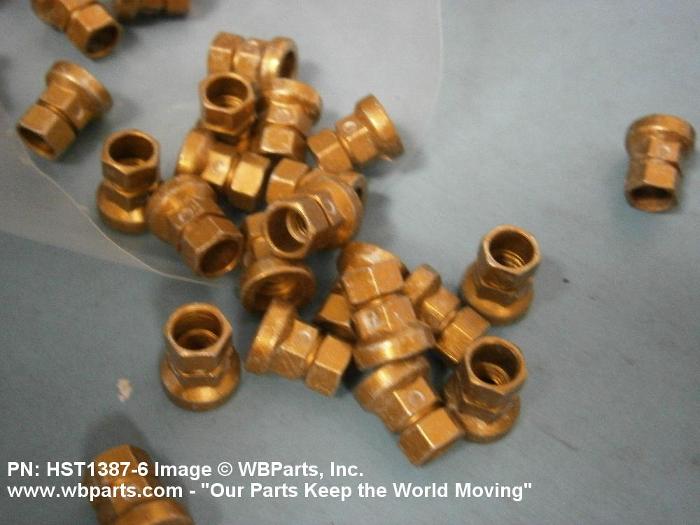

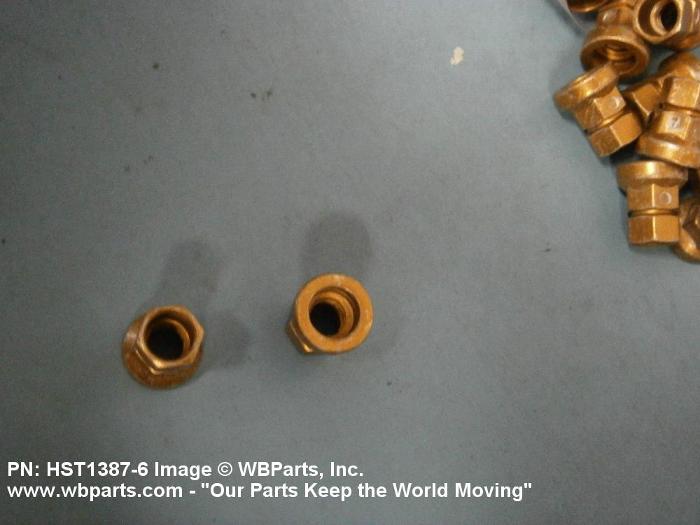

Drawings & Photos | NSN 5310-01-487-0861
Demand History | NSN 5310-01-487-0861
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HST13876 | 2023-12-340 | 8 | US |
| HST13876 | 2012-05-122 | 350 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-487-0861
Technical Data | NSN 5310-01-487-0861
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493, TYPE XM-7 ASSN STD SINGLE MATERIAL RESPONSE OR QQ-S-763, COMP 305 FED SPEC SINGLE MATERIAL RESPONSE OR AMS 5886, COMP 305 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A582, COMP 303 ASSN STD SINGLE MATERIAL RESPONSE OR QQ-S-763, COMP 302 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.395 INCHES MINIMUM AND 0.415 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.241 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | CN235, TRANSPORT AIRCRAFT, HI-SHEAR CORP |
Restrictions/Controls & Freight Information | NSN 5310-01-487-0861
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
