NSN 5310-01-486-0208 H537776, H53777-6, ST278512
Product Details | DOUBLE HEXAGON EXTENDED WASHER PLAIN NUT
5310-01-486-0208 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery.
Part Alternates: H537776, H53777-6, ST278512, ST2785-12, VN4761BB064, LH135876, LH13587-6, 92617624, 92617-624, 5310-01-486-0208, 01-486-0208, 5310014860208, 014860208
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 2001 | 01-486-0208 | 04888 ( NUT, PLAIN, EXTENDED WASHER, DOUBLE HEXAGON ) |

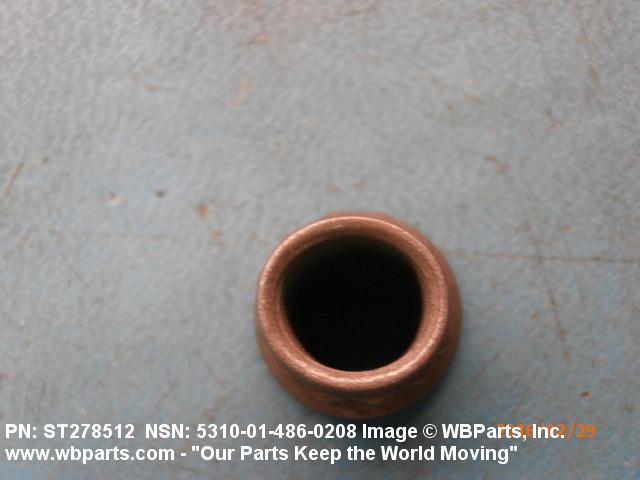

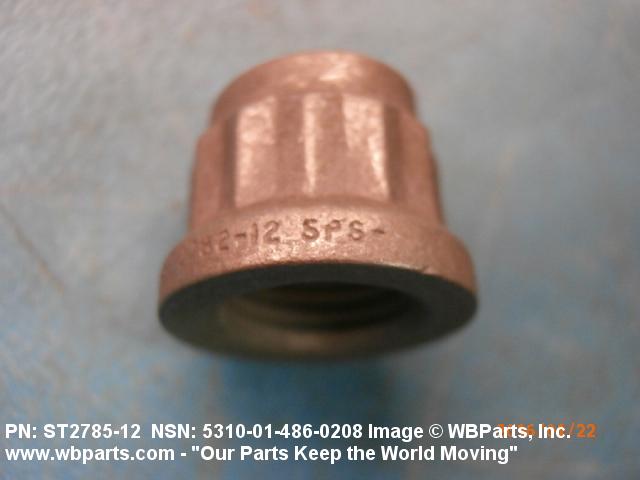

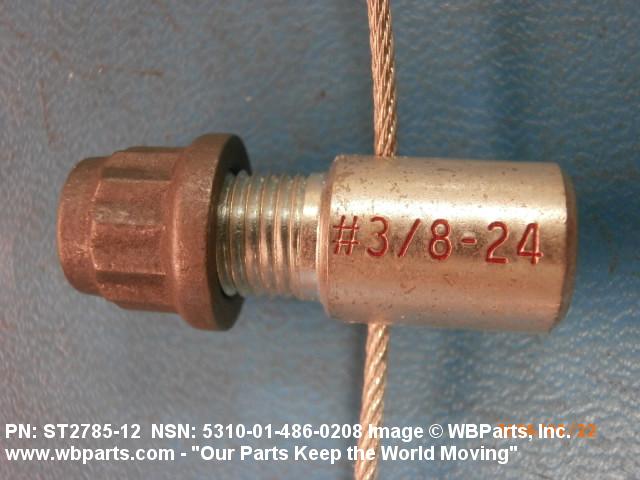

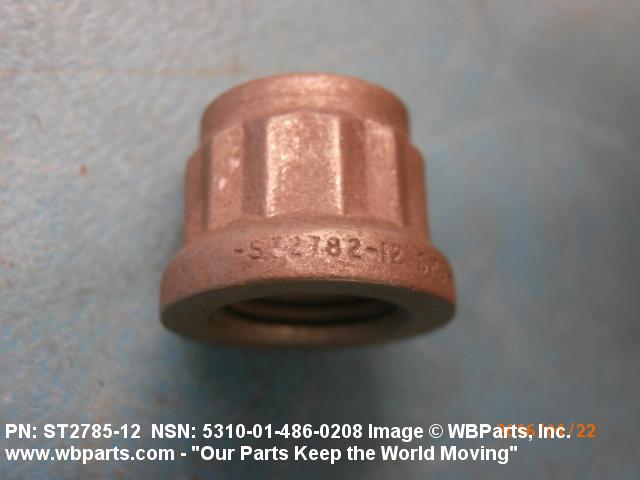

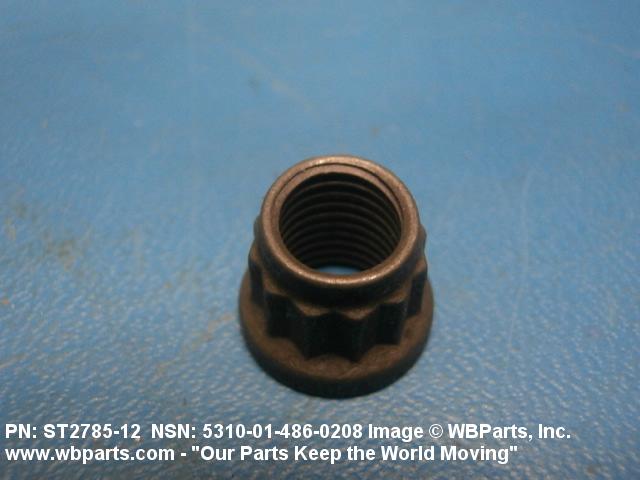

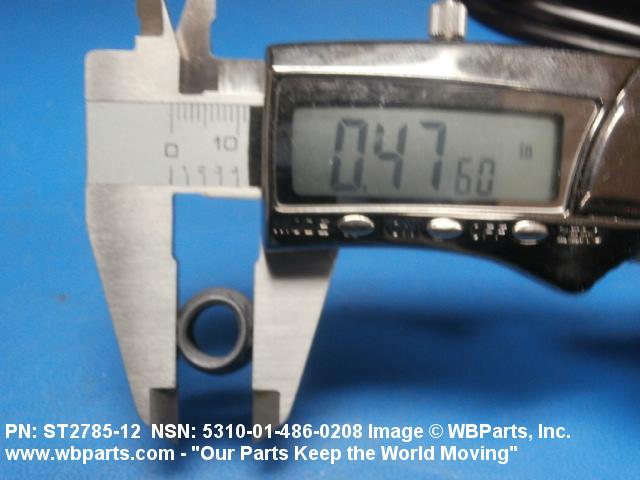

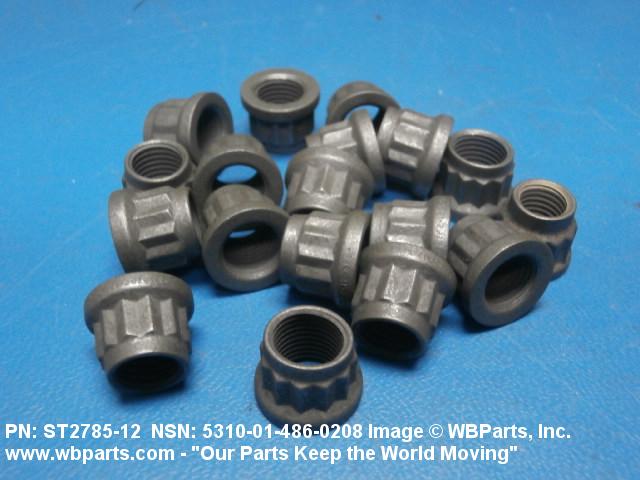

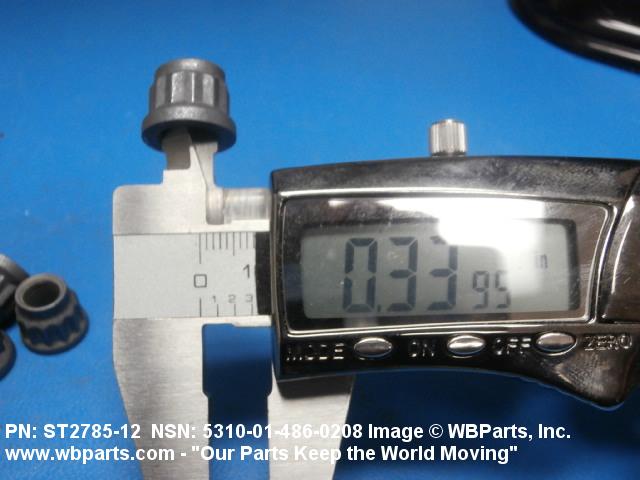

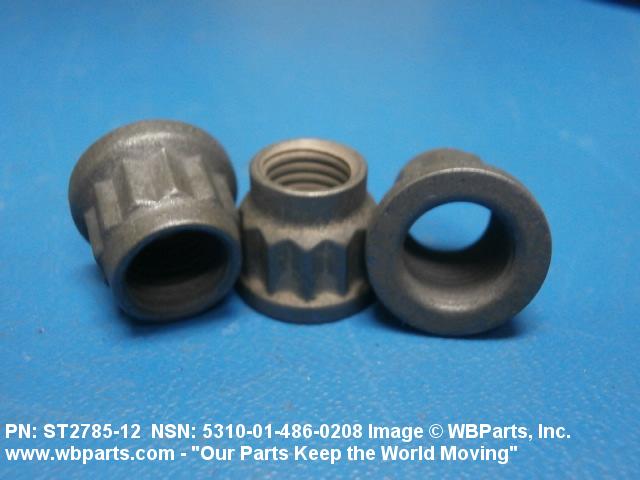

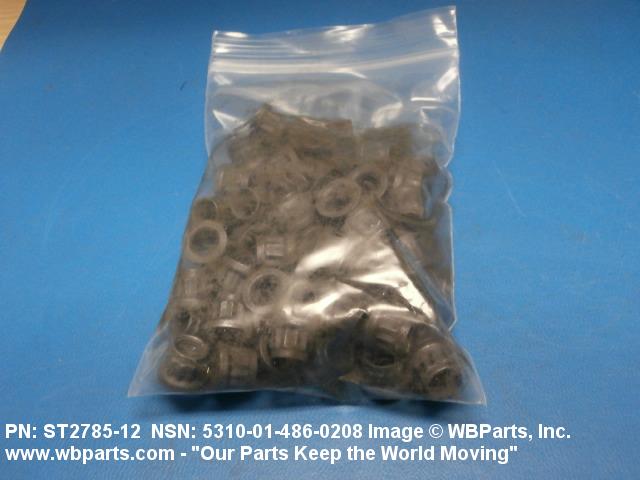

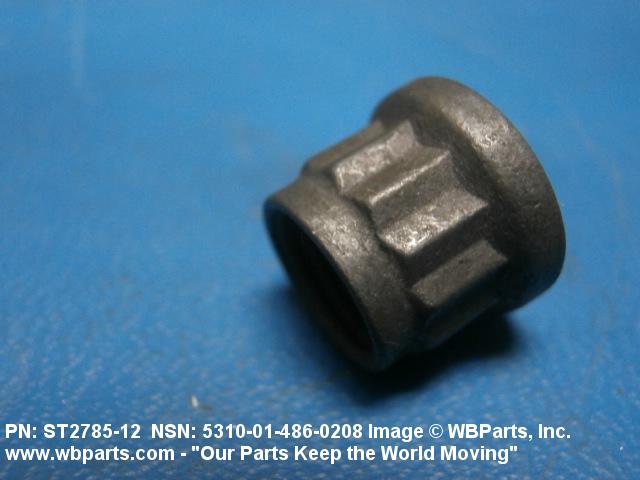

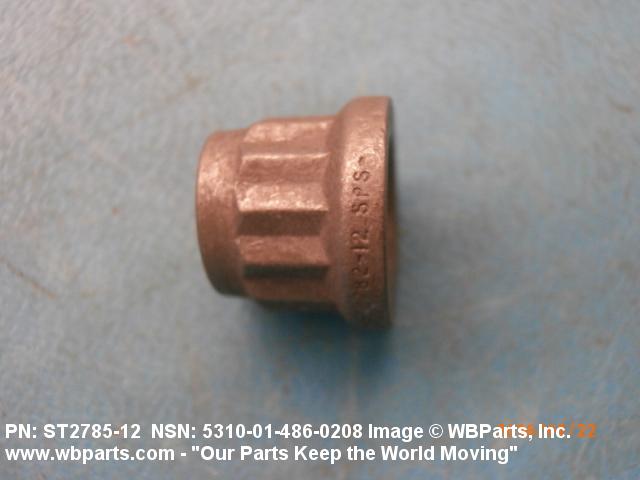

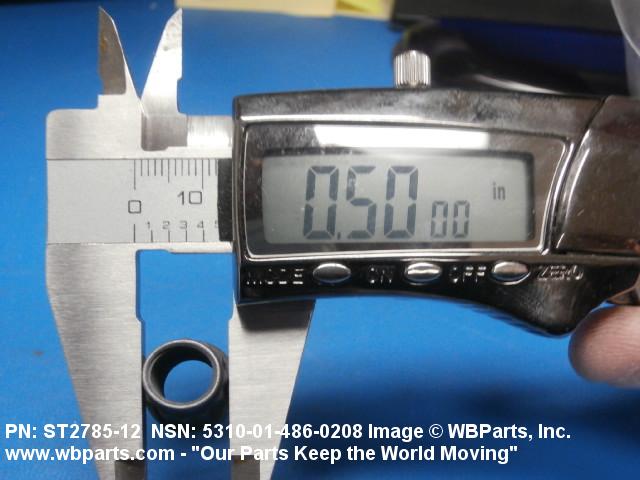

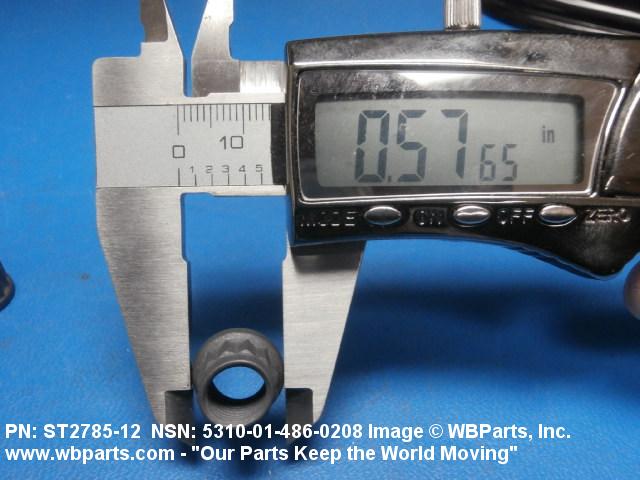

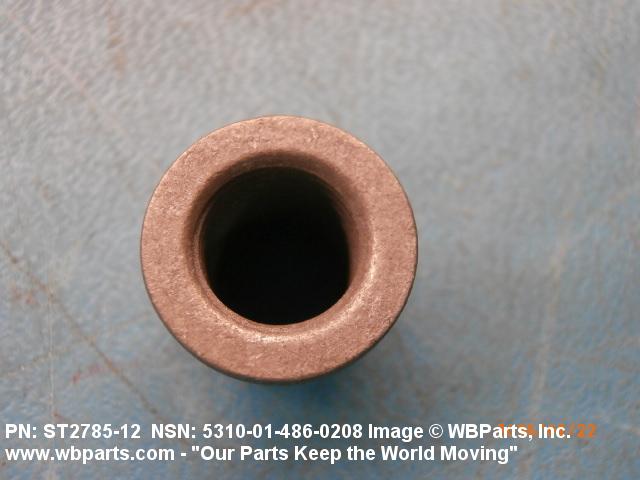

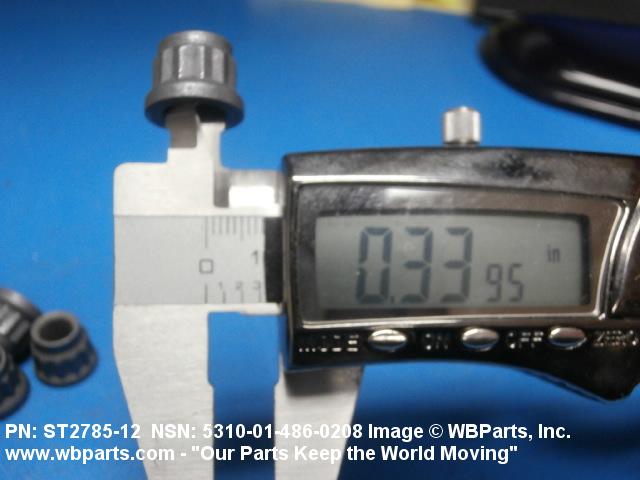

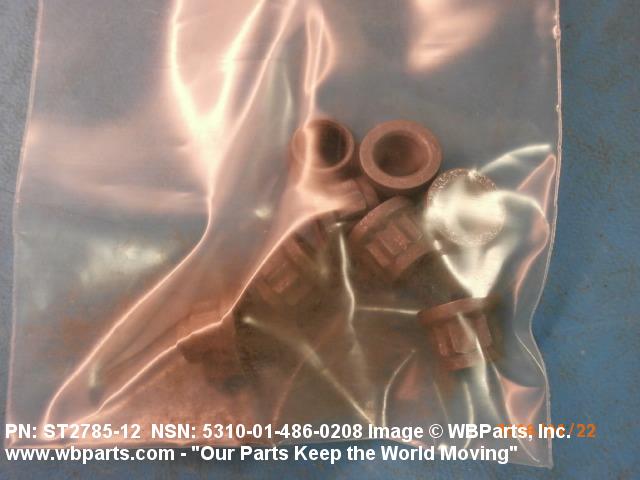

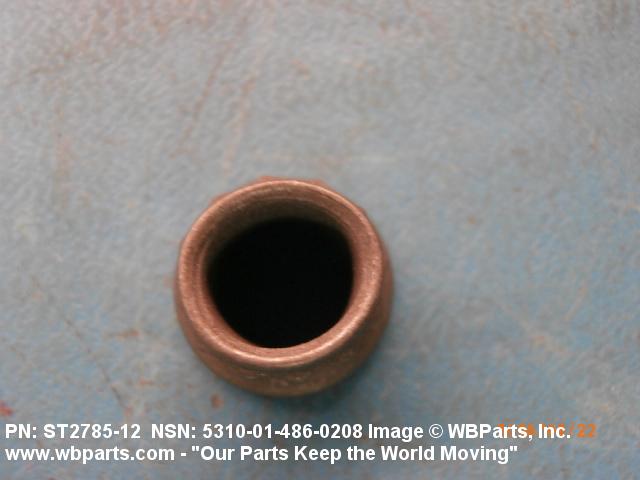

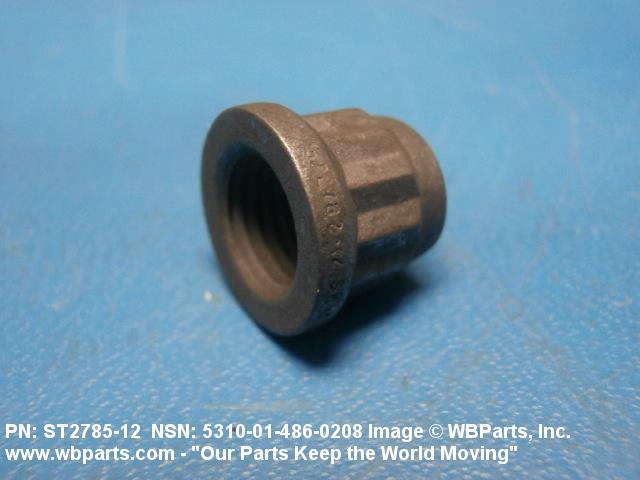

Drawings & Photos | NSN 5310-01-486-0208
Demand History | NSN 5310-01-486-0208
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST278512 | 2024-07-198 | 12 | US |
| 5310-01-486-0208 | 2023-04-116 | 16 | US |
| ST278512 | 2023-02-51 | 6 | SG |
| ST278512 | 2021-03-70 | 8 | France |
| ST278512 | 2019-05-133 | 14 | United States |
| 5310-01-486-0208 | 2019-04-116 | 4 | IN |
| ST278512 | 2018-03-79 | 6 | United States |
| ST278512 | 2017-09-257 | 32 | US |
| ST278512 | 2016-01-18 | 8 | United States |
| ST278512 | 2016-01-11 | 80 | United States |
| ST278512 | 2015-12-357 | 8 | United States |
| ST278512 | 2012-06-172 | 2300 | US |
| 5310-01-486-0208 | 2012-02-52 | 2300 | US |
| ST278512 | 2011-09-244 | 18 | US |
Cross Reference | NSN 5310-01-486-0208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92617-624 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| H53777-6 | 15563 | TRICOR DIRECT, INC. DBA SETON IDENTIFICATION PRODUCTS |
| LH13587-6 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| LH13587-6 | 72962 | HARVARD INDUSTRIES INC |
| ST2785-12 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| VN4761BB064 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-486-0208
Related Products | NSN 5310-01-486-0208
Technical Data | NSN 5310-01-486-0208
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | NOT RATED |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-486-0208
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-486-0208
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | RF | TP:F-119-PW-100 FOR ATF-ENGINE |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F13 | Pratt & Whitney West Palm Beach FL 33410-9600 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
