Product Details | FLAT WASHER

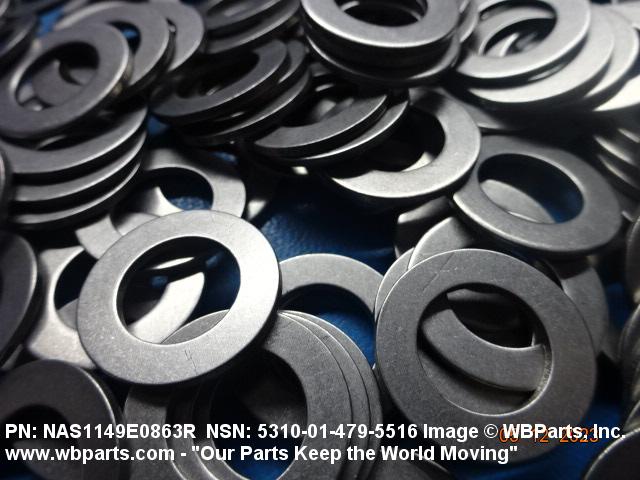

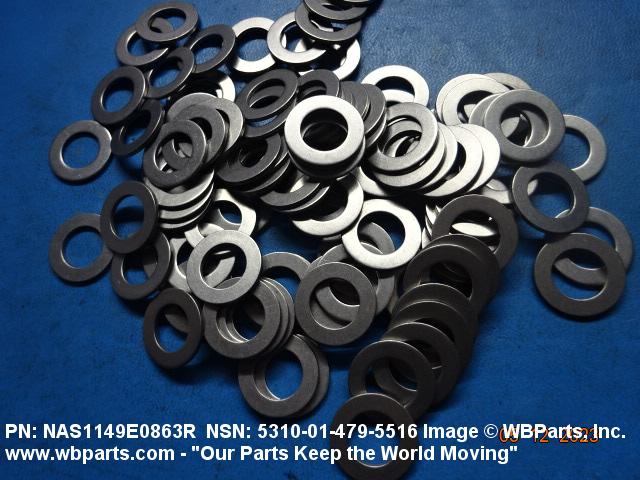

5310-01-479-5516 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: NAS1149E0863R, 5310-01-479-5516, 01-479-5516, 5310014795516, 014795516

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 25 OCT 2000 01-479-5516

Drawings & Photos | NSN 5310-01-479-5516


Demand History | NSN 5310-01-479-5516

Part Number Request Date QTY Origin
5310-01-479-5516 2023-05-129 1 United States
NAS1149E0863R 2020-12-356 684 United States
5310-01-479-5516 2019-05-147 1668 DIBBS
5310-01-479-5516 2018-11-305 4108 DIBBS
5310-01-479-5516 2018-08-217 2947 DIBBS
5310-01-479-5516 2018-01-01 2773 DIBBS
5310-01-479-5516 2017-07-191 1301 DIBBS
5310-01-479-5516 2016-06-166 726 DIBBS
5310-01-479-5516 2016-04-119 301 DIBBS
5310-01-479-5516 2016-04-112 210 DIBBS
5310-01-479-5516 2016-04-111 301 DIBBS
NAS1149E0863R 2016-04-95 1200 Poland
5310-01-479-5516 2016-02-46 210 DIBBS
5310-01-479-5516 2015-10-288 157 DIBBS
5310-01-479-5516 2015-10-277 157 DIBBS
NAS1149E0863R 2015-08-217 150 United States
5310-01-479-5516 2015-08-217 150 United States
5310-01-479-5516 2015-06-162 262 DIBBS
5310-01-479-5516 2015-05-151 262 DIBBS
NAS1149E0863R 2013-12-340 75 United States
NAS1149E0863R 2013-12-336 75 US
NAS1149E0863R 2012-08-237 20 United States
NAS1149E0863R 2012-08-237 40 United States
5310-01-479-5516 2012-03-86 90 US
NAS1149E0863R 2012-02-44 30 United States
NAS1149E0863R 2009-05-146 24 United States
NAS1149E0863R 2008-04-98 205 US

Cross Reference | NSN 5310-01-479-5516

Part Number Cage Code Manufacturer
NAS1149E0863R 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-479-5516

Technical Data | NSN 5310-01-479-5516

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS 5525 (160 KSI MIN UTS) ASSN STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT PASSIVATE OVERALL

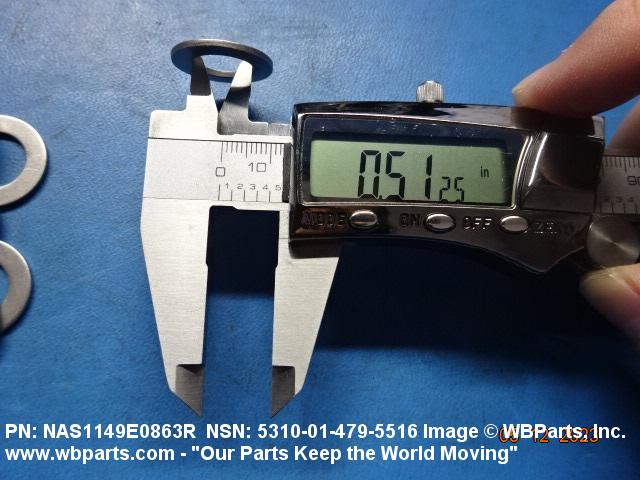

HOLE DIAMETER 0.505 INCHES MINIMUM AND 0.525 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE 1 ROUND

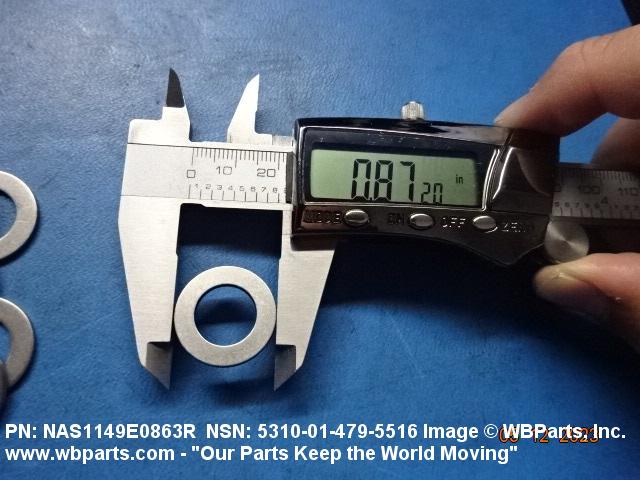

OVERALL DIAMETER 0.870 INCHES MINIMUM AND 0.895 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE 1 ROUND
CROSS-SECTIONAL SHAPE STYLE 1 RECTANGULAR
THICKNESS 0.061 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
CRITICALITY CODE JUSTIFICATION AGAV
III END ITEM IDENTIFICATION F/A-18 E/F ACFT
