Product Details | DOUBLE HEXAGON SINGLE BALL SEAT SELF-LOCKING NUT

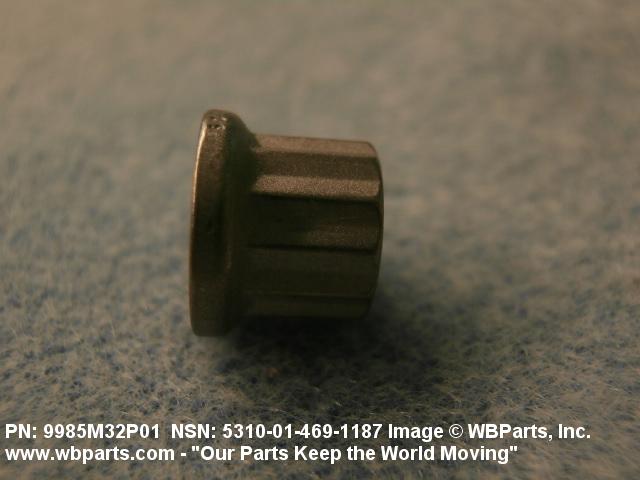

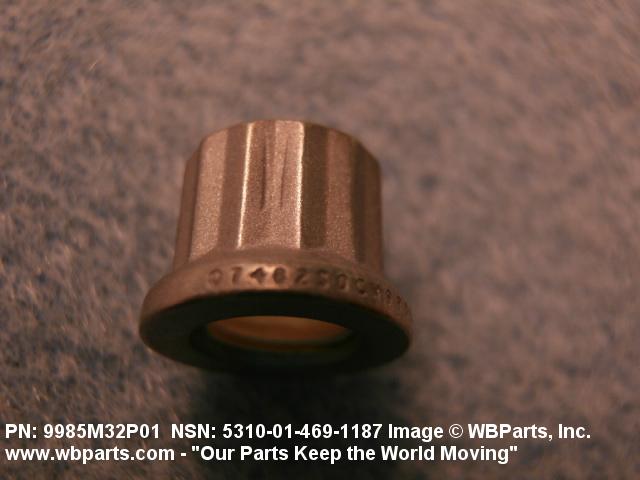

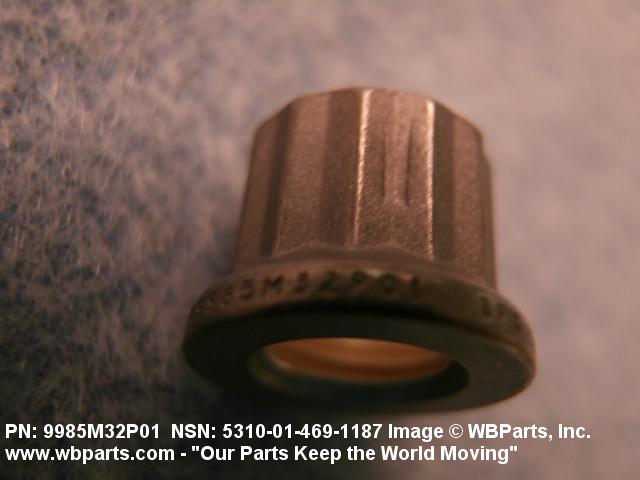

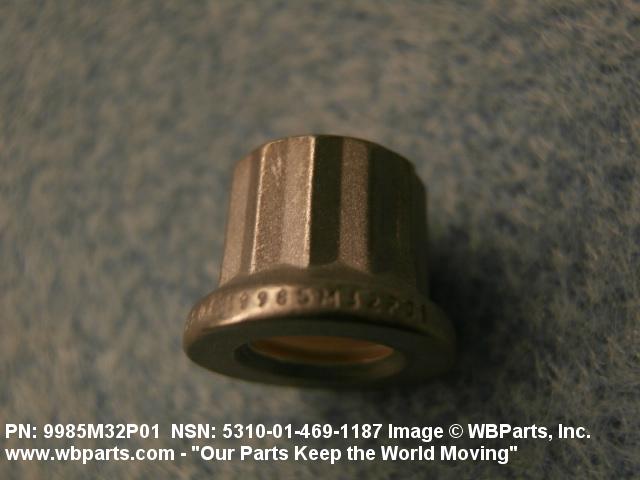

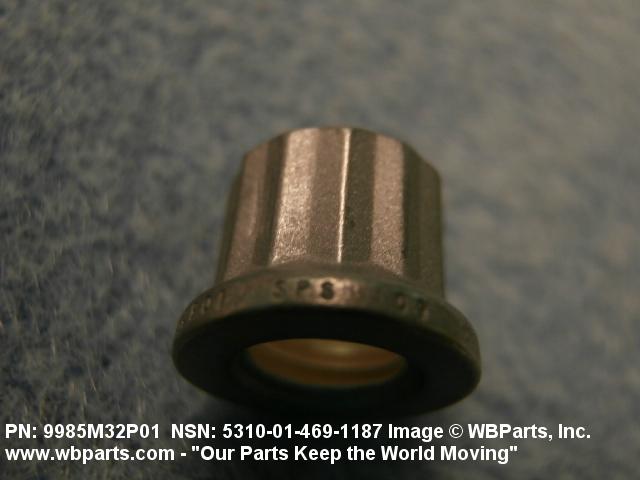

5310-01-469-1187 A nut having one convex, spherical bearing surface, with 12 drive points, 24 sides. Items may have a removable collar. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: CL 12397-4, CL123974, CL12397-4, H508014, H50801-4, VN732W048, VN732-W048, 9985M32, 9985M32P01, 9985M32P05, 9985M32P06, 5310-01-469-1187, 01-469-1187, 5310014691187, 014691187

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 03 NOV 1999 01-469-1187

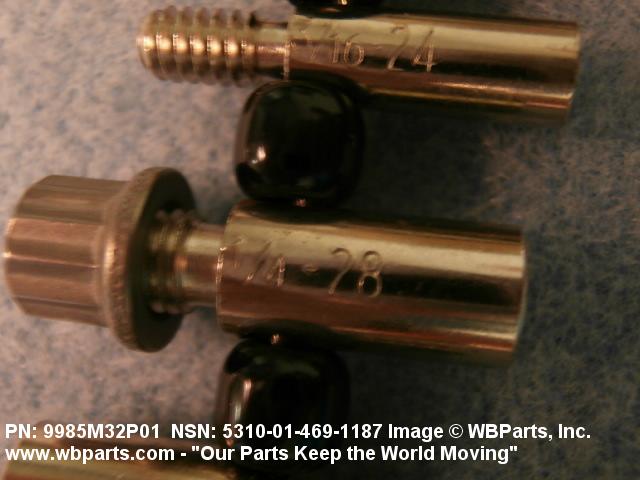

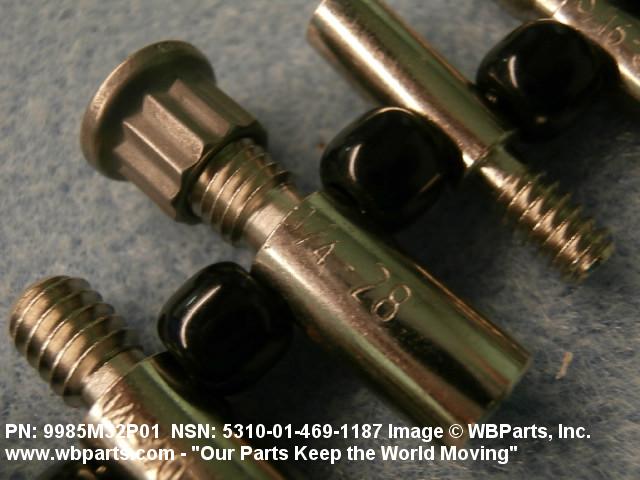

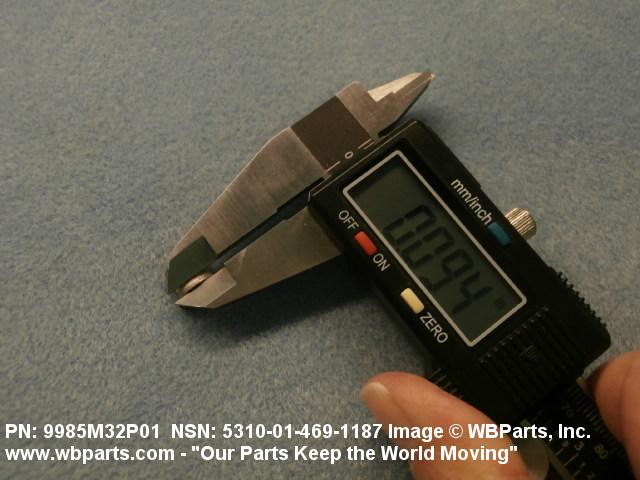

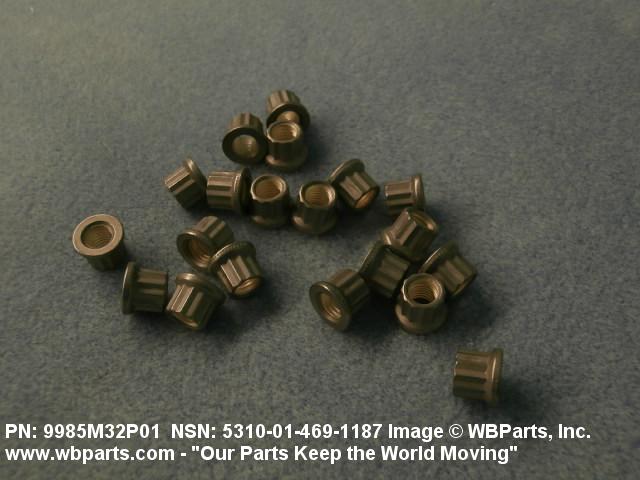

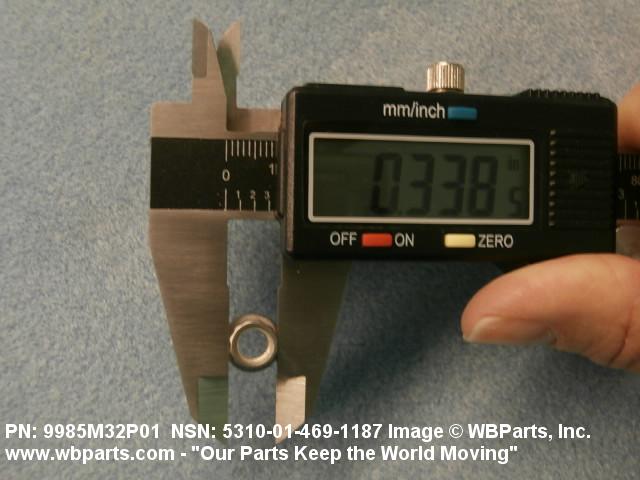

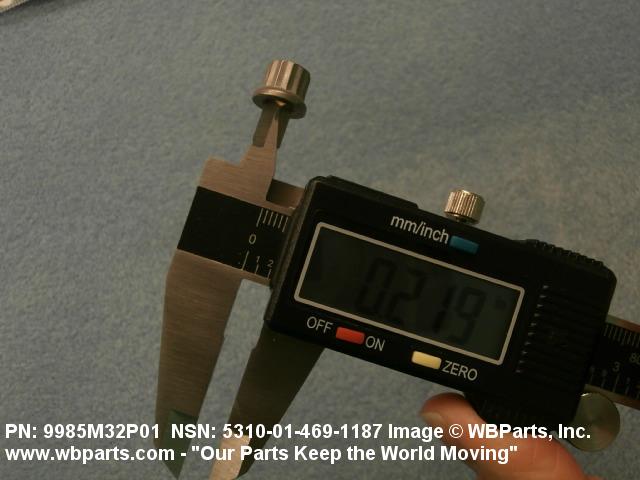

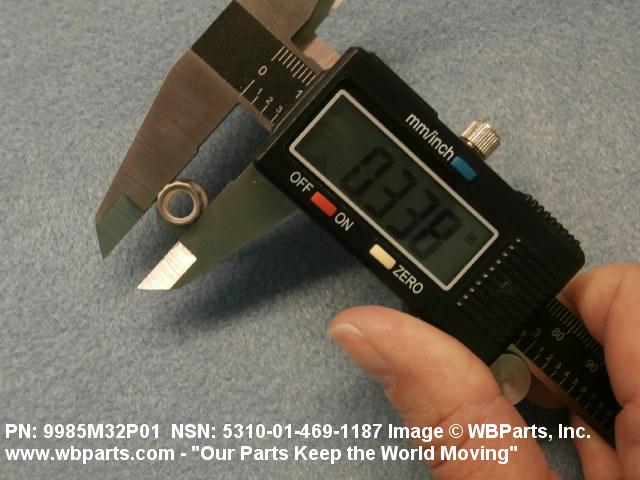

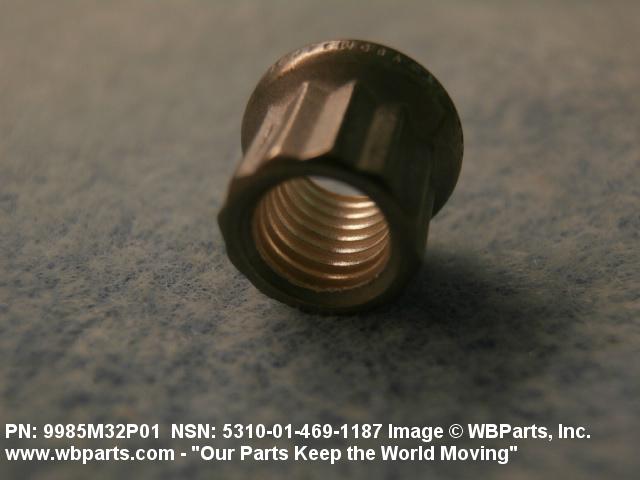

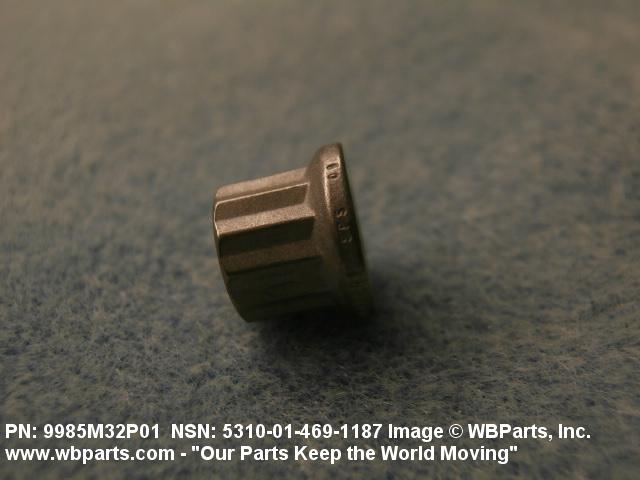

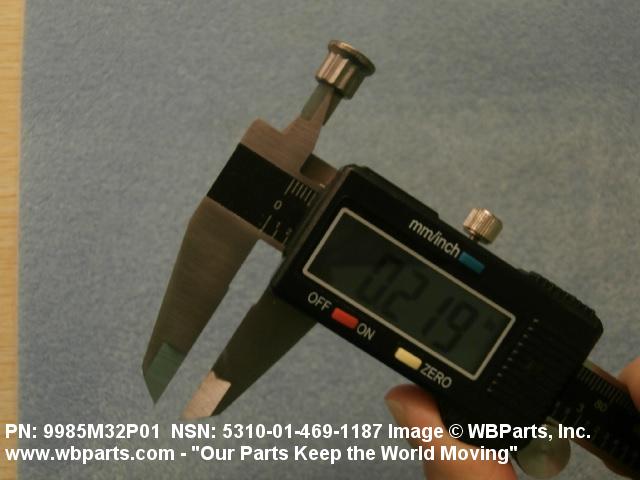

Drawings & Photos | NSN 5310-01-469-1187


Demand History | NSN 5310-01-469-1187

Part Number Request Date QTY Origin
5310-01-469-1187 2024-05-136 500 AE
5310-01-469-1187 2024-01-10 500 HK
5310-01-469-1187 2020-03-64 74 AO
CL12397-4 2019-08-239 31000 DIBBS
H50801-4 2019-08-239 31000 DIBBS
CL12397-4 2019-04-100 103534 DIBBS
H50801-4 2019-04-100 103534 DIBBS
CL12397-4 2019-03-64 103534 DIBBS
H50801-4 2019-03-64 103534 DIBBS
5310-01-469-1187 2019-01-02 27932 DIBBS
5310-01-469-1187 2018-11-331 104780 DIBBS
5310-01-469-1187 2018-08-242 27932 DIBBS
5310-01-469-1187 2018-08-233 42400 DIBBS
5310-01-469-1187 2018-06-178 21200 DIBBS
5310-01-469-1187 2018-06-152 43940 DIBBS
5310-01-469-1187 2018-04-106 43940 DIBBS
5310-01-469-1187 2018-01-11 31075 DIBBS
5310-01-469-1187 2017-10-298 8355 DIBBS
9985M32P01 2017-04-93 72 US
5310-01-469-1187 2016-05-143 8114 DIBBS
9985M32P01 2016-05-125 3 Taiwan
9985M32P01 2016-04-106 3 Taiwan
9985M32P01 2013-11-317 61 US
5310-01-469-1187 2012-03-82 100 Taiwan
5310-01-469-1187 2012-03-81 50 Taiwan
5310-01-469-1187 2006-08-214 10800 United States

Cross Reference | NSN 5310-01-469-1187

Part Number Cage Code Manufacturer
9985M32 07482 GENERAL ELECTRIC COMPANY DBA GE
9985M32P01 07482 GENERAL ELECTRIC COMPANY DBA GE
9985M32P01 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
9985M32P05 07482 GENERAL ELECTRIC COMPANY DBA GE
9985M32P05 58828 CFM INTERNATIONAL, INC.
9985M32P06 07482 GENERAL ELECTRIC COMPANY DBA GE
9985M32P06 27238 BRISTOL INDUSTRIES
CL 12397-4 72962 HARVARD INDUSTRIES INC
CL12397-4 56878 SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
H50801-4 15653 ALCOA GLOBAL FASTENERS, INC.
VN732-W048 92215 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-469-1187

Technical Data | NSN 5310-01-469-1187

Characteristic Specifications

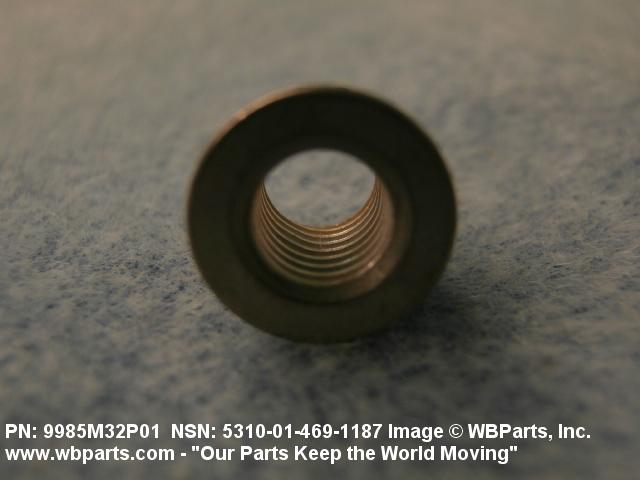

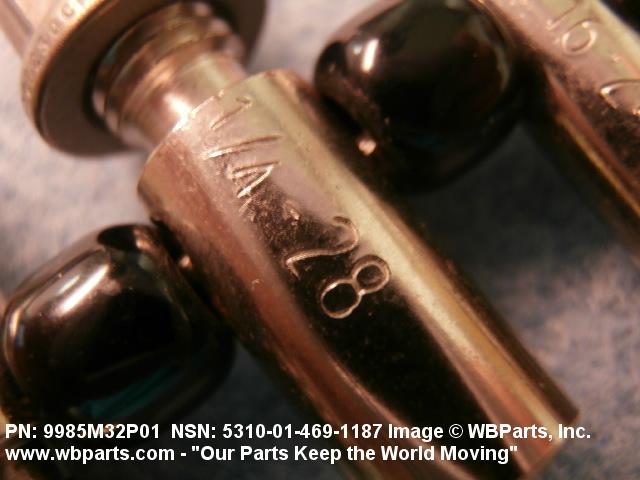

THREAD SERIES UNJF

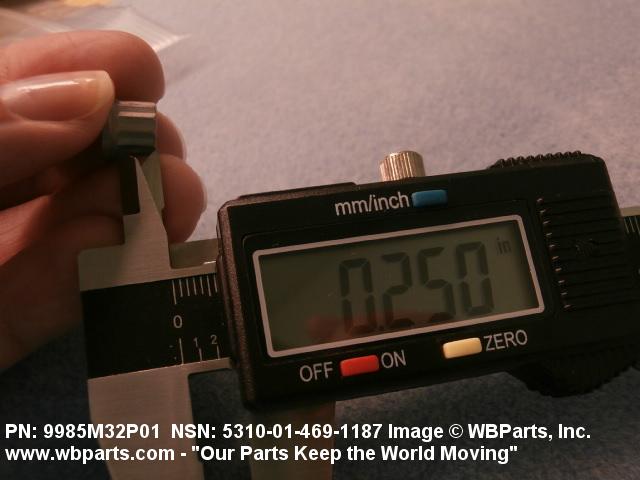

NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL NICKEL ALLOY UNS N07001 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MS 5709 (WASPALLOY,REF) ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT SILVER THREADS
HARDNESS RATING NOT RATED

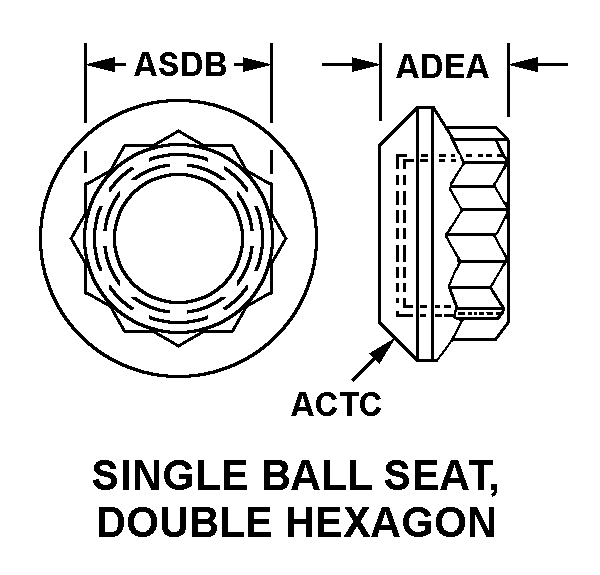

NUT STYLE A8A SINGLE BALL SEAT, DOUBLE HEXAGON
BALL SEAT RADIUS 0.015 INCHES NOMINAL

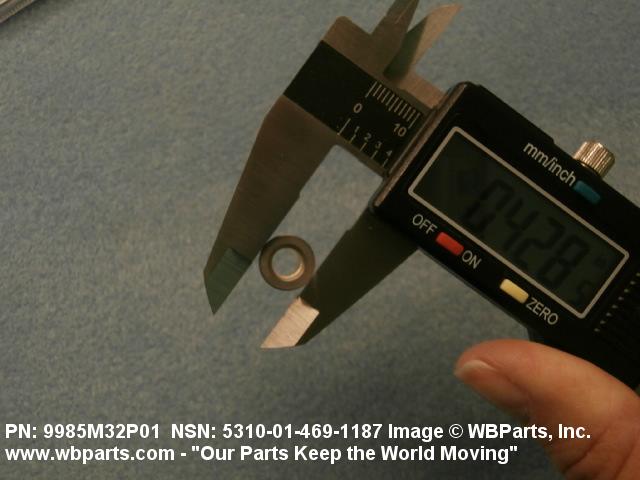

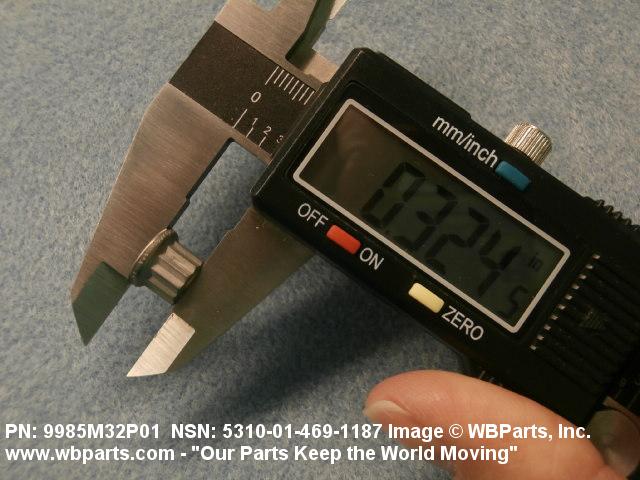

NUT HEIGHT 0.310 INCHES MINIMUM AND 0.330 INCHES MAXIMUM
WIDTH ACROSS FLATS 0.313 INCHES NOMINAL
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION GRAPHITE
TEMP RATING NOT RATED
III PRECIOUS MATERIAL AND LOCATION THREADS SILVER
III BEARING SURFACE FINISH 125.0 MICROINCHES
III END ITEM IDENTIFICATION EXHAUST SYSTE;WSD:AIRCRAFT,B-2 BOMBER (ATB)

Restrictions/Controls & Freight Information | NSN 5310-01-469-1187

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:SItem contains silver
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
