NSN 5310-01-466-3160 HS44322, HS4432-2, 1127700
Product Details | LOCK WASHER

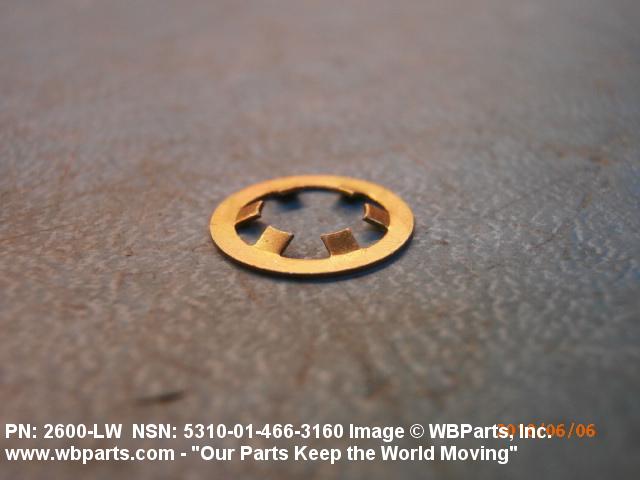

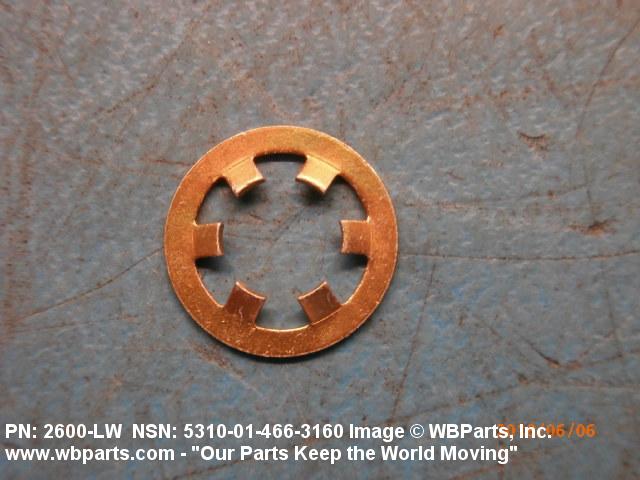

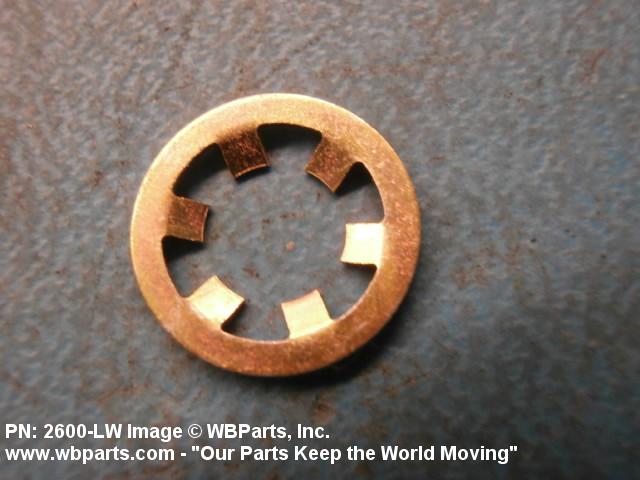

5310-01-466-3160 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: HS44322, HS4432-2, 1127700, 2600LW, 2600-LW, 5310-01-466-3160, 01-466-3160, 5310014663160, 014663160
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUL 1999 | 01-466-3160 | 14218 ( WASHER, LOCK ) |
Drawings & Photos | NSN 5310-01-466-3160
Demand History | NSN 5310-01-466-3160
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2600LW | 2025-06-154 | 6 | US |
| 2600LW | 2025-04-107 | 20 | Croatia |
| 2600LW | 2025-04-91 | 108 | AE |
| 2600LW | 2024-12-352 | 12 | AE |
| 2600LW | 2024-06-163 | 4 | US |
| 1127700 | 2024-05-137 | 24 | US |
| 2600LW | 2024-03-79 | 5 | MN |
| 2600LW | 2023-08-221 | 150 | United Arab Emirates |
| 2600LW | 2023-06-160 | 1 | United States |
| 2600LW | 2022-12-346 | 15 | United States |
| 2600LW | 2020-07-192 | 140 | United States |
| 5310-01-466-3160 | 2020-01-02 | 1100 | US |
| 5310-01-466-3160 | 2019-12-350 | 32 | US |
| 2600LW | 2019-02-53 | 100 | United States |
| 2600LW | 2019-02-52 | 8 | TH |
| 2600LW | 2018-09-263 | 1000 | Singapore |
| 5310-01-466-3160 | 2018-06-157 | 100 | United States |
| 2600LW | 2018-05-141 | 200 | United States |
| 5310-01-466-3160 | 2018-04-91 | 675 | DIBBS |
| HS44322 | 2018-02-44 | 15 | United States |
| 2600LW | 2017-10-276 | 1 | US |
| 2600-LW | 2017-05-139 | 100 | Taiwan |
| 2600LW | 2016-10-300 | 100 | United States |
| 2600LW | 2016-09-266 | 80 | us |
| 5310-01-466-3160 | 2016-07-187 | 1900 | DIBBS |
| 5310-01-466-3160 | 2016-06-179 | 1900 | DIBBS |
| 5310-01-466-3160 | 2016-06-165 | 2000 | DIBBS |
| 5310-01-466-3160 | 2016-02-41 | 2685 | DIBBS |
| 5310-01-466-3160 | 2015-12-365 | 257 | DIBBS |
| 5310-01-466-3160 | 2015-12-357 | 257 | DIBBS |
| 5310-01-466-3160 | 2015-09-258 | 1269 | DIBBS |
| 5310-01-466-3160 | 2015-09-246 | 1269 | DIBBS |
| 5310-01-466-3160 | 2015-07-205 | 1530 | DIBBS |
| 5310-01-466-3160 | 2015-07-194 | 1530 | DIBBS |
| 5310-01-466-3160 | 2015-07-193 | 857 | DIBBS |
| 2600-LW | 2015-05-138 | 8 | United States |
| 2600-LW | 2015-05-138 | 4 | United States |
| 2600LW | 2015-01-07 | 100 | US |
| 5310-01-466-3160 | 2014-10-289 | 50 | United States |
| 2600LW | 2013-10-274 | 5 | US |
| 5310-01-466-3160 | 2013-09-262 | 15 | United States |
| 2600LW | 2013-08-227 | 3 | AR |
| 5310-01-466-3160 | 2013-02-51 | 100 | United States |
| 2600LW | 2012-11-310 | 50 | |
| 2600LW | 2011-12-361 | 30 | United States |
| 2600LW | 2011-12-348 | 2000 | United States |
| 5310-01-466-3160 | 2011-02-39 | 1520 | US |
| 5310-01-466-3160 | 2009-08-243 | 30 | US |
| 5310-01-466-3160 | 2009-07-188 | 2664 | DIBBS |
| 1127700 | 2009-03-89 | 10 | RU |
| 2600LW | 2009-03-65 | 50 | US |
| HS44322 | 2009-02-55 | 1 | US |
| 5310-01-466-3160 | 2009-02-50 | 8159 | DIBBS |
| 5310-01-466-3160 | 2009-01-15 | 347 | DIBBS |
| 5310-01-466-3160 | 2008-12-357 | 4439 | DIBBS |
| 5310-01-466-3160 | 2008-11-329 | 847 | DIBBS |
| 2600LW | 2008-10-302 | 75 | US |
| 5310-01-466-3160 | 2008-10-296 | 539 | DIBBS |
| HS44322 | 2008-10-283 | 550 | US |
| 5310-01-466-3160 | 2008-10-283 | 1416 | DIBBS |
| 5310-01-466-3160 | 2008-08-217 | 636 | DIBBS |
| 5310-01-466-3160 | 2008-06-155 | 499 | DIBBS |
| 5310-01-466-3160 | 2008-03-77 | 429 | DIBBS |
| 2600LW | 2006-05-149 | 1 | Australia |
| 2600LW | 2006-04-109 | 10 | US |
Cross Reference | NSN 5310-01-466-3160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1127700 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 2600-LW | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HS4432-2 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS4432-2 | 10630 | ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES |
| HS4432-2 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-466-3160
Related Products | NSN 5310-01-466-3160
Technical Data | NSN 5310-01-466-3160
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

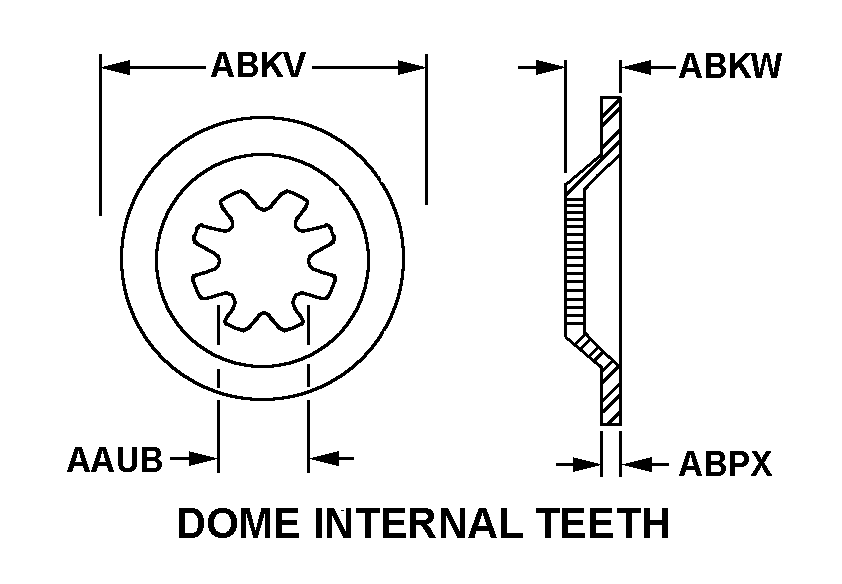

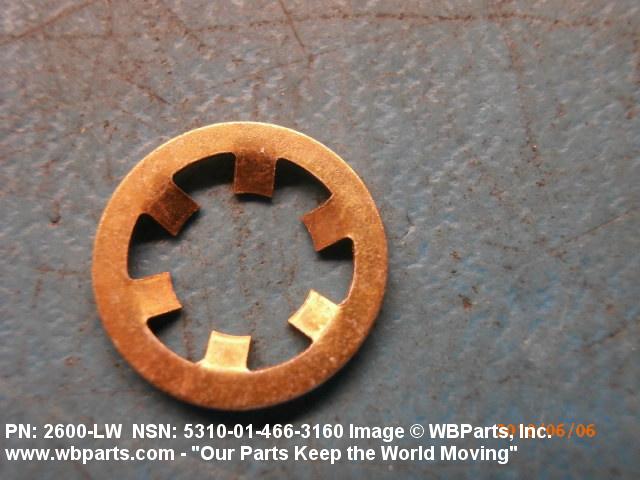

| STYLE DESIGNATOR | 105 DOME INTERNAL TEETH |

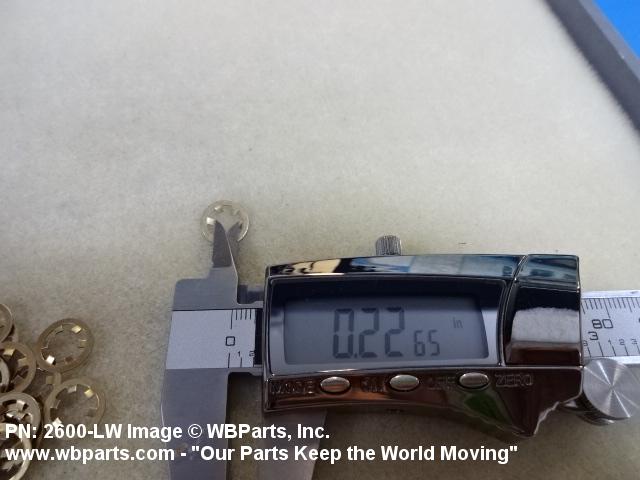

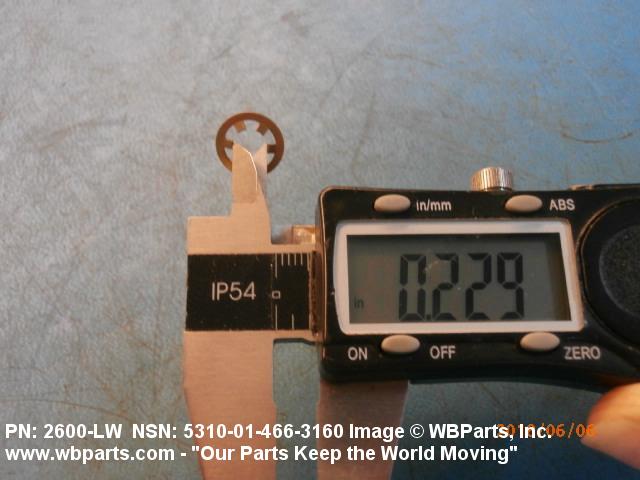

| HOLE DIAMETER | 0.225 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |

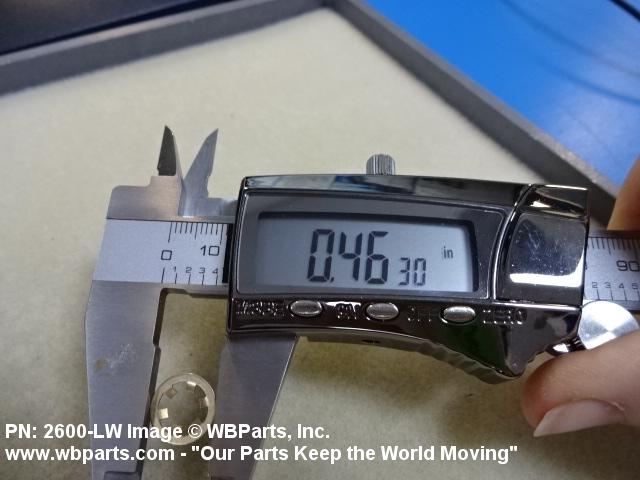

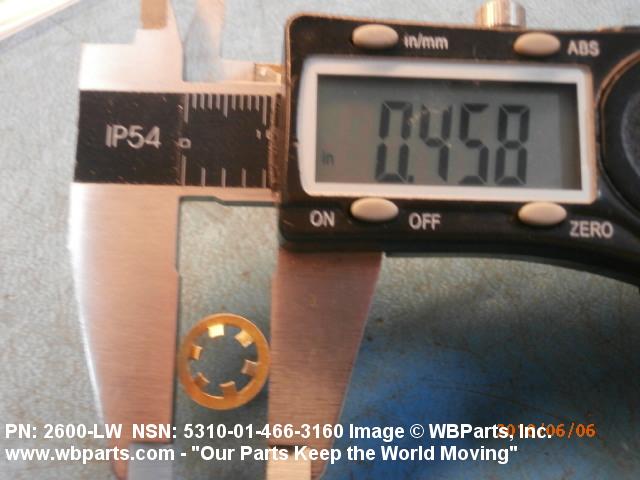

| OUTSIDE DIAMETER | 0.450 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |

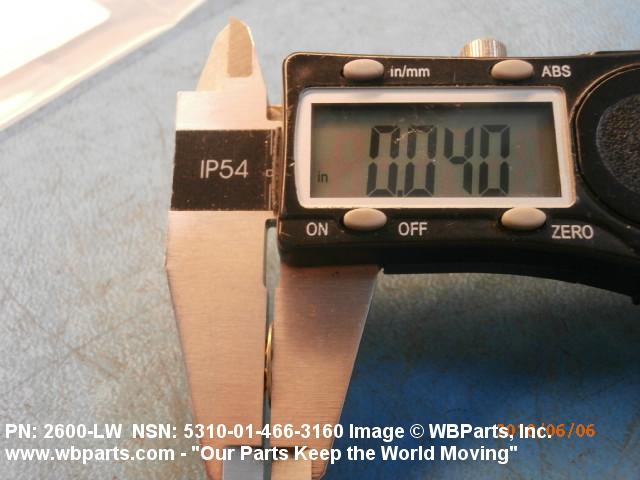

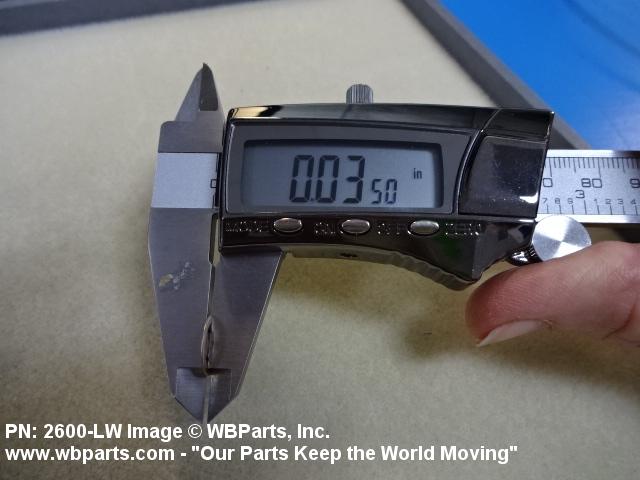

| OVERALL HEIGHT | 0.020 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |

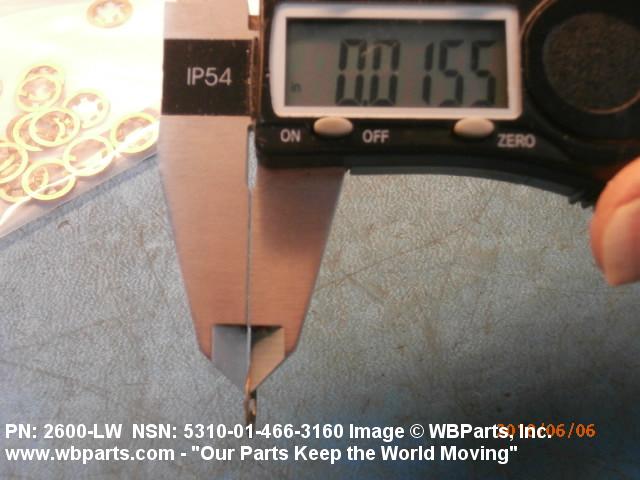

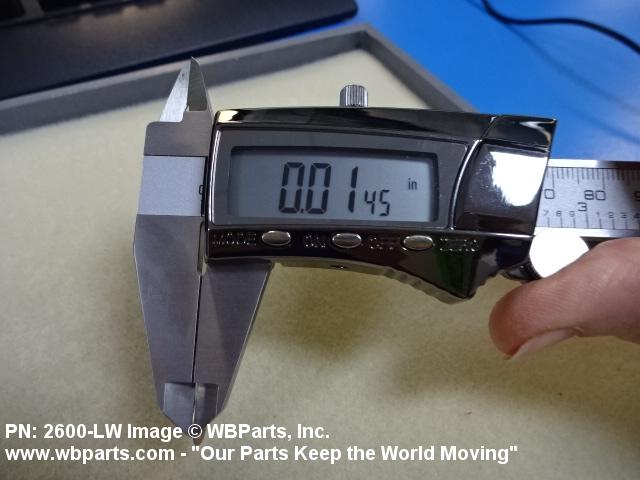

| MATERIAL THICKNESS | 0.012 INCHES MINIMUM AND 0.016 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | APACHE ATTACK HELICOPTER |
Restrictions/Controls & Freight Information | NSN 5310-01-466-3160
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | QE | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-466-3160
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
