Product Details | HEXAGON EXTENDED WASHER PLAIN NUT

5310-01-463-8817 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery.

Part Alternates: MS210433, MS21043-3, 6746975, 5310-01-463-8817, 01-463-8817, 5310014638817, 014638817

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 08 APR 1999 01-463-8817

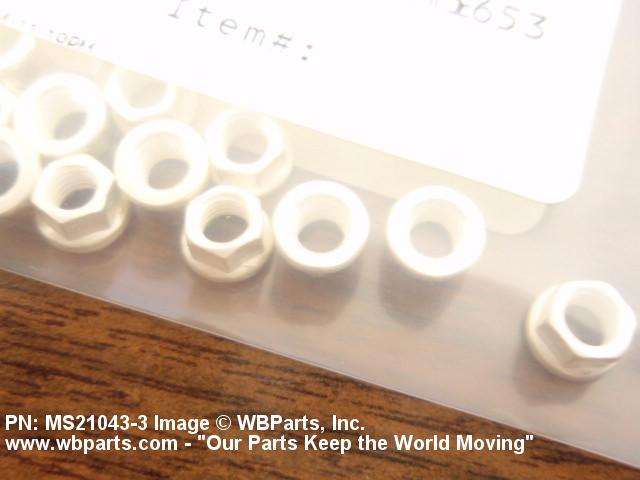

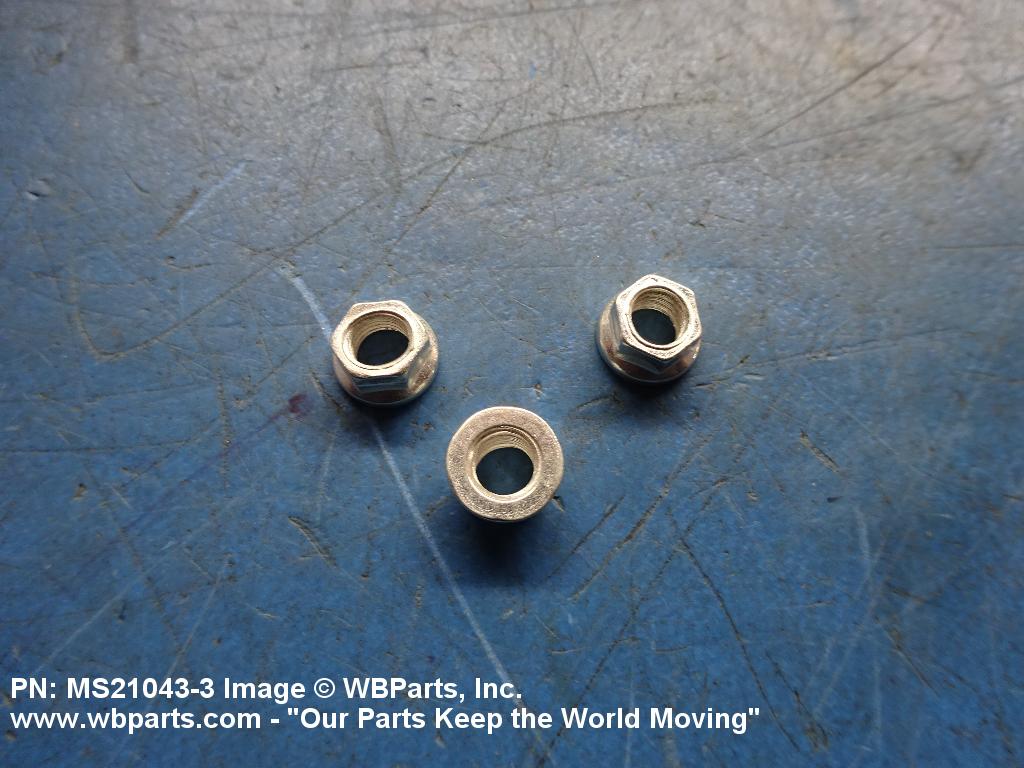

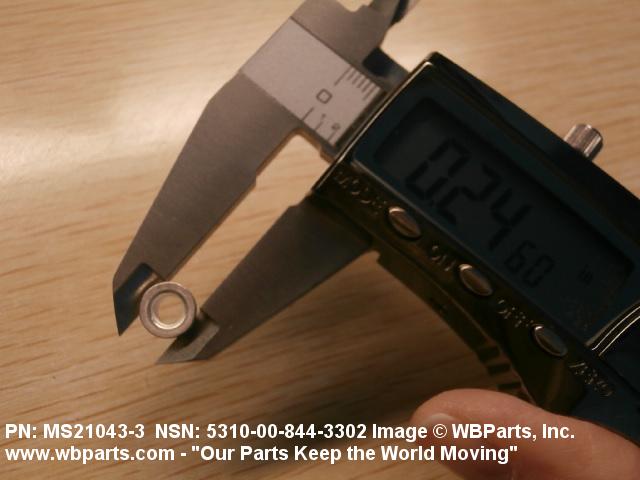

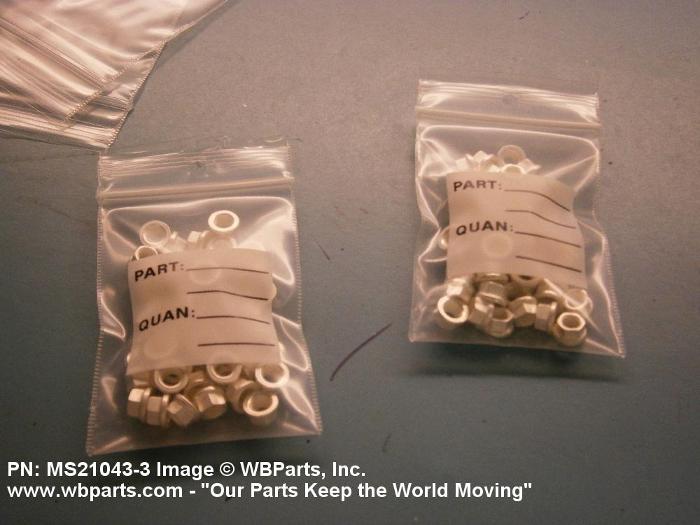

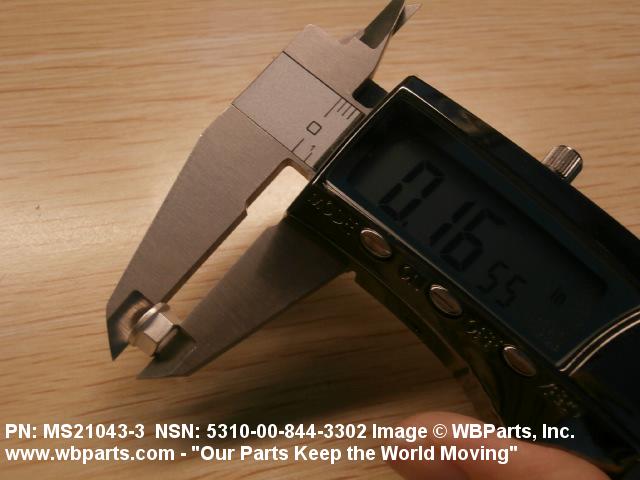

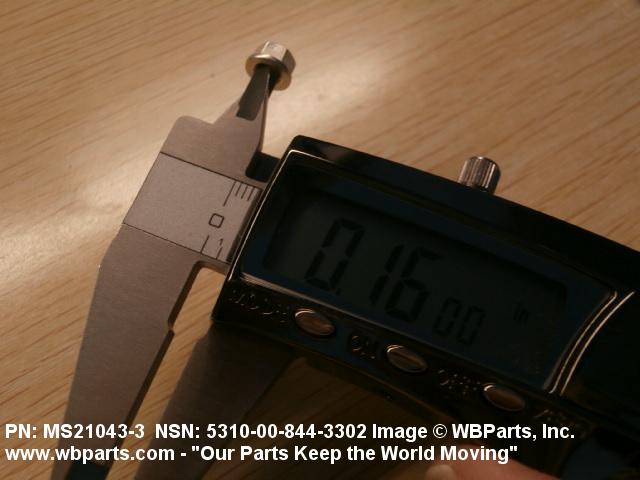

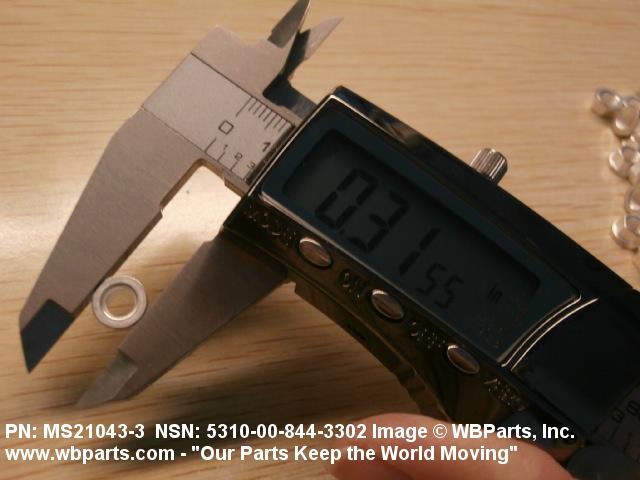

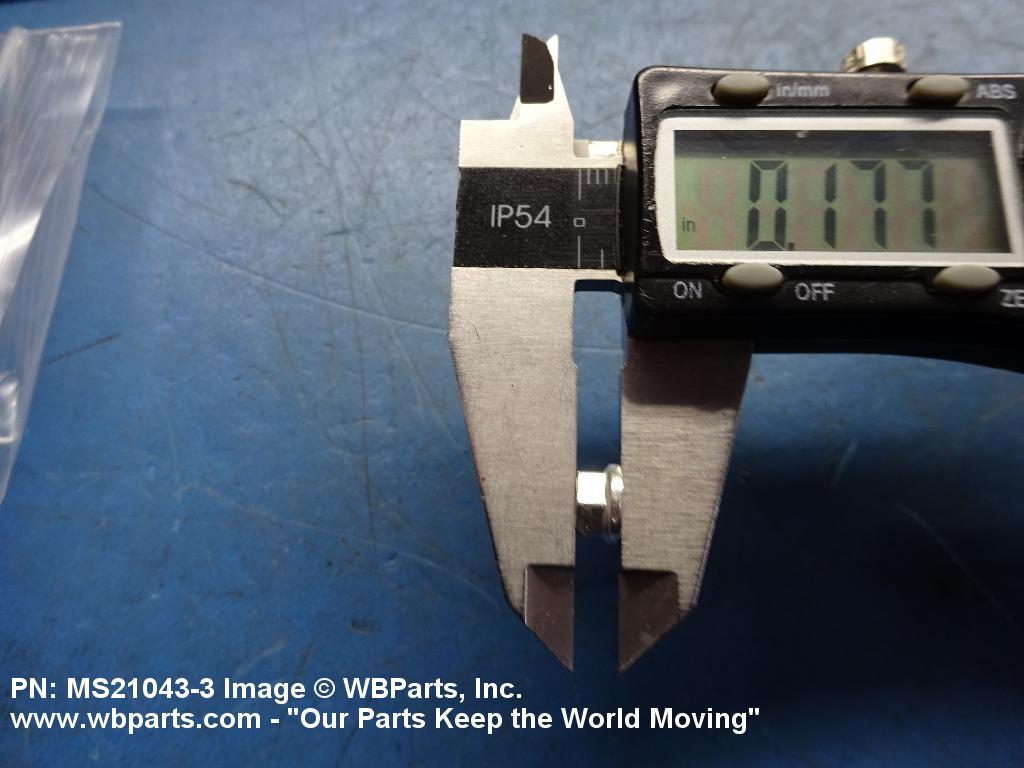

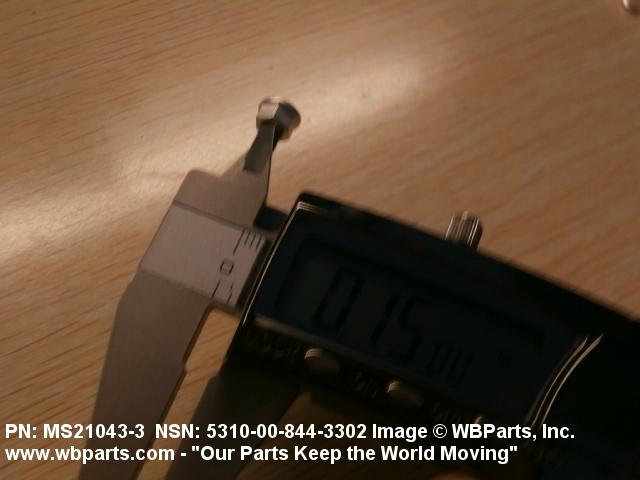

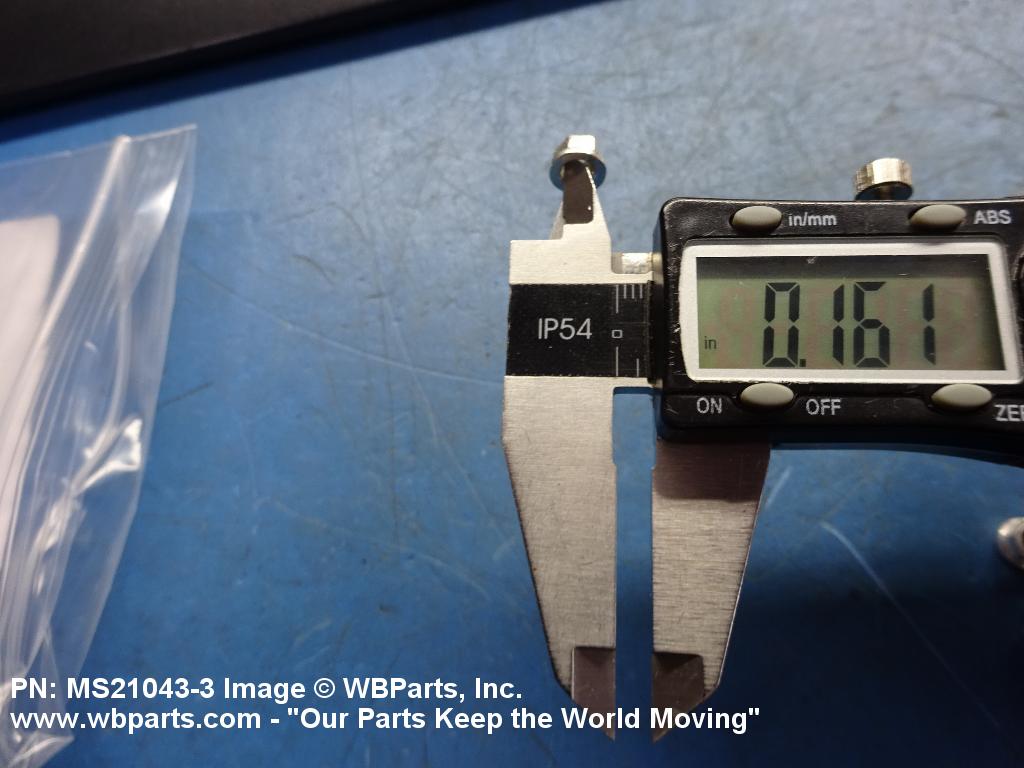

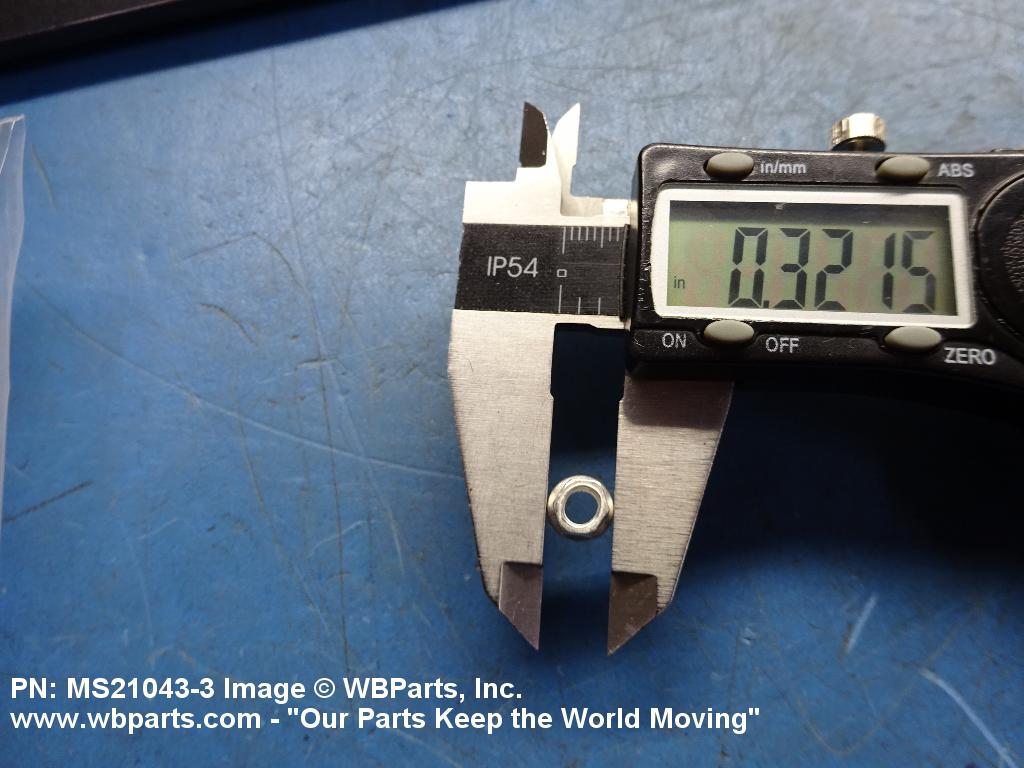

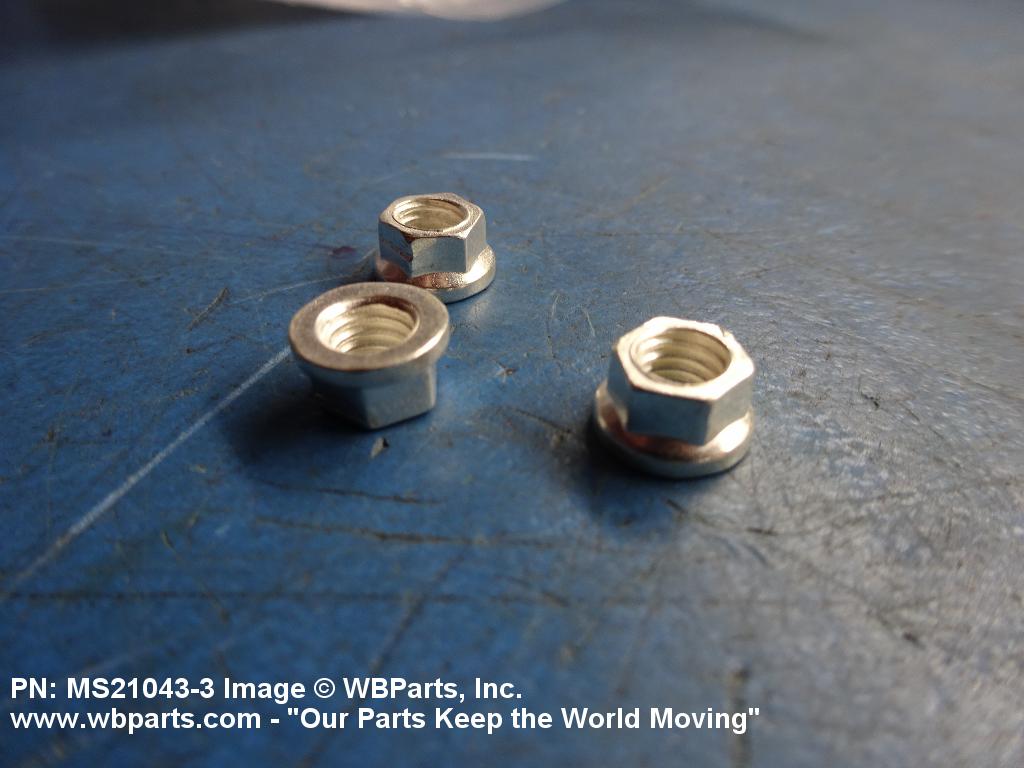

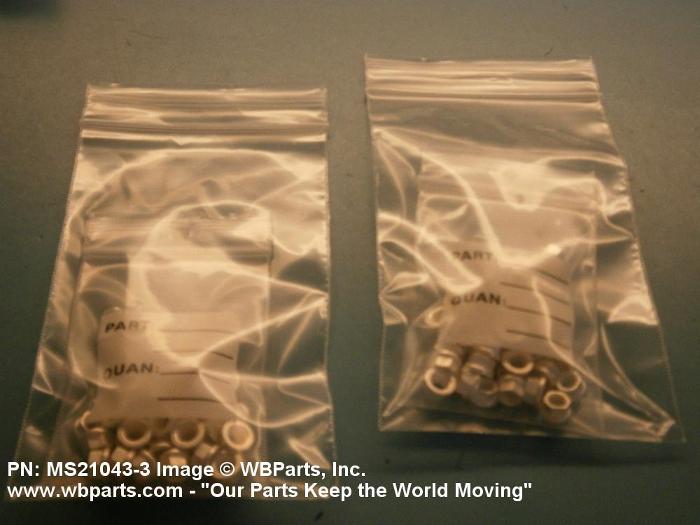

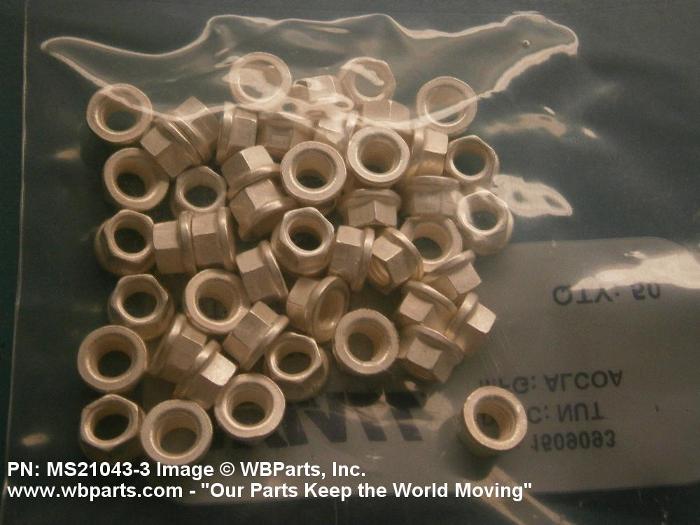

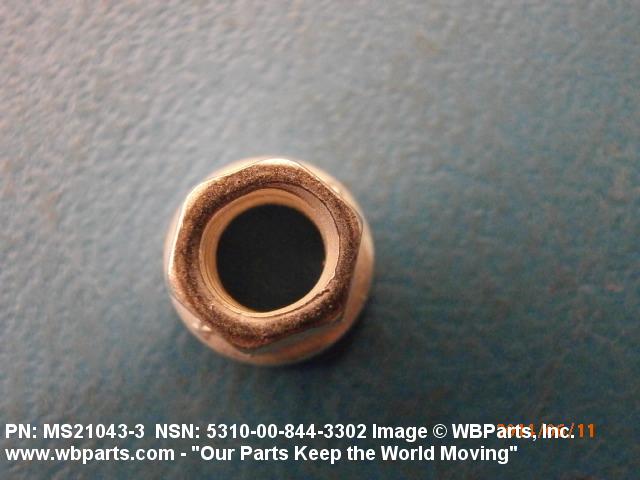

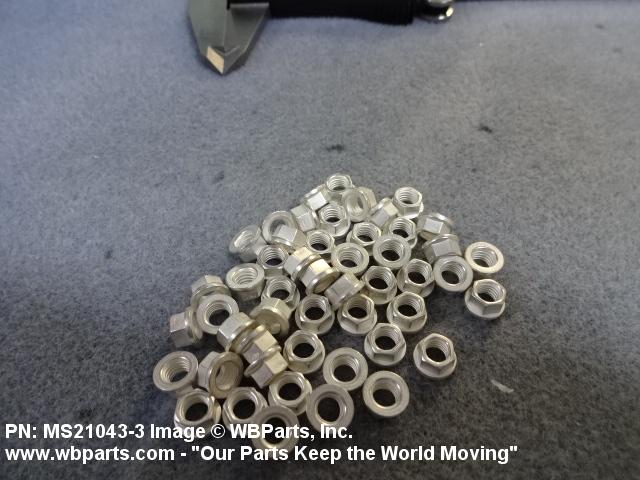

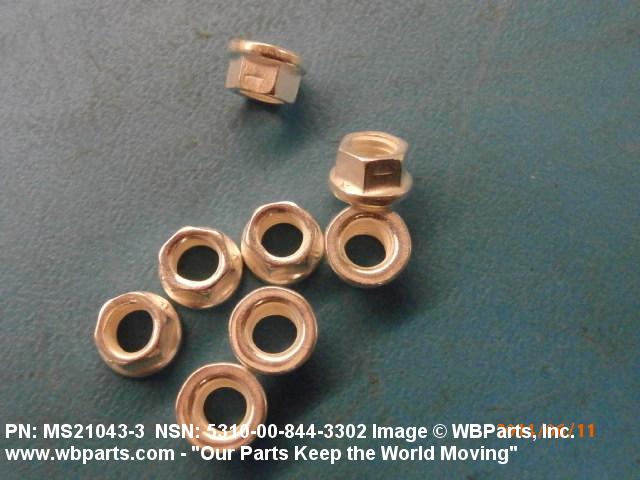

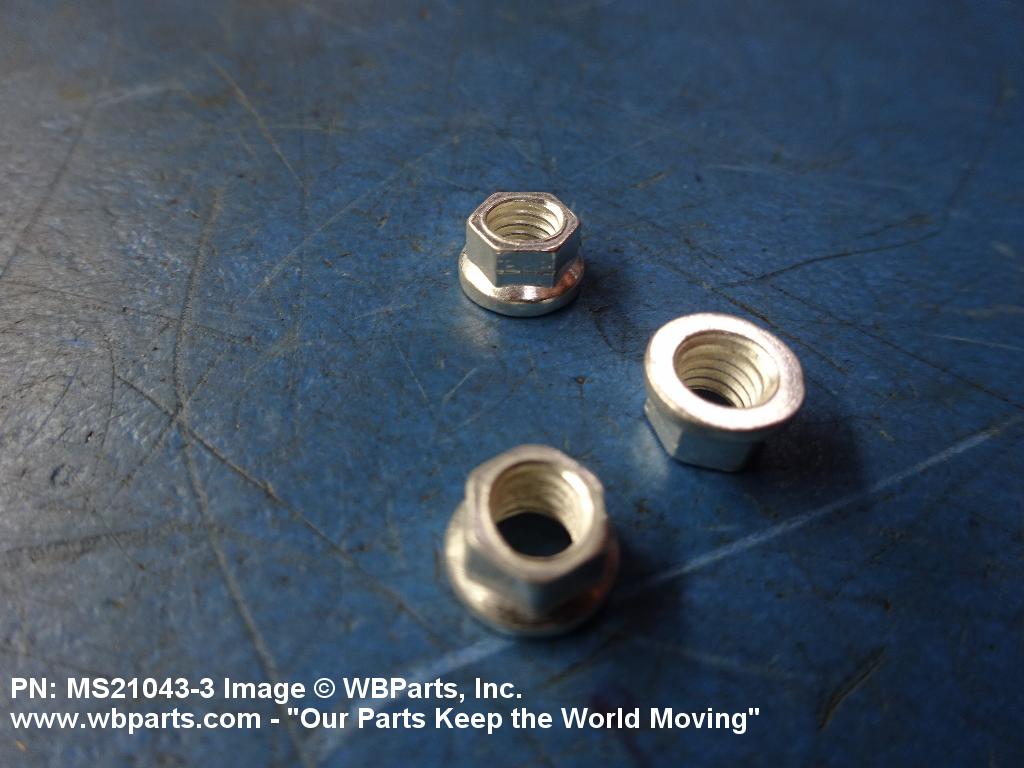

Drawings & Photos | NSN 5310-01-463-8817


Demand History | NSN 5310-01-463-8817

Part Number Request Date QTY Origin
MS210433 2024-11-325 48 United Kingdom
MS210433 2024-11-312 300 US
MS210433 2024-08-228 48 US
MS210433 2024-08-219 360 us
MS210433 2024-07-208 1500 IT
MS210433 2024-07-208 5 Malaysia
MS210433 2024-06-162 100 US
MS210433 2024-05-151 10 United Kingdom
MS210433 2024-04-115 20 PH
MS210433 2024-04-110 1 UK
MS210433 2024-04-110 100 AU
MS210433 2024-04-92 15 US
MS210433 2024-03-81 1 US
MS210433 2024-02-51 300 Croatia
MS210433 2024-02-37 1 us
MS210433 2023-10-304 300 United States
MS210433 2023-10-276 8 US
MS210433 2023-10-276 8 US
MS210433 2023-08-230 100 US
MS210433 2023-07-206 200 US
MS210433 2023-07-193 65 United Arab Emirates
MS210433 2023-05-125 2000 United States
MS210433 2023-03-87 30 MX
MS210433 2023-03-76 18 US
MS210433 2022-12-354 100 China
MS210433 2022-10-280 20 TW
MS210433 2022-08-237 6 United States
MS210433 2022-08-222 475 US
MS210433 2022-07-186 20 Sweden
MS210433 2022-06-152 2 Sri Lanka
MS210433 2022-04-108 40 United States
MS210433 2022-01-26 4 US
MS210433 2022-01-19 200 Malaysia
MS210433 2022-01-19 8 Malaysia
MS21043-3 2021-12-343 0
5310-01-463-8817 2021-12-342 0 NECO
MS21043-3 2021-05-123 24 US
6746975 2021-01-26 144 us
MS210433 2021-01-11 1 US
MS210433 2020-09-269 2000 Turkey
MS210433 2020-03-76 1000 United States
MS21043-3 2020-02-57 10 US
MS210433 2019-12-353 100 United States
MS210433 2019-11-316 12 US
MS210433 2019-11-311 50 US
MS21043-3 2019-08-232 1300 South Korea
MS21043-3 2019-06-178 12
5310-01-463-8817 2019-06-177 12 NECO
MS210433 2019-04-108 10 MY
MS21043-3 2019-04-101 57
5310-01-463-8817 2019-04-100 57 NECO
MS210433 2019-03-72 15 United States
MS21043-3 2019-02-42 40 Lebanon
MS210433 2018-10-303 8 United States
MS210433 2018-10-303 24 United States
MS210433 2018-10-303 56 United States
MS210433 2018-10-303 88 United States
MS210433 2018-10-275 100 United States
MS210433 2018-09-267 4 United States
MS210433 2018-09-267 8 United States
MS210433 2018-09-267 24 United States
MS210433 2018-09-267 40 United States
MS210433 2018-06-171 8 Thailand
MS21043-3 2018-05-135 3 FX
MS210433 2018-03-85 16 India
MS21043-3 2018-03-60 76
5310-01-463-8817 2018-02-59 76 NECO
MS210433 2018-02-51 5000 Turkey
MS210433 2018-01-23 1900 United States
6746975 2018-01-23 50 AE
MS210433 2018-01-12 5000 Turkey
MS210433 2017-11-320 100000 FR
MS21043-3 2017-09-250 16 India
MS210433 2017-02-47 3 United States
MS210433 2016-08-223 25 us
MS210433 2016-08-215 1 United States
MS210433 2016-08-215 1 United States
MS21043-3 2016-07-211 610 MX
MS210433 2016-06-160 264 US
MS210433 2016-05-148 4 United States
MS210433 2016-03-67 200 Thailand
6746975 2016-01-28 10 United States
MS210433 2016-01-13 200 Thailand
MS210433 2015-11-307 1 us
MS210433 2015-11-307 1 us
MS210433 2015-10-302 35 us
MS210433 2015-08-223 6000 us
MS210433 2015-07-211 5 United States
MS21043-3 2015-07-206 3
5310-01-463-8817 2015-07-205 3 NECO
MS210433 2015-05-146 600 ZA
MS21043-3 2015-03-85 3657 US
MS21043-3 2015-03-69 500 US
MS210433 2015-02-51 50 United States
MS210433 2014-12-336 4624 US
MS210433 2014-11-309 3000 Ukraine
MS210433 2014-07-202 6000 Turkey
MS21043-3 2014-06-168 100 US
MS210433 2014-06-157 8 United States
MS210433 2014-05-149 3000 Hong Kong
MS210433 2014-05-142 3000 China
MS210433 2014-04-112 1000 US
MS210433 2013-12-346 10 United States
MS210433 2013-11-317 100 UK
MS210433 2013-11-317 100 UK
MS210433 2013-10-280 28 US
MS210433 2013-09-254 75 US
MS210433 2013-08-231 20 United Kingdom
MS210433 2013-08-220 20 United Kingdom
MS21043-3 2013-05-134 50 CZ
MS210433 2013-04-99 4 EC
MS210433 2013-03-85 6 US
MS210433 2013-01-25 600 United States
MS210433 2012-10-305 142 Taiwan
MS210433 2012-10-282 3000 US
MS210433 2012-09-264 1000 South Korea
MS21043-3 2012-09-251 10 Netherlands
MS210433 2012-06-177 400 India
5310-01-463-8817 2012-05-138 3000 US
5310-01-463-8817 2012-04-117 60 TW
MS210433 2012-04-110 38 United States
MS210433 2012-04-109 125 Canada
MS210433 2012-04-107 96 United States
5310-01-463-8817 2012-04-94 67 CL
MS210433 2012-02-46 24000 US
MS210433 2011-12-340 8 US
MS210433 2011-09-255 10 US
MS210433 2011-09-245 200 Germany
MS210433 2011-08-220 100 Malaysia
MS210433 2011-07-201 6400 TR
5310-01-463-8817 2011-07-189 500 United Arab Emirates
MS21043-3 2011-06-174 50 US
MS210433 2011-05-140 10 Germany
MS210433 2011-05-140 40 Germany
MS210433 2011-05-123 56 US
MS210433 2011-01-24 120 United States
MS210433 2011-01-03 32 US
MS210433 2010-12-349 32 China
MS210433 2010-11-318 32 China
MS210433 2010-10-300 50 United States
MS210433 2010-10-299 100 United States
MS210433 2010-10-278 8 Saudi Arabia
MS210433 2010-10-278 8 Saudi Arabia
MS210433 2010-08-238 624 US
5310-01-463-8817 2010-08-231 12 US
5310-01-463-8817 2009-12-343 38 US
5310-01-463-8817 2009-11-329 700 US
MS210433 2009-10-292 100 United States
5310-01-463-8817 2009-08-240 40 France
5310-01-463-8817 2009-08-218 2 AM
MS210433 2009-07-195 500 United States
MS210433 2009-05-126 1 United States
MS210433 2008-06-170 100 United States
MS210433 2008-04-121 40 United States
MS210433 2008-03-86 1000 US
6746975 2008-01-29 6 China
MS210433 2008-01-07 50 Australia
MS210433 2006-07-184 114 PA
6746975 2006-04-97 72 us

Cross Reference | NSN 5310-01-463-8817

Part Number Cage Code Manufacturer
6746975 1E0F1 ROLLS ROYCE CORP
MS21043-3 1E0F1 ROLLS ROYCE CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-463-8817

Technical Data | NSN 5310-01-463-8817

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL CORROSION RESISTING OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5735 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A294 HEXAGON
WASHER OUTSIDE DIAMETER 0.130 INCHES MAXIMUM
OVERALL HEIGHT 0.154 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
WASHER THICKNESS 0.015 INCHES MINIMUM
WIDTH ACROSS FLATS 0.243 INCHES MINIMUM AND 0.252 INCHES MAXIMUM
LUBRICATION SOLUBLE LUBRICANT
TEMP RATING 800.0 DEG FAHRENHEIT MAXIMUM
CRITICALITY CODE JUSTIFICATION AGAV
III END ITEM IDENTIFICATION ENGINE MODEL FOR KC-13J

Restrictions/Controls & Freight Information | NSN 5310-01-463-8817

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:YThe item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information

Management | NSN 5310-01-463-8817

Category Code Description
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Budget CodeS 1557X3010:Aircraft Replenishment Spares
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyQ1JNaval ICP
Philadelphia, PA 19111
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesHDIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes0QContractor supported items for NAVICP PHIL Consumables (1R)
Naval Inventory Control Point, Philadelphia
Special Material IDCLALLISONENGINE(AE1107C)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyQ1JNaval ICP
Philadelphia, PA 19111
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityMMedium Demand Velocity Items (consumables)
Acquisition Advice CodesHDIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
