Product Details | PLATE SELF-LOCKING NUT

5310-01-460-7543 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: WSI33221W, WSI-332-21W , WSI332L21W, WSI-332L-21W, 530001821W, 5300018-21W, 9D0147321, 9D0147-3-21, 5310-01-460-7543, 01-460-7543, 5310014607543, 014607543

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 16 NOV 1998 01-460-7543

Drawings & Photos | NSN 5310-01-460-7543


Cross Reference | NSN 5310-01-460-7543

Part Number Cage Code Manufacturer
5300018-21W 60119 MONADNOCK COMPANY THE DBA LISI AEROSPACE
9D0147-3-21 88277 BOEING COMPANY, THE DBA BOEING
WSI-332-21W 83014 HARTWELL CORPORATION
WSI-332L-21W 04169 ATLAS CORP WESTERN SKY INDUSTRIES DIV
WSI-332L-21W 83014 HARTWELL CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-460-7543

Technical Data | NSN 5310-01-460-7543

Characteristic Specifications
THREAD SERIES UNF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL CORROSION RESISTING LOCKING INSERT ALUMINUM ALLOY 2014 OVERALL EXCEPT INSERT
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE OVERALL EXCEPT INSERT
SURFACE TREATMENT OXIDE FILM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED

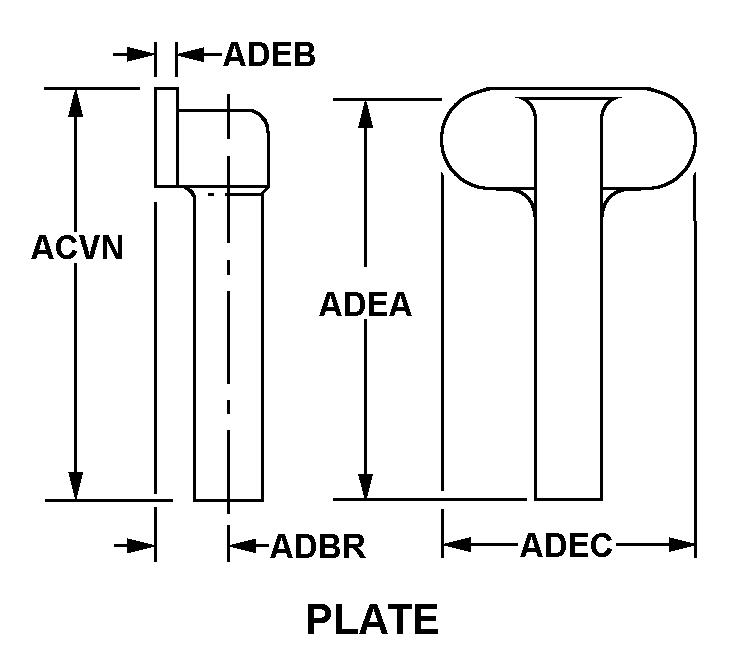

NUT STYLE A129 PLATE
NUT LENGTH 2.100 INCHES NOMINAL
DISTANCE FROM BASE TO CENTER OF APERTURE 0.290 INCHES MINIMUM AND 0.330 INCHES MAXIMUM
NUT HEIGHT 2.600 INCHES NOMINAL
PLATE THICKNESS 0.035 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
PLATE WIDTH 1.515 INCHES NOMINAL
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION DRY FILM LUBRICANT
NUT MOUNTING PROVISION STRAIGHT HOLES

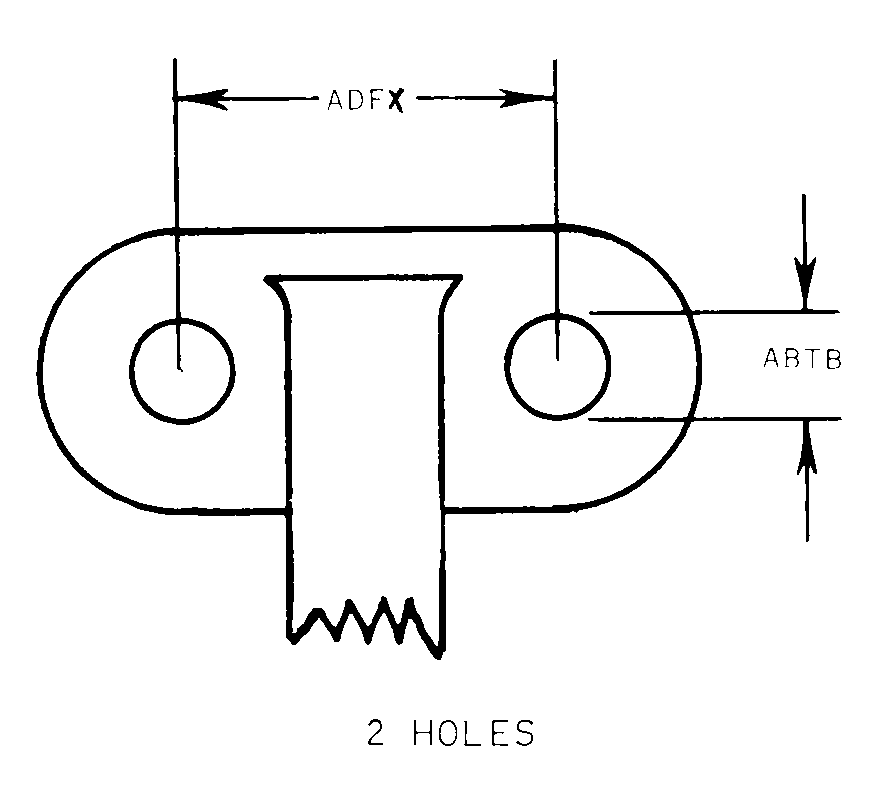

MOUNTING HOLE ARRANGEMENT STYLE F57 2 HOLES
MOUNTING HOLE DIAMETER 0.097 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH 1.000 INCHES MINIMUM AND 1.030 INCHES MAXIMUM
TEMP RATING NOT RATED
