NSN 5310-01-434-6613 BACN10HR7CD, 01-434-6613, 014346613
Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

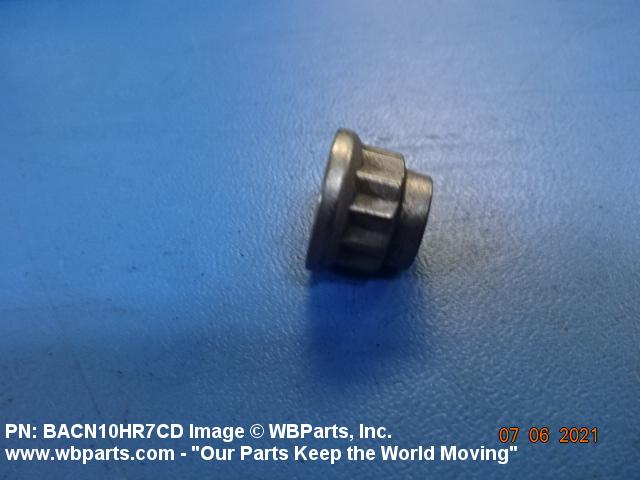

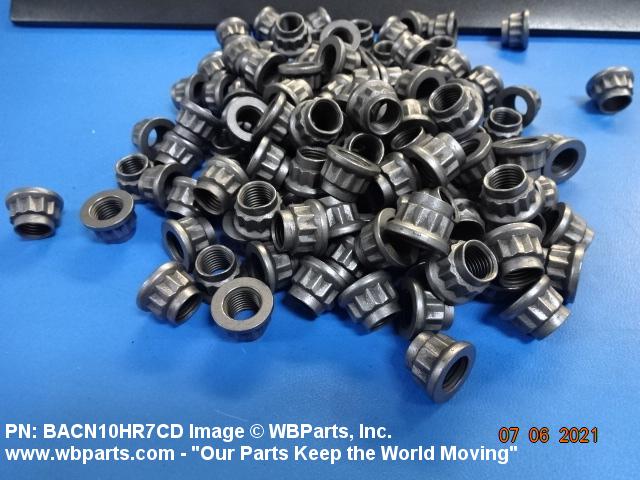

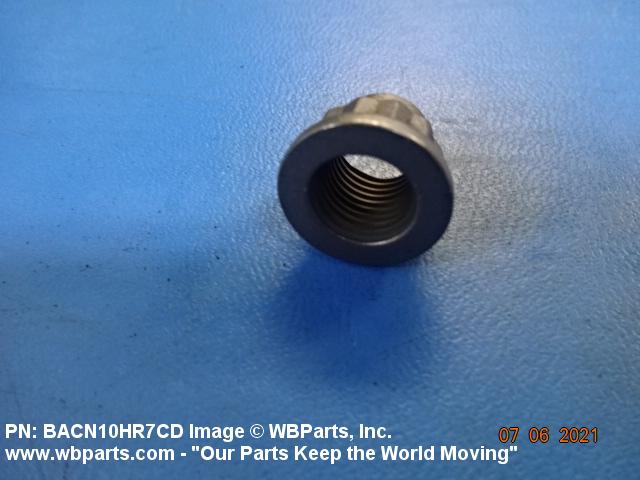

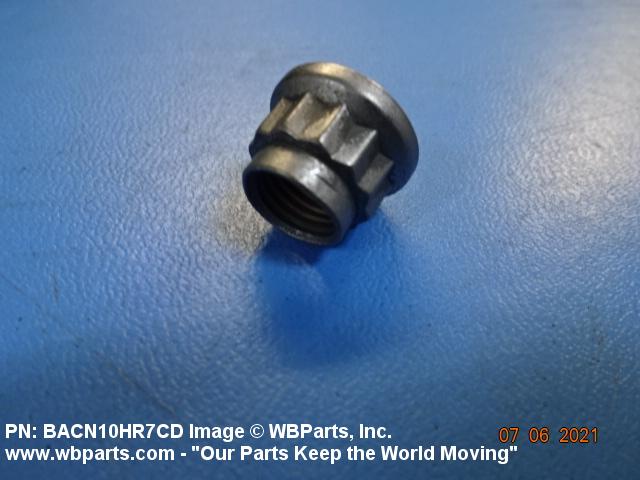

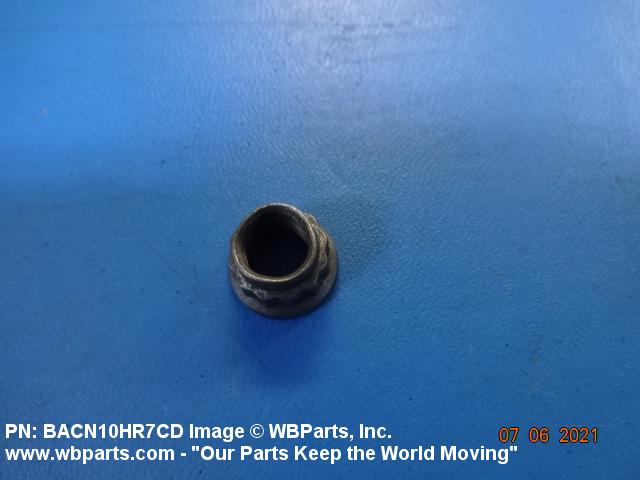

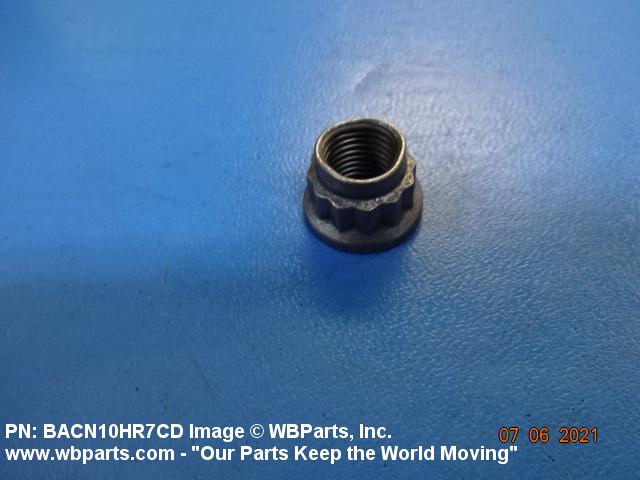

5310-01-434-6613 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10HR7CD, 5310-01-434-6613, 01-434-6613, 5310014346613, 014346613
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 AUG 1996 | 01-434-6613 | 29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON ) |
Drawings & Photos | NSN 5310-01-434-6613
Demand History | NSN 5310-01-434-6613
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10HR7CD | 2022-05-129 | 55 | AE |
| BACN10HR7CD | 2021-03-63 | 130 | Hungary |
| BACN10HR7CD | 2021-03-63 | 130 | Hungary |
| BACN10HR7CD | 2019-03-76 | 1 | DIBBS |
| 5310-01-434-6613 | 2018-10-281 | 57 | DIBBS |
| 5310-01-434-6613 | 2016-11-308 | 0 | DIBBS |
| 5310-01-434-6613 | 2016-08-228 | 13 | DIBBS |
| 5310-01-434-6613 | 2016-05-145 | 9 | DIBBS |
| BACN10HR7CD | 2016-03-88 | 24 | us |
| BACN10HR7CD | 2016-03-61 | 12 | us |
| BACN10HR7CD | 2016-02-33 | 2 | US |
| 5310-01-434-6613 | 2015-07-196 | 8 | DIBBS |
| 5310-01-434-6613 | 2014-08-236 | 4 | DIBBS |
| 5310-01-434-6613 | 2013-06-157 | 420 | US |
| 5310-01-434-6613 | 2012-06-164 | 3 | DIBBS |
| 5310-01-434-6613 | 2011-08-220 | 9 | DIBBS |
Cross Reference | NSN 5310-01-434-6613
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10HR7CD | 06710 | VALLEY-TODECO, INC. |
| BACN10HR7CD | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| BACN10HR7CD | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| BACN10HR7CD | 27238 | BRISTOL INDUSTRIES |
| BACN10HR7CD | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| BACN10HR7CD | 62554 | ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV |
| BACN10HR7CD | 72962 | HARVARD INDUSTRIES INC |
| BACN10HR7CD | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10HR7CD | 97928 | HUCK INTL INC |
