NSN 5310-01-425-8821 MS21075L06E, NASM25027, 01-425-8821
Product Details | PLATE SELF-LOCKING NUT
5310-01-425-8821 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21075L06E, NASM25027, 5310-01-425-8821, 01-425-8821, 5310014258821, 014258821
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 FEB 1996 | 01-425-8821 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

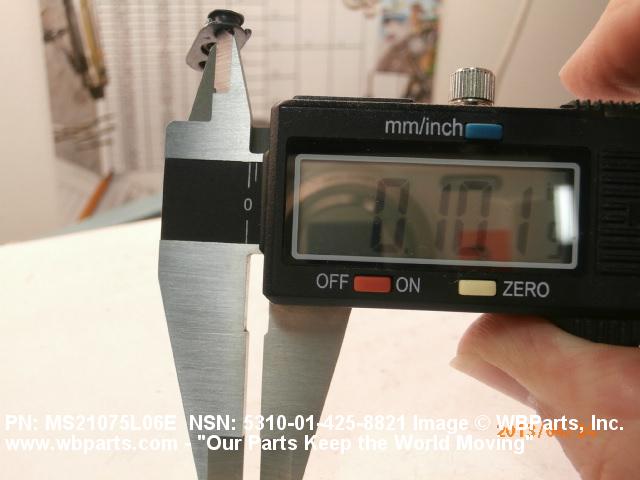

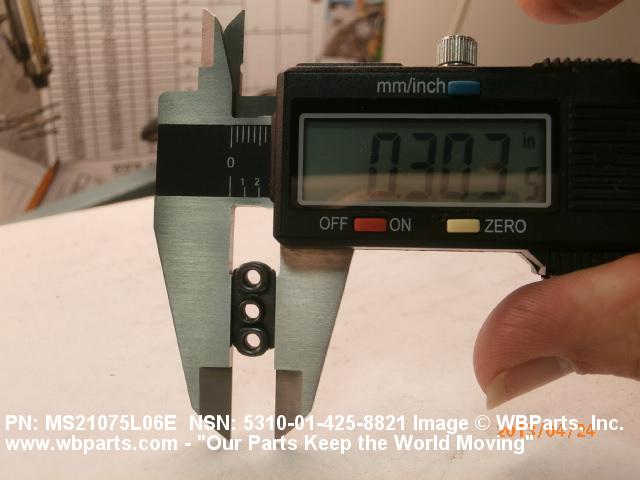

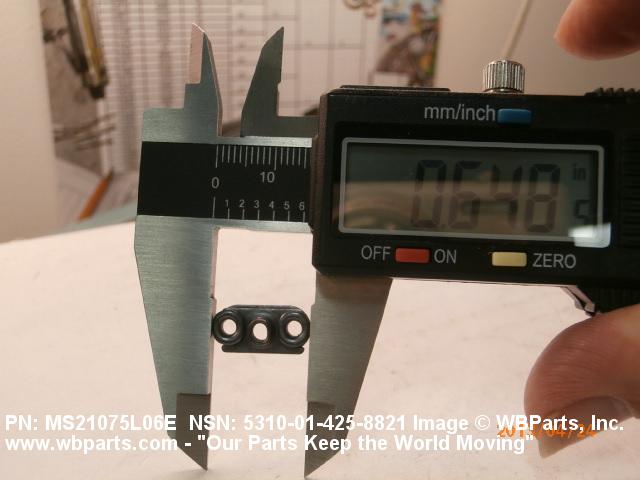

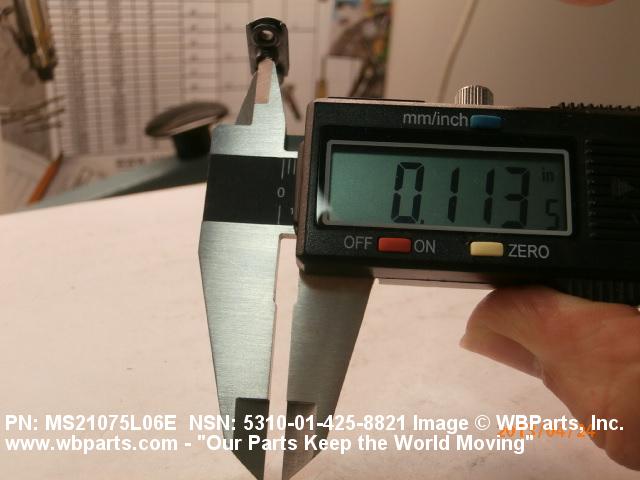

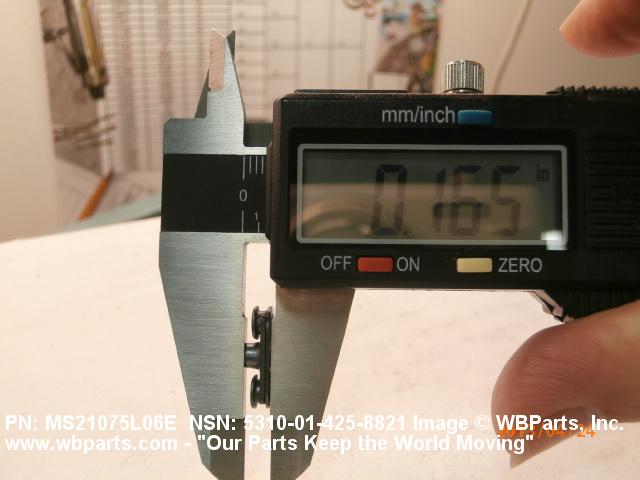

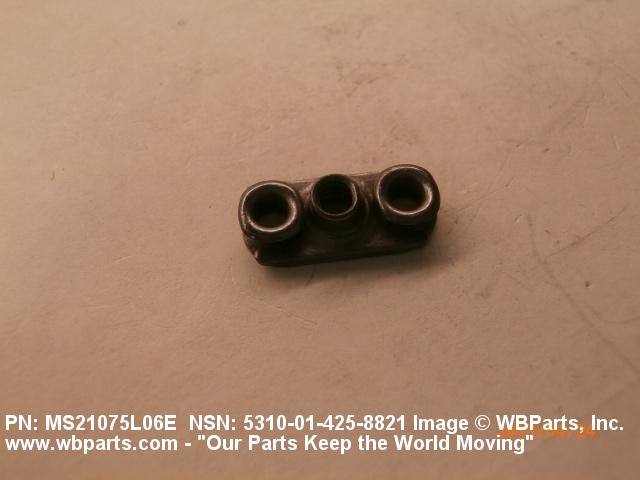

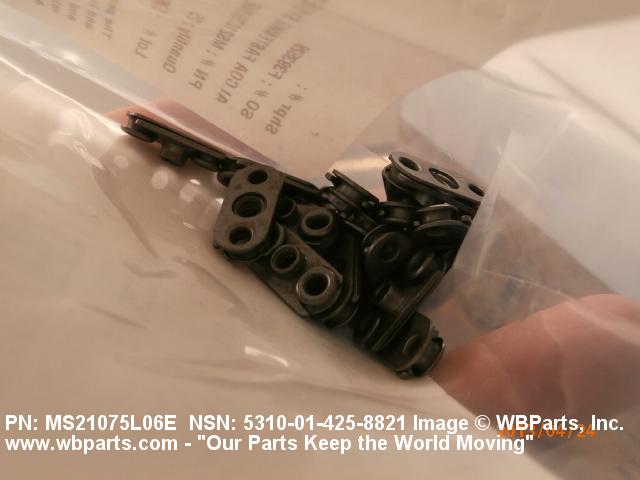

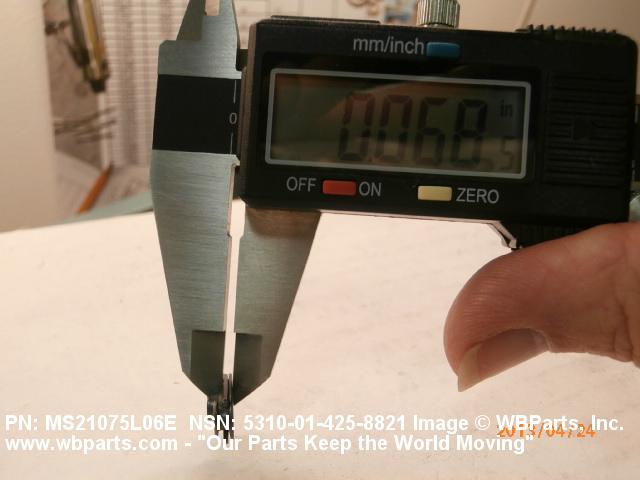

Drawings & Photos | NSN 5310-01-425-8821
Demand History | NSN 5310-01-425-8821
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21075L06E | 2021-02-53 | 19250 | IN |
| MS21075L06E | 2021-02-53 | 19250 | IN |
| NASM25027 | 2014-09-253 | 1500 | Ukraine |
| NASM25027 | 2014-01-27 | 16 | US |
| NASM25027 | 2013-10-298 | 1 | US |
| MS21075L06E | 2013-04-101 | 6 | Taiwan |
| MS21075L06E | 2013-03-67 | 6 | Taiwan |
| MS21075L06E | 2012-09-265 | 10 | US |
| 5310-01-425-8821 | 2010-03-63 | 46 | DIBBS |
| NASM25027 | 2010-01-28 | 175 | US |
| NASM25027 | 2009-08-225 | 200 | United Kingdom |
| NASM25027 | 2009-07-191 | 48000 | US |
| NASM25027 | 2009-06-176 | 1000 | United Kingdom |
| 5310-01-425-8821 | 2009-05-149 | 15 | DIBBS |
| 5310-01-425-8821 | 2009-04-97 | 1 | DIBBS |
| MS21075L06E | 2008-10-296 | 60000 | India |
| NASM25027 | 2008-09-268 | 1 | Netherlands |
| NASM25027 | 2008-09-261 | 25 | us |
| NASM25027 | 2007-12-338 | 60 | United States |
Cross Reference | NSN 5310-01-425-8821
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-425-8821
Related Products | NSN 5310-01-425-8821
Technical Data | NSN 5310-01-425-8821
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.682 INCHES MAXIMUM |
| NUT HEIGHT | 0.171 INCHES MAXIMUM |
| PLATE THICKNESS | 0.075 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| PLATE WIDTH | 0.290 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.218 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.437 INCHES NOMINAL |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | WITH EYELETS |
| TEST DATA DOCUMENT | 96906-MS21075 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS21075L06E GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21075L06E |
Restrictions/Controls & Freight Information | NSN 5310-01-425-8821
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 80 | NASA Marshall Space Flight Center Marshall Space Flight Center, AL 35812-0001 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
