Product Details | PLATE SELF-LOCKING NUT

5310-01-424-5497 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS210764E, MS21076-4E, 5310-01-424-5497, 01-424-5497, 5310014245497, 014245497

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 30 JAN 1996 01-424-5497

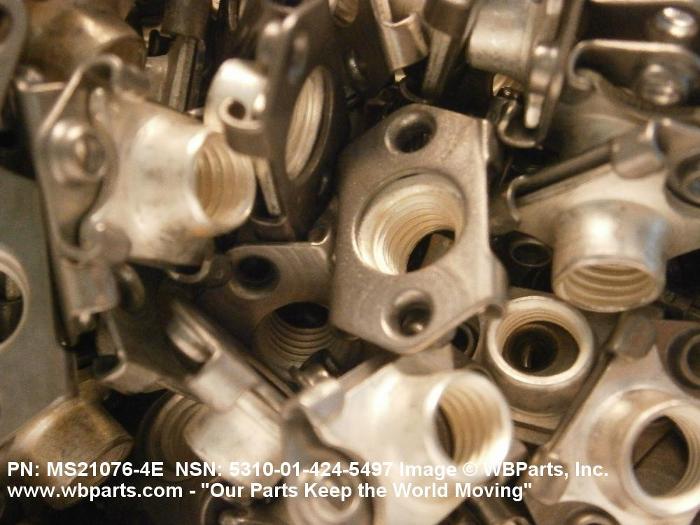

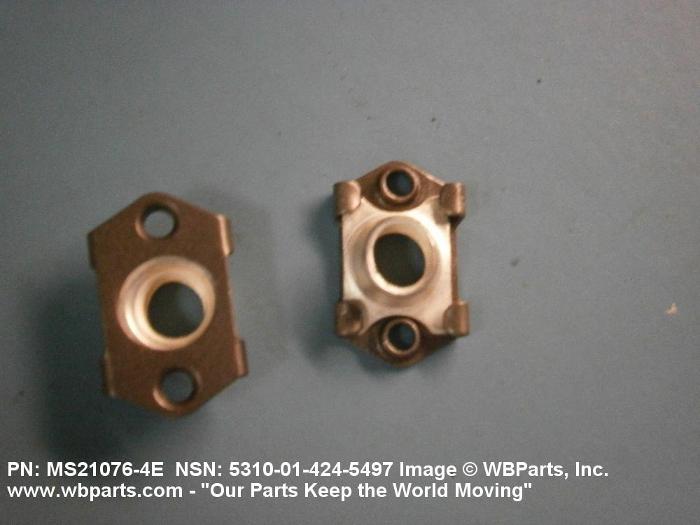

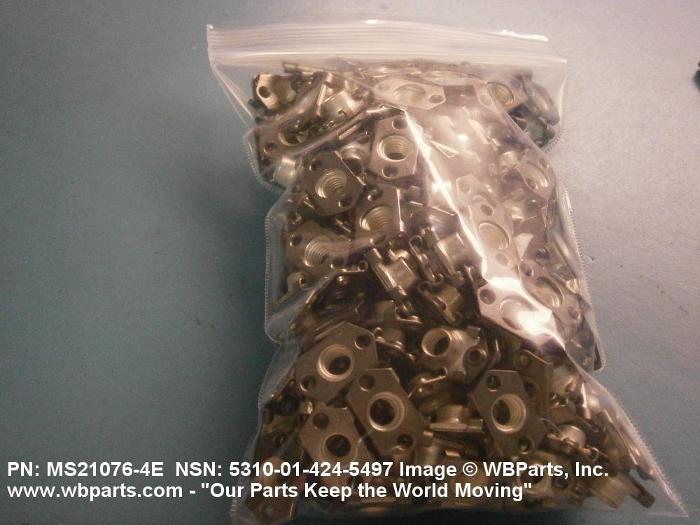

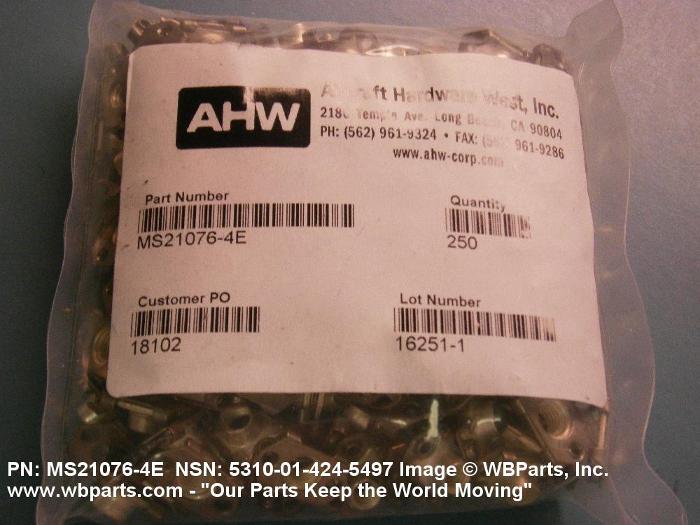

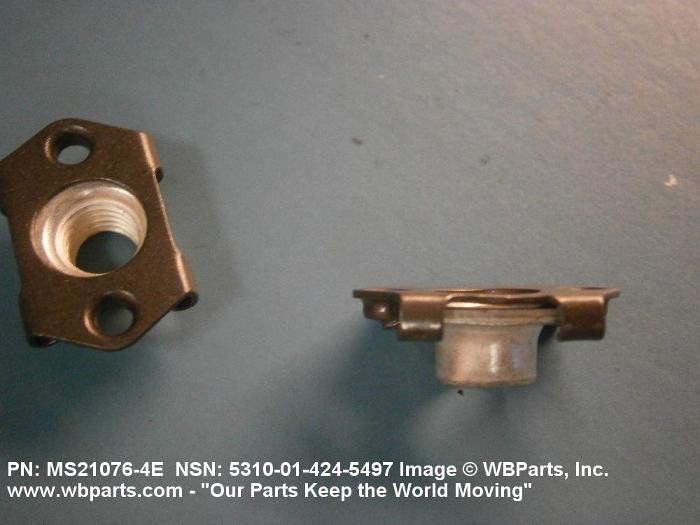

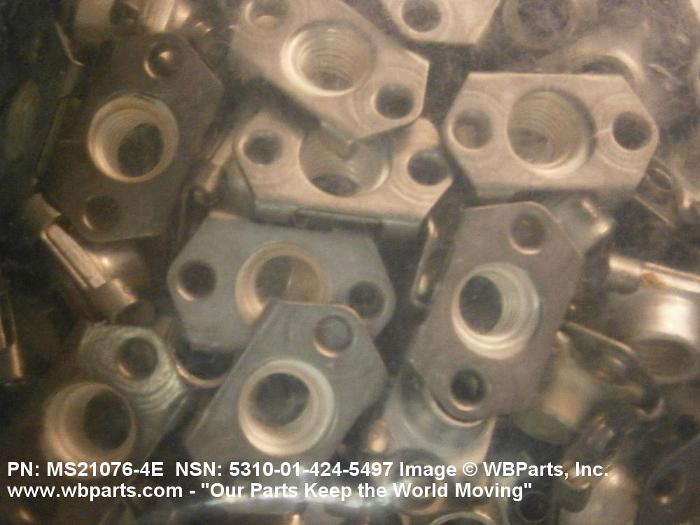

Drawings & Photos | NSN 5310-01-424-5497


Demand History | NSN 5310-01-424-5497

Part Number Request Date QTY Origin
MS21076-4E 2014-06-157 50 United States
MS210764E 2012-06-172 250 United States
MS210764E 2008-11-330 4000 United States

Cross Reference | NSN 5310-01-424-5497

Part Number Cage Code Manufacturer
MS21076-4E 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-424-5497

Technical Data | NSN 5310-01-424-5497

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.250 INCHES
NUT LENGTH 0.801 INCHES MINIMUM
NUT HEIGHT 0.281 INCHES MINIMUM
PLATE THICKNESS 0.140 INCHES MINIMUM
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS21076-4E

Restrictions/Controls & Freight Information | NSN 5310-01-424-5497

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
