NSN 5310-01-424-4772 NAS18056P, NAS1805-6P, 01-424-4772

Product Details | DOUBLE HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-424-4772 A nut having 12 drive points, 24 sides, and an integral washer which extends beyond the points or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NAS18056P, NAS1805-6P, 5310-01-424-4772, 01-424-4772, 5310014244772, 014244772

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	29 JAN 1996	01-424-4772	29729 ( NUT, SELF-LOCKING, EXTENDED WASHER, DOUBLE HEXAGON )

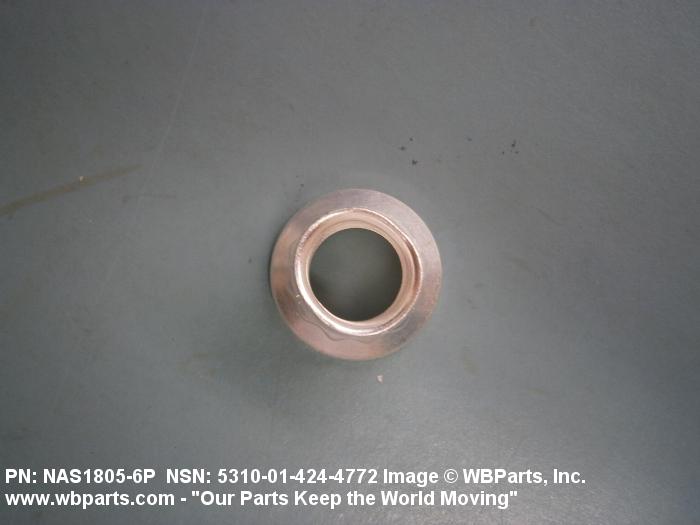

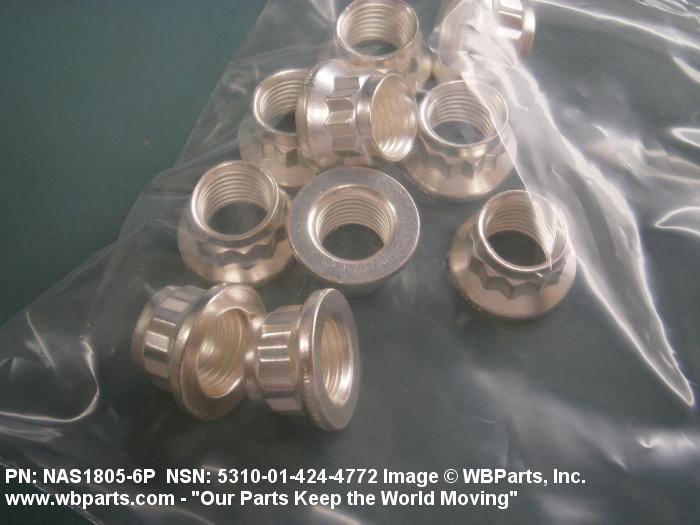

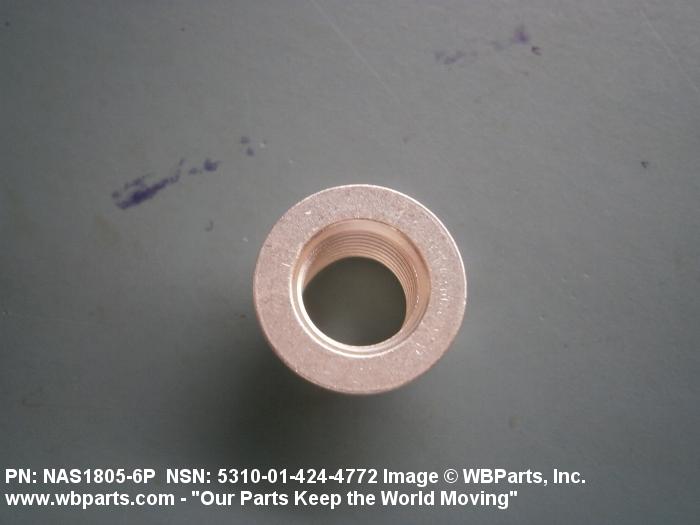

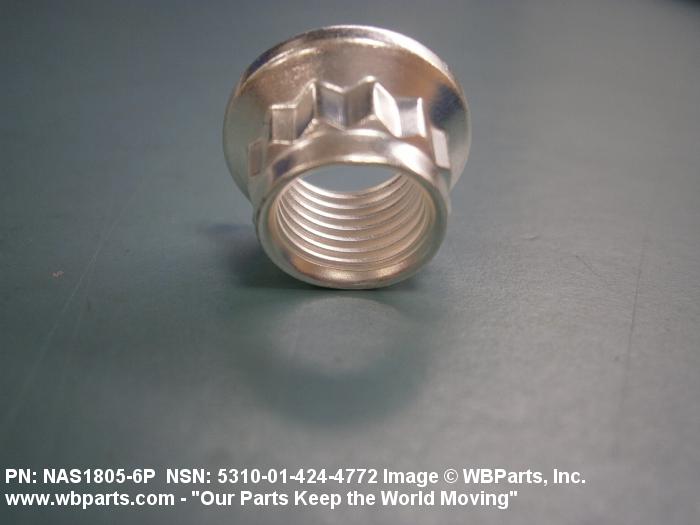

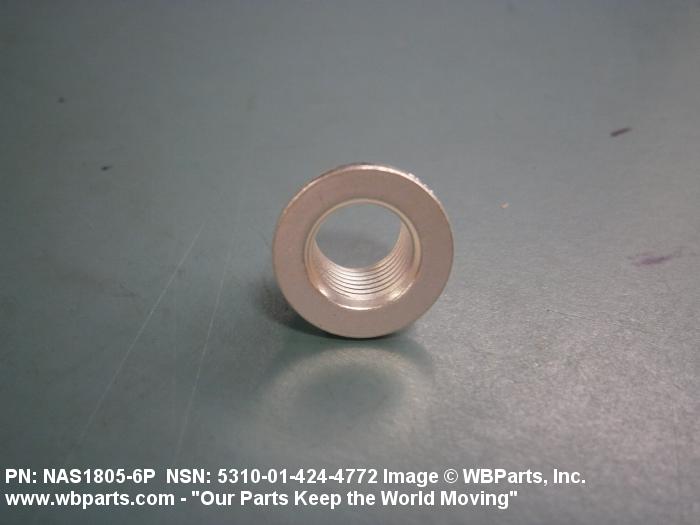

Drawings & Photos | NSN 5310-01-424-4772

Part Number	Request Date	QTY	Origin
5310-01-424-4772	2024-09-261	358	DIBBS
5310-01-424-4772	2023-01-15	90	ID
NAS18056P	2021-05-125	52	United States
NAS18056P	2017-11-307	400	United States
5310-01-424-4772	2016-11-306	22	DIBBS
5310-01-424-4772	2016-08-230	22	DIBBS
5310-01-424-4772	2016-07-210	7	DIBBS
5310-01-424-4772	2016-07-202	7	DIBBS
NAS18056P	2015-11-309	180	United States
NAS18056P	2013-05-148	10	United States
NAS18056P	2013-05-148	10	United States
NAS18056P	2009-02-35	30000	France

Cross Reference | NSN 5310-01-424-4772

Part Number	Cage Code	Manufacturer
NAS1805-6P	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-424-4772

Compare

Related Products | NSN 5310-01-424-4772

5310-01-424-4826, 5310-01-424-4890, 5310-01-424-4942, 5310-01-424-5232, 5310-01-424-5233

Technical Data | NSN 5310-01-424-4772

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD CLASS	3B
WASHER OUTSIDE DIAMETER	0.631 INCHES MAXIMUM
OVERALL HEIGHT	0.375 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5310-01-424-4772

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	80	NASA Marshall Space Flight Center Marshall Space Flight Center, AL 35812-0001
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-424-4772

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
