NSN 5310-01-397-1776 NAS1149C1290, NAS1149F1290P, CVC754872C33

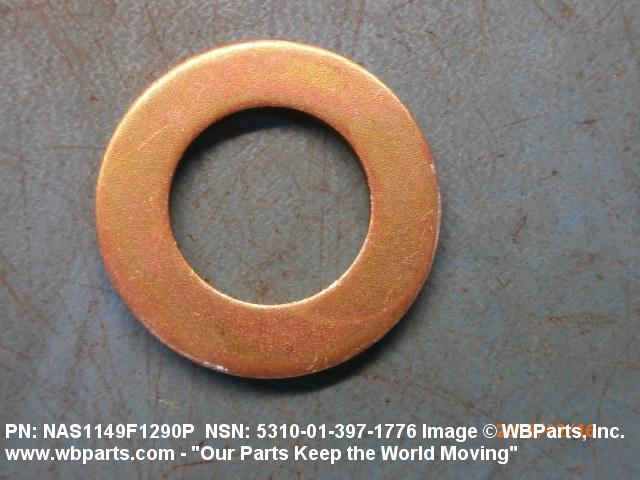

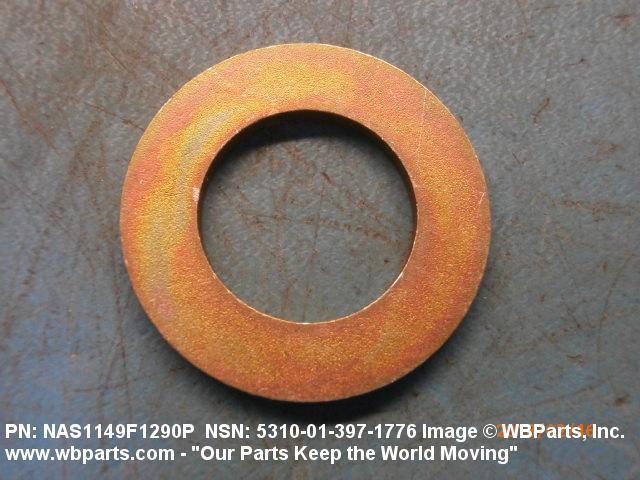

Product Details | FLAT WASHER
5310-01-397-1776 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: NAS1149C1290, NAS1149F1290P, CVC754872C33, CVC754-872C33, Z00.N5741503605, Z00N5741503605, 08203450, 08-203450, 10025553 , 13393011, 13393-011, 2410108, 801169, 90155813, 901558-13, 5310-01-397-1776, 01-397-1776, 5310013971776, 013971776
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1994 | 01-397-1776 | 13393 ( WASHER, FLAT ) |

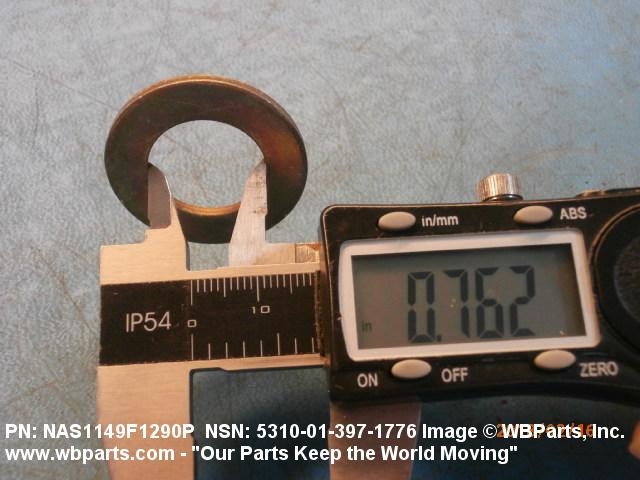

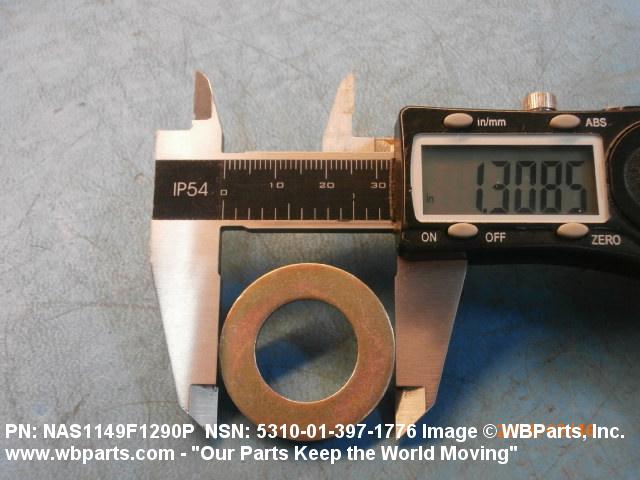

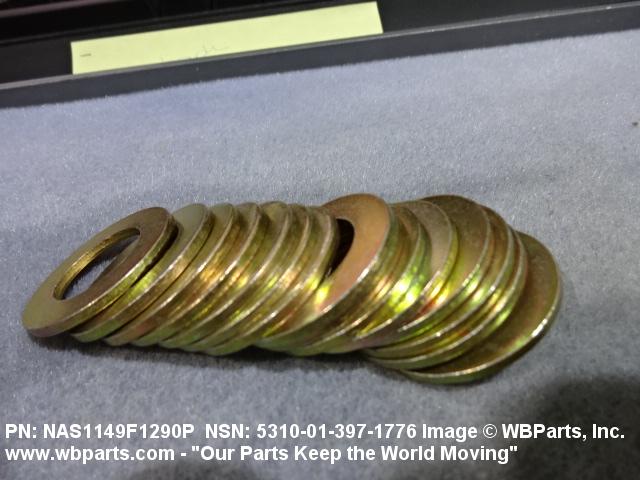

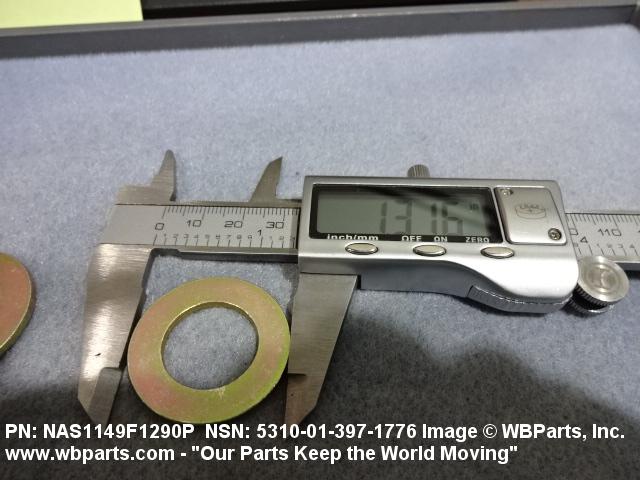

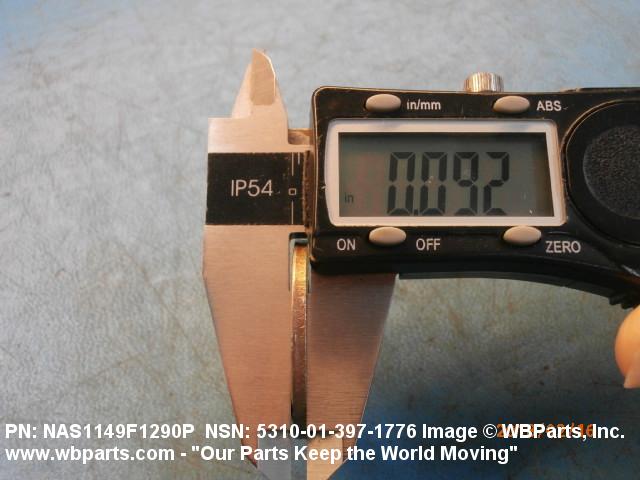

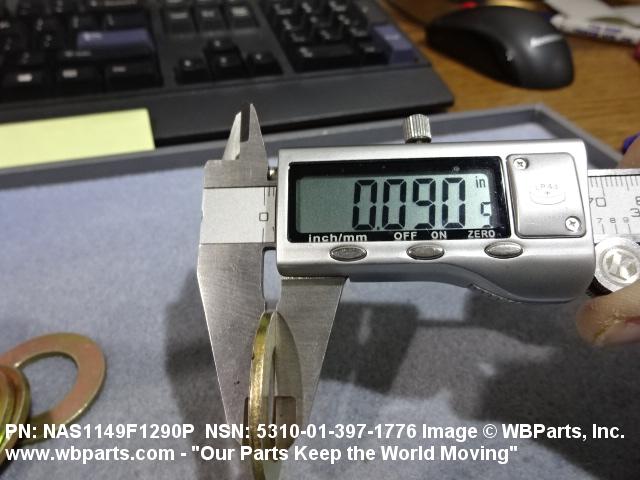

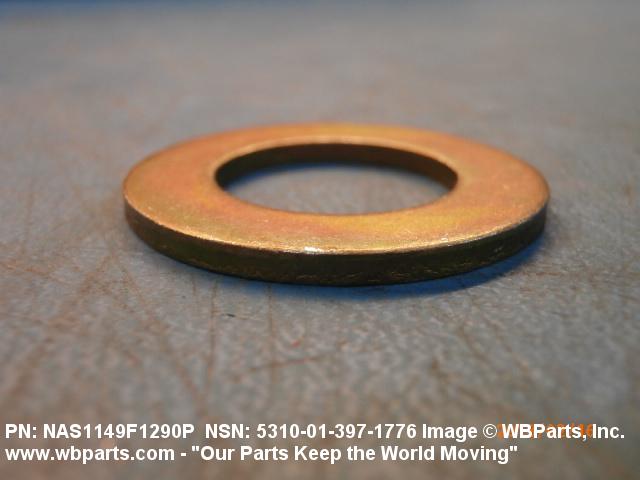

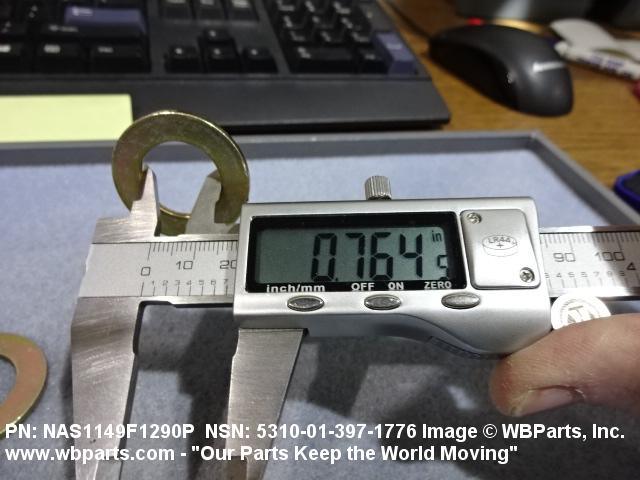

Drawings & Photos | NSN 5310-01-397-1776
Demand History | NSN 5310-01-397-1776
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-397-1776 | 2024-07-10 | 4 | US |
| NAS1149F1290P | 2024-04-30 | 1750 | US |
| 5310-01-397-1776 | 2023-09-19 | 100 | United States |
| NAS1149F1290P | 2022-04-05 | 15 | United States |
| NAS1149F1290P | 2022-04-05 | 25 | United States |
| 5310-01-397-1776 | 2021-01-12 | 50 | United States |
| 5310-01-397-1776 | 2018-02-13 | 80 | United States |
| 5310-01-397-1776 | 2018-02-01 | 80 | United States |
| NAS1149F1290P | 2016-10-28 | 20 | United States |
| NAS1149F1290P | 2016-03-16 | 1 | Philippines |
| NAS1149F1290P | 2015-11-02 | 2 | us |
| 5310-01-397-1776 | 2014-12-03 | 4746 | DIBBS |
| NAS1149F1290P | 2014-08-20 | 28 | Australia |
| NAS1149F1290P | 2014-08-20 | 28 | United States |
| NAS1149F1290P | 2014-08-20 | 28 | United States |
| NAS1149F1290P | 2014-08-15 | 28 | Australia |
| NAS1149F1290P | 2013-06-13 | 300 | US |
| NAS1149F1290P | 2012-11-14 | 2 | US |
| NAS1149F1290P | 2010-06-17 | 4 | US |
| 5310-01-397-1776 | 2010-03-29 | 1189 | DIBBS |
| NAS1149F1290P | 2008-08-07 | 60 | us |
Cross Reference | NSN 5310-01-397-1776
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-203450 | 72540 | DAYTON-WALTHER CORP |
| 10025553 | 1EFH8 | GENERAL DYNAMICS LAND SYSTEMS - FORCE PROTECTION INC. |
| 13393-011 | 21439 | ENGINEERED ARRESTING SYSTEMS CORPORATION |
| 13393-011 | D2638 | EME ELEKTRO-METALL EXPORT GMBH |
| 2410108 | 001JK | EMBRAER S/A |
| 2410108 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 801169 | 19203 | PICATINNY ARSENAL |
| 901558-13 | 75477 | HOWDEN NORTH AMERICA INC. DBA HOWDEN NORTH AMERICA |
| CVC754-872C33 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| NAS1149C1290 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1149F1290P | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| Z00.N5741503605 | F0086 | SOCATA |
