NSN 5310-01-395-8986 NAS1149D0463J, 10122284 , 01-395-8986

Product Details | FLAT WASHER

5310-01-395-8986 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: NAS1149D0463J, 10122284 , 5310-01-395-8986, 01-395-8986, 5310013958986, 013958986

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 SEP 1994	01-395-8986	13393 ( WASHER, FLAT )

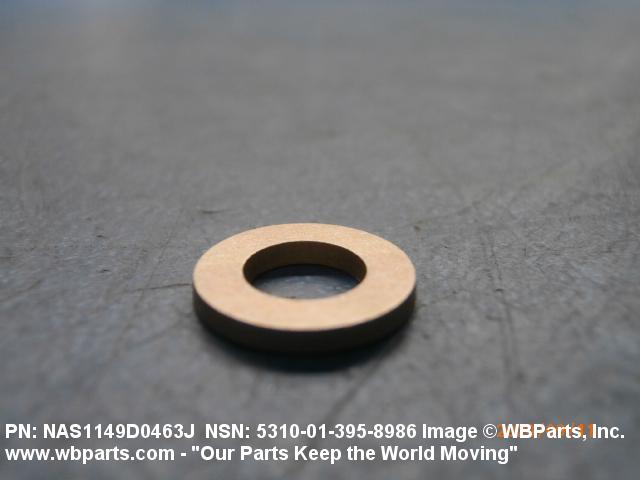

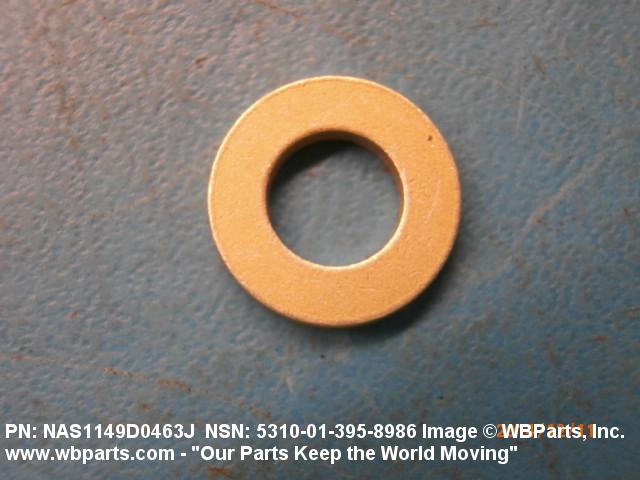

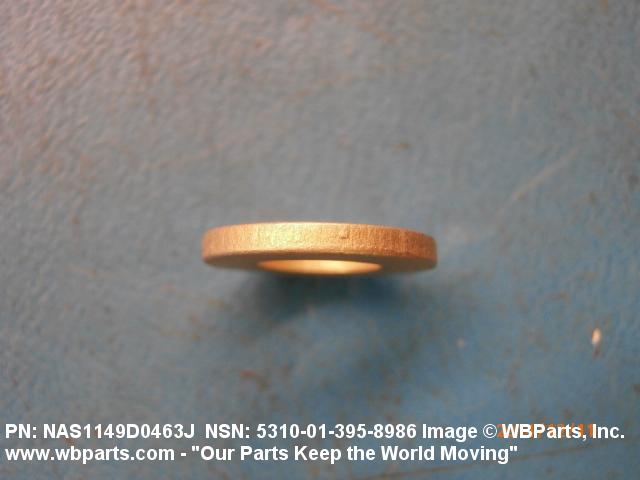

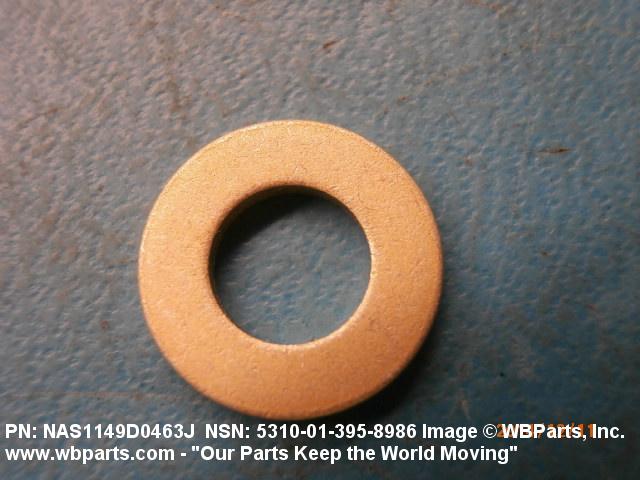

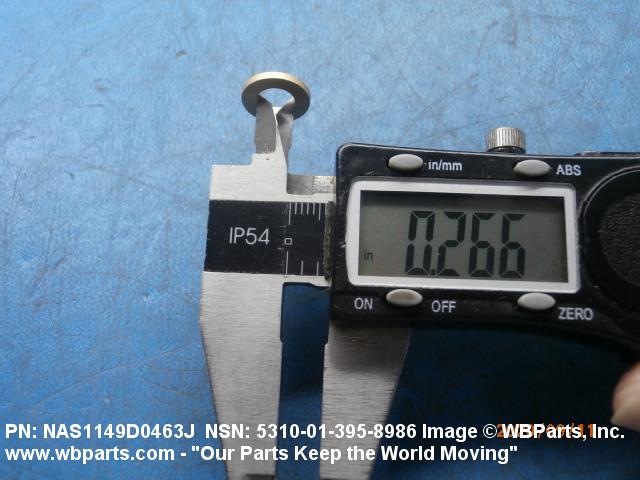

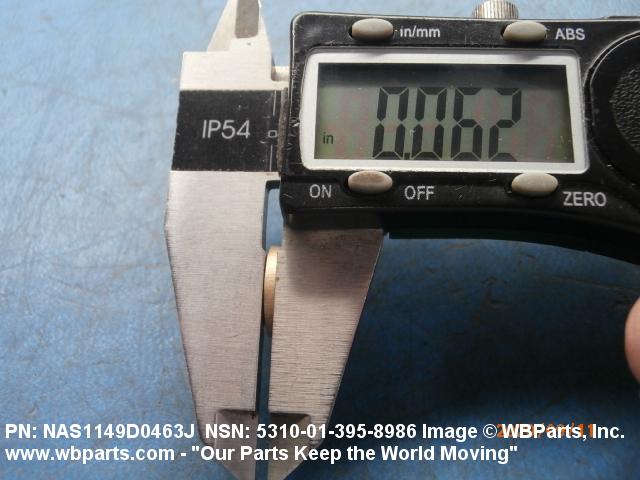

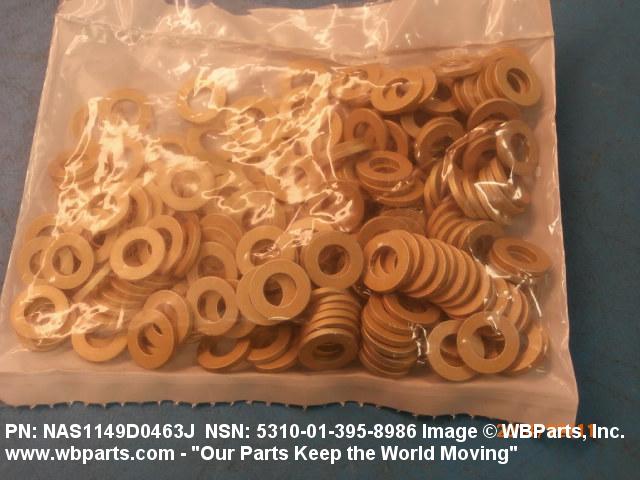

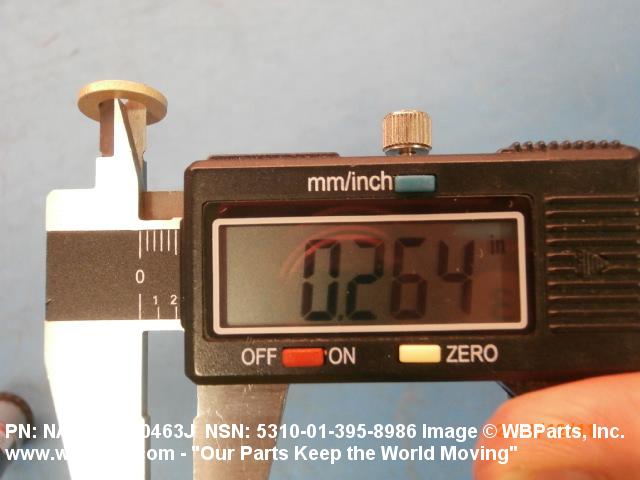

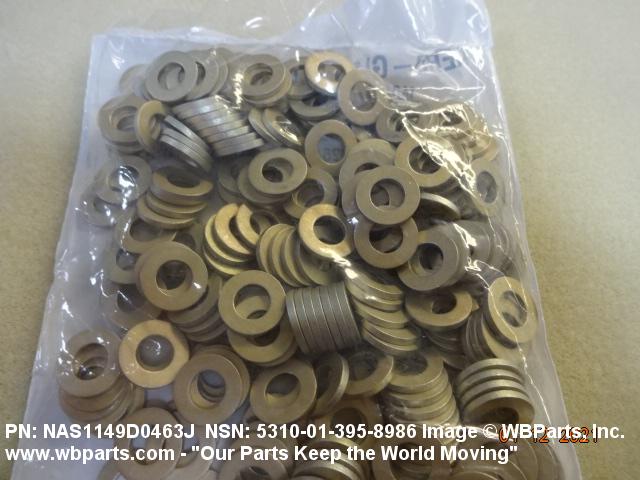

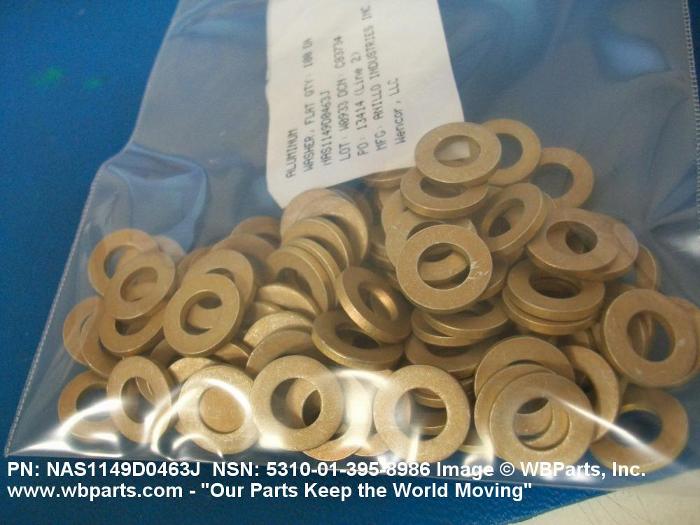

Drawings & Photos | NSN 5310-01-395-8986

Part Number	Request Date	QTY	Origin
NAS1149D0463J	2024-10-281	22	United Kingdom
NAS1149D0463J	2024-07-185	36	US
NAS1149D0463J	2023-11-306	10	US
5310-01-395-8986	2023-10-282	15	Saudi Arabia
NAS1149D0463J	2023-09-256	4	US
NAS1149D0463J	2023-07-198	10	CZ
NAS1149D0463J	2022-01-28	1000	United States
NAS1149D0463J	2021-03-75	98	AE
NAS1149D0463J	2021-03-71	98	US
NAS1149D0463J	2021-01-08	116	United States
NAS1149D0463J	2020-09-253	44	United States
5310-01-395-8986	2020-09-252	25	SA
5310-01-395-8986	2020-06-169	8	US
NAS1149D0463J	2020-03-86	28	United States
NAS1149D0463J	2020-02-57	6	US
NAS1149D0463J	2019-08-241	30	United States
NAS1149D0463J	2019-06-178	6785	United States
NAS1149D0463J	2019-02-39	22	United States
NAS1149D0463J	2018-09-256	20	PA
NAS1149D0463J	2017-01-23	4	United States
NAS1149D0463J	2016-10-284	10	United States
NAS1149D0463J	2015-05-147	40	Romania
5310-01-395-8986	2015-05-127	11	United States
NAS1149D0463J	2015-03-71	6	United States
NAS1149D0463J	2014-12-356	50	United States
NAS1149D0463J	2014-12-356	100	United States
NAS1149D0463J	2014-12-356	200	United States
NAS1149D0463J	2014-12-356	500	United States
NAS1149D0463J	2014-12-339	4	United States
NAS1149D0463J	2014-09-251	4	United States
NAS1149D0463J	2014-08-232	100	Australia
NAS1149D0463J	2014-08-232	100	United States
NAS1149D0463J	2014-08-232	100	United States
NAS1149D0463J	2014-08-227	100	Australia
NAS1149D0463J	2013-12-336	40	US
NAS1149D0463J	2013-12-336	40	US
NAS1149D0463J	2013-08-239	100	United States
NAS1149D0463J	2013-08-239	200	United States
NAS1149D0463J	2013-08-239	500	United States
NAS1149D0463J	2013-08-239	1000	United States
NAS1149D0463J	2013-04-109	12	US
NAS1149D0463J	2012-11-310	1000	US
NAS1149D0463J	2012-09-270	10	United States
NAS1149D0463J	2012-06-173	8	United States
NAS1149D0463J	2012-05-143	110	United States
5310-01-395-8986	2011-08-214	100	MANUAL
NAS1149D0463J	2011-08-214	100	United States
NAS1149D0463J	2011-06-175	80	United States
5310-01-395-8986	2010-03-62	100	United States
5310-01-395-8986	2009-10-274	5	United States
NAS1149D0463J	2009-09-245	4	US
NAS1149D0463J	2009-08-236	2	Italy
5310-01-395-8986	2008-09-254	3967	DIBBS
5310-01-395-8986	2008-09-252	1000	US
NAS1149D0463J	2008-01-31	9	US
5310-01-395-8986	2008-01-01	50	India
5310-01-395-8986	2007-02-59	5	US

Cross Reference | NSN 5310-01-395-8986

Part Number	Cage Code	Manufacturer
NAS1149D0463J	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1149D0463J	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-395-8986

Compare

Related Products | NSN 5310-01-395-8986

5310-01-395-8987, 5310-01-395-9015, 5310-01-395-9249, 5310-01-395-9256, 5310-01-395-9257

Technical Data | NSN 5310-01-395-8986

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 OVERALL
SURFACE TREATMENT	CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HOLE DIAMETER	0.255 INCHES MINIMUM AND 0.275 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

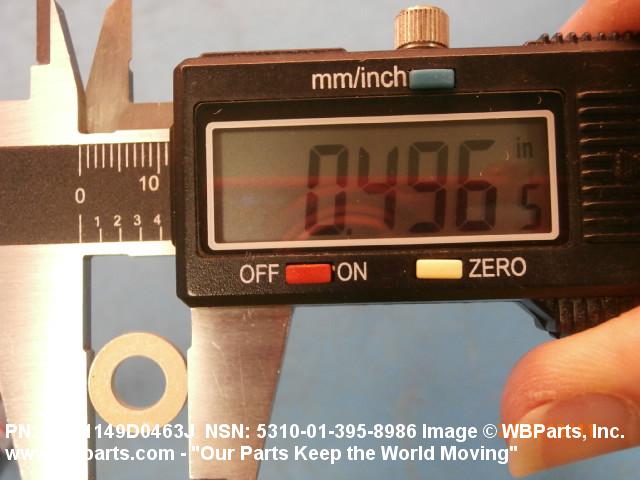

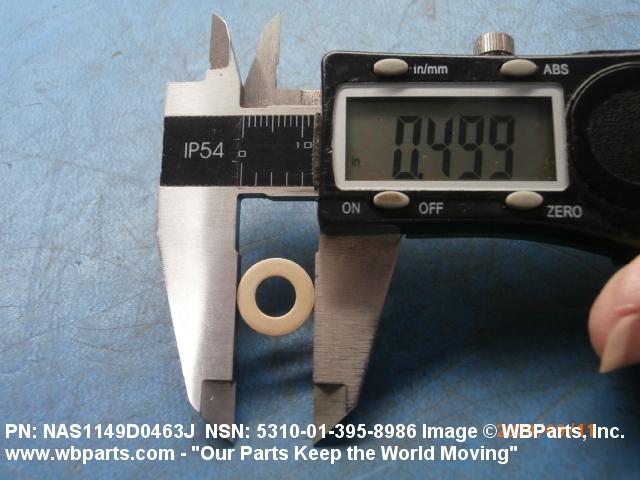

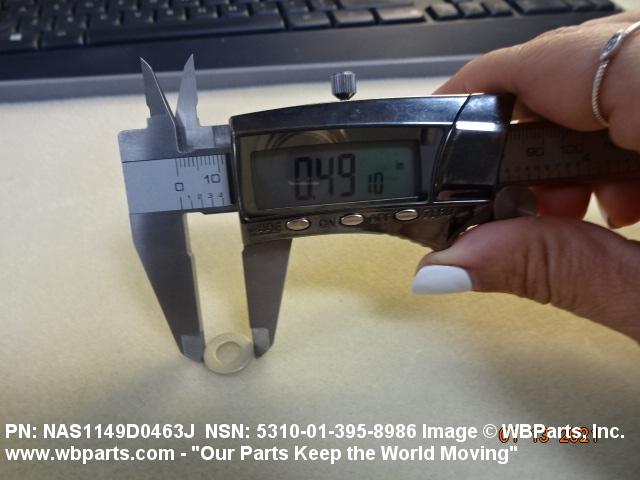

OVERALL DIAMETER	0.495 INCHES MINIMUM AND 0.520 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

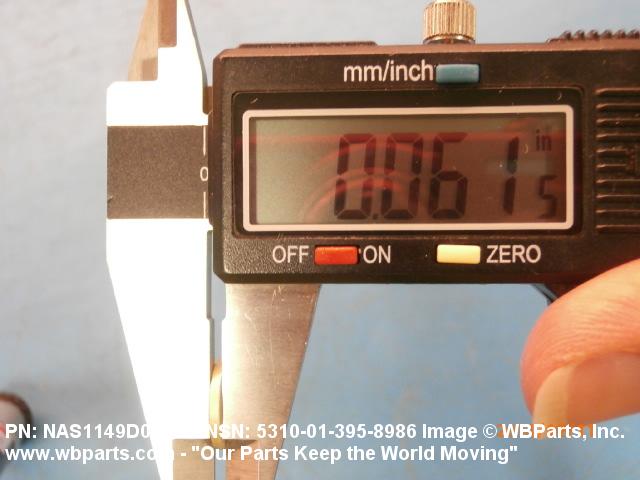

THICKNESS	0.063 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	80205-NAS1149D0463J PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-395-8986

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	PR
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-395-8986

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
