NSN 5310-01-387-0766 NAS1789C3, 01-387-0766, 013870766
Product Details | PLATE SELF-LOCKING NUT
5310-01-387-0766 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1789C3, 5310-01-387-0766, 01-387-0766, 5310013870766, 013870766
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 FEB 1994 | 01-387-0766 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

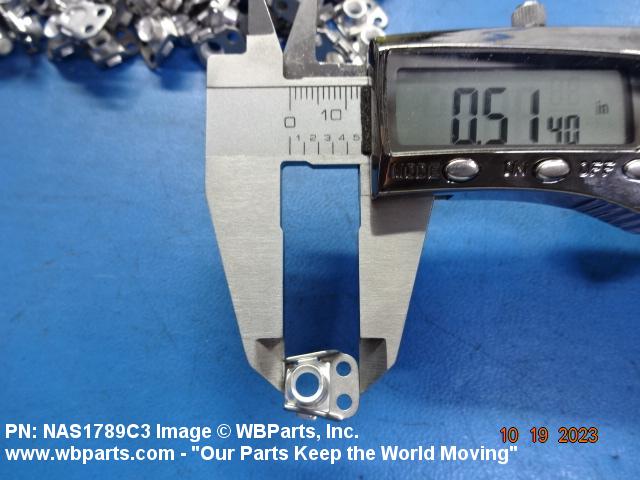

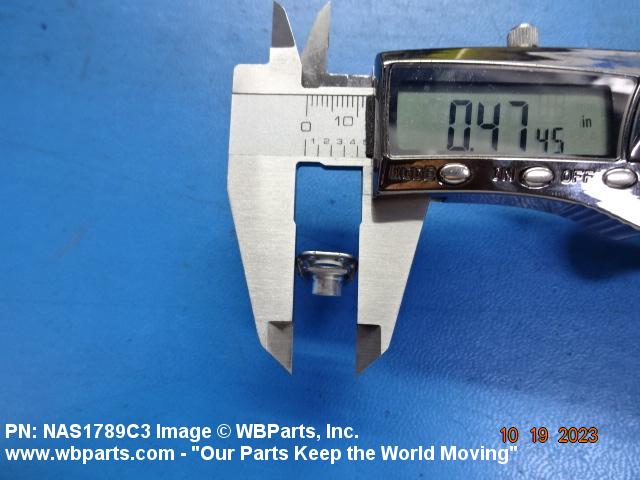

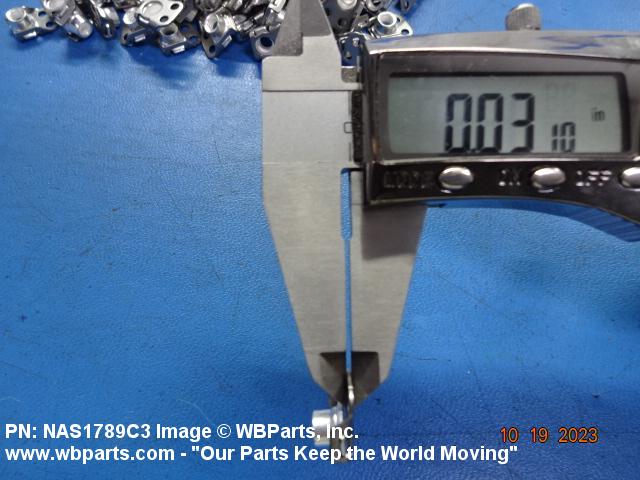

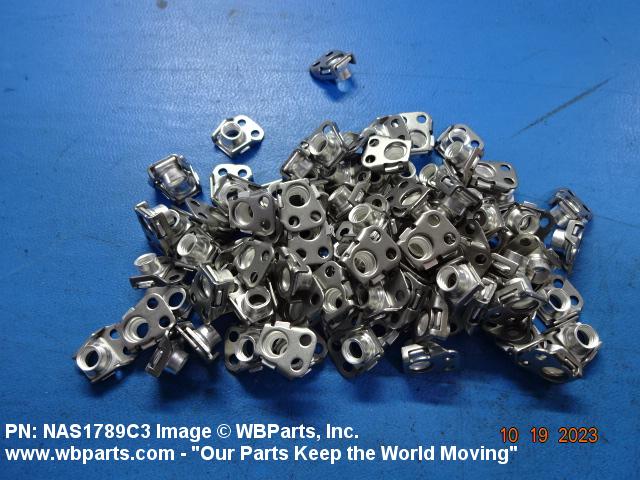

Drawings & Photos | NSN 5310-01-387-0766
Demand History | NSN 5310-01-387-0766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-387-0766 | 2024-09-252 | 113 | DIBBS |
| NAS1789C3 | 2023-10-285 | 25 | United States |
| 5310-01-387-0766 | 2021-12-354 | 249 | DIBBS |
| NAS1789C3 | 2021-12-343 | 0 | |
| 5310-01-387-0766 | 2021-08-230 | 107 | DIBBS |
| 5310-01-387-0766 | 2021-03-67 | 74 | DIBBS |
| NAS1789C3 | 2020-10-303 | 0 | |
| 5310-01-387-0766 | 2020-01-28 | 28 | DIBBS |
| NAS1789C3 | 2020-01-08 | 3 | United States |
| 5310-01-387-0766 | 2019-04-114 | 127 | DIBBS |
| 5310-01-387-0766 | 2018-12-345 | 127 | DIBBS |
| 5310-01-387-0766 | 2018-08-213 | 120 | DIBBS |
| 5310-01-387-0766 | 2018-07-207 | 81 | DIBBS |
| 5310-01-387-0766 | 2018-06-157 | 39 | DIBBS |
| 5310-01-387-0766 | 2018-03-72 | 81 | DIBBS |
| 5310-01-387-0766 | 2018-02-45 | 56 | DIBBS |
| 5310-01-387-0766 | 2018-01-09 | 25 | DIBBS |
| NAS1789C3 | 2017-03-68 | 5 | |
| NAS1789C3 | 2016-12-343 | 5 | |
| 5310-01-387-0766 | 2016-04-115 | 32 | DIBBS |
| 5310-01-387-0766 | 2016-03-88 | 13 | DIBBS |
| 5310-01-387-0766 | 2015-12-347 | 13 | DIBBS |
| 5310-01-387-0766 | 2015-09-251 | 5 | DIBBS |
| 5310-01-387-0766 | 2015-07-202 | 5 | DIBBS |
| 5310-01-387-0766 | 2015-06-167 | 7 | DIBBS |
| 5310-01-387-0766 | 2015-05-140 | 200 | United States |
| 5310-01-387-0766 | 2014-05-132 | 4 | DIBBS |
| NAS1789C3 | 2014-04-97 | 100 | UK |
| 5310-01-387-0766 | 2012-10-279 | 8 | DIBBS |
| 5310-01-387-0766 | 2012-09-267 | 8 | DIBBS |
| 5310-01-387-0766 | 2012-09-245 | 8 | DIBBS |
| 5310-01-387-0766 | 2012-06-182 | 8 | DIBBS |
| 5310-01-387-0766 | 2011-07-186 | 1 | DIBBS |
| 5310-01-387-0766 | 2011-01-07 | 3 | DIBBS |
| 5310-01-387-0766 | 2009-12-337 | 300 | United States |
| 5310-01-387-0766 | 2009-09-245 | 40 | US |
| NAS1789C3 | 2008-10-291 | 100 | United Kingdom |
Cross Reference | NSN 5310-01-387-0766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1789C3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-387-0766
Related Products | NSN 5310-01-387-0766
Technical Data | NSN 5310-01-387-0766
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A127 PLATE |
| DISTANCE FROM CENTERLINE TO FLAT | 0.175 INCHES NOMINAL |
| NUT LENGTH | 0.525 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES NOMINAL |
| PLATE THICKNESS | 0.032 INCHES MAXIMUM |
| PLATE WIDTH | 0.490 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | PLATE SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-387-0766
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | PH | SASSY Management Unit Camp Lejeune, NC 28542 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-387-0766
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
