NSN 5310-01-386-6764 GN512DV4921, GN512DV4-921, 2R146413
Product Details | BLIND RIVET PLAIN NUT
5310-01-386-6764 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: GN512DV4921, GN512DV4-921, 2R146413, 2R1464-13, 5310-01-386-6764, 01-386-6764, 5310013866764, 013866764
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1994 | 01-386-6764 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
Drawings & Photos | NSN 5310-01-386-6764
Demand History | NSN 5310-01-386-6764
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-386-6764 | 2014-08-227 | 12 | DIBBS |
| 5310-01-386-6764 | 2013-04-115 | 10 | DIBBS |
| 5310-01-386-6764 | 2012-08-237 | 5 | DIBBS |
| 5310-01-386-6764 | 2012-08-235 | 5 | DIBBS |
| 5310-01-386-6764 | 2011-06-152 | 8 | DIBBS |
Cross Reference | NSN 5310-01-386-6764
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-386-6764
Technical Data | NSN 5310-01-386-6764
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.332 INCHES MAXIMUM |
| NUT LENGTH | 1.797 INCHES MINIMUM AND 1.827 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.861 TO 0.921 INCHES |

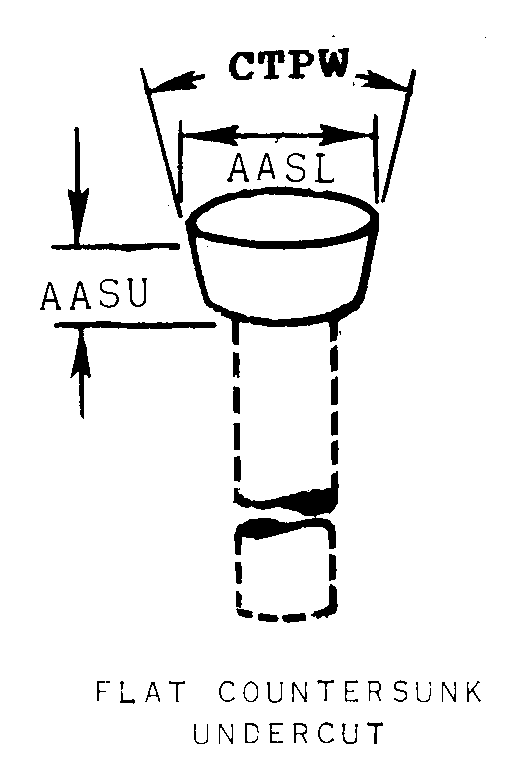

| HEAD STYLE | D10 FLAT COUNTERSUNK UNDERCUT |
| HEAD DIAMETER | 0.635 INCHES NOMINAL |
| HEAD HEIGHT | 0.046 INCHES NOMINAL |
| HEAD COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK END TYPE | CLOSED |
| TEMP RATING | 232.0 DEG CELSIUS MAXIMUM |
| SPECIAL FEATURES | COLOR IDENTIFICATION ORANGE TOP SURFACE OF HEAD;ITEM NUMBER INCLUDES 0-RING. |
