NSN 5310-01-373-1431 HC547101612, HC54710-1612, TE992516
Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT
5310-01-373-1431 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: HC547101612, HC54710-1612, TE992516, TE9925-16, 3D002716, 3D0027-16, 73783CS1612, 73783CS-1612, 5310-01-373-1431, 01-373-1431, 5310013731431, 013731431
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAR 1993 | 01-373-1431 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |
Drawings & Photos | NSN 5310-01-373-1431
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-373-1431
Technical Data | NSN 5310-01-373-1431
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | SILVER NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE AND AMS 2411 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

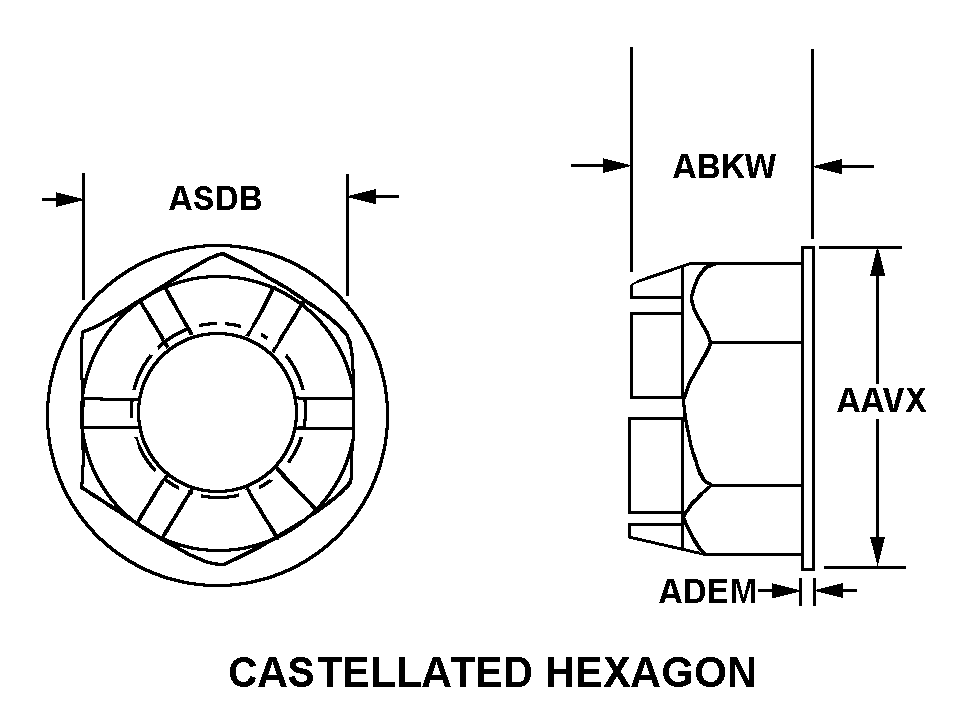

| NUT STYLE | A299 CASTELLATED HEXAGON |
| WASHER OUTSIDE DIAMETER | 1.545 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| WASHER THICKNESS | 0.070 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.118 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 800.0 DEG FAHRENHEIT MAXIMUM |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-373-1431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-373-1431
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
