NSN 5310-01-369-3337 DIN6927 VM8X1.25 10-A2D, DIN6927 VM8X1.25 10-A3D, DIN6927VM8X12510A2D

Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

5310-01-369-3337 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: DIN6927 VM8X1.25 10-A2D, DIN6927 VM8X1.25 10-A3D, DIN6927VM8X12510A2D, DIN6927VM8X12510A3D, ISO7044-VM8X1.25-10-A3D , ISO7044VM8X12510A3D, 12414308 , 12414308018, 12414308-018 , 5310-01-369-3337, 01-369-3337, 5310013693337, 013693337

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 DEC 1992	01-369-3337	29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON )

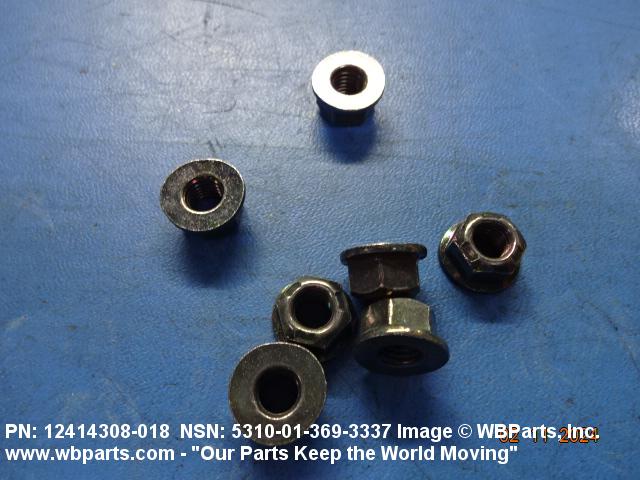

Drawings & Photos | NSN 5310-01-369-3337

Part Number	Request Date	QTY	Origin
5310-01-369-3337	2024-02-37	100	us
5310-01-369-3337	2023-06-174	7143	US
5310-01-369-3337	2023-06-164	7143	DIBBS
5310-01-369-3337	2019-08-218	25766	DIBBS
12414308-018	2018-12-365	2
12414308-018	2018-12-365	2
12414308018	2018-07-212	100	United States
5310-01-369-3337	2018-05-130	1	DIBBS-RFPs
5310-01-369-3337	2018-02-38	37642	DIBBS
12414308-018	2017-11-319	4
12414308-018	2016-04-110	1000	US
12414308018	2013-04-95	176	US
12414308018	2012-10-300	500	United States
5310-01-369-3337	2012-05-131	4956	DIBBS
5310-01-369-3337	2012-02-48	30574	DIBBS
12414308018	2011-04-97	400	US
5310-01-369-3337	2010-04-95	21000	DIBBS
5310-01-369-3337	2010-01-08	11000	DIBBS
5310-01-369-3337	2009-10-301	1344	US
5310-01-369-3337	2008-10-298	30	US
5310-01-369-3337	2008-05-141	665	DIBBS
5310-01-369-3337	2008-04-109	14593	DIBBS

Cross Reference | NSN 5310-01-369-3337

Part Number	Cage Code	Manufacturer
12414308	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12414308-018	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
12414308-018	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
DIN6927 VM8X1.25 10-A2D	D8286	DIN DEUTSCHES INSTITUT FUER NORMUNGEV
DIN6927 VM8X1.25 10-A3D	D8286	DIN DEUTSCHES INSTITUT FUER NORMUNGEV
ISO7044-VM8X1.25-10-A3D	I9008	INTERNATIONAL ORGANIZATION FORSTANDARDIZATION (ISO)

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-369-3337

Compare

Related Products | NSN 5310-01-369-3337

5310-01-369-3338, 5310-01-369-3339, 5310-01-369-3340, 5310-01-369-3483, 5310-01-369-3484

Technical Data | NSN 5310-01-369-3337

Characteristic	Specifications

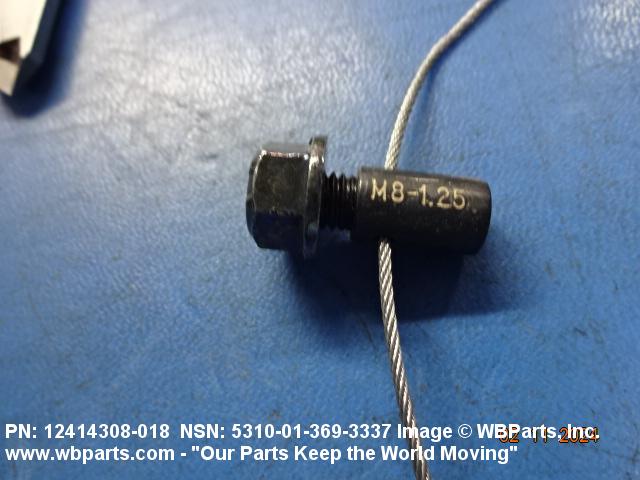

NOMINAL THREAD SIZE	8.0 MILLIMETERS
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL PROPERTY CLASS 10.9 OVERALL
SURFACE TREATMENT	ZINC OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A294 HEXAGON

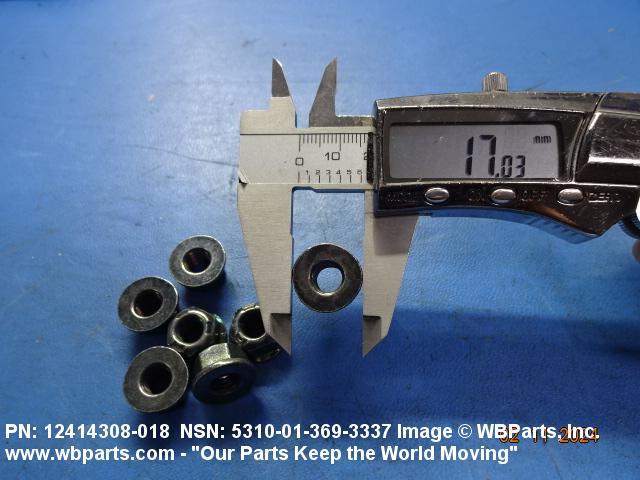

WASHER OUTSIDE DIAMETER	17.9 MILLIMETERS NOMINAL

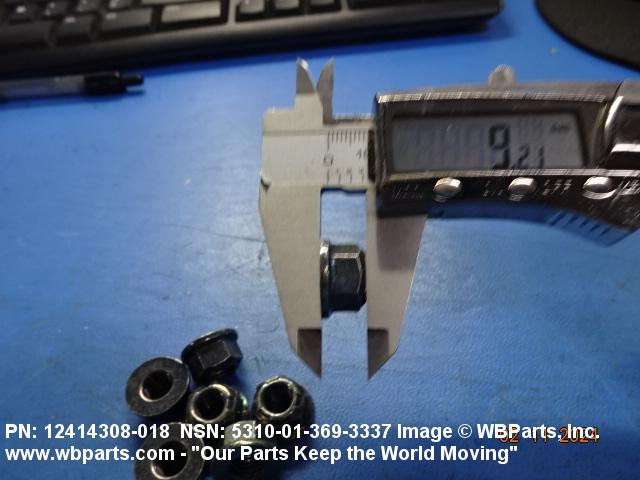

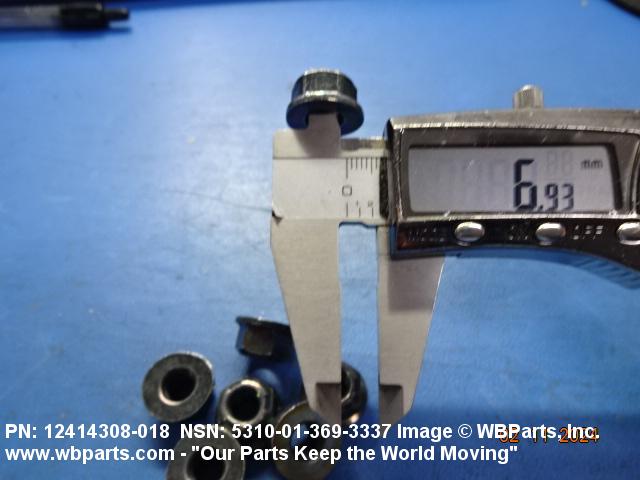

OVERALL HEIGHT	7.6 MILLIMETERS NOMINAL

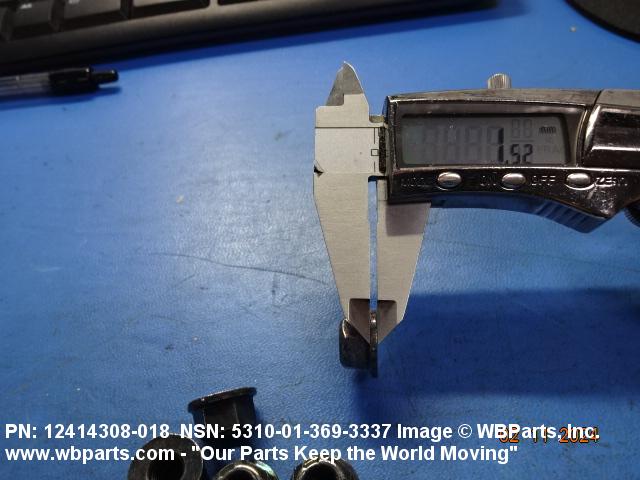

WASHER THICKNESS	1.2 MILLIMETERS NOMINAL

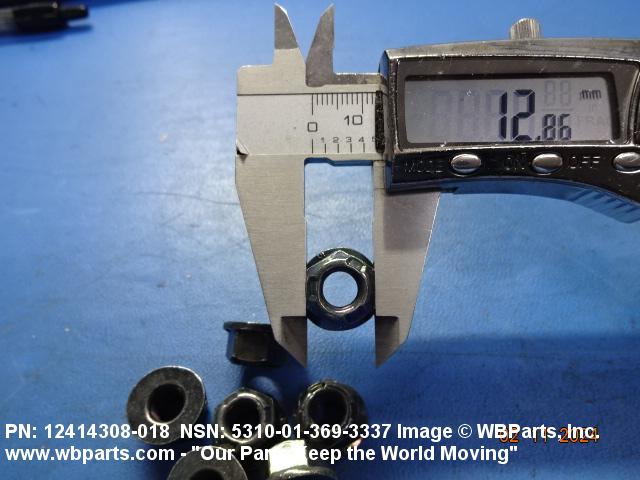

WIDTH ACROSS FLATS	12.73 MILLIMETERS MINIMUM AND 13.00 MILLIMETERS MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING	NOT RATED
III END ITEM IDENTIFICATION	ADD-ON ARMOR, FMTV

Restrictions/Controls & Freight Information | NSN 5310-01-369-3337

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-369-3337

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
