NSN 5310-01-363-9909 BACN10JC3, H103BAC, H10-3BAC

Product Details | HEXAGON SELF-LOCKING NUT

5310-01-363-9909 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.

Part Alternates: BACN10JC3, H103BAC, H10-3BAC, 5310-01-363-9909, 01-363-9909, 5310013639909, 013639909

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	11 SEP 1992	01-363-9909	05277 ( NUT, SELF-LOCKING, HEXAGON )

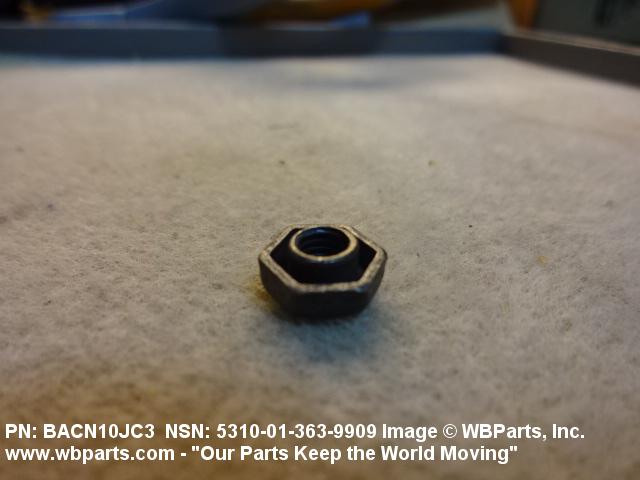

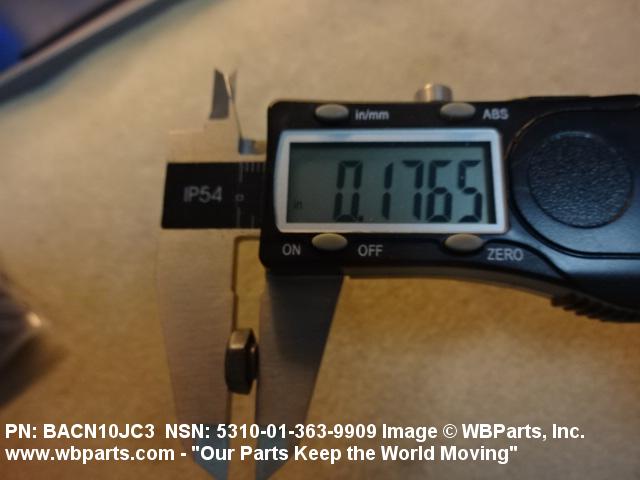

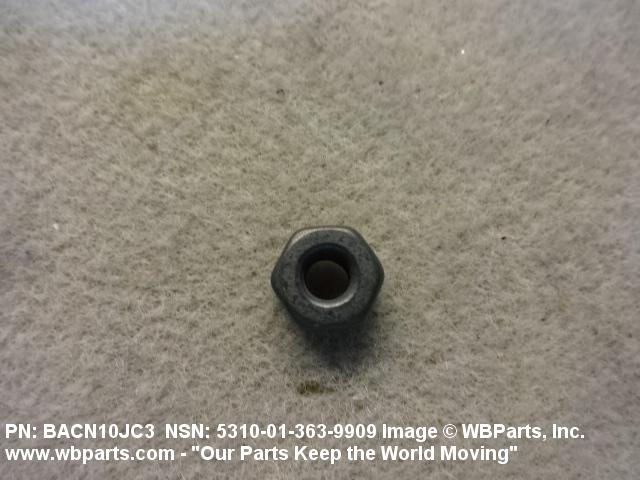

Drawings & Photos | NSN 5310-01-363-9909

Part Number	Request Date	QTY	Origin
BACN10JC3	2024-06-156	2193	DIBBS
5310-01-363-9909	2023-10-300	10	United States
BACN10JC3	2022-10-291	50	us
BACN10JC3	2022-03-69	25	United States
BACN10JC3	2021-01-12	315	United States
BACN10JC3	2020-02-48	22220	DIBBS
BACN10JC3	2020-01-29	22220	DIBBS
BACN10JC3	2018-10-296	10	United States
5310-01-363-9909	2018-09-262	13720	DIBBS
5310-01-363-9909	2018-08-228	22220	DIBBS
5310-01-363-9909	2018-08-222	4	United States
5310-01-363-9909	2018-07-207	19007	DIBBS
5310-01-363-9909	2018-07-197	122000	DIBBS
5310-01-363-9909	2018-05-144	1	DIBBS-RFPs
5310-01-363-9909	2018-05-123	28002	DIBBS
5310-01-363-9909	2018-01-01	6710	DIBBS
5310-01-363-9909	2017-11-333	193	DIBBS
5310-01-363-9909	2017-09-270	10452	DIBBS
5310-01-363-9909	2017-07-205	53465	DIBBS
5310-01-363-9909	2017-07-197	53465	DIBBS
5310-01-363-9909	2017-06-160	1812	US
5310-01-363-9909	2017-06-159	102615	DIBBS
5310-01-363-9909	2017-05-151	102615	DIBBS
5310-01-363-9909	2017-03-73	47388	DIBBS
5310-01-363-9909	2017-03-65	47388	DIBBS
5310-01-363-9909	2015-05-148	118956	DIBBS
5310-01-363-9909	2015-01-05	6338	DIBBS
5310-01-363-9909	2014-12-357	6338	DIBBS
BACN10JC3	2014-10-297	50	United States
BACN10JC3	2014-06-176	20	US
BACN10JC3	2013-12-336	10	US
BACN10JC3	2013-12-336	10	US
5310-01-363-9909	2012-11-331	30	MANUAL
BACN10JC3	2012-11-331	30	Turkey
5310-01-363-9909	2011-02-33	100	US
BACN10JC3	2010-04-96	78	United States
BACN10JC3	2010-03-89	2	United States
5310-01-363-9909	2009-12-342	3000	US
BACN10JC3	2009-11-308	100	US
5310-01-363-9909	2009-07-202	44	US
5310-01-363-9909	2009-06-155	31868	DIBBS
5310-01-363-9909	2009-03-86	16742	DIBBS
BACN10JC3	2008-08-219	520	United States
BACN10JC3	2008-07-212	10000	US
5310-01-363-9909	2008-05-140	17616	DIBBS
5310-01-363-9909	2008-03-70	21036	DIBBS
5310-01-363-9909	2006-09-258	40	US

Cross Reference | NSN 5310-01-363-9909

Part Number	Cage Code	Manufacturer
BACN10JC3	15653	ALCOA GLOBAL FASTENERS, INC.
BACN10JC3	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
BACN10JC3	52828	REPUBLIC FASTENER MFG. CORP.
BACN10JC3	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
BACN10JC3	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
BACN10JC3	81205	THE BOEING COMPANY DBA BOEING
H10-3BAC	15653	ALCOA GLOBAL FASTENERS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-363-9909

Compare

Related Products | NSN 5310-01-363-9909

5310-01-363-9910, 5310-01-363-9913, 5310-01-363-9914, 5310-01-363-9915, 5310-01-363-9916

Technical Data | NSN 5310-01-363-9909

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A19A INTERNAL OR EXTERNAL WRENCHING HEXAGON
NUT HEIGHT	0.190 INCHES MAXIMUM
INSIDE WIDTH ACROSS FLATS	0.297 INCHES MINIMUM AND 0.305 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-01-363-9909

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-363-9909

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
