NSN 5310-01-362-1465 MS21075L04N, MILN25027, MIL-N-25027

Product Details | PLATE SELF-LOCKING NUT

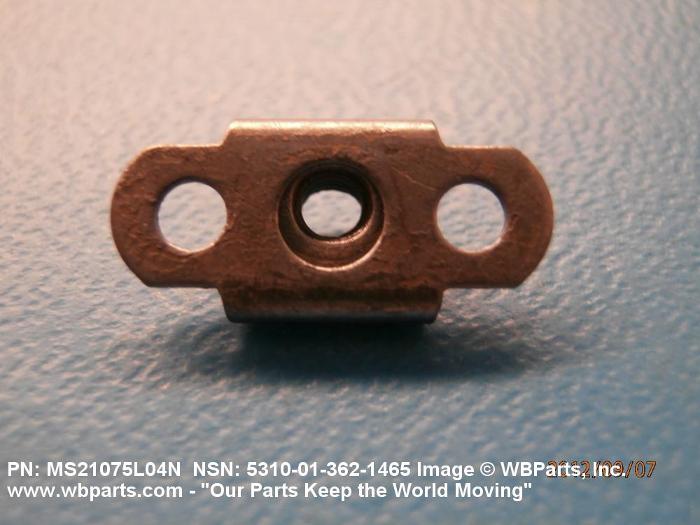

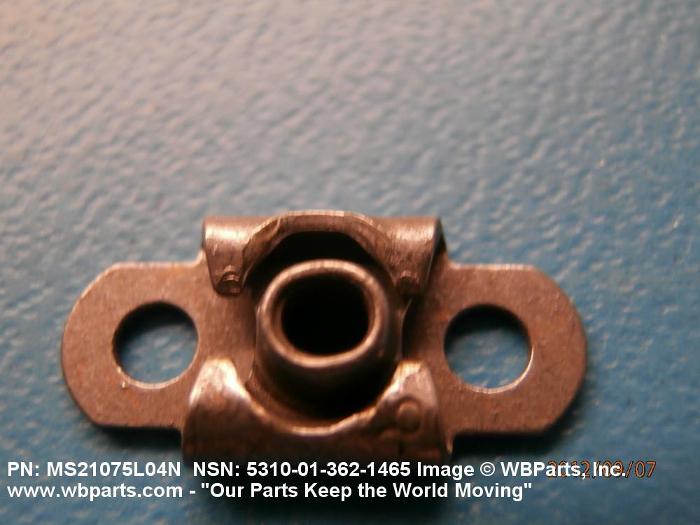

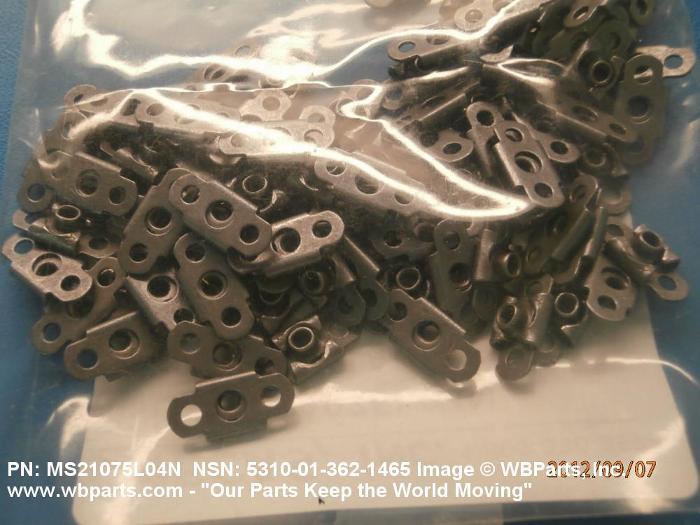

5310-01-362-1465 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21075L04N, MILN25027, MIL-N-25027, 5310-01-362-1465, 01-362-1465, 5310013621465, 013621465

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 AUG 1992	01-362-1465	05280 ( NUT, SELF-LOCKING, PLATE )

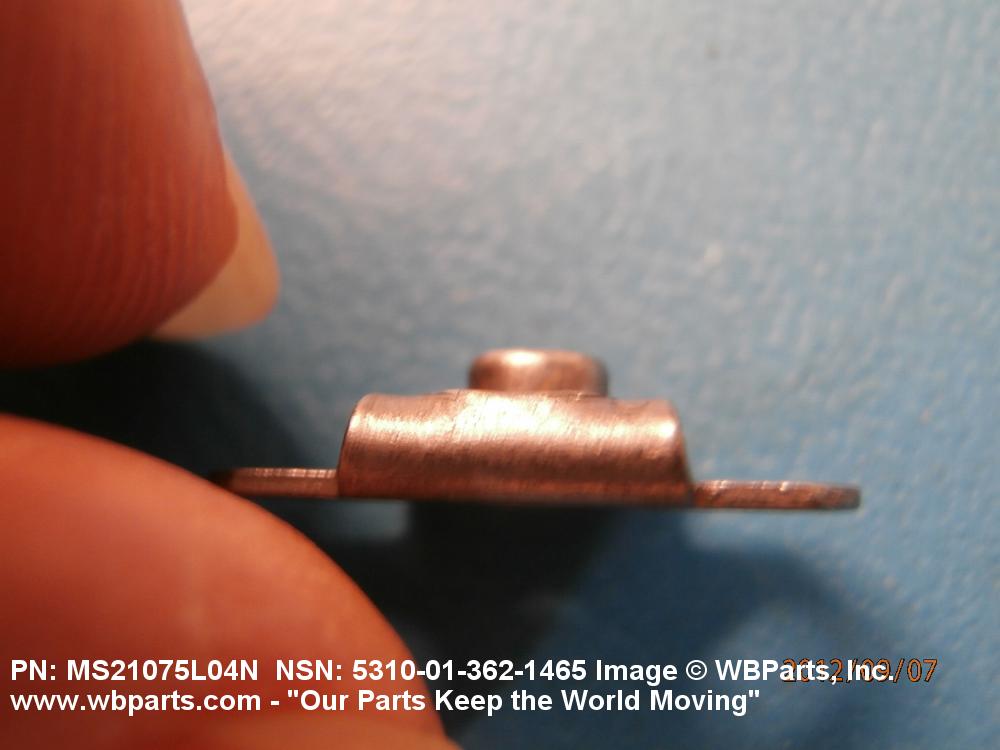

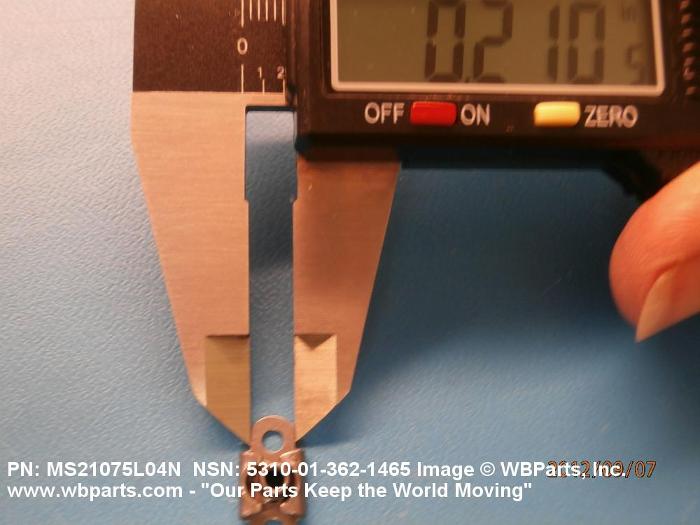

Drawings & Photos | NSN 5310-01-362-1465

Part Number	Request Date	QTY	Origin
MILN25027	2023-08-24	54	US
MS21075L04N	2022-12-13	24	United States
MS21075L04N	2022-09-09	24	United States
MILN25027	2020-09-18	156	US
MS21075L04N	2019-04-16	60	United States
5310-01-362-1465	2017-02-01	3733	DIBBS
5310-01-362-1465	2017-02-01	1	DIBBS-RFPs
MS21075L04N	2016-12-13	448	US
MS21075L04N	2016-09-02	48	United States
MS21075L04N	2014-12-23	5	United States
MS21075L04N	2014-06-06	8	United States
MS21075L04N	2014-06-06	8	United States
MS21075L04N	2014-06-06	25	United States
MS21075L04N	2013-04-15	40	IL
MS21075L04N	2012-08-24	84	United States
MS21075L04N	2012-08-24	420	United States
MS21075L04N	2012-06-11	12	United States
MILN25027	2012-06-05	16	United States
5310-01-362-1465	2012-05-29	15	United States
MILN25027	2012-05-18	15	United States
MILN25027	2011-09-22	28	US
MILN25027	2011-09-21	25	Canada
MILN25027	2011-02-18	5	US
MILN25027	2011-02-18	10	US
MILN25027	2011-02-18	40	US
5310-01-362-1465	2010-10-14	360	US
MILN25027	2010-06-30	50	United States
5310-01-362-1465	2010-06-09	30	Taiwan
MILN25027	2010-04-21	5000	US
5310-01-362-1465	2010-04-05	2560	DIBBS
5310-01-362-1465	2010-03-18	30	MX
5310-01-362-1465	2010-03-10	380	US
MILN25027	2009-11-17	560	US
5310-01-362-1465	2009-10-09	800	US
MILN25027	2009-10-08	8	Canada
MS21075L04N	2009-06-24	30	US
MS21075L04N	2009-05-19	30000	US
MS21075L04N	2009-05-18	30000	US
5310-01-362-1465	2009-02-26	25	US
5310-01-362-1465	2009-02-12	9936	DIBBS
5310-01-362-1465	2009-01-21	100	US
5310-01-362-1465	2009-01-13	9936	DIBBS
5310-01-362-1465	2008-10-31	200	US
5310-01-362-1465	2008-10-05	50	Taiwan
MILN25027	2008-09-26	50	Italy
5310-01-362-1465	2008-07-30	5169	DIBBS
5310-01-362-1465	2008-06-26	9161	DIBBS
5310-01-362-1465	2008-04-07	30	IT
MS21075L04N	2008-04-02	2500	US
5310-01-362-1465	2008-03-12	5913	DIBBS
5310-01-362-1465	2008-03-04	4053	DIBBS

Cross Reference | NSN 5310-01-362-1465

Part Number	Cage Code	Manufacturer
MIL-N-25027	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21075L04N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075L04N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-362-1465

Compare

Related Products | NSN 5310-01-362-1465

5310-01-362-1467, 5310-01-362-1468, 5310-01-362-1469, 5310-01-362-1470, 5310-01-362-1471

Technical Data | NSN 5310-01-362-1465

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 1035 OR STEEL COMP 1050 OR STEEL COMP 4130 OR STEEL COMP 1040 OR STEEL COMP 1042 OR STEEL COMP 4340 OR STEEL COMP 8740 OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

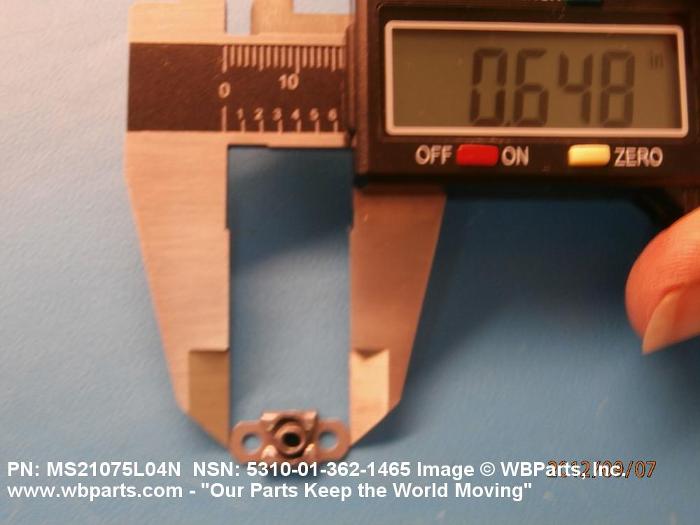

NUT LENGTH	0.651 INCHES MAXIMUM

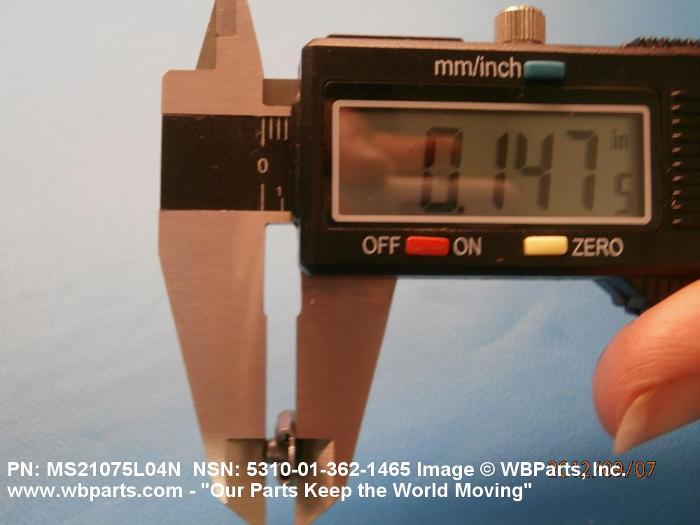

NUT HEIGHT	0.153 INCHES MAXIMUM
PLATE THICKNESS	0.016 INCHES MINIMUM AND 0.090 INCHES MAXIMUM
PLATE WIDTH	0.275 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.198 INCHES MINIMUM AND 0.208 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.404 INCHES MINIMUM AND 0.408 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT
SPECIAL FEATURES	WITHOUT EYELET
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-N-25027

Restrictions/Controls & Freight Information | NSN 5310-01-362-1465

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-362-1465

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
