NSN 5310-01-361-7086 1676AS1081, 1676AS108-1, 50137010000
Product Details | ASSEMBLED WASHER PLAIN NUT
5310-01-361-7086 A plain nut on which has been assembled a nonremovable washer.
Part Alternates: 1676AS1081, 1676AS108-1, 50137010000, 501-370100-00, 5310-01-361-7086, 01-361-7086, 5310013617086, 013617086
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUL 1992 | 01-361-7086 | 21824 ( NUT, PLAIN, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5310-01-361-7086
Demand History | NSN 5310-01-361-7086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-361-7086 | 2021-11-21 | 50 | DIBBS |
| 5310-01-361-7086 | 2020-02-07 | 27 | DIBBS |
| 5310-01-361-7086 | 2020-01-30 | 27 | DIBBS |
| 5310-01-361-7086 | 2014-11-02 | 25 | DIBBS |
| 5310-01-361-7086 | 2014-01-05 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-361-7086
Related Products | NSN 5310-01-361-7086
Technical Data | NSN 5310-01-361-7086
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.380 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1020 NUT STEEL COMP 1050 OR STEEL COMP 1053 OR STEEL COMP 1055 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1064 OR STEEL COMP 1551 OR STEEL COMP 1552 OR STEEL COMP 1561 WASHER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OR ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 1, FED SPEC 1ST TREATMENT RESPONSE OR ASTM B633 SC2 TY 2 ASSN STD 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

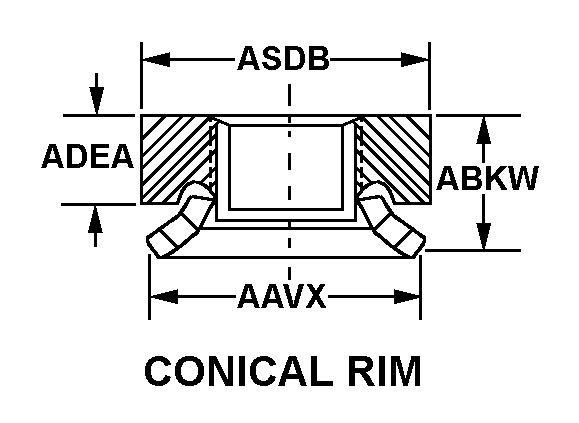

| NUT STYLE | A307 CONICAL RIM |
| WASHER OUTSIDE DIAMETER | 0.650 INCHES NOMINAL |
| OVERALL HEIGHT | 0.368 INCHES NOMINAL |
| NUT HEIGHT | 0.377 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.562 INCHES NOMINAL |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-361-7086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-361-7086
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
