NSN 5310-01-358-1882 BRPK00322, 01-358-1882, 013581882
Product Details | SEAL WASHER
5310-01-358-1882 A washer of various shapes having a centrally located hole. It is primarily used as a seat for a bolt or screw to distribute pressure and has a sealing element. It may be used in connection with metallic washers to which it can be bonded.
Part Alternates: BRPK00322, 5310-01-358-1882, 01-358-1882, 5310013581882, 013581882
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAY 1992 | 01-358-1882 | 37917 ( WASHER, SEAL ) |

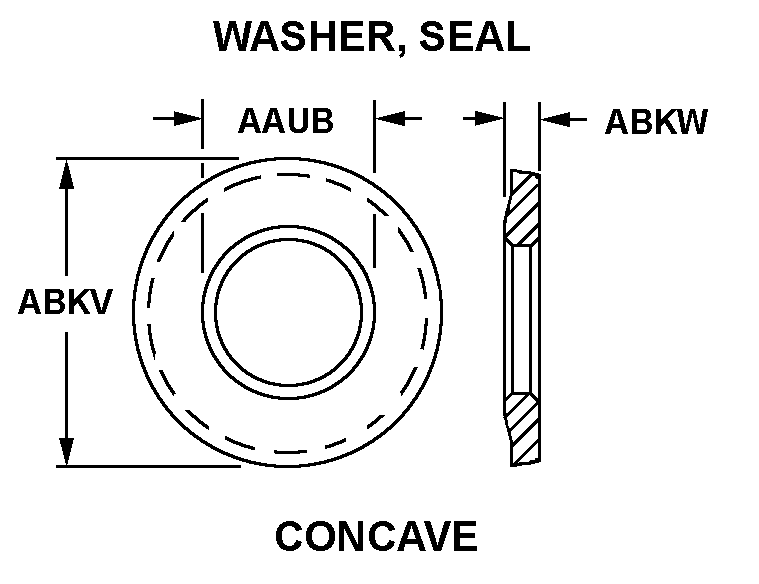

Drawings & Photos | NSN 5310-01-358-1882
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-358-1882
Technical Data | NSN 5310-01-358-1882
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY RUBBER SEALING ELEMENT |
| STYLE DESIGNATOR | 60 CONCAVE |
| HOLE DIAMETER | 0.300 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.612 INCHES NOMINAL |
| OVERALL HEIGHT | 0.160 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AN/SPS-69 RADAR |
| MANUFACTURERS CODE | 1TC81 |
| DESIGN CONTROL REFERENCE | BRPK00322 |
Restrictions/Controls & Freight Information | NSN 5310-01-358-1882
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
