NSN 5310-01-347-4305 BK206640210, 550040, 550-040
Product Details | HEXAGON PLAIN NUT
5310-01-347-4305 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: BK206640210, 550040, 550-040, 5926318146, 592-6318146, 6318146, 5310-01-347-4305, 01-347-4305, 5310013474305, 013474305
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1991 | 01-347-4305 | 01857 ( NUT, PLAIN, HEXAGON ) |

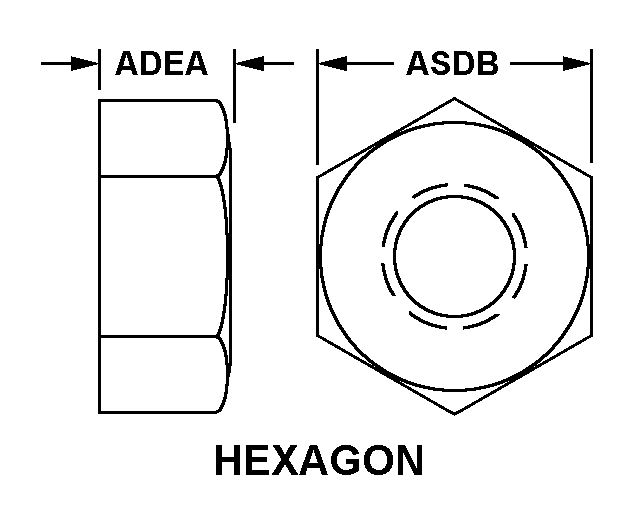

Drawings & Photos | NSN 5310-01-347-4305
Demand History | NSN 5310-01-347-4305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 550-040 | 2022-05-08 | 6 | DIBBS |
Cross Reference | NSN 5310-01-347-4305
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-347-4305
Technical Data | NSN 5310-01-347-4305
| Characteristic | Specifications |
|---|---|
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A12 HEXAGON |
| NUT HEIGHT | 0.230 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| BEARING SURFACE TYPE | ANY ACCEPTABLE |
| SPECIAL FEATURES | UNDERWATER LIFE SUPPORT IAW NAVSEA INSTRUCTION 10560.2B |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | MK21MOD1 DIVING HELMET-SUPERLITE-AIR/MIXED |
| MANUFACTURERS CODE | 53711 |
| MFR SOURCE CONTROLLING REFERENCE | 6318146 |
Restrictions/Controls & Freight Information | NSN 5310-01-347-4305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-347-4305
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | VS | Diving equipment |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
