NSN 5310-01-344-5944 6384953002, 63-8495-3002, 01-344-5944
Product Details | FLAT WASHER
5310-01-344-5944 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: 6384953002, 63-8495-3002, 5310-01-344-5944, 01-344-5944, 5310013445944, 013445944
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 SEP 1991 | 01-344-5944 | 13393 ( WASHER, FLAT ) |

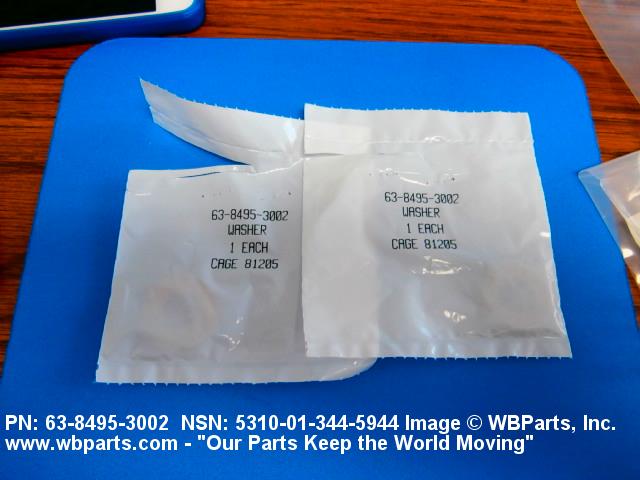

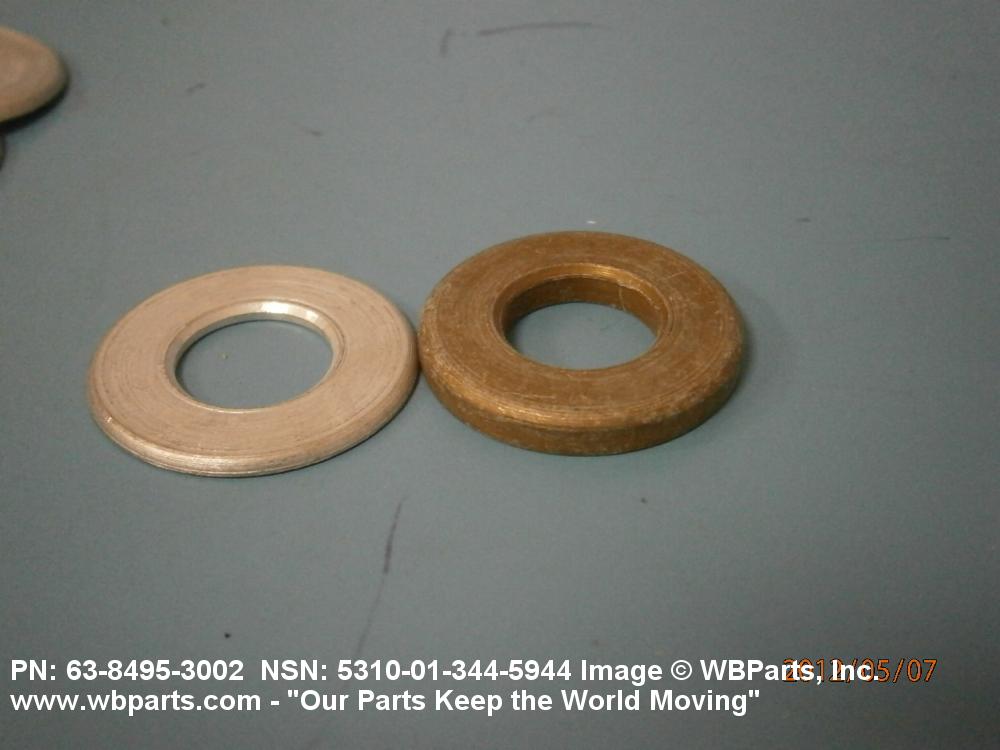

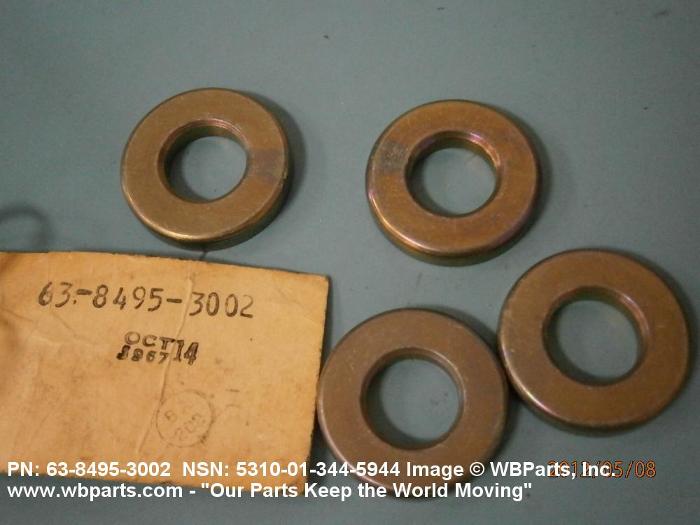

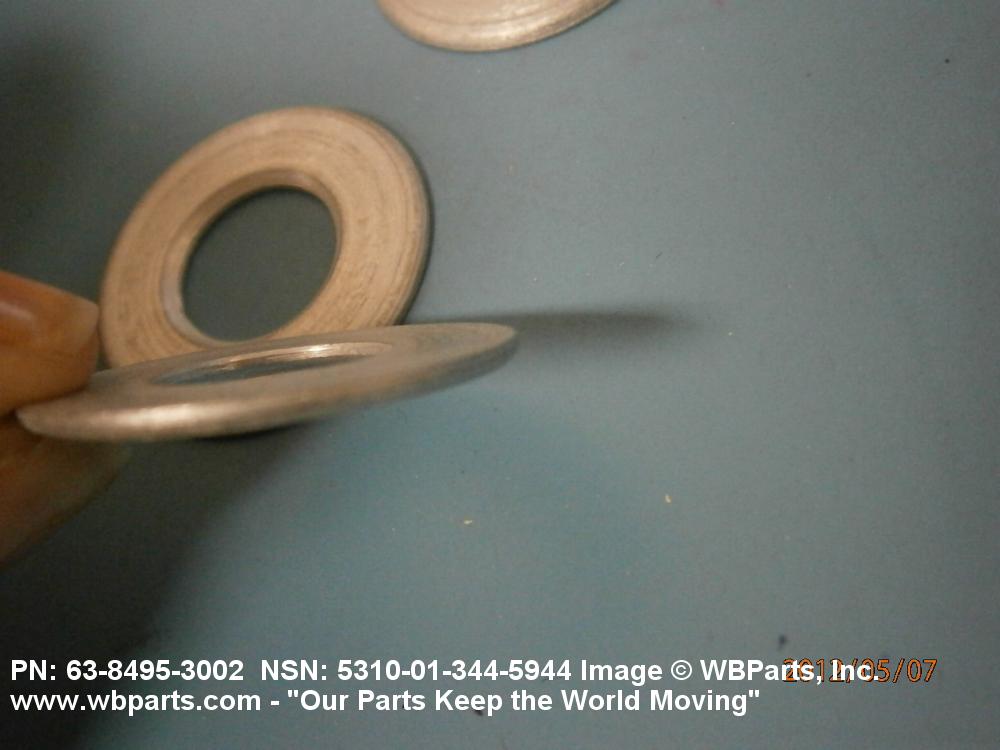

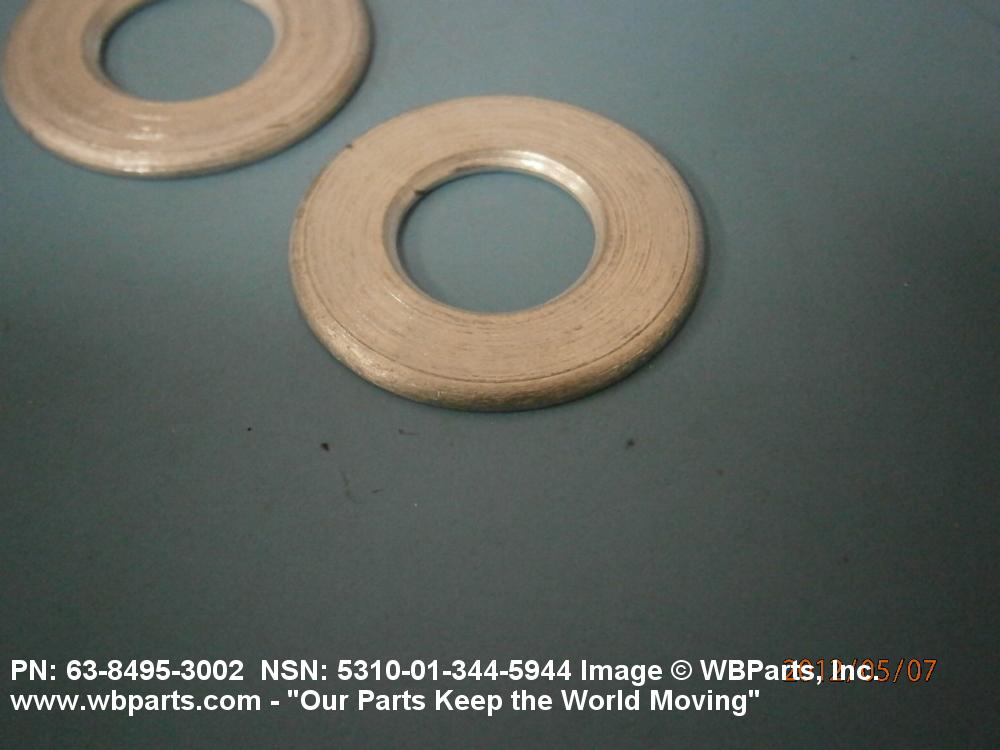

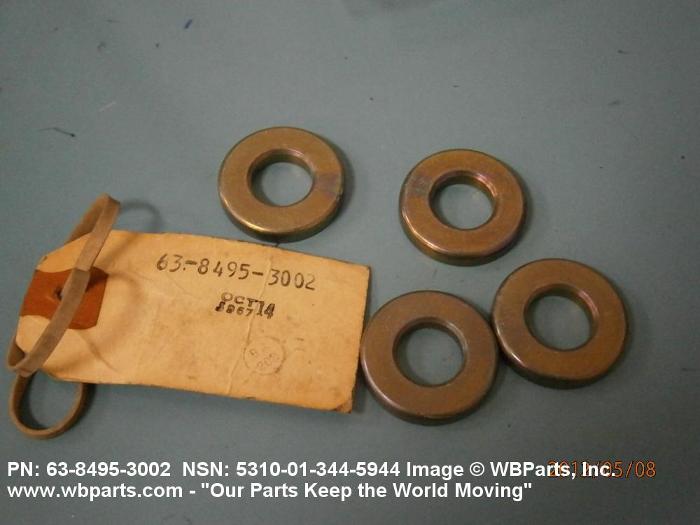

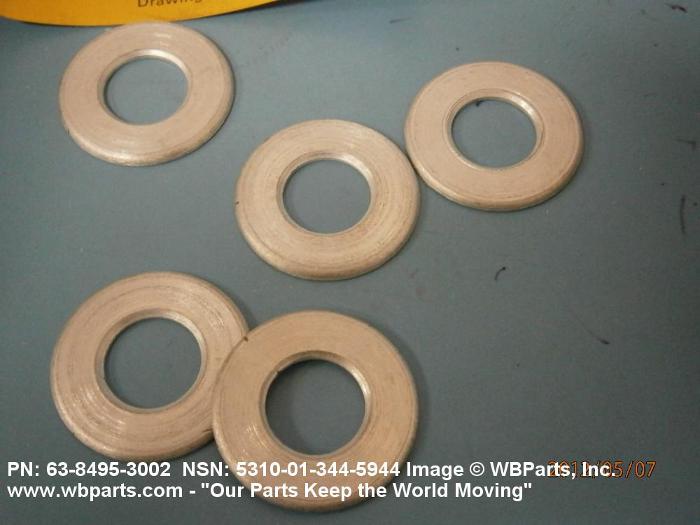

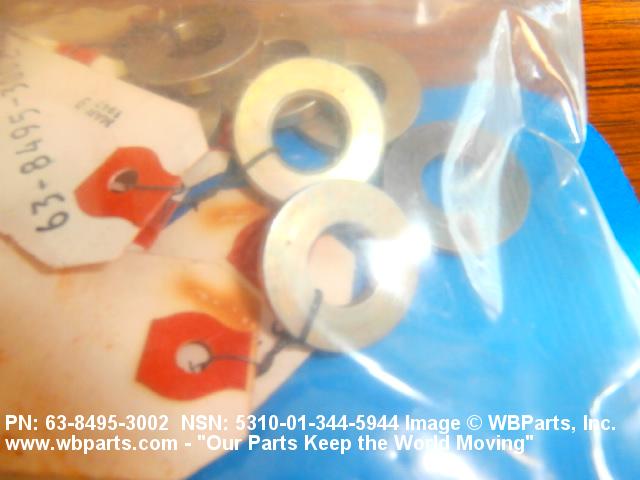

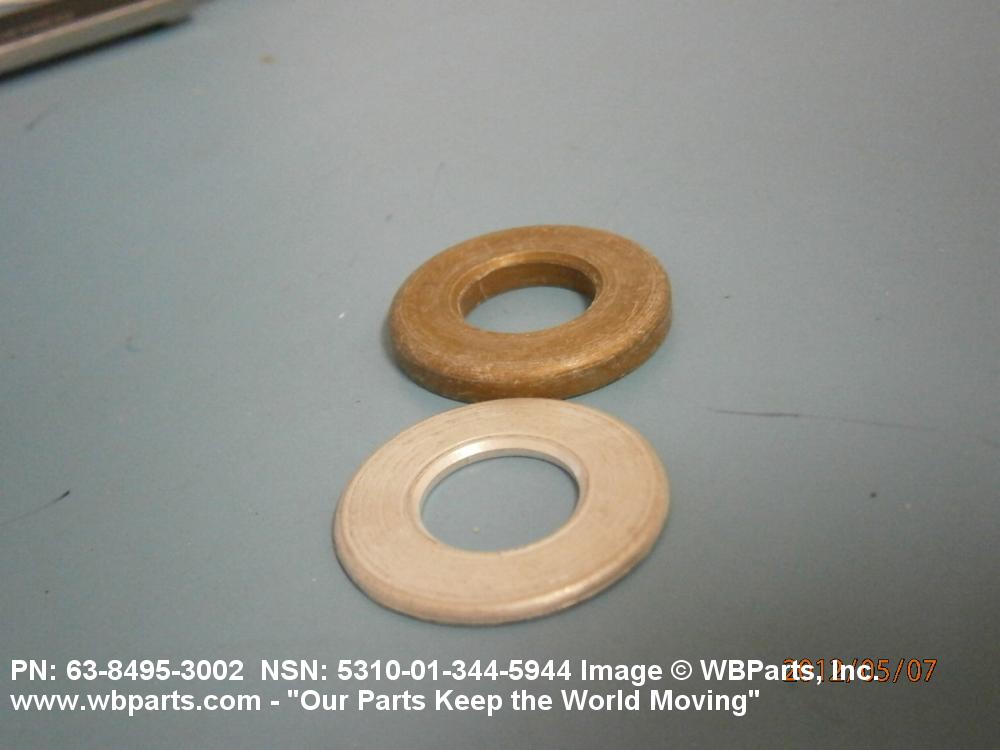

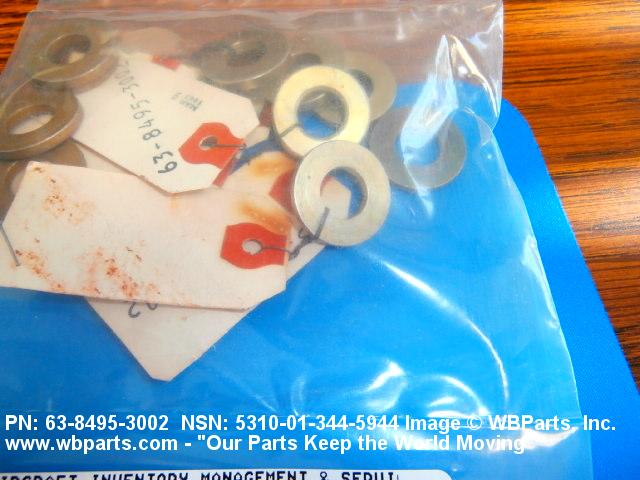

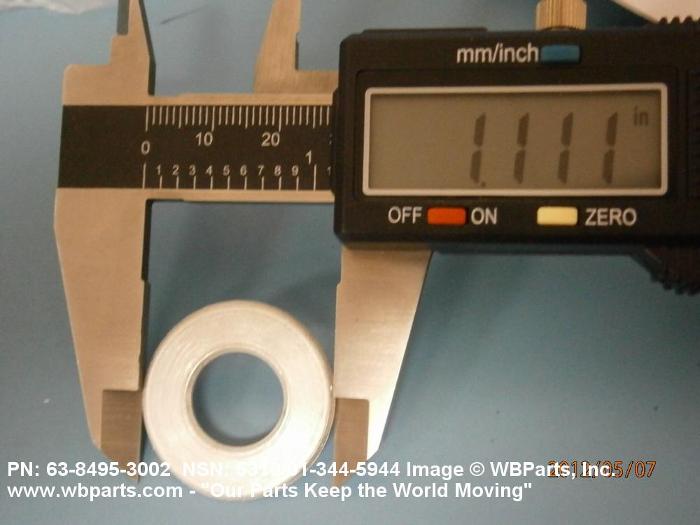

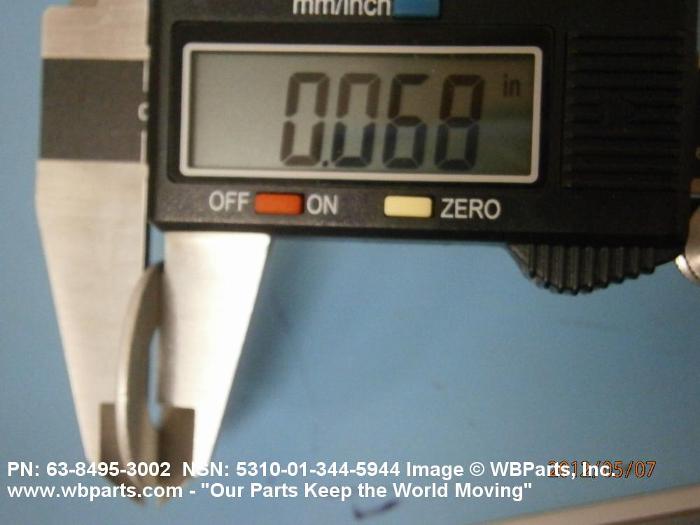

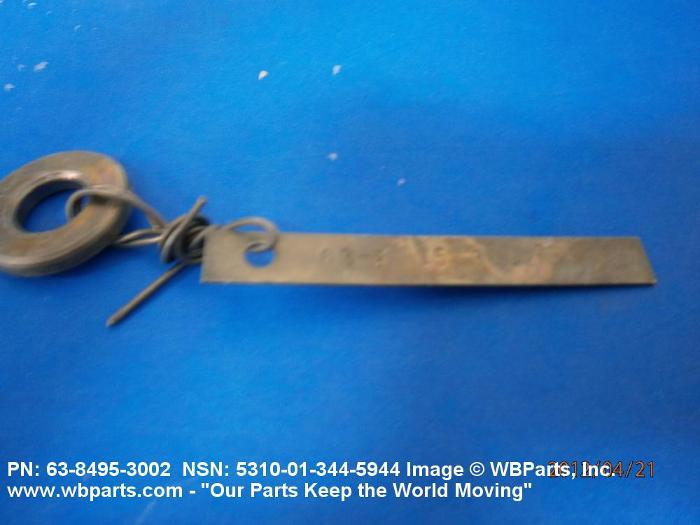

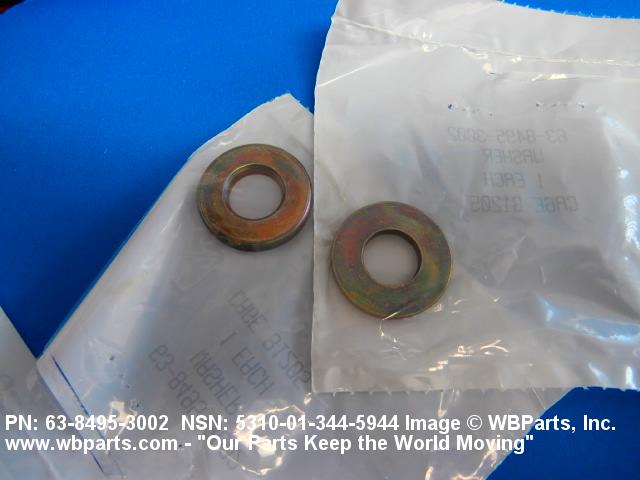

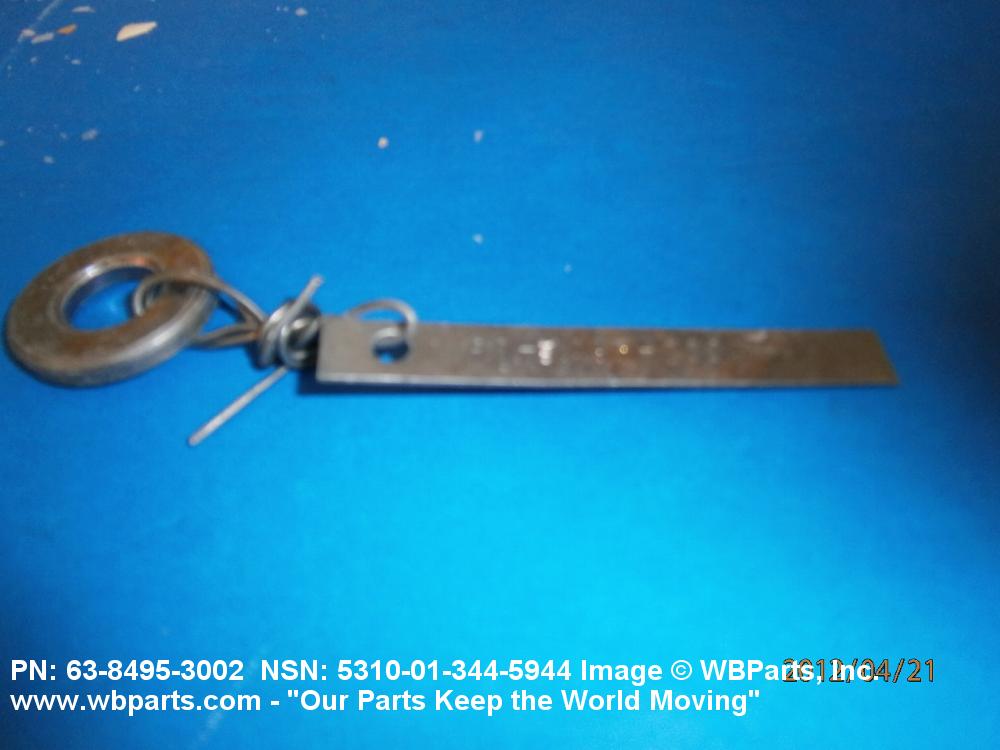

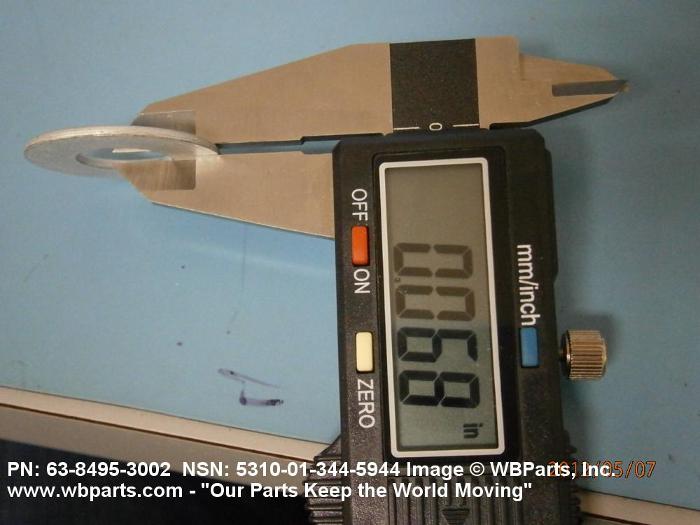

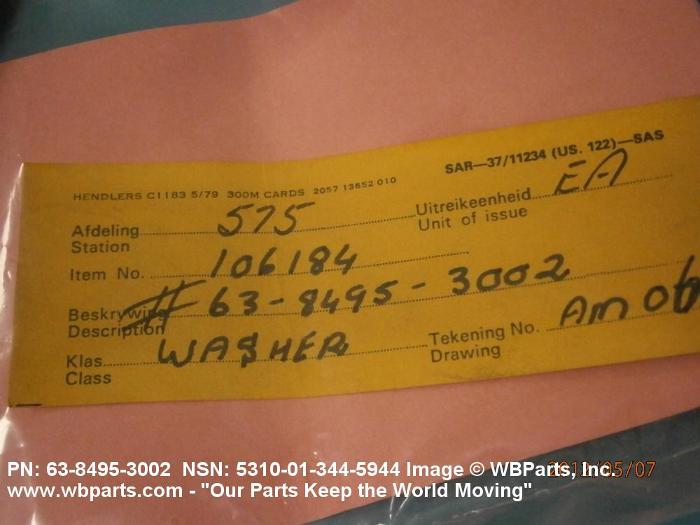

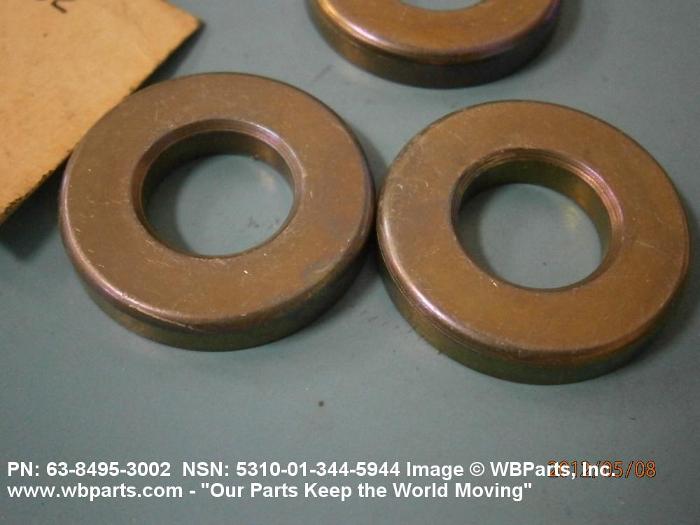

Drawings & Photos | NSN 5310-01-344-5944
Demand History | NSN 5310-01-344-5944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-344-5944 | 2020-08-238 | 50 | US |
| 6384953002 | 2020-08-225 | 210 | United States |
| 6384953002 | 2020-08-225 | 524 | United States |
| 6384953002 | 2020-08-225 | 840 | United States |
| 6384953002 | 2014-08-225 | 18 | United States |
| 5310-01-344-5944 | 2014-03-82 | 263 | DIBBS |
| 5310-01-344-5944 | 2013-02-43 | 265 | DIBBS |
| 5310-01-344-5944 | 2012-10-291 | 113 | DIBBS |
| 6384953002 | 2012-10-285 | 50 | United States |
| 6384953002 | 2012-10-285 | 100 | United States |
| 6384953002 | 2012-10-285 | 150 | United States |
| 6384953002 | 2012-10-285 | 200 | United States |
| 6384953002 | 2012-10-285 | 250 | United States |
| 6384953002 | 2012-10-284 | 50 | United States |
| 6384953002 | 2012-07-207 | 35 | United States |
| 6384953002 | 2012-05-125 | 40 | United States |
| 5310-01-344-5944 | 2012-04-114 | 113 | DIBBS |
| 6384953002 | 2012-04-109 | 40 | United States |
| 6384953002 | 2012-04-100 | 40 | United States |
| 6384953002 | 2012-04-100 | 50 | United States |
| 5310-01-344-5944 | 2012-03-74 | 88 | DIBBS |
| 5310-01-344-5944 | 2011-09-256 | 35 | US |
| 5310-01-344-5944 | 2011-08-242 | 35 | DIBBS |
| 5310-01-344-5944 | 2008-10-305 | 84 | DIBBS |
| 5310-01-344-5944 | 2008-05-136 | 182 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-344-5944
Technical Data | NSN 5310-01-344-5944
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-685 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HOLE DIAMETER | 0.530 INCHES NOMINAL |
| PERIPHERAL SHAPE STYLE | 1 ROUND |
| OVERALL DIAMETER | 1.200 INCHES NOMINAL |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

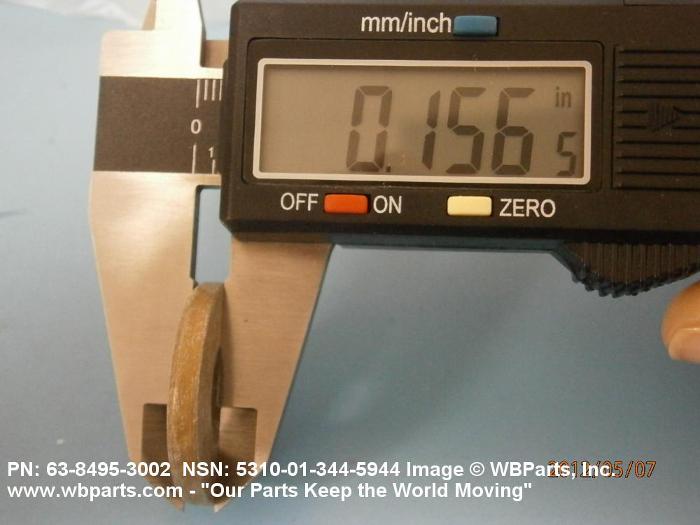

| THICKNESS | 0.156 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-344-5944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-344-5944
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
