Product Details | PLATE SELF-LOCKING NUT

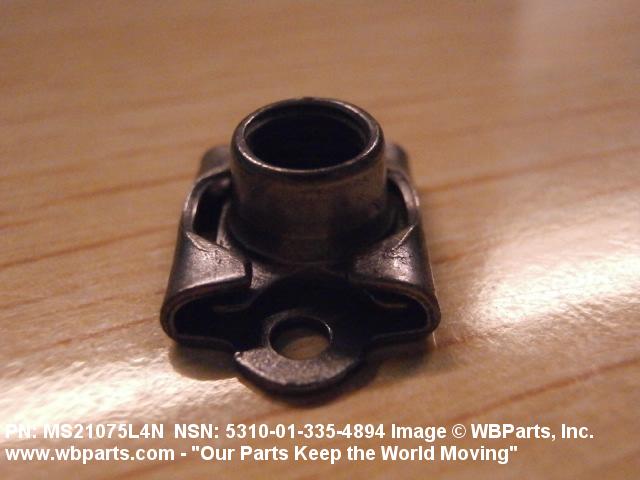

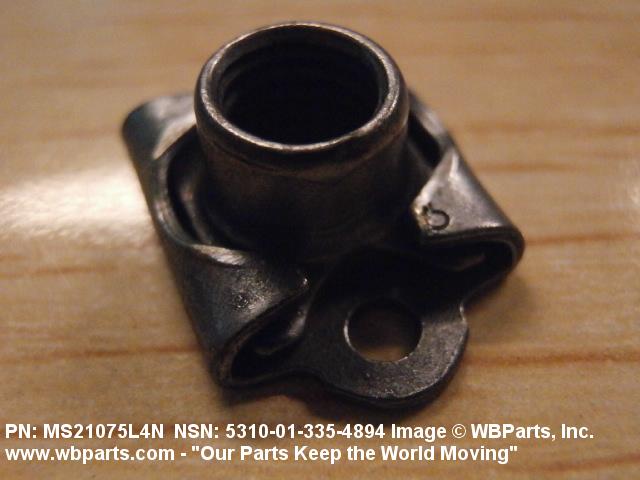

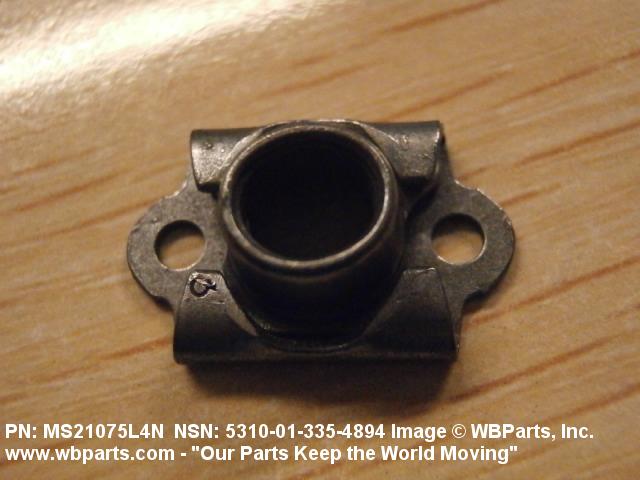

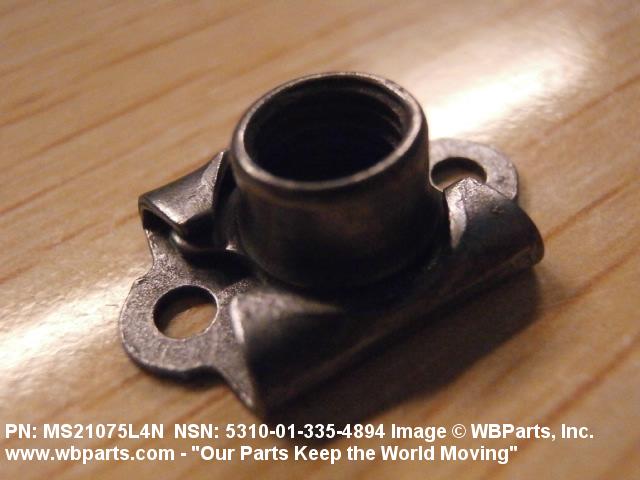

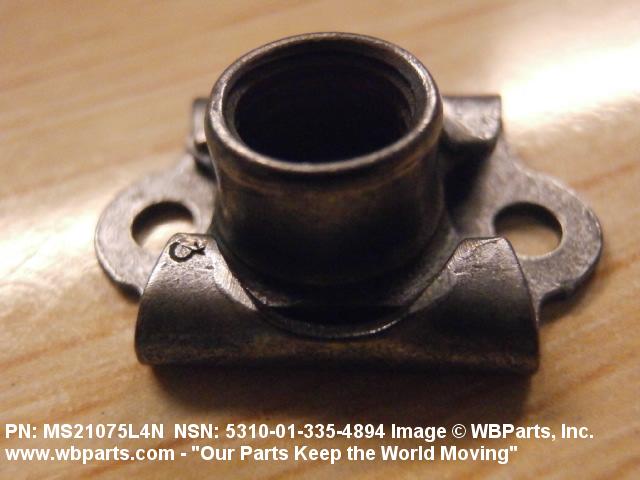

5310-01-335-4894 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21075L4N, 5310-01-335-4894, 01-335-4894, 5310013354894, 013354894

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 10 MAR 1991 01-335-4894

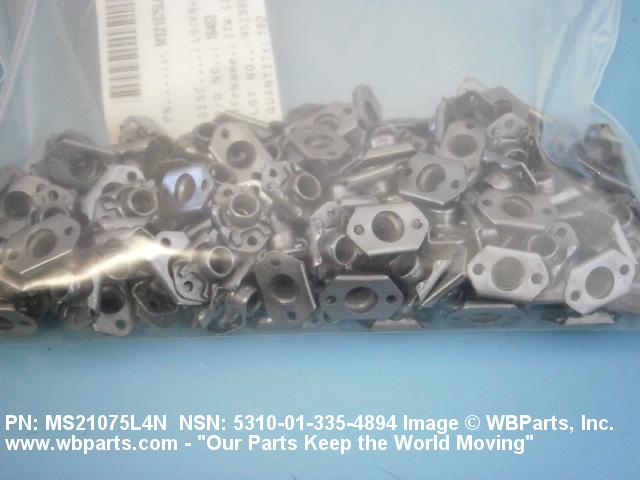

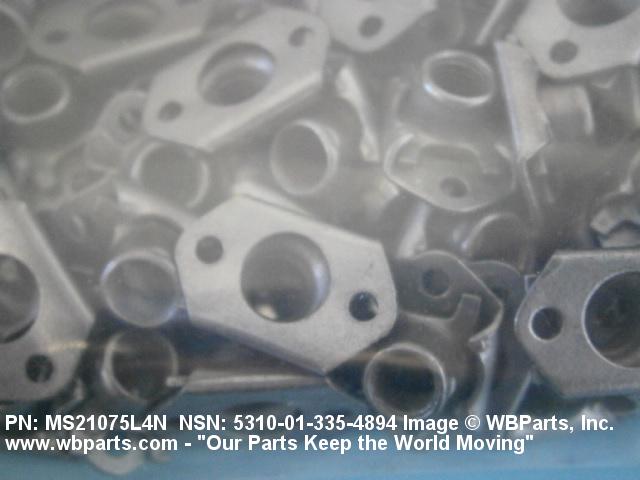

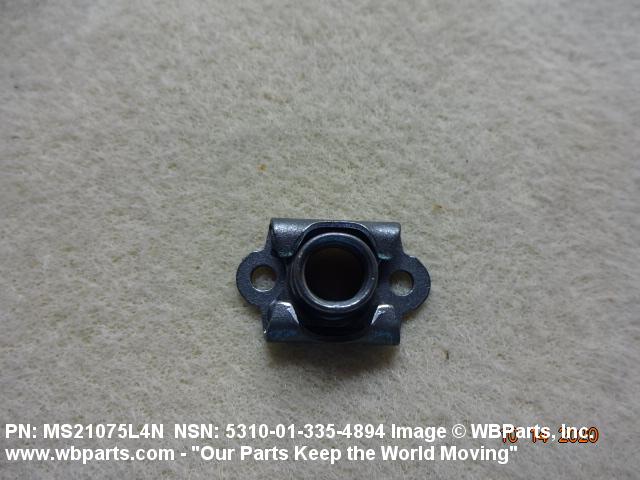

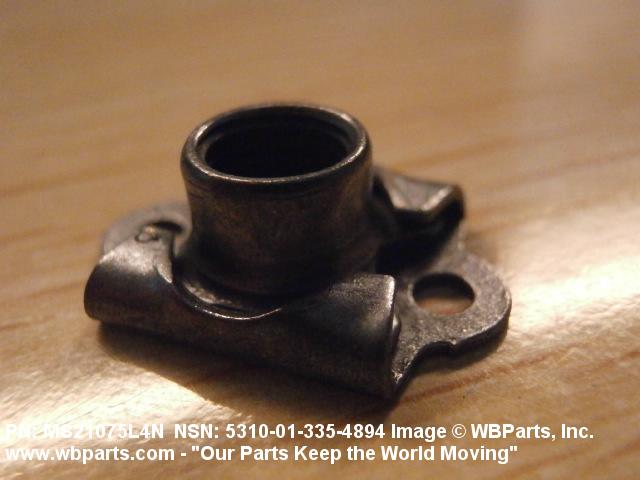

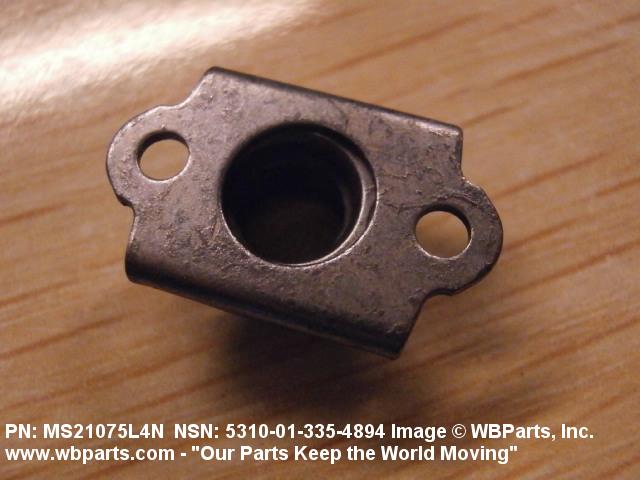

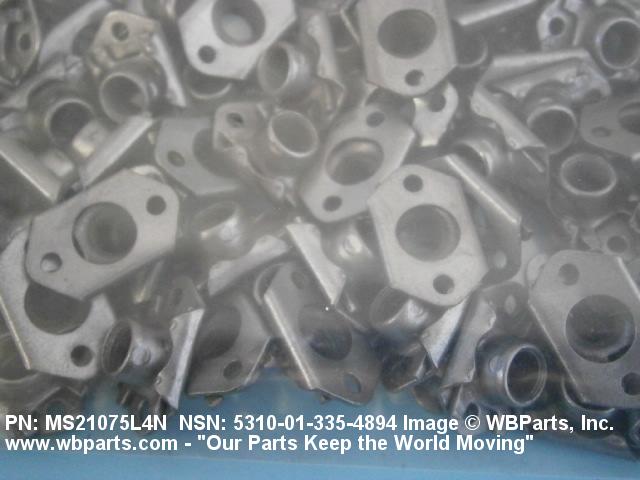

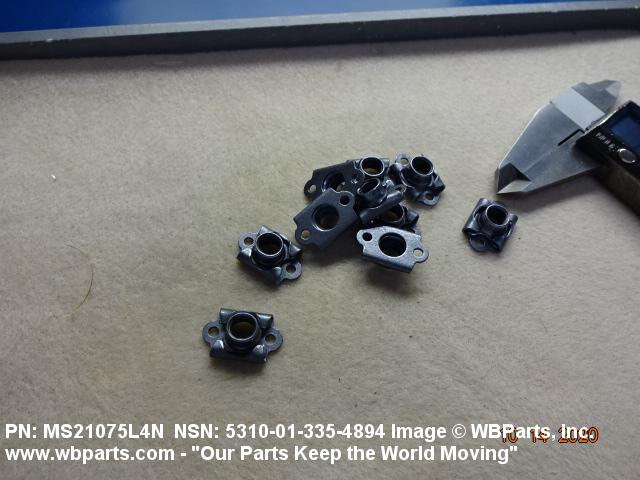

Drawings & Photos | NSN 5310-01-335-4894


Demand History | NSN 5310-01-335-4894

Part Number Request Date QTY Origin
MS21075L4N 2024-11-330 9 United States
MS21075L4N 2024-11-319 120 Japan
MS21075L4N 2023-12-340 200 Czech Republic
MS21075L4N 2020-01-28 250 CA
MS21075L4N 2019-08-213 60 us
MS21075L4N 2019-08-213 100 us
MS21075L4N 2019-06-164 30 Greece
5310-01-335-4894 2017-07-208 11096 DIBBS
5310-01-335-4894 2017-07-199 12570 DIBBS
5310-01-335-4894 2017-05-128 10114 DIBBS
5310-01-335-4894 2017-02-32 1 DIBBS-RFPs
MS21075L4N 2016-07-187 15 United States
5310-01-335-4894 2016-02-35 10521 DIBBS
5310-01-335-4894 2015-04-97 14804 DIBBS
MS21075L4N 2015-03-71 12000 TH
5310-01-335-4894 2014-11-317 14804 DIBBS
5310-01-335-4894 2014-11-306 14804 DIBBS
MS21075L4N 2014-04-99 60 Taiwan
MS21075L4N 2014-02-43 100 United States
5310-01-335-4894 2013-08-238 8 United States
MS21075L4N 2013-05-134 50 CZ
5310-01-335-4894 2012-11-310 27645 DIBBS
5310-01-335-4894 2012-09-264 26525 DIBBS
5310-01-335-4894 2012-05-149 100 Canada
MS21075L4N 2011-10-285 120 US
5310-01-335-4894 2011-07-189 500 United Arab Emirates
MS21075L4N 2011-07-186 500 United Arab Emirates
5310-01-335-4894 2010-11-308 65 US
5310-01-335-4894 2009-11-316 10 us
5310-01-335-4894 2009-06-152 7300 US
5310-01-335-4894 2009-02-57 100 India
5310-01-335-4894 2009-01-14 5000 Sweden
MS21075L4N 2008-10-298 8 us
5310-01-335-4894 2008-10-288 3000 Sweden
5310-01-335-4894 2008-08-220 16 US
5310-01-335-4894 2008-05-151 2850 United States
MS21075L4N 2008-01-22 14600 United Kingdom
MS21075L4N 2007-09-257 30 United States

Cross Reference | NSN 5310-01-335-4894

Part Number Cage Code Manufacturer
MS21075L4N 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21075L4N 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-335-4894

Technical Data | NSN 5310-01-335-4894

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.250 INCHES
THREAD QUANTITY PER INCH 28
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 1035 OR STEEL COMP 4130 OR STEEL COMP 1060 OR STEEL COMP 1040 OR STEEL COMP 1042 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AAMS5080 ASSN STD 1ST MATERIAL RESPONSE OR AAMS 6350 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 40.0 ROCKWELL C MAXIMUM
NUT STYLE A123 PLATE

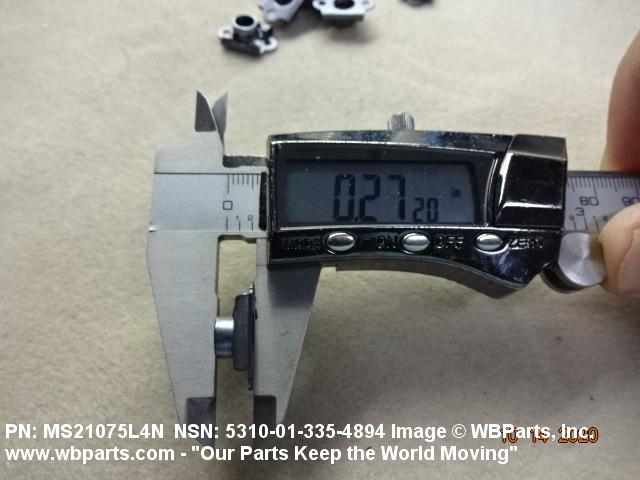

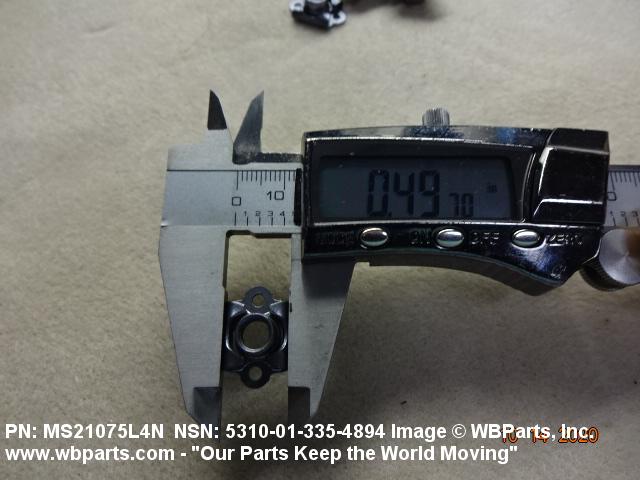

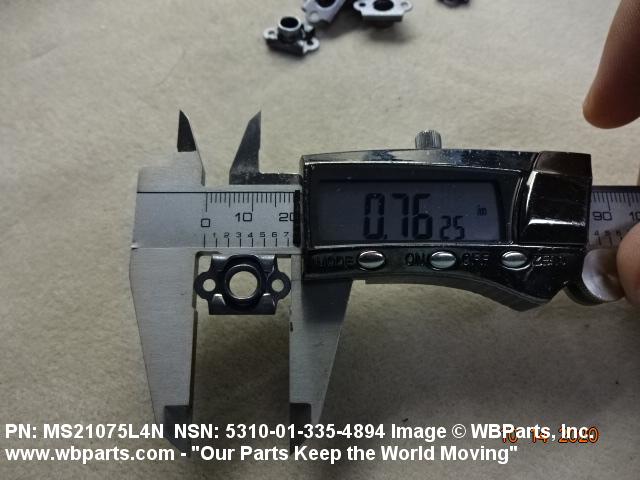

NUT LENGTH 0.801 INCHES MAXIMUM

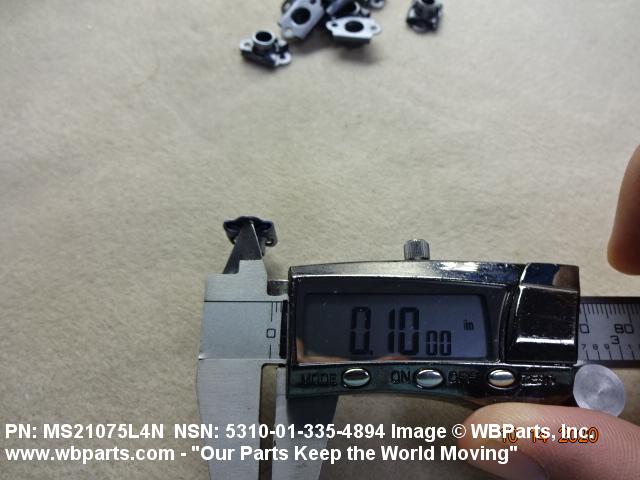

NUT HEIGHT 0.281 INCHES MAXIMUM

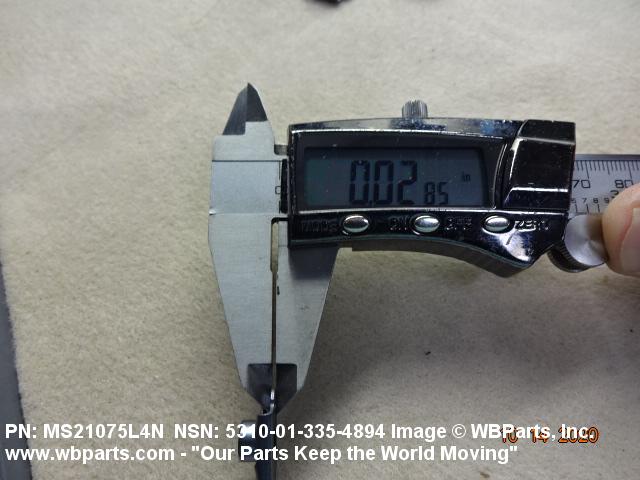

PLATE THICKNESS 0.027 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
PLATE WIDTH 0.350 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
COUNTERBORE DIAMETER 0.254 INCHES NOMINAL NUT
LUBRICATION DRY FILM LUBRICANT
NUT MOUNTING PROVISION STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE F38 2 HOLES
MOUNTING HOLE DIAMETER 0.100 INCHES MINIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER 0.143 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH 0.286 INCHES MAXIMUM
TEMP RATING 450.0 DEG FAHRENHEIT NOMINAL
