NSN 5310-01-331-5207 S8157AG243047, S8157AG243-047, 01-331-5207
Product Details | FLAT WASHER
5310-01-331-5207 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: S8157AG243047, S8157AG243-047, 5310-01-331-5207, 01-331-5207, 5310013315207, 013315207
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 DEC 1990 | 01-331-5207 | 13393 ( WASHER, FLAT ) |

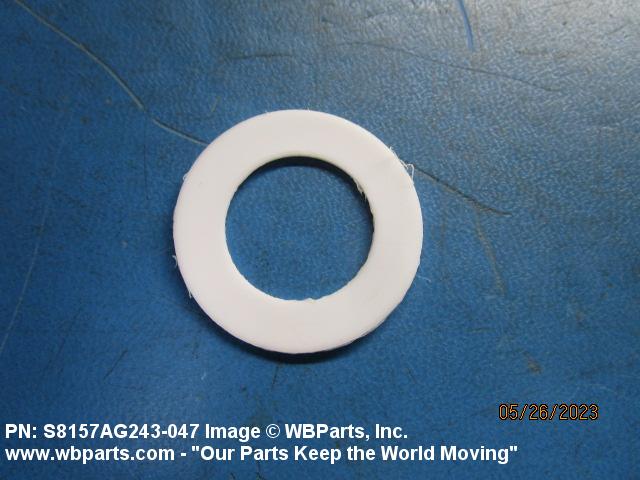

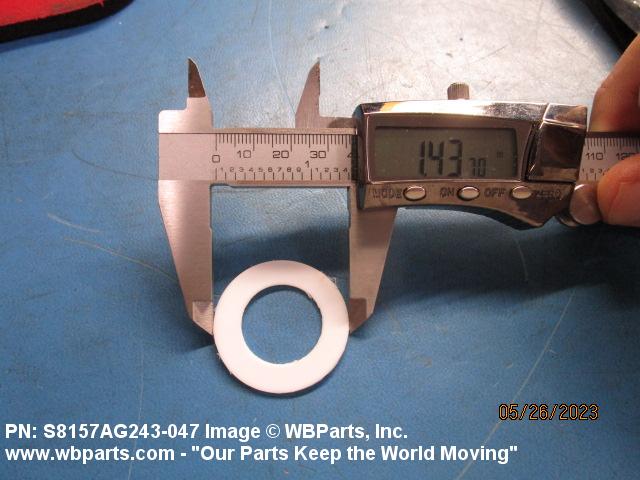

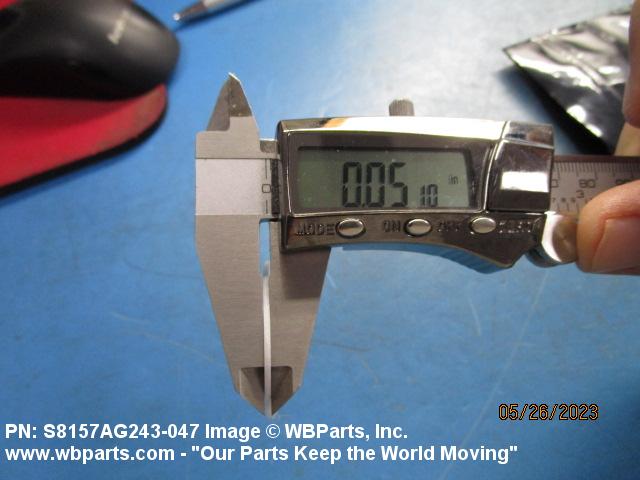

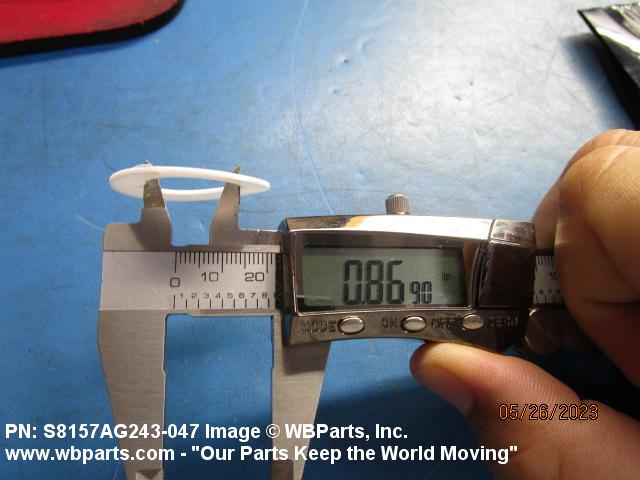

Drawings & Photos | NSN 5310-01-331-5207
Demand History | NSN 5310-01-331-5207
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-331-5207 | 2023-10-303 | 5 | PT |
| S8157AG243047 | 2023-02-47 | 1 | United States |
| S8157AG243047 | 2009-08-217 | 50 | Colombia |
Cross Reference | NSN 5310-01-331-5207
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S8157AG243-047 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-331-5207
Technical Data | NSN 5310-01-331-5207
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | MQ-9 REAPER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | WASHER,FUEL FILTER |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | S8157AG243-047 |
Restrictions/Controls & Freight Information | NSN 5310-01-331-5207
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5310-01-331-5207
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Materiel Management Aggregation Code | TQ | TF:REAPER/MQ9 |
| Source of Supply | F83 | General Atomics-Aeronautical Systems 16761 Via Del Campo Court San Diego, CA 92127-1713 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
