Product Details | KEY WASHER

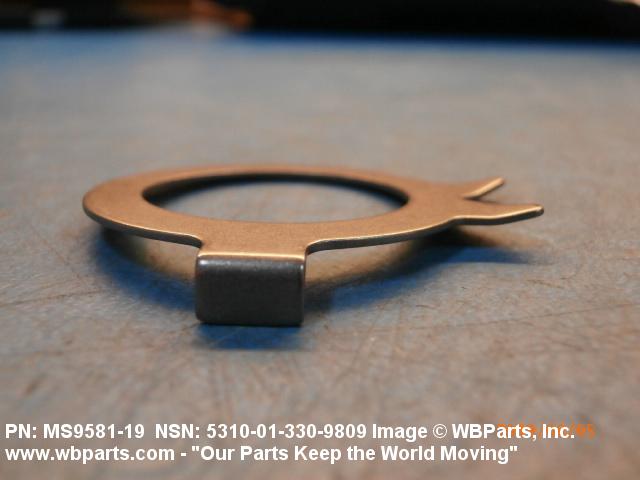

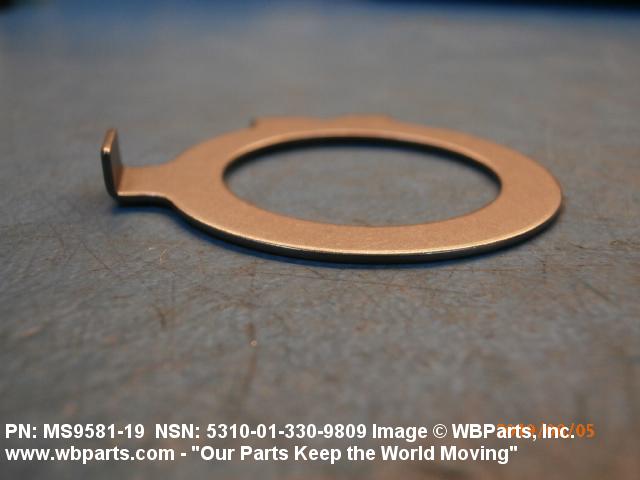

5310-01-330-9809 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: MS958119, MS9581-19, 5310-01-330-9809, 01-330-9809, 5310013309809, 013309809
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 DEC 1990 | 01-330-9809 | 01869 ( WASHER, KEY ) |

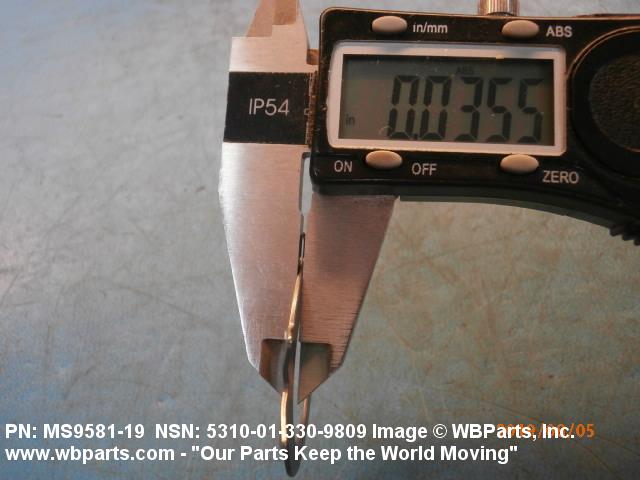

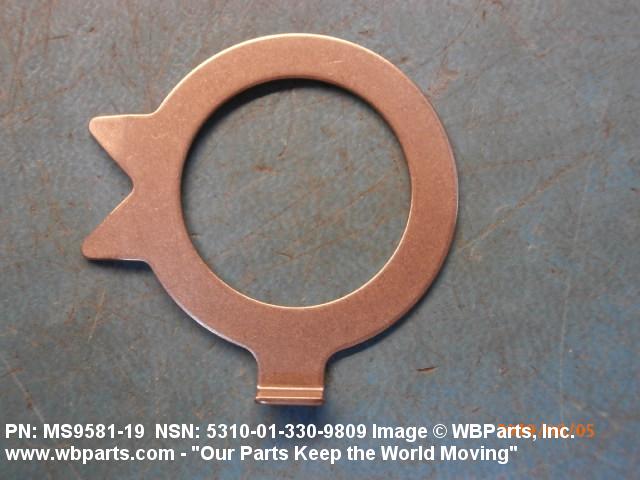

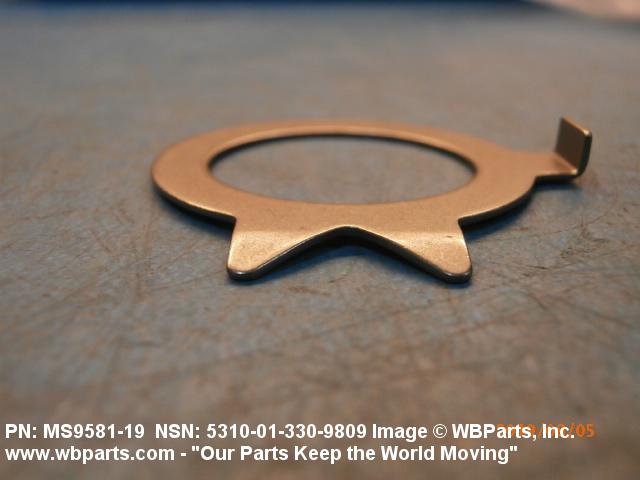

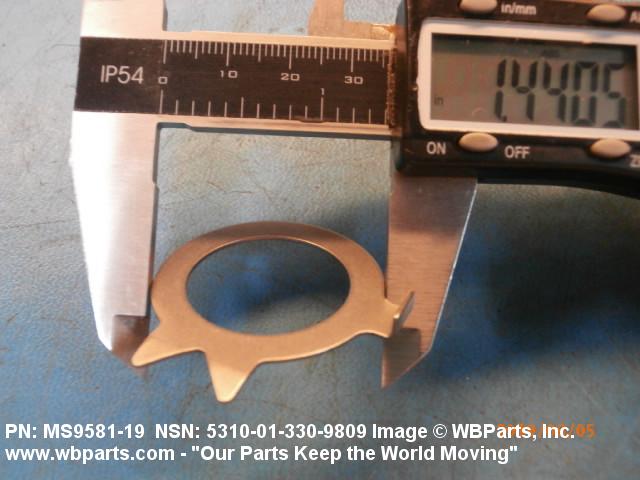

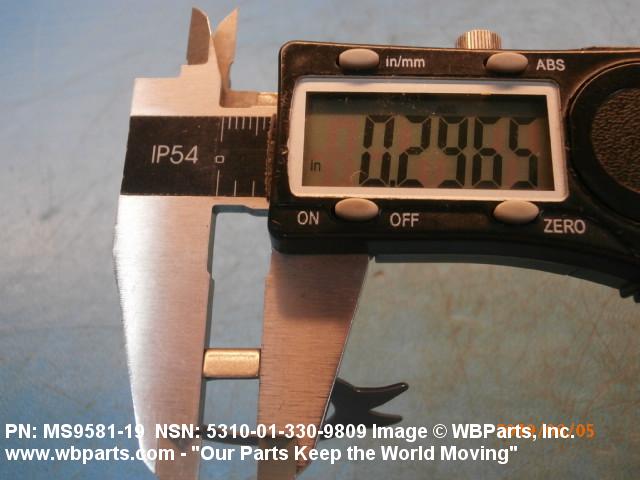

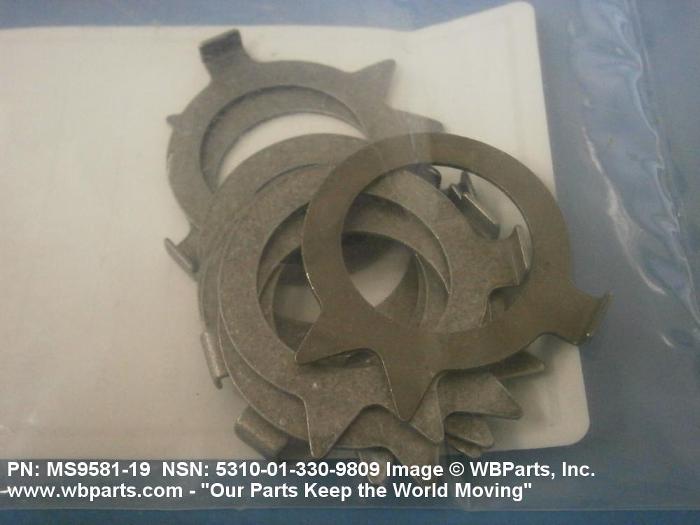

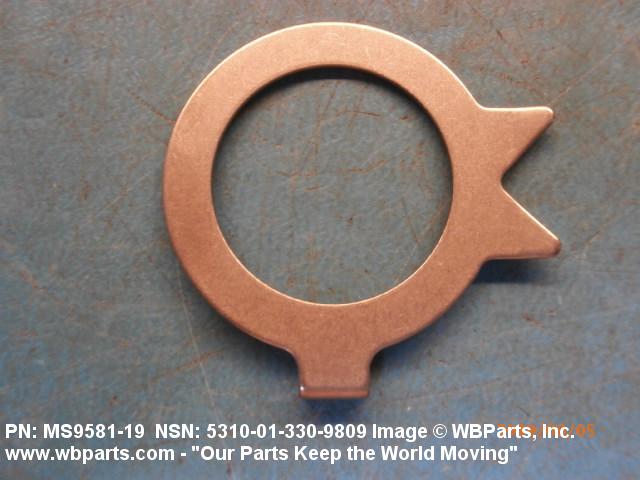

Drawings & Photos | NSN 5310-01-330-9809
Demand History | NSN 5310-01-330-9809
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS958119 | 2023-03-60 | 20 | US |
| MS958119 | 2022-12-355 | 30 | Germany |
| MS958119 | 2021-03-81 | 40 | United States |
| MS958119 | 2019-07-207 | 2 | United States |
| MS958119 | 2019-07-205 | 10 | United States |
| 5310-01-330-9809 | 2019-07-191 | 94 | DIBBS |
| 5310-01-330-9809 | 2019-07-189 | 12 | United States |
| 5310-01-330-9809 | 2019-07-183 | 94 | DIBBS |
| 5310-01-330-9809 | 2014-01-15 | 133 | DIBBS |
| 5310-01-330-9809 | 2011-09-262 | 10 | Japan |
| 5310-01-330-9809 | 2011-04-117 | 120 | DIBBS |
| 5310-01-330-9809 | 2011-04-94 | 1 | JP |
| 5310-01-330-9809 | 2009-11-313 | 40 | DIBBS |
| MS958119 | 2008-06-163 | 40 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-330-9809
Related Products | NSN 5310-01-330-9809
Technical Data | NSN 5310-01-330-9809
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 175 90 DEGREE LOCKING KEY |

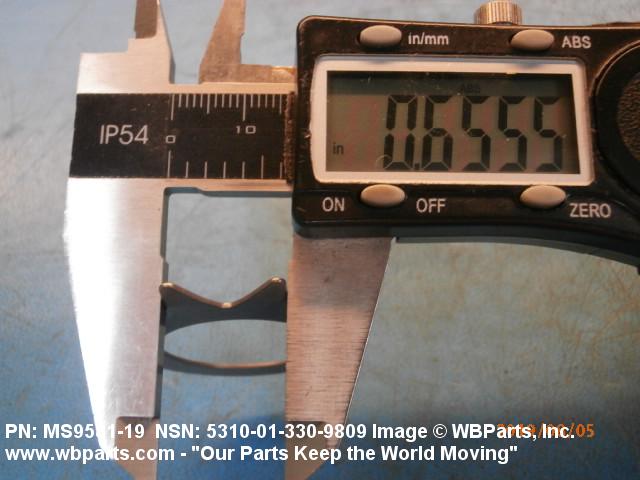

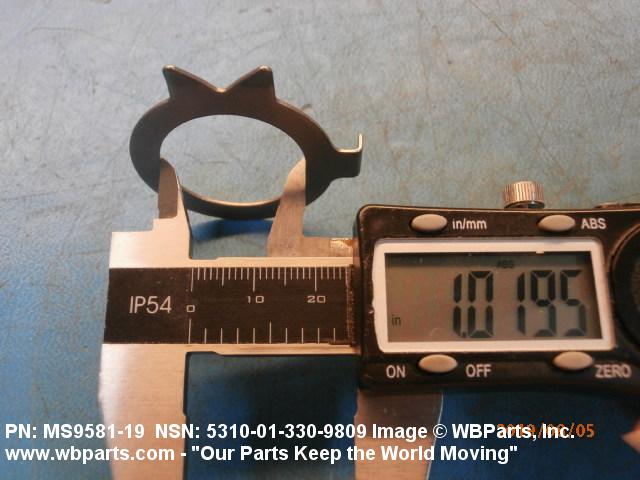

| HOLE DIAMETER | 1.015 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
